Pinpoint Test H: The Multifunction Switch/Hazard Switch Does Not Operate Correctly

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

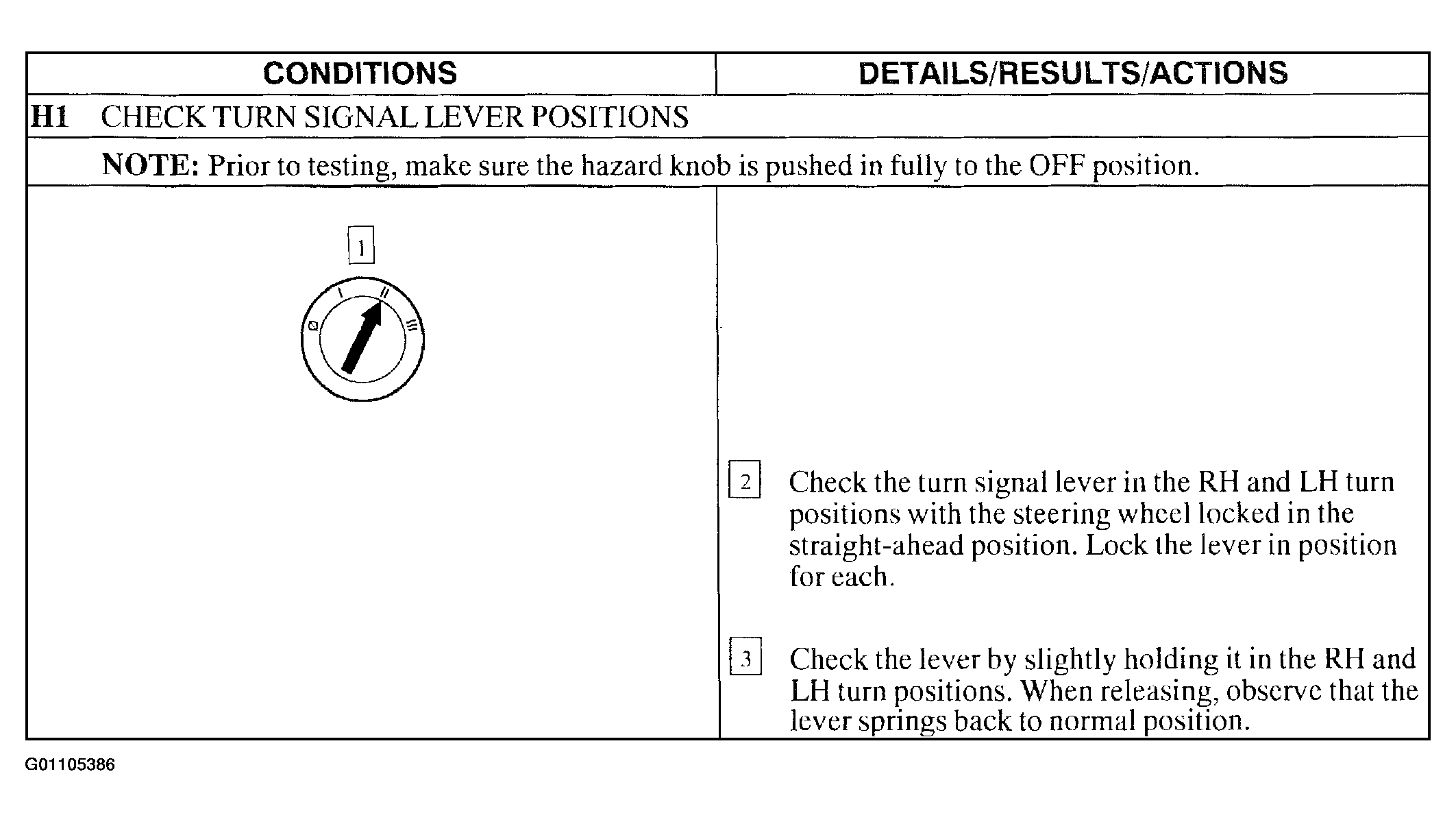

Fig 1: Pinpoint Test H: The Multifunction Switch/Hazard Switch Does Not Operate Correctly (Step H1)

Courtesy of FORD MOTOR CO.

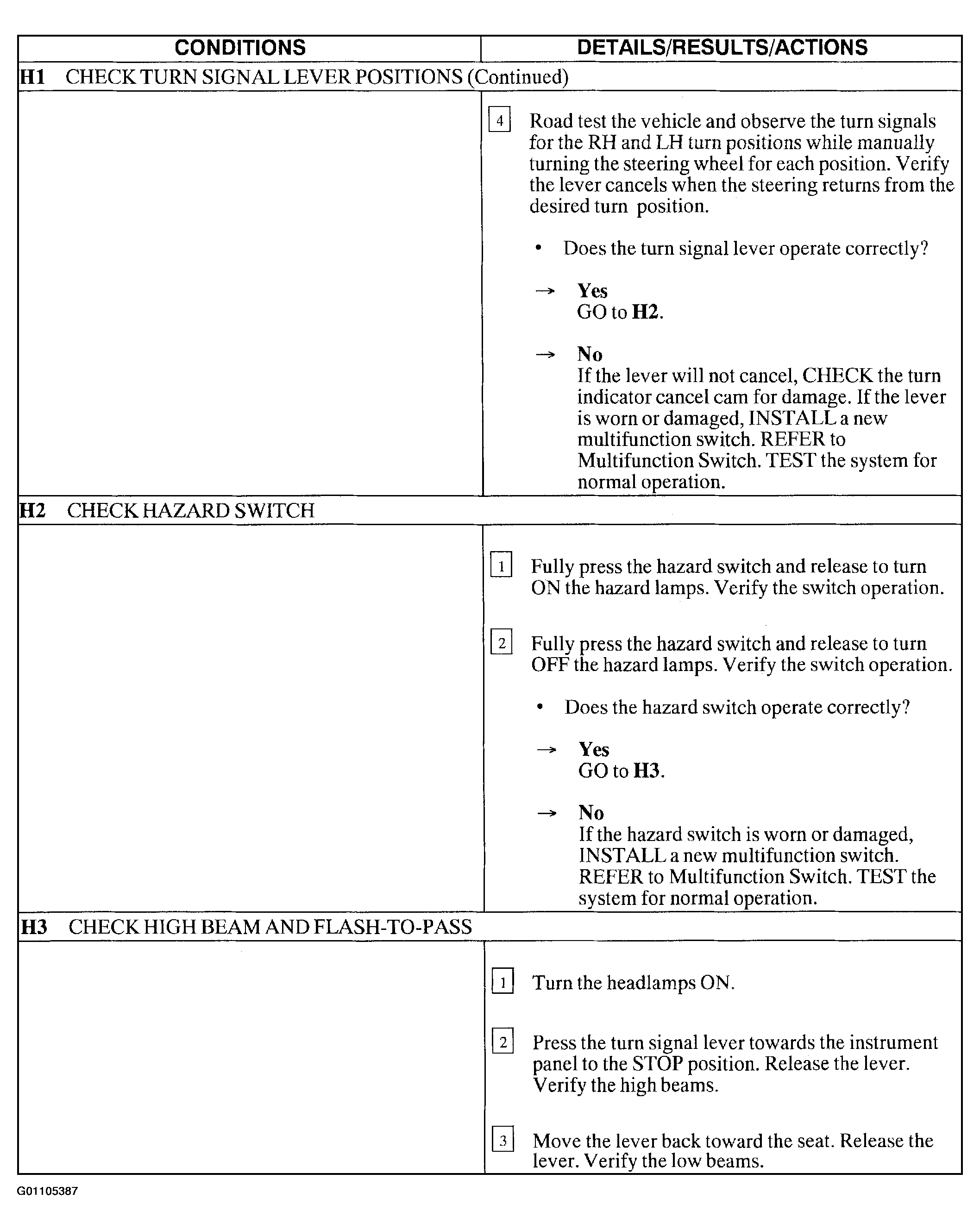

Fig 2: Pinpoint Test H: The Multifunction Switch/Hazard Switch Does Not Operate Correctly (Steps H1 Cont. -H3)

Courtesy of FORD MOTOR CO.

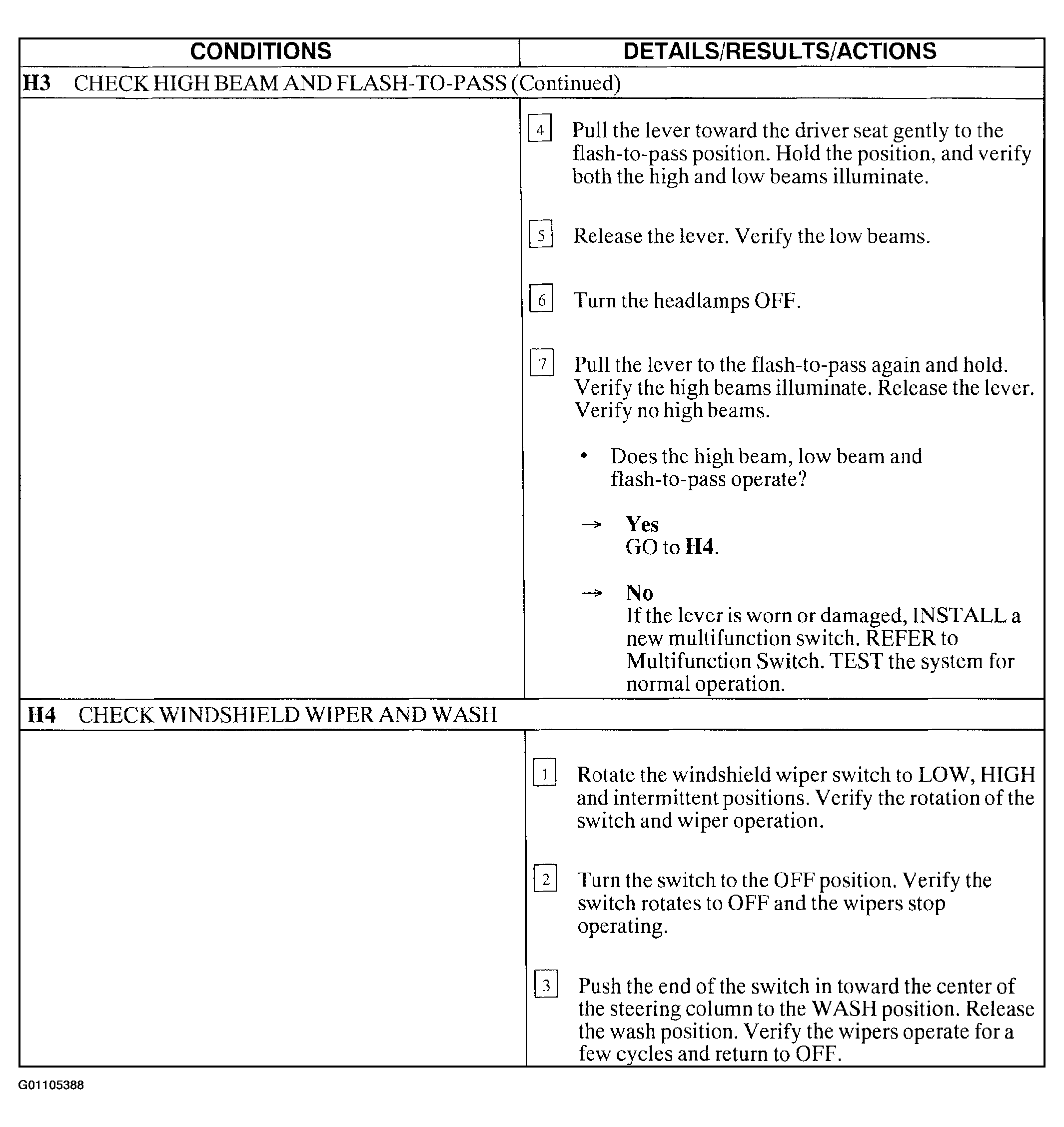

Fig 3: Pinpoint Test H: The Multifunction Switch/Hazard Switch Does Not Operate Correctly (Steps H3 Cont. -H4)

Courtesy of FORD MOTOR CO.

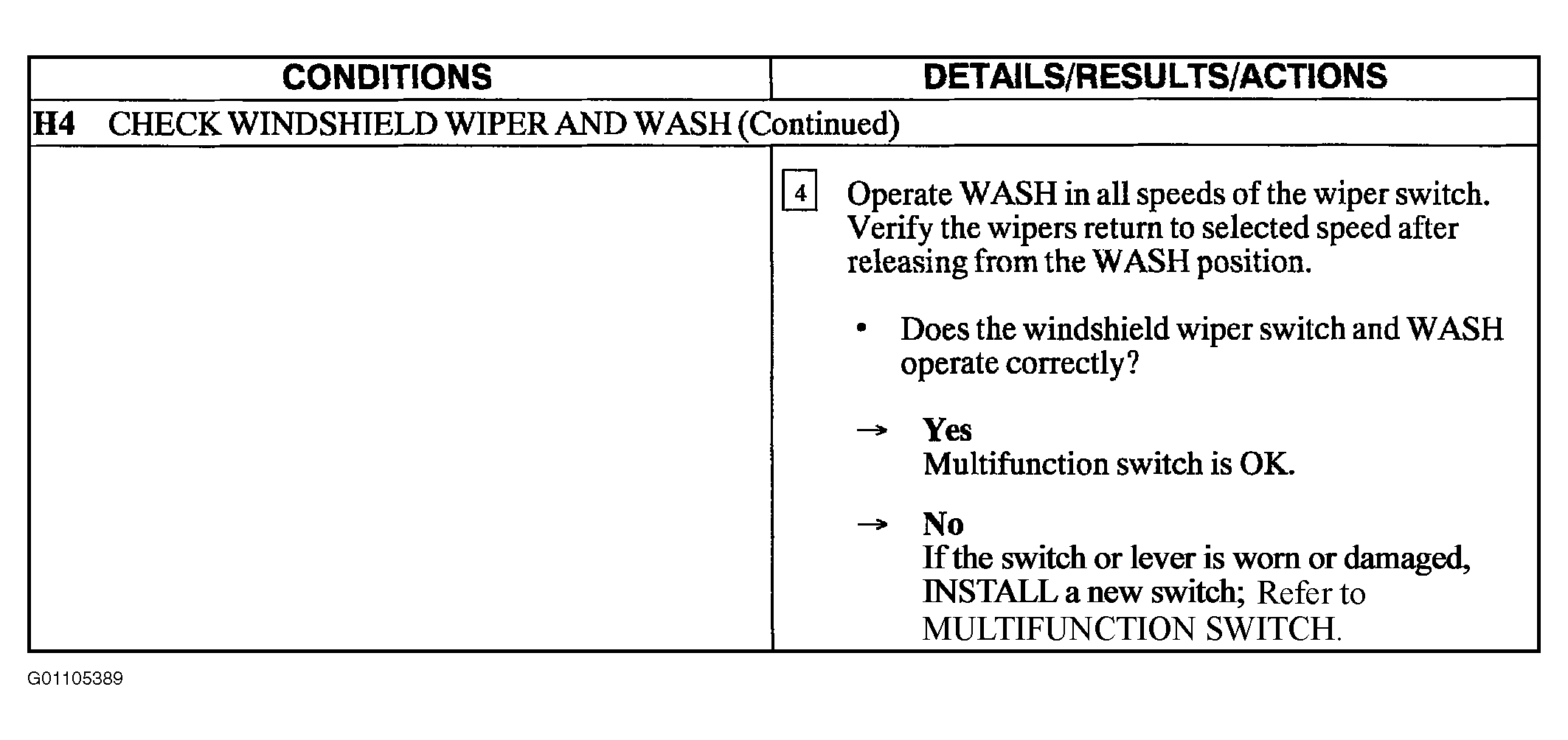

Fig 4: Pinpoint Test H: The Multifunction Switch/Hazard Switch Does Not Operate Correctly (Step H4 Cont.)

Courtesy of FORD MOTOR CO.
