Pinpoint Test D: No Communication With The Instrument Cluster Module

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

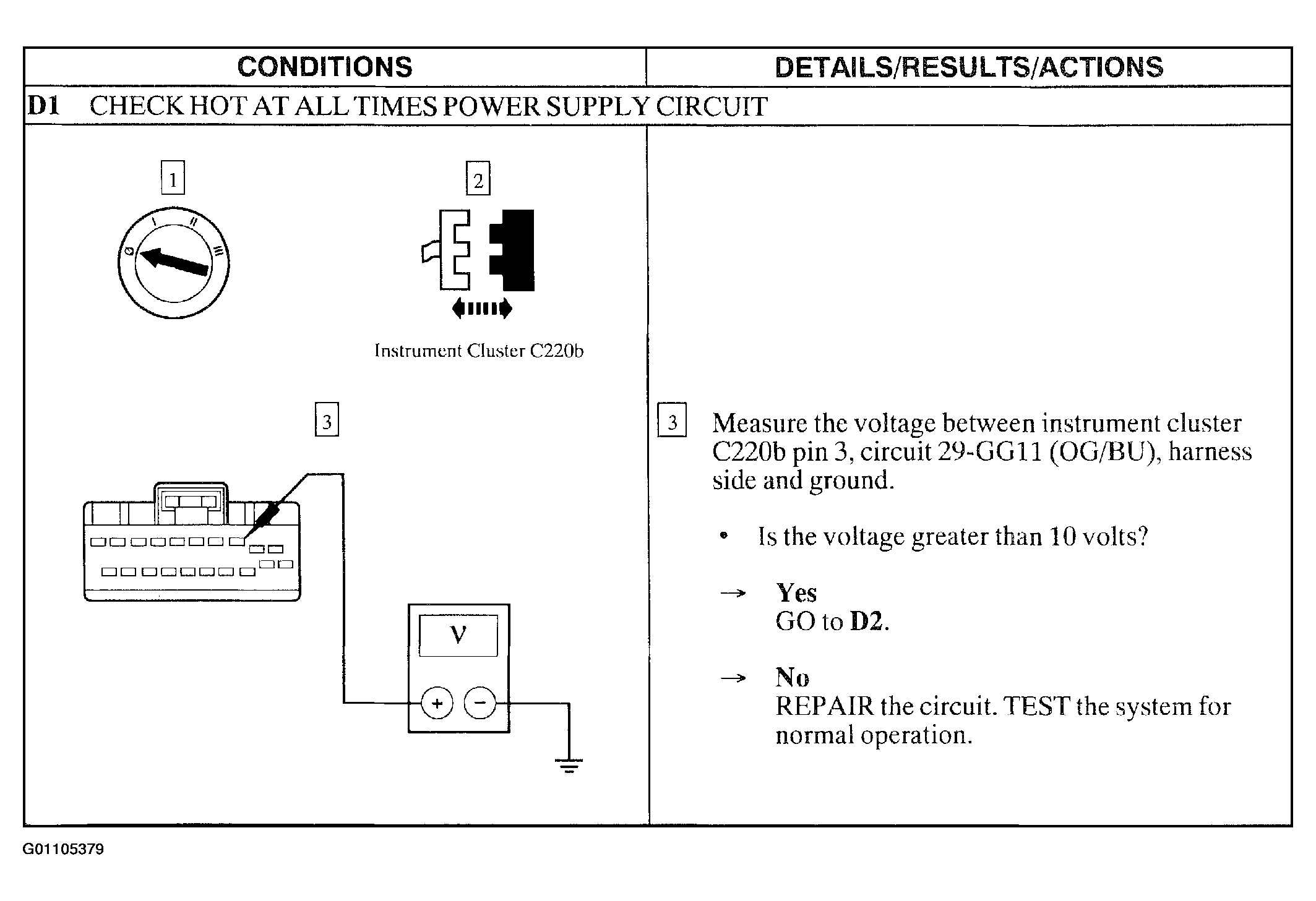

Fig 1: Pinpoint Test D: No Communication With The Instrument Cluster Module (Step D1)

Courtesy of FORD MOTOR CO.

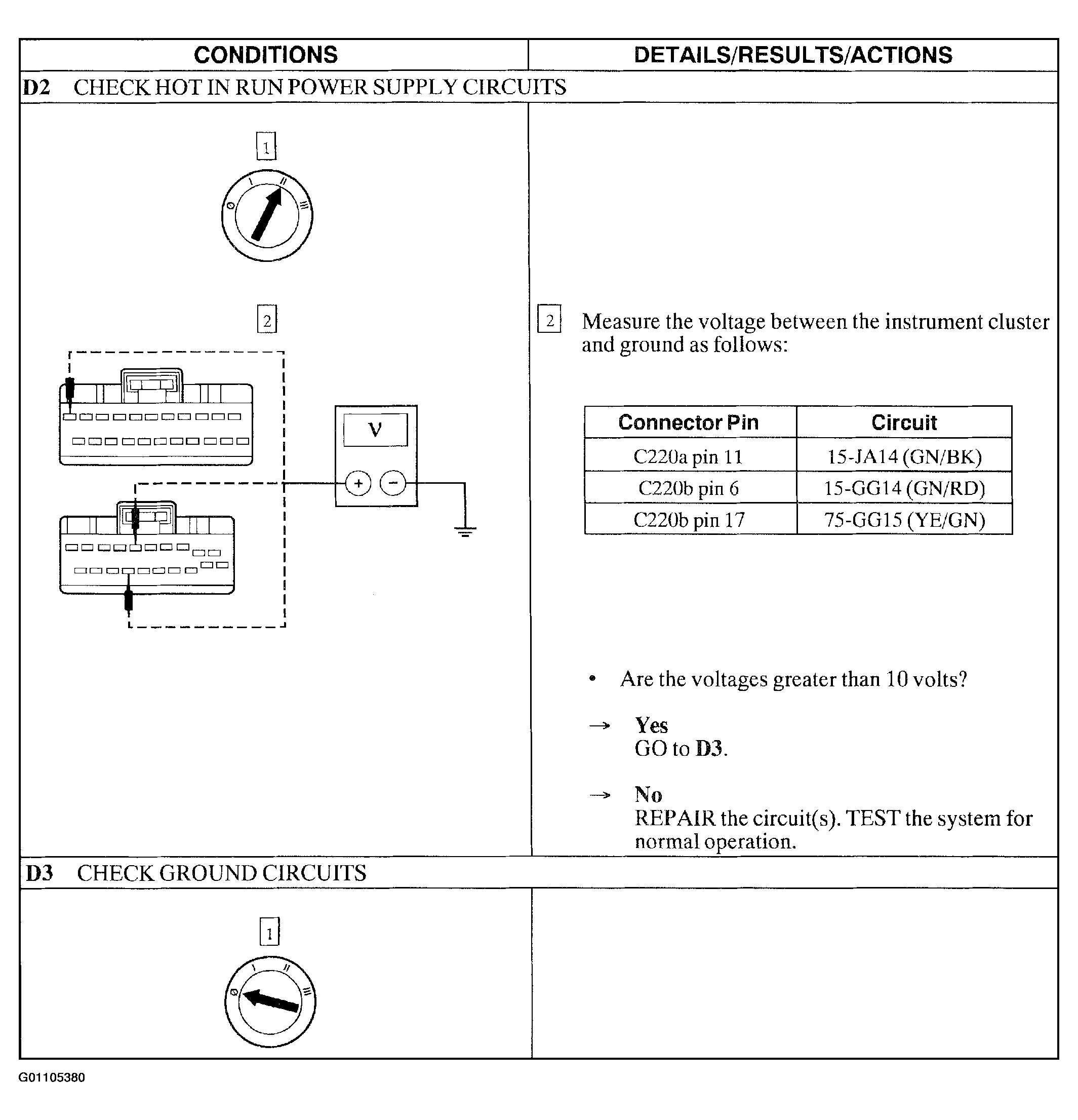

Fig 2: Pinpoint Test D: No Communication With The Instrument Cluster Module (Steps D2-D3)

Courtesy of FORD MOTOR CO.

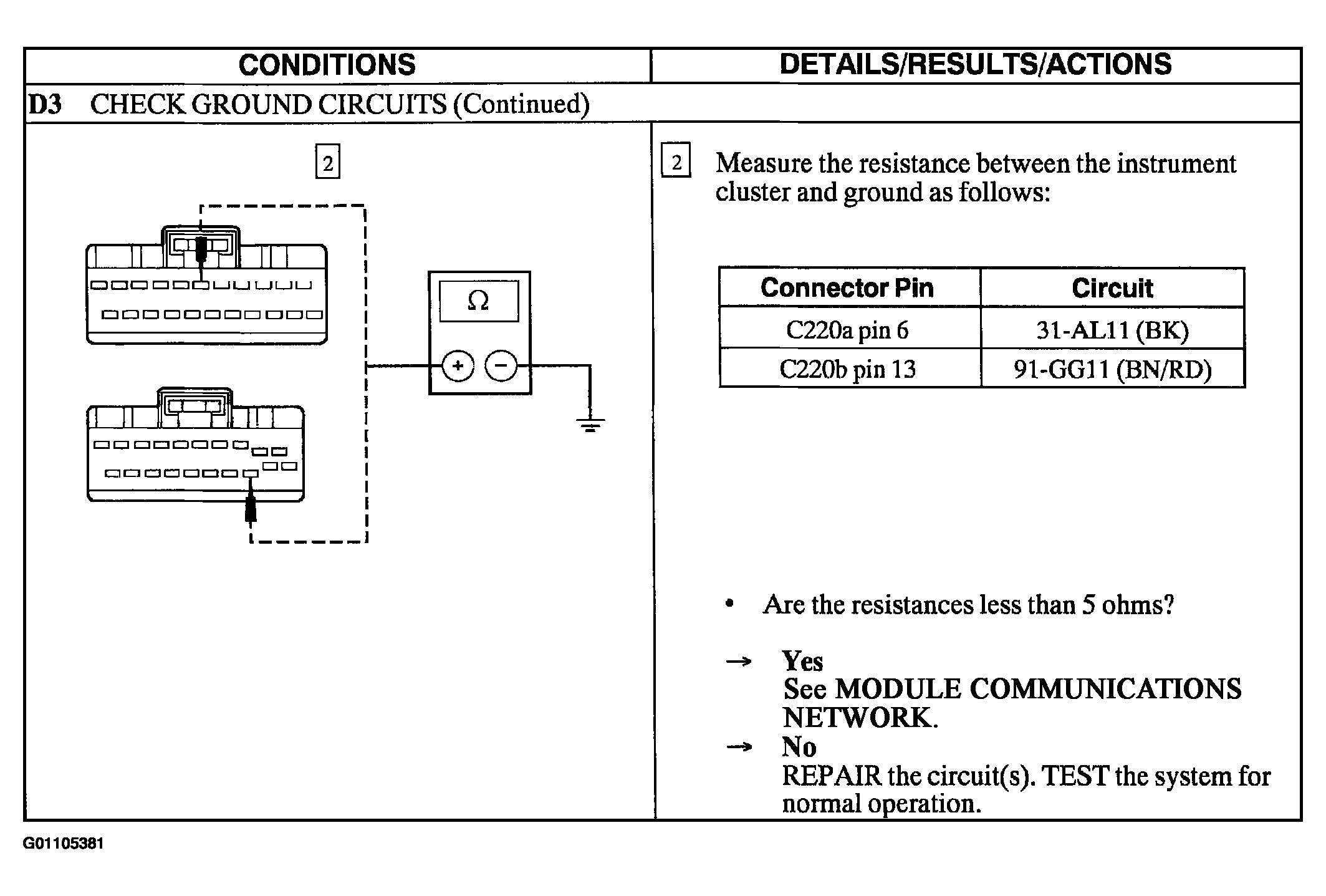

Fig 3: Pinpoint Test D: No Communication With The Instrument Cluster Module (Step D3 Cont.)

Courtesy of FORD MOTOR CO.
