Removal and Installation

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes and instructions in the steering column removal and installation procedure.

Remove the steering column. For additional information, see STEERING COLUMN .
Place the steering column in a vise.

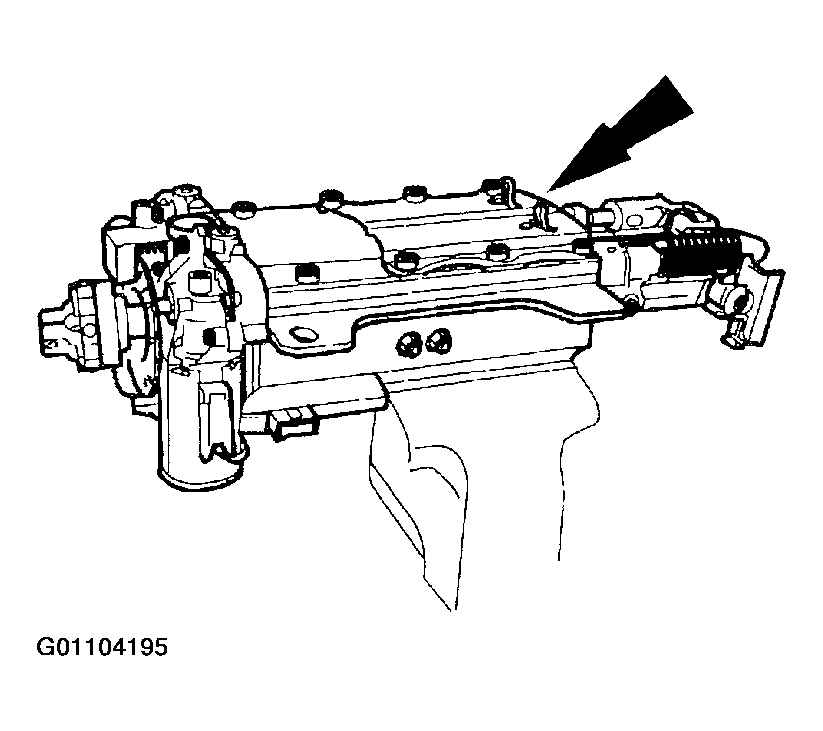

Fig 1: Placing Steering Column In Vise
Courtesy of FORD MOTOR CO.
Remove the screws and the electronic steering sensor (18B015).

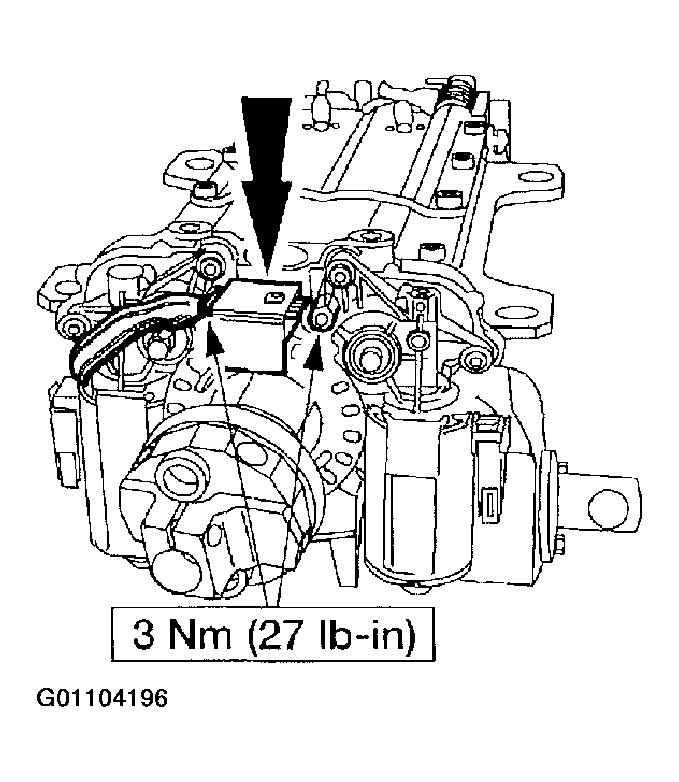

Fig 2: Removing Electronic Steering Sensor
Courtesy of FORD MOTOR CO.

NOTE: Do not disconnect the steering column release motor harness electrical connectors from the steering column release motor assemblies (3D538).

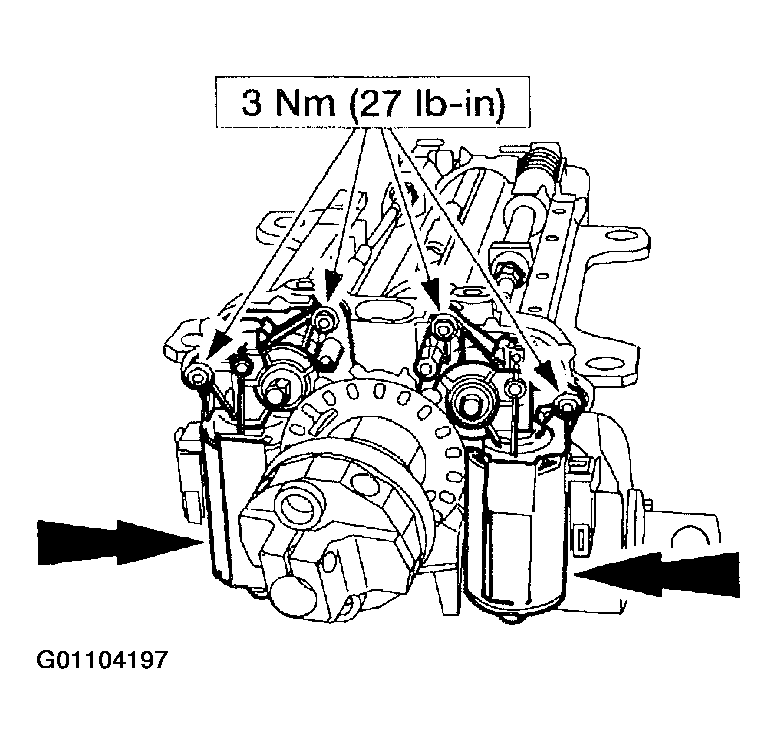

Fig 3: Removing Steering Column Release Motor Assemblies

Courtesy of FORD MOTOR CO.

Remove the screws and the steering column release motor assemblies.

WARNING: To reduce the risk of serious personal injury, read and follow all warnings, cautions, notes and instructions in the steering column procedure.

To install, reverse the removal procedure.
