Removal and Installation

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable and wait at least one minute to allow for the depletion of the restraint system backup power supply.

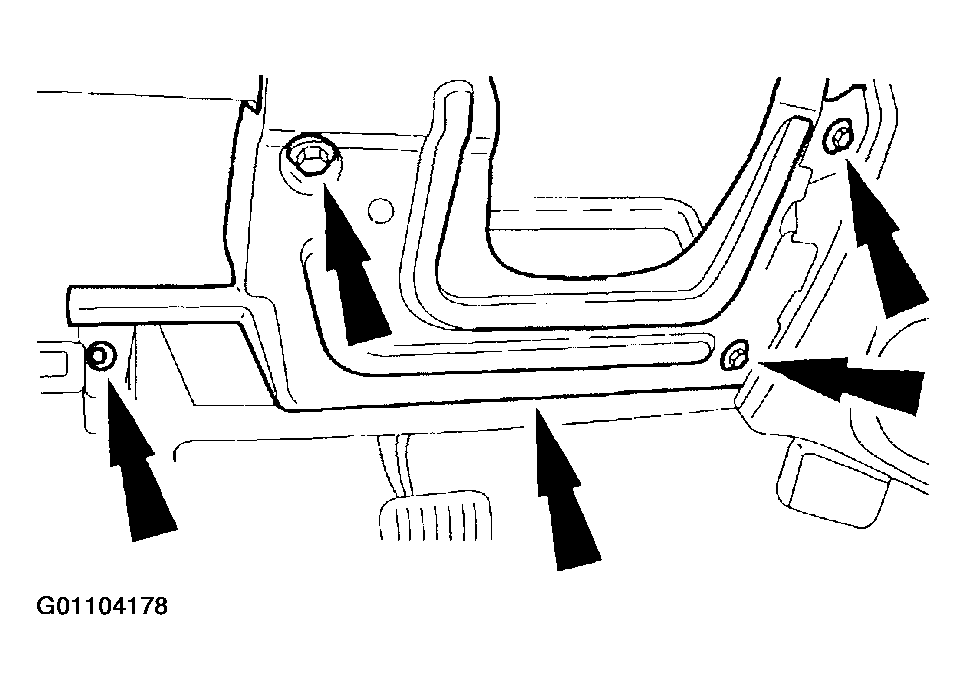

Remove the bolts. Detach the steering column opening cover.

Fig 1: Detaching Steering Column Opening Cover
Courtesy of FORD MOTOR CO.

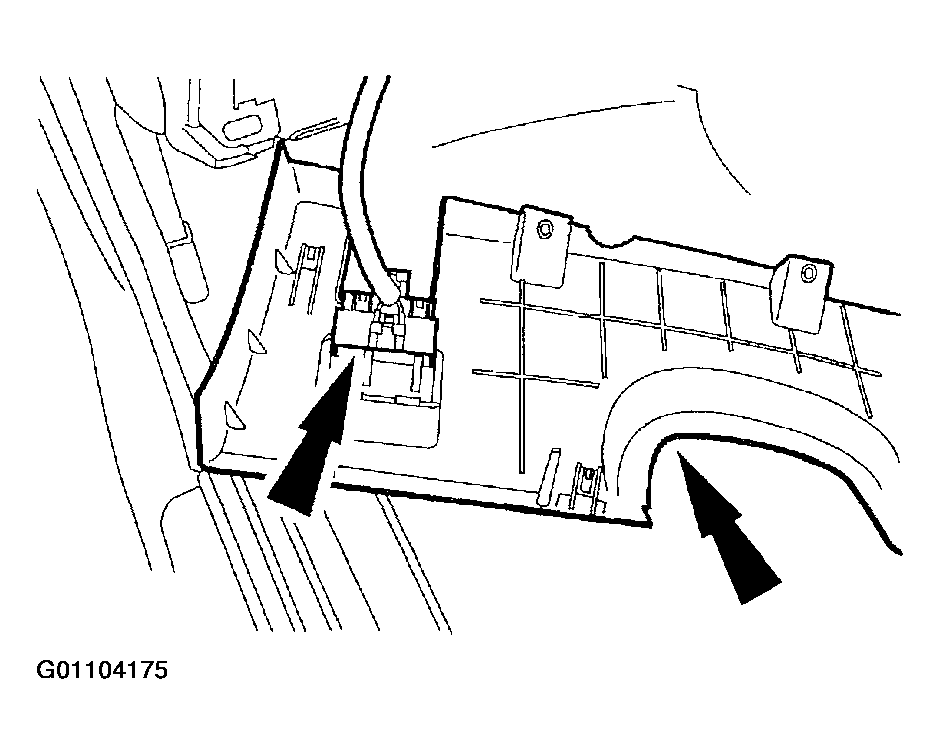

Disconnect the electrical connector. Remove the steering column opening cover.

Fig 2: Disconnecting Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the bolts and the hood release handle assembly.

Fig 3: Removing Hood Release Handle Assembly
Courtesy of FORD MOTOR CO.

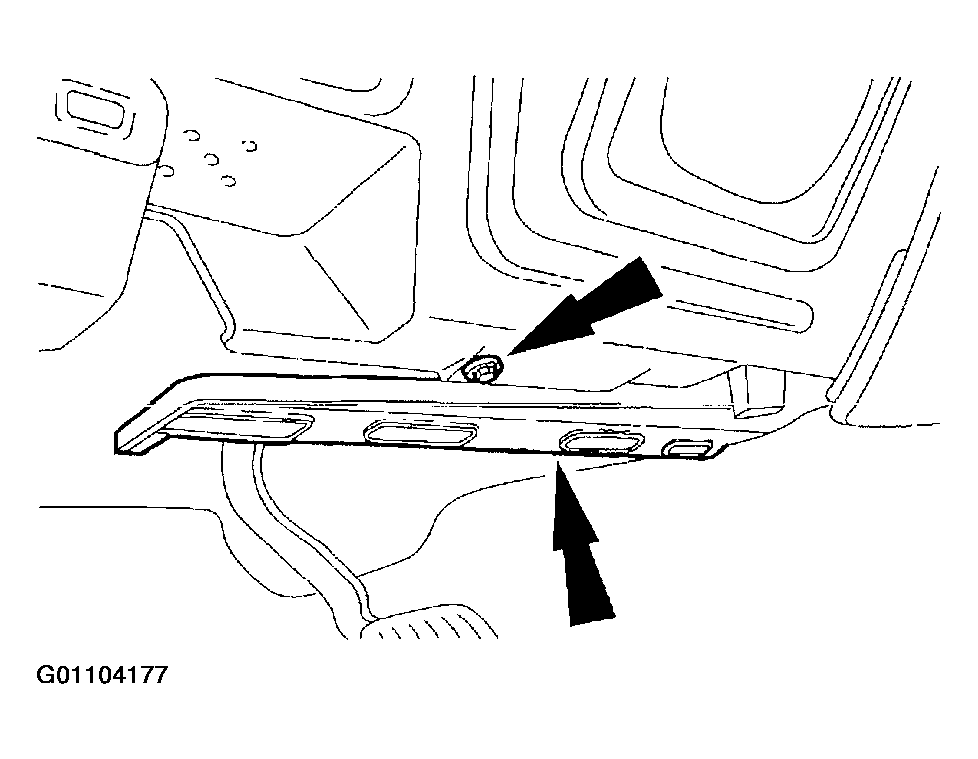

Remove the bolt and the heater duct.

Fig 4: Removing Heater Duct
Courtesy of FORD MOTOR CO.
Remove the bolts and the steering column opening cover reinforcement.

Fig 5: Removing Steering Column Opening Cover Reinforcement
Courtesy of FORD MOTOR CO.
Turn the ignition switch to the RUN position.

Fig 6: Turning Ignition Switch To RUN Position
Courtesy of FORD MOTOR CO.
Using a small flat-blade screwdriver, depress the ignition switch lock cylinder tab. Remove the ignition switch lock cylinder.

Fig 7: Removing Ignition Switch
Courtesy of FORD MOTOR CO.

Fig 8: Depressing Lock Cylinder Tab
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
- Verify correct operation of the ignition switch lock cylinder.
