Pinpoint Test C: DTC B2351: Steering Column Switch Signal Circuit Failure

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

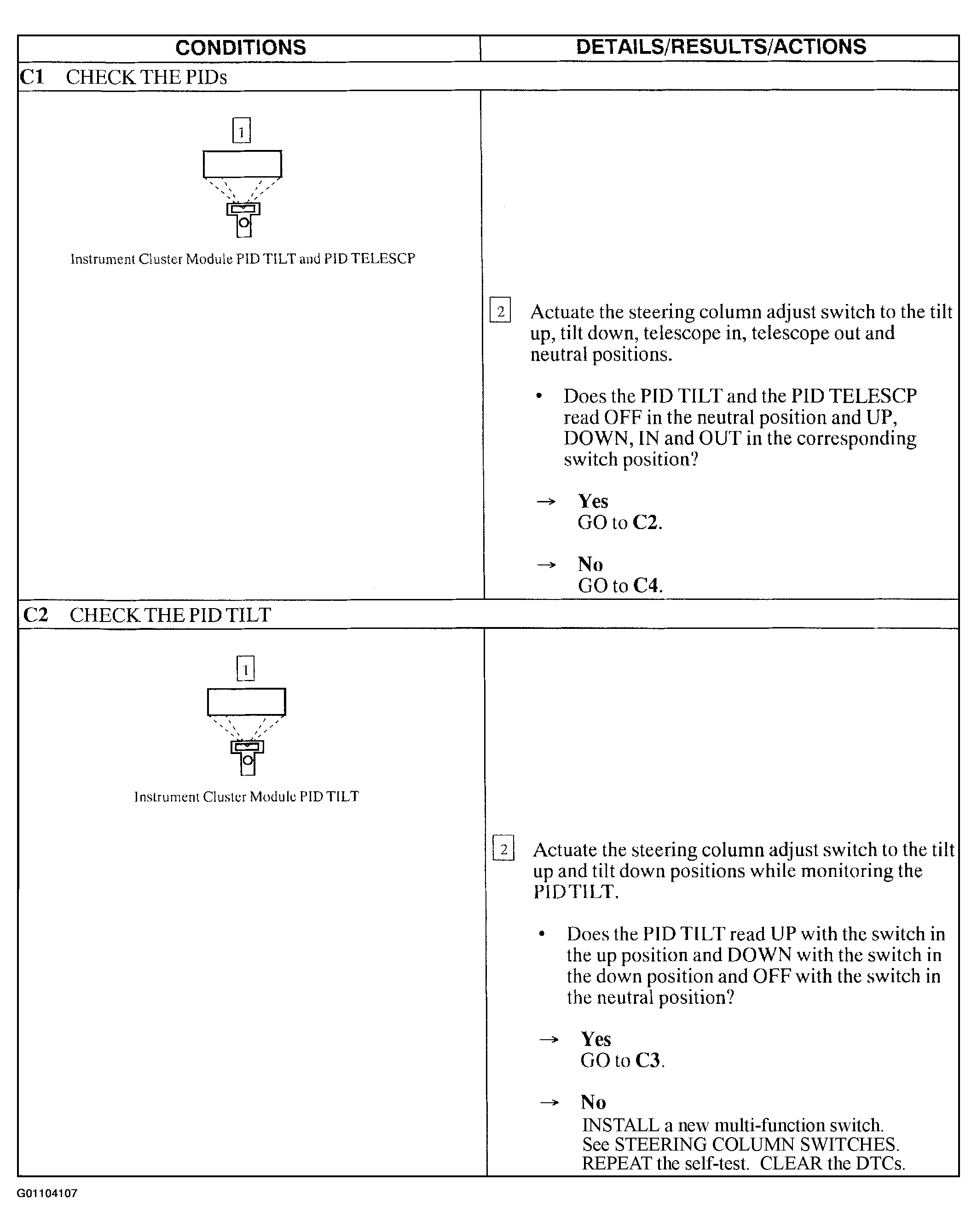

Fig 1: Pinpoint Test C: Steering Column Switch Signal Circuit Failure (Steps C1-C2)

Courtesy of FORD MOTOR CO.

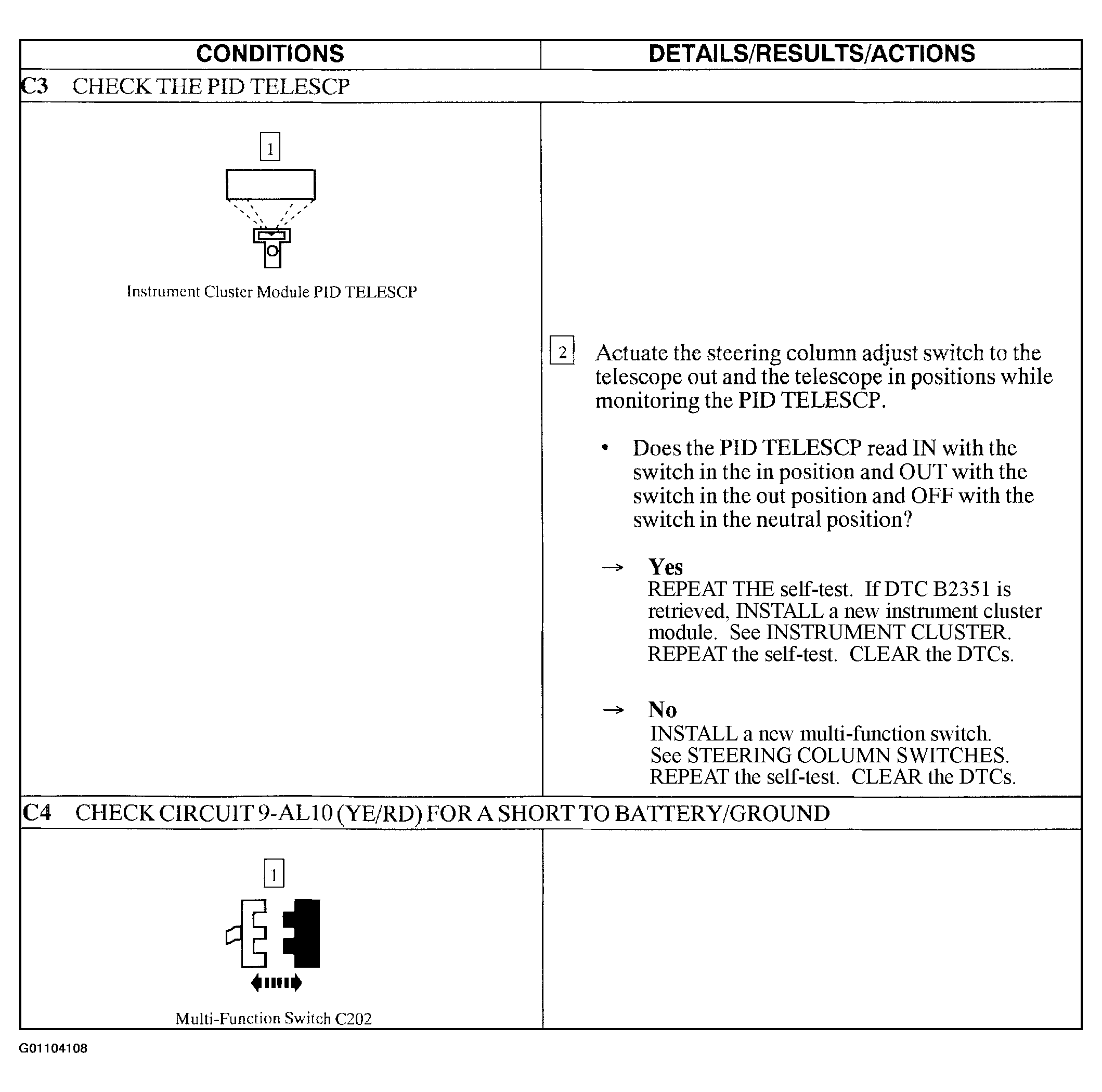

Fig 2: Pinpoint Test C: Steering Column Switch Signal Circuit Failure (Steps C3-C4)

Courtesy of FORD MOTOR CO.

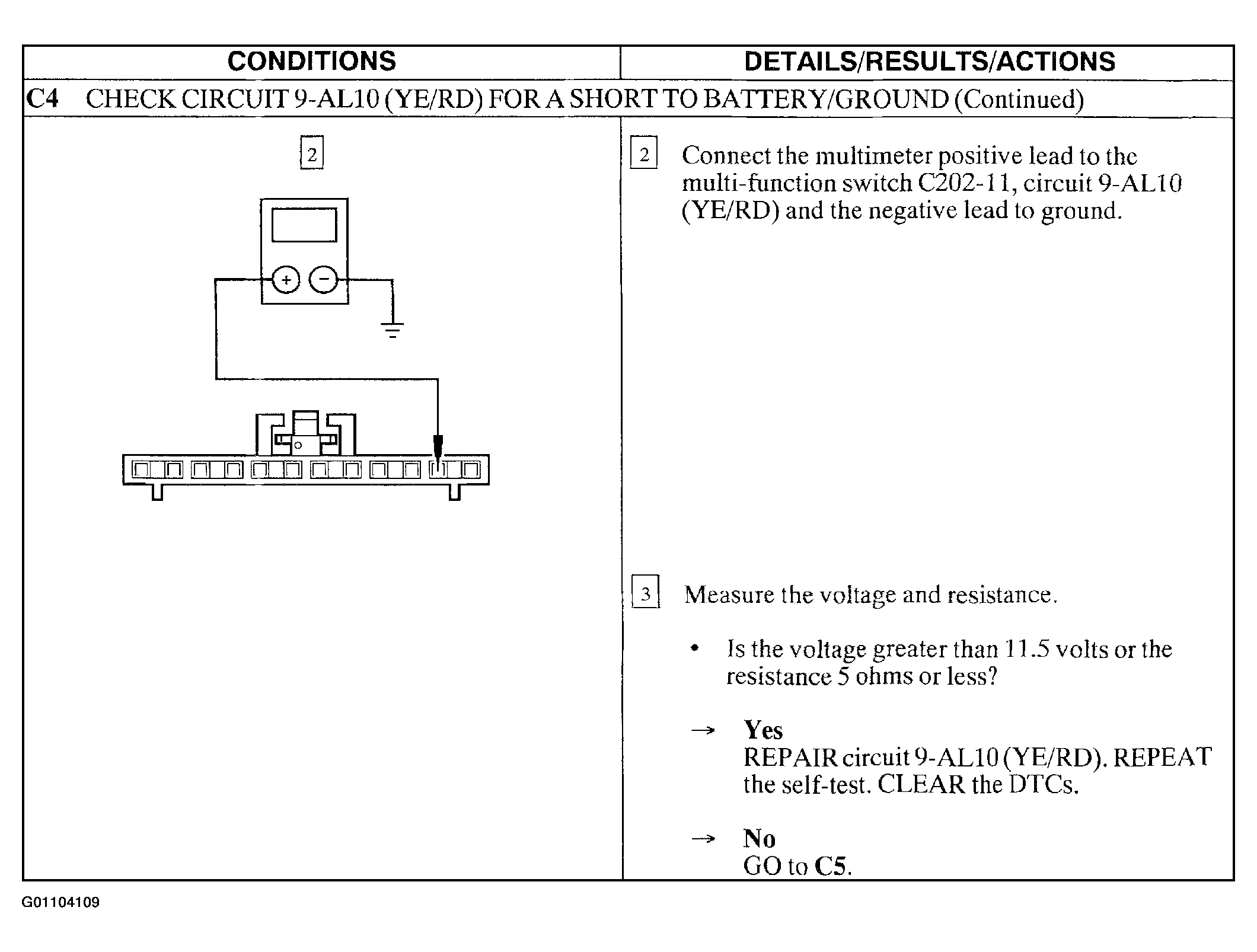

Fig 3: Pinpoint Test C: Steering Column Switch Signal Circuit Failure (Step C4 Cont.)

Courtesy of FORD MOTOR CO.

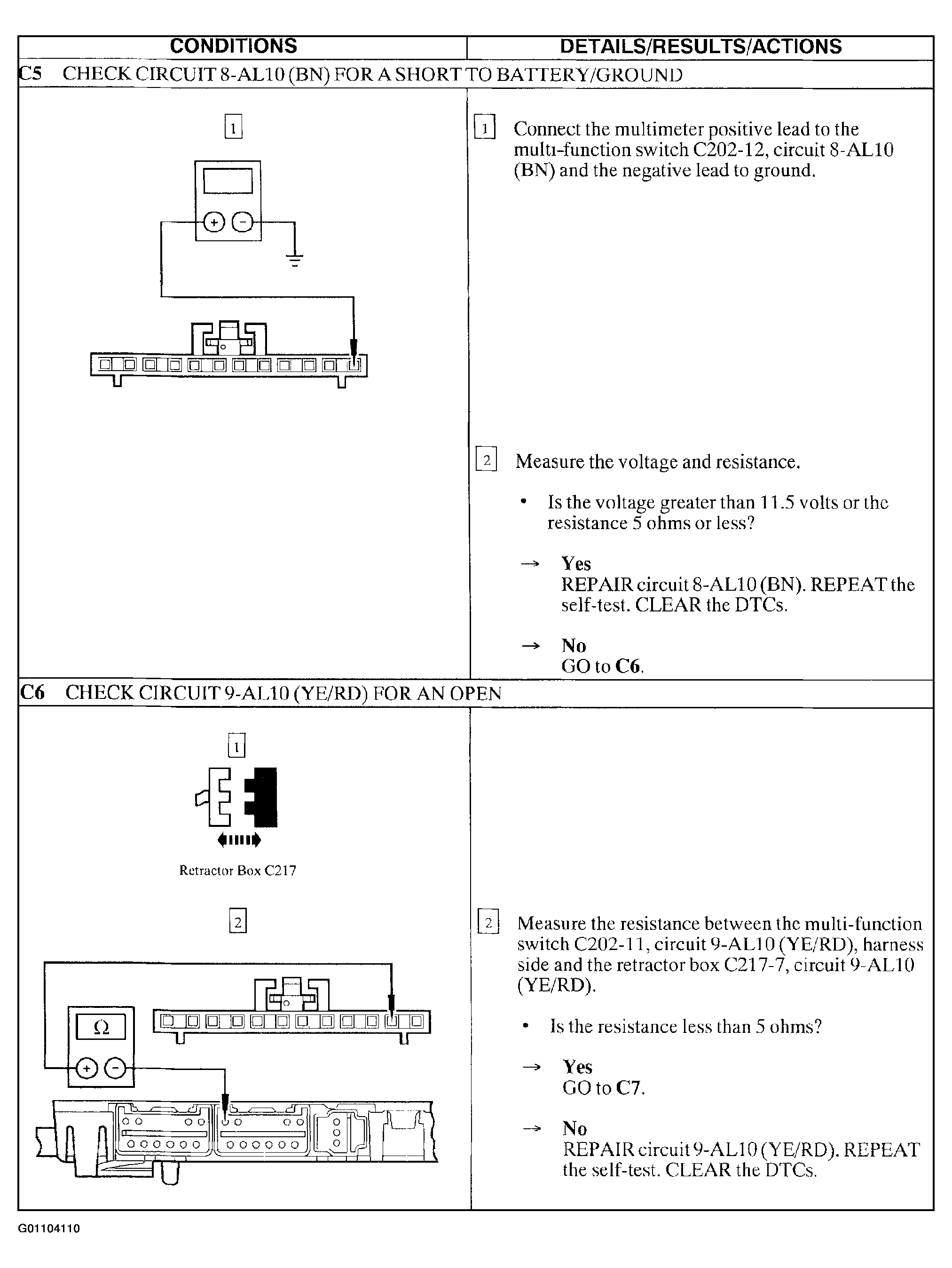

Fig 4: Pinpoint Test C: Steering Column Switch Signal Circuit Failure (Steps C5-C6)

Courtesy of FORD MOTOR CO.

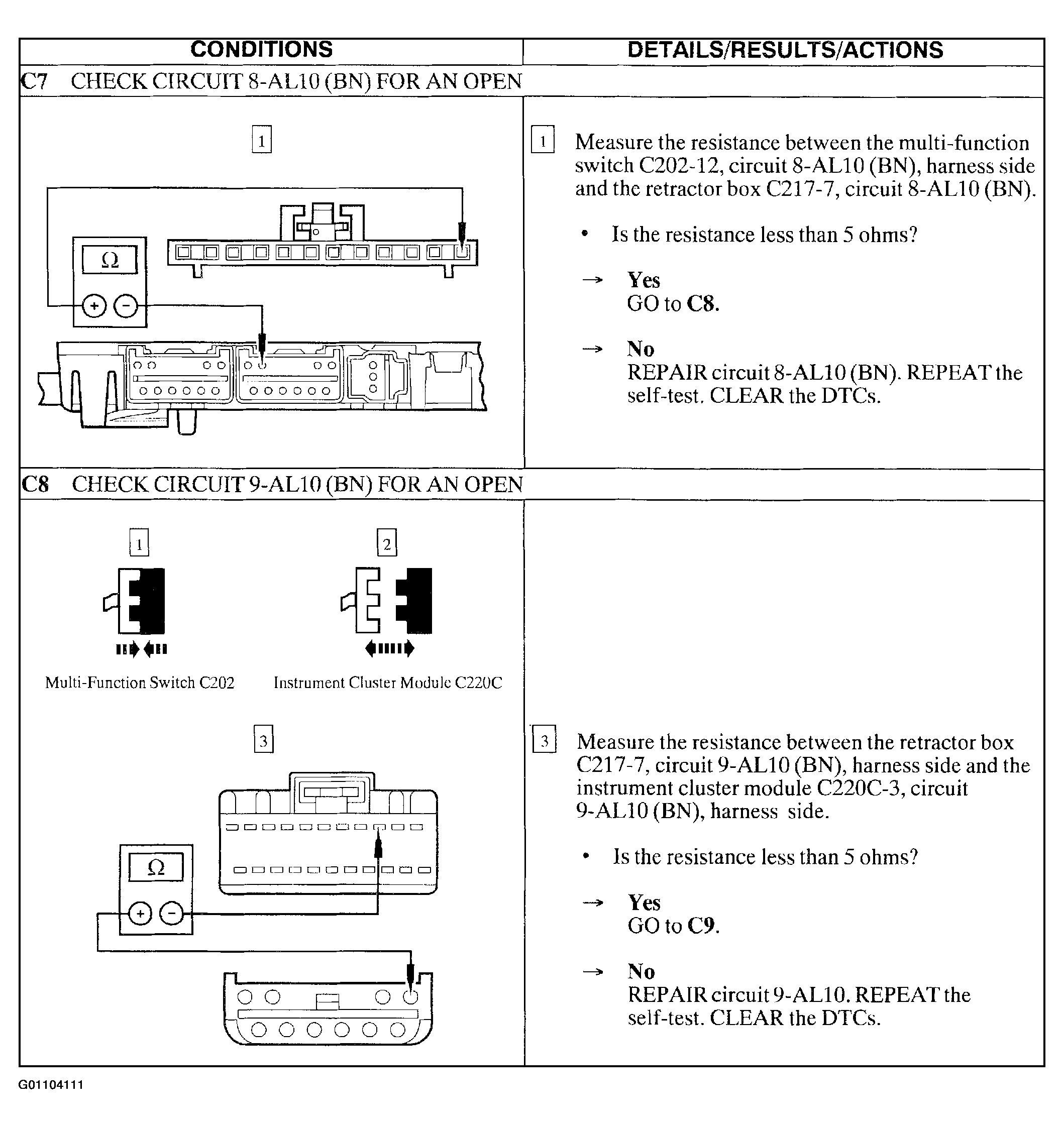

Fig 5: Pinpoint Test C: Steering Column Switch Signal Circuit Failure (Steps C7-C8)

Courtesy of FORD MOTOR CO.

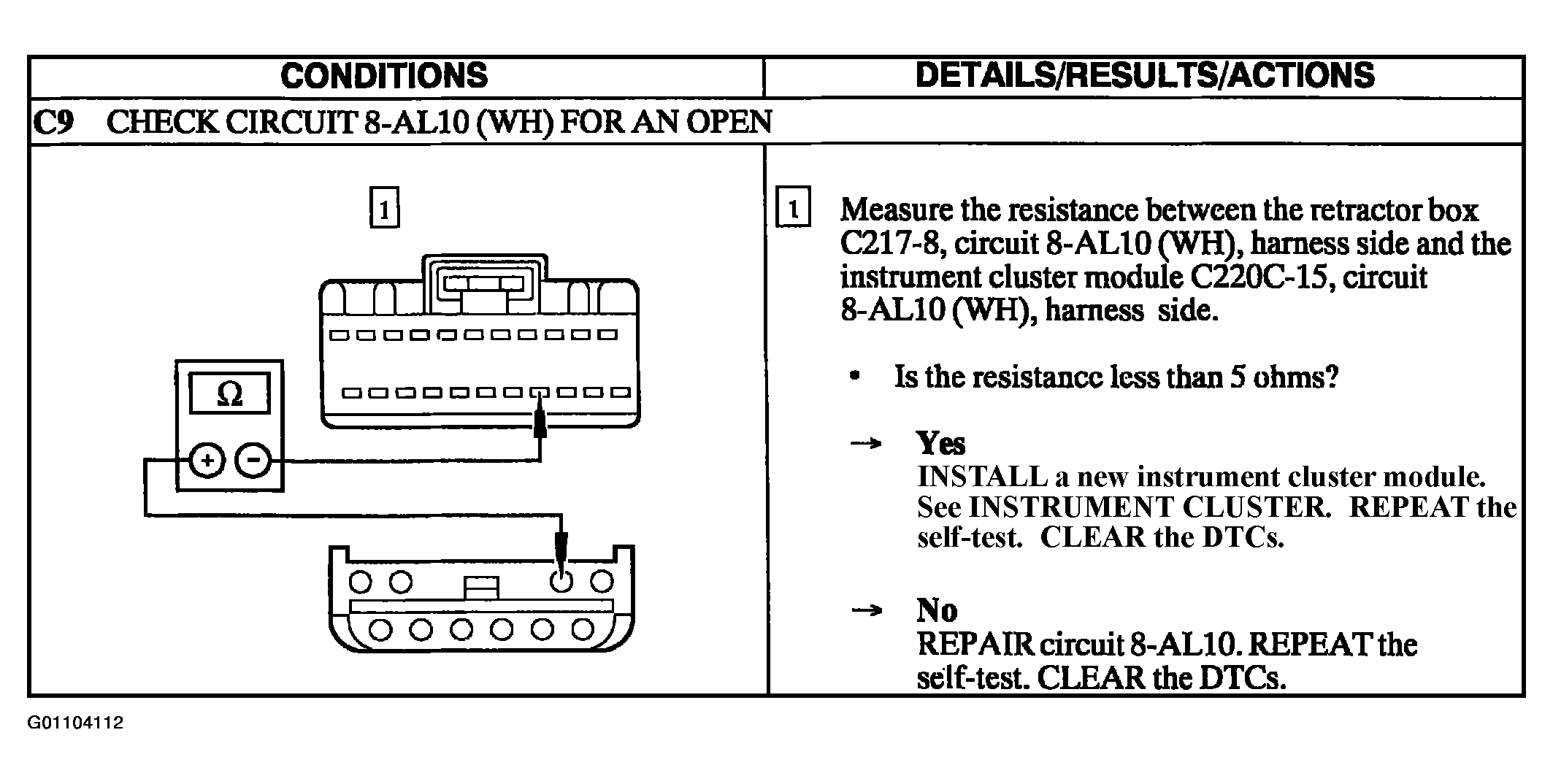

Fig 6: Pinpoint Test C: Steering Column Switch Signal Circuit Failure (Step C9)

Courtesy of FORD MOTOR CO.
