Pinpoint Test B: DTC B2332: Steering Column Tilt Feedback Potentiometer Circuit Failure

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

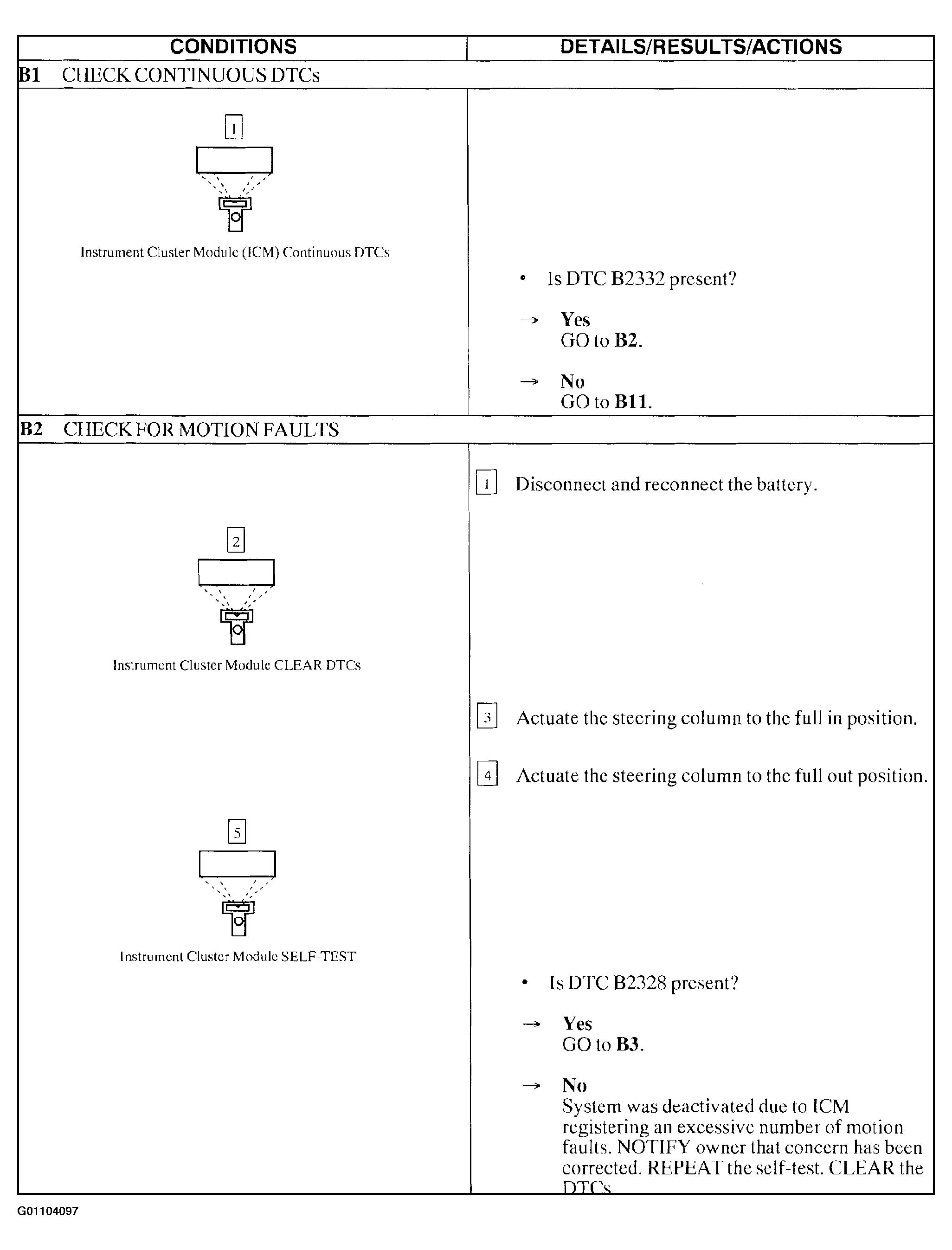

Fig 1: Pinpoint Test B: DTC B2332: Steering Column Tilt Feedback Potentiometer Circuit Failure (Steps B1-B2)

Courtesy of FORD MOTOR CO.

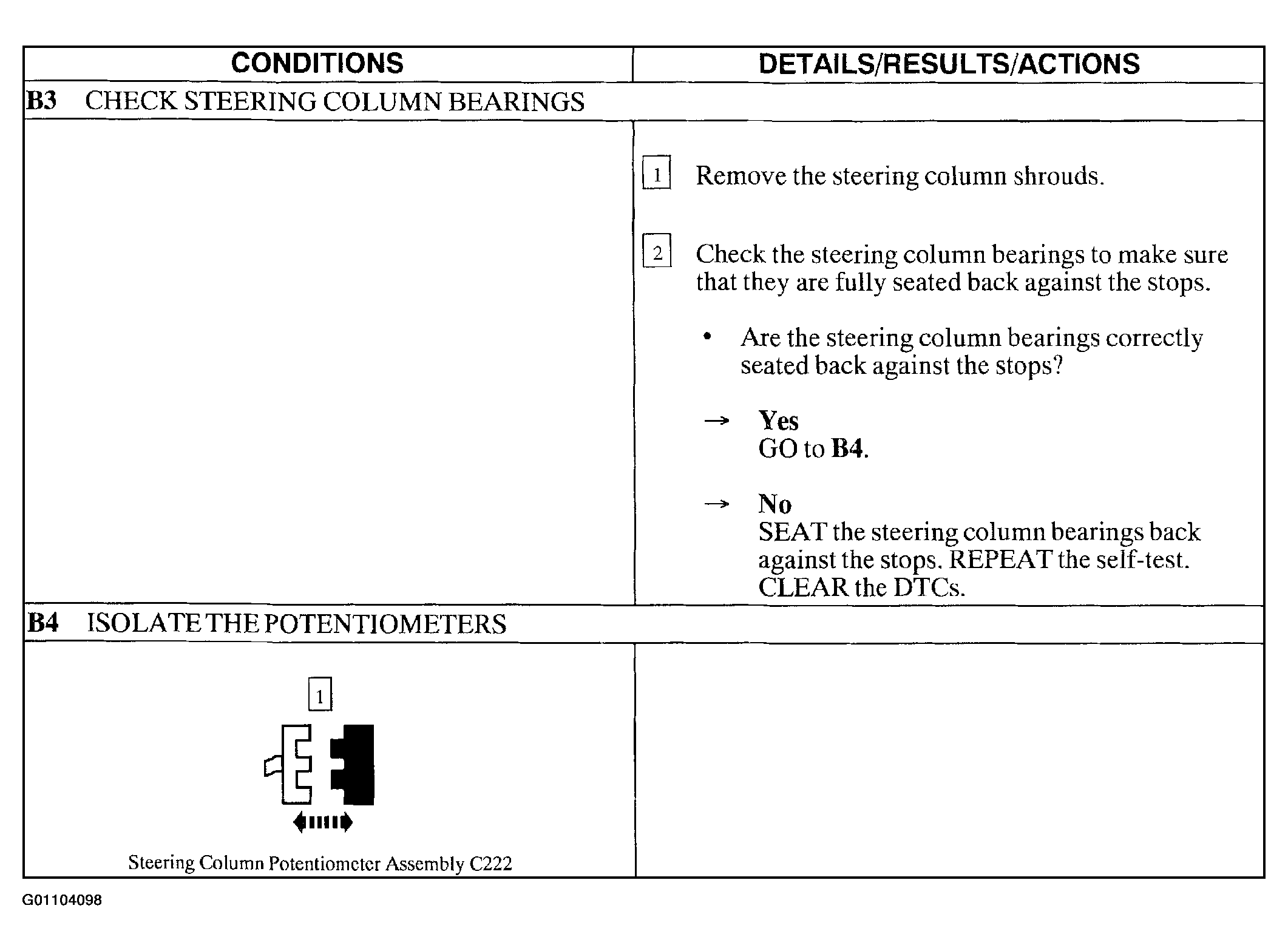

Fig 2: Pinpoint Test B: DTC B2332: Steering Column Tilt Feedback Potentiometer Circuit Failure (Steps B3-B4)

Courtesy of FORD MOTOR CO.

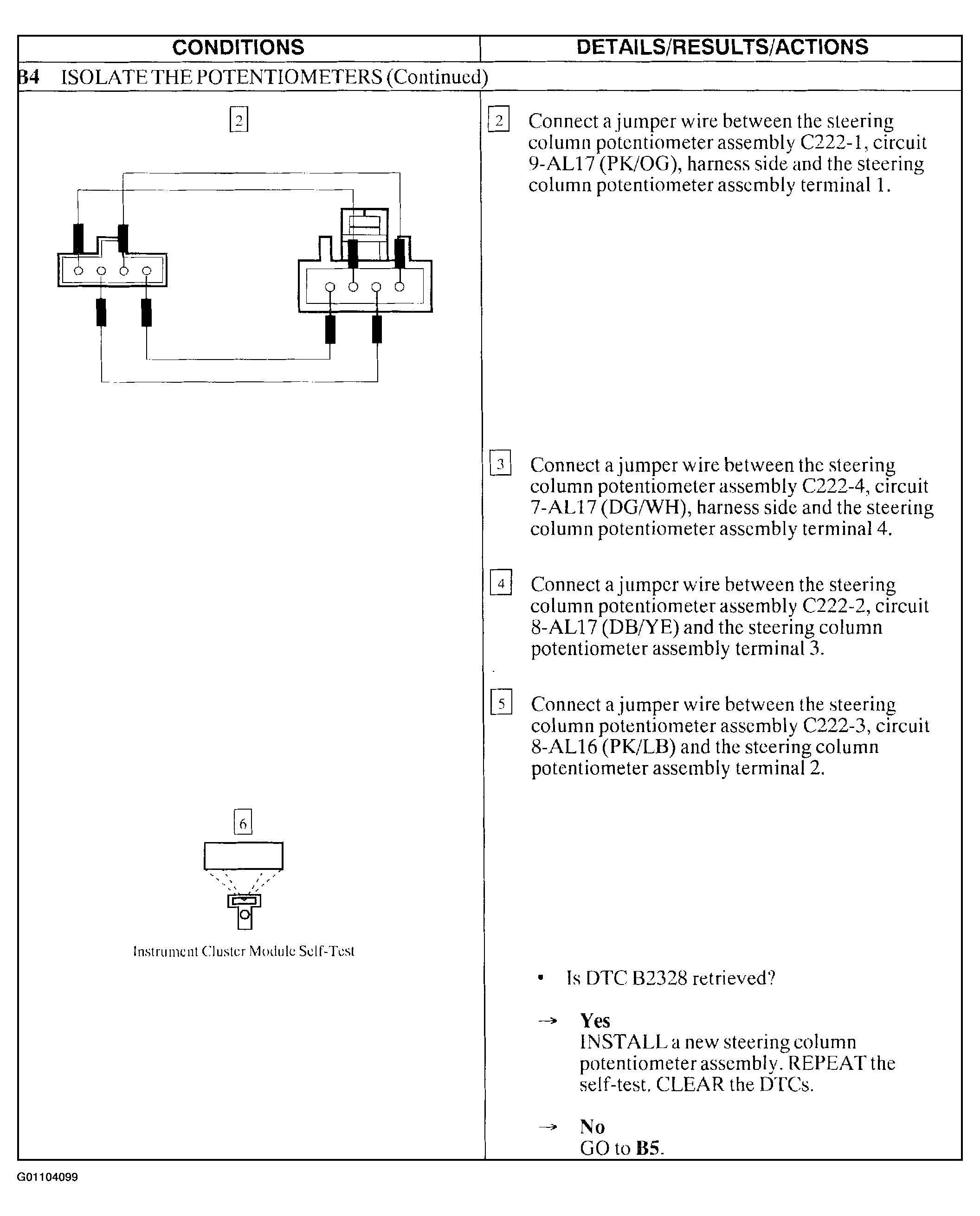

Fig 3: Pinpoint Test B: DTC B2332: Steering Column Tilt Feedback Potentiometer Circuit Failure (Step B4 Cont.)

Courtesy of FORD MOTOR CO.

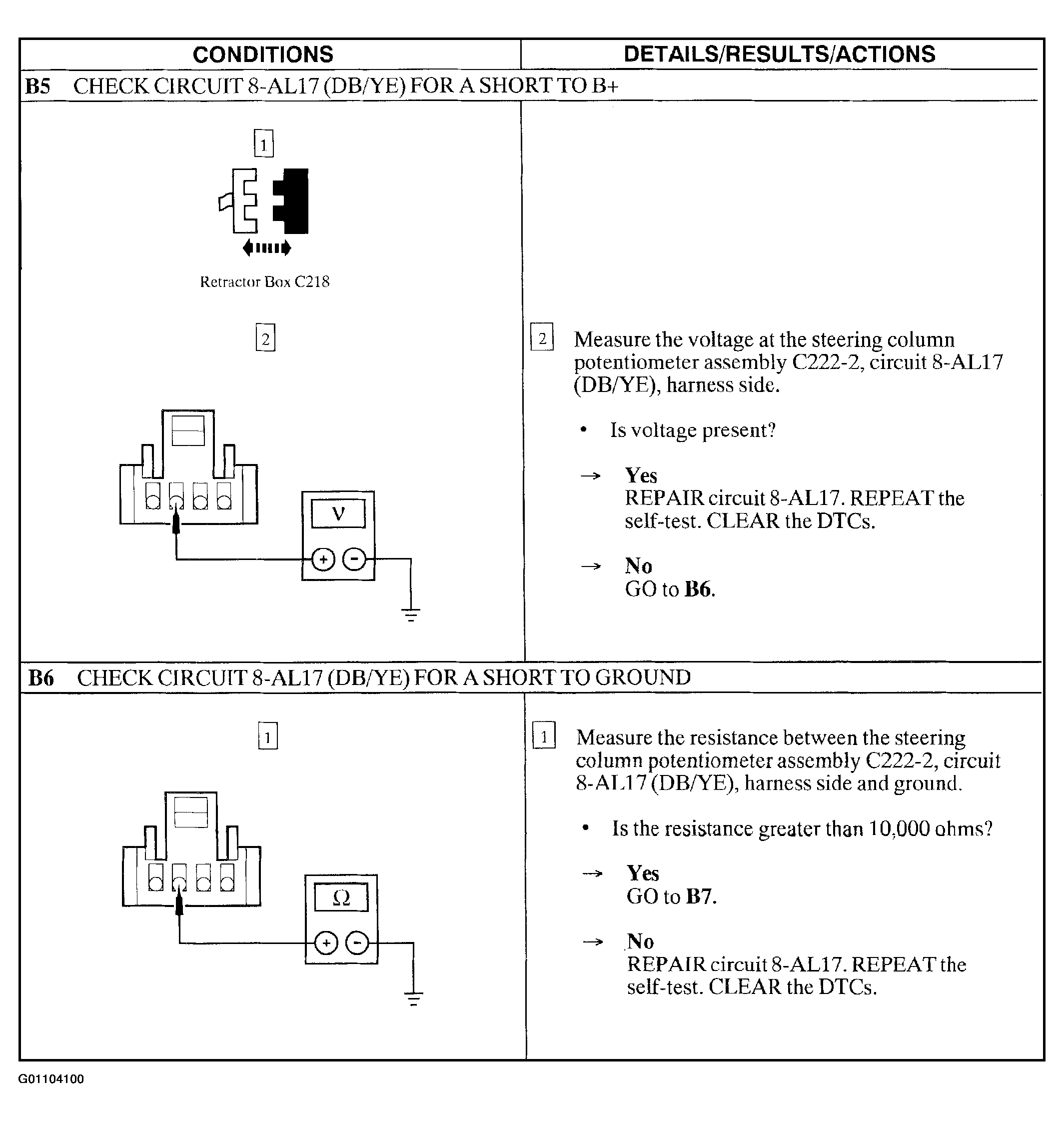

Fig 4: Pinpoint Test B: DTC B2332: Steering Column Tilt Feedback Potentiometer Circuit Failure (Steps B5-B6)

Courtesy of FORD MOTOR CO.

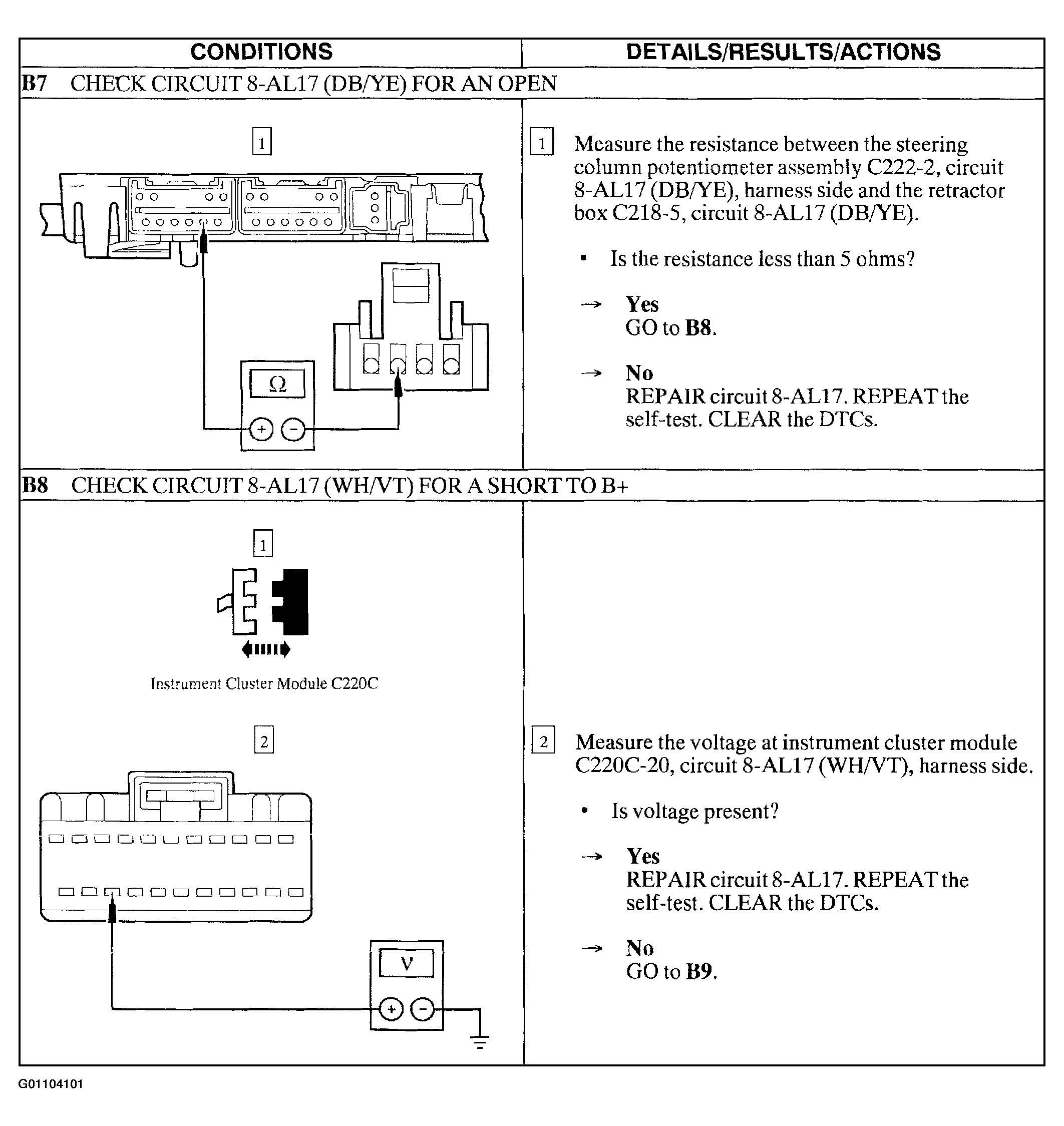

Fig 5: Pinpoint Test B: DTC B2332: Steering Column Tilt Feedback Potentiometer Circuit Failure (Steps B7-B8)

Courtesy of FORD MOTOR CO.

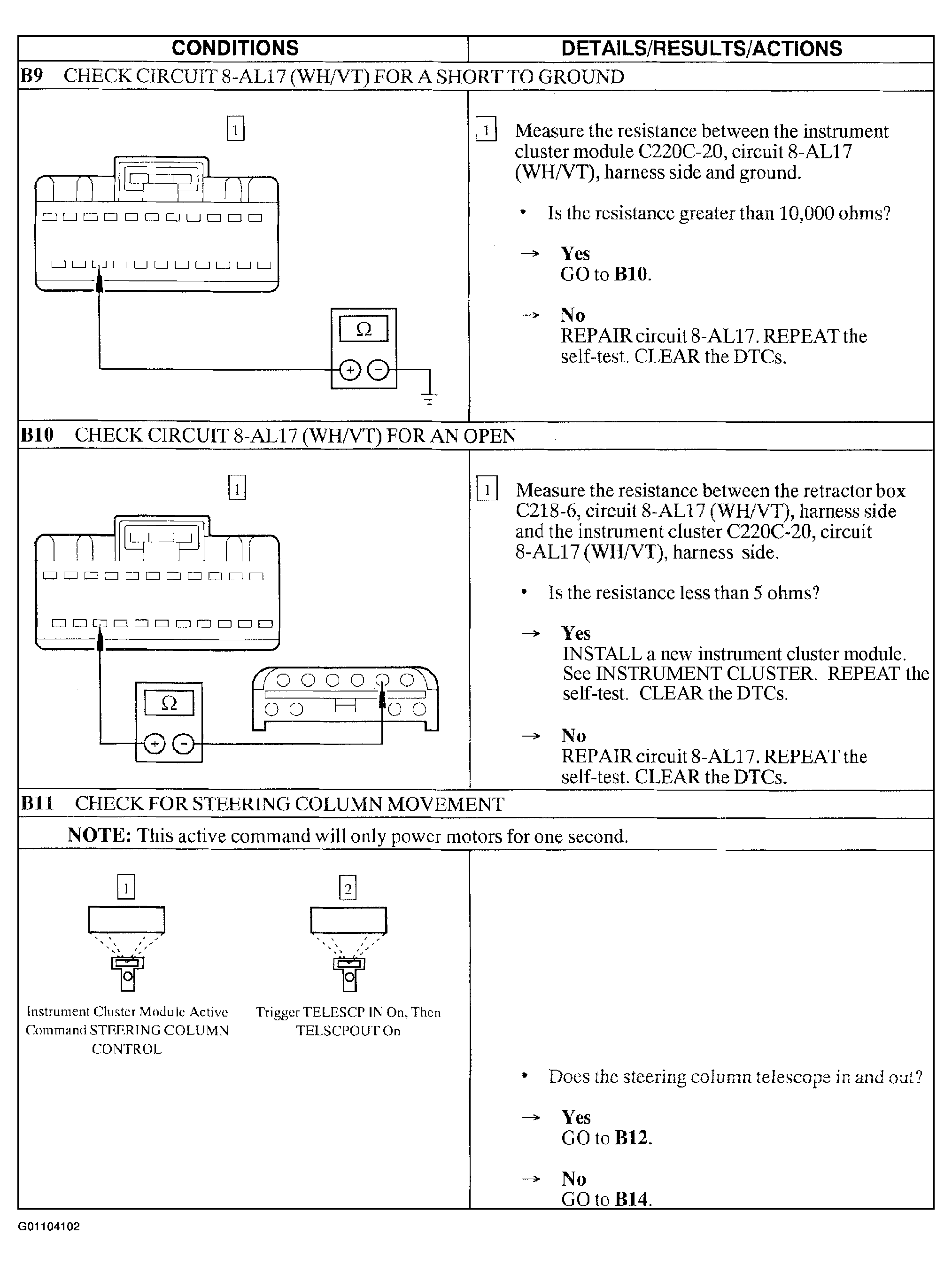

Fig 6: Pinpoint Test B: DTC B2332: Steering Column Tilt Feedback Potentiometer Circuit Failure (Steps B9-B11)

Courtesy of FORD MOTOR CO.

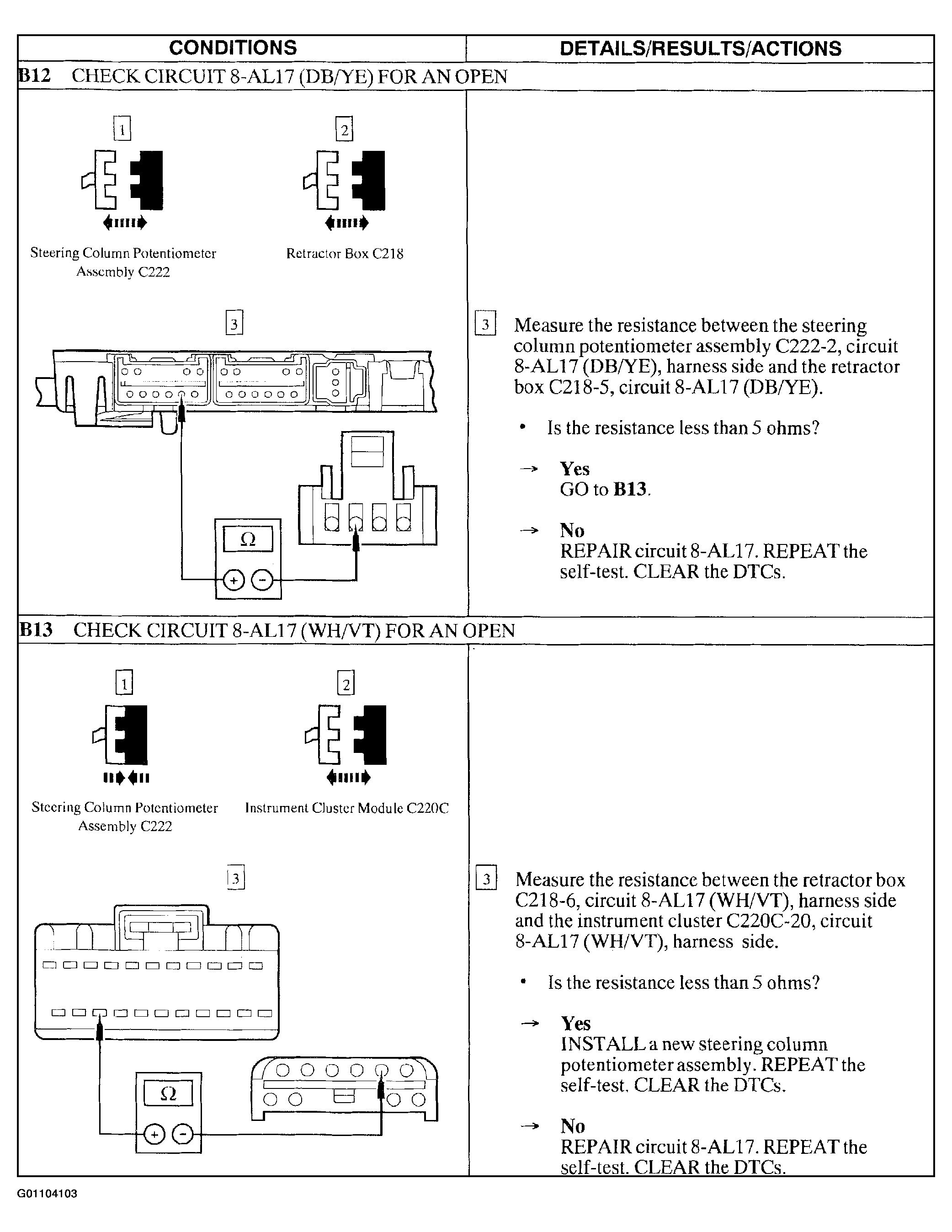

Fig 7: Pinpoint Test B: DTC B2332: Steering Column Tilt Feedback Potentiometer Circuit Failure (Steps B12-B13)

Courtesy of FORD MOTOR CO.

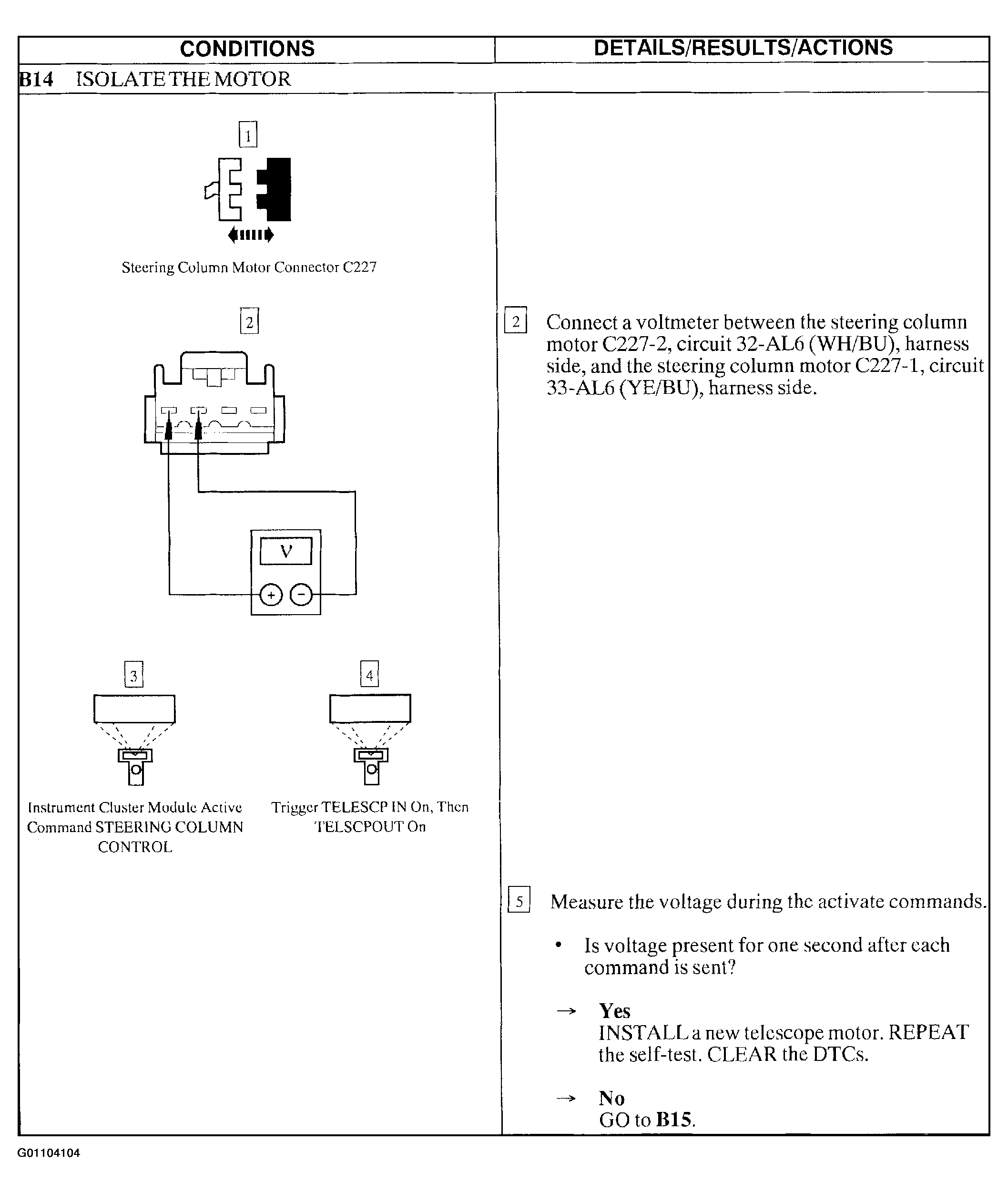

Fig 8: Pinpoint Test B: DTC B2332: Steering Column Tilt Feedback Potentiometer Circuit Failure (Step B14)

Courtesy of FORD MOTOR CO.

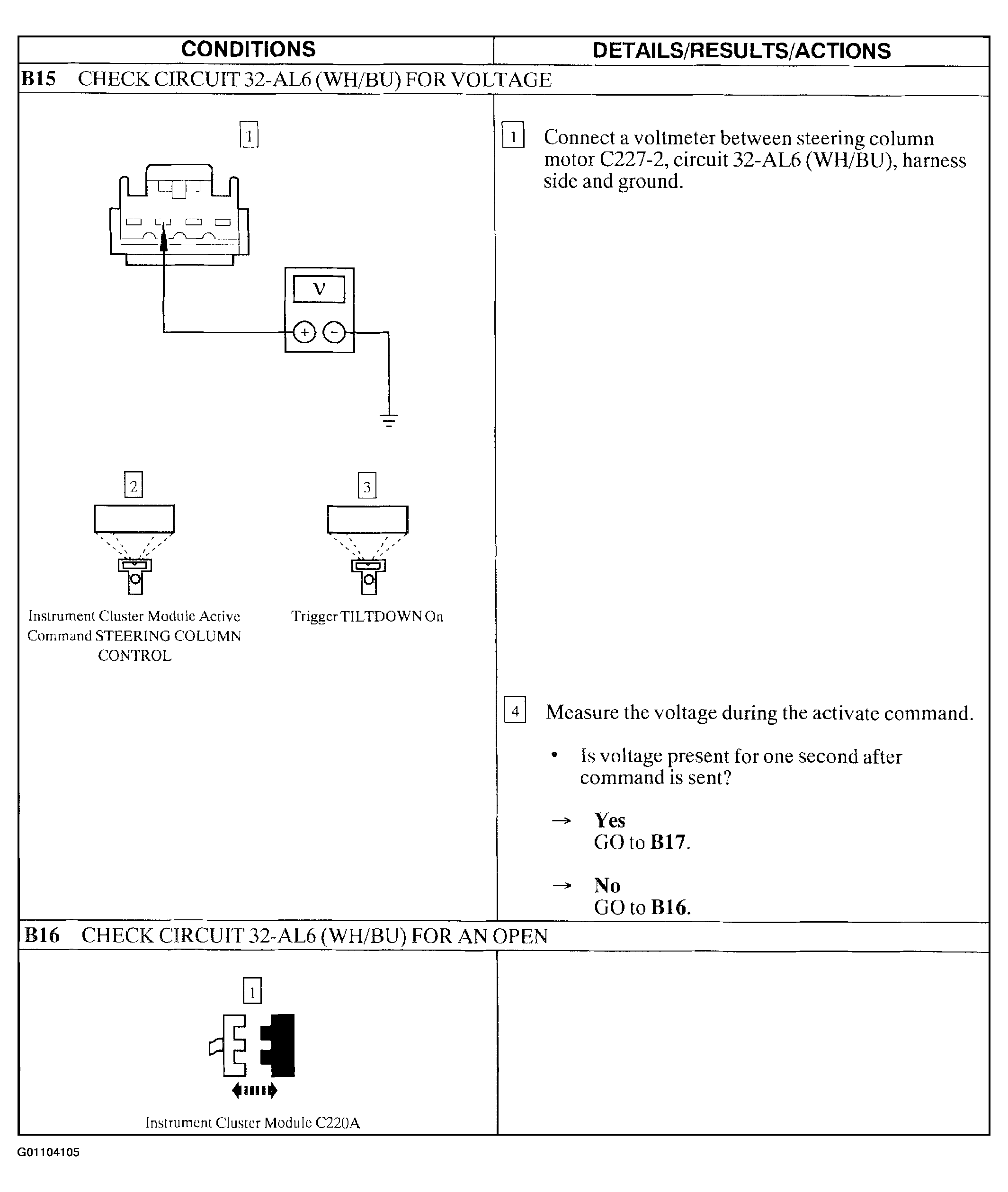

Fig 9: Pinpoint Test B: DTC B2332: Steering Column Tilt Feedback Potentiometer Circuit Failure (Steps B15-B16)

Courtesy of FORD MOTOR CO.

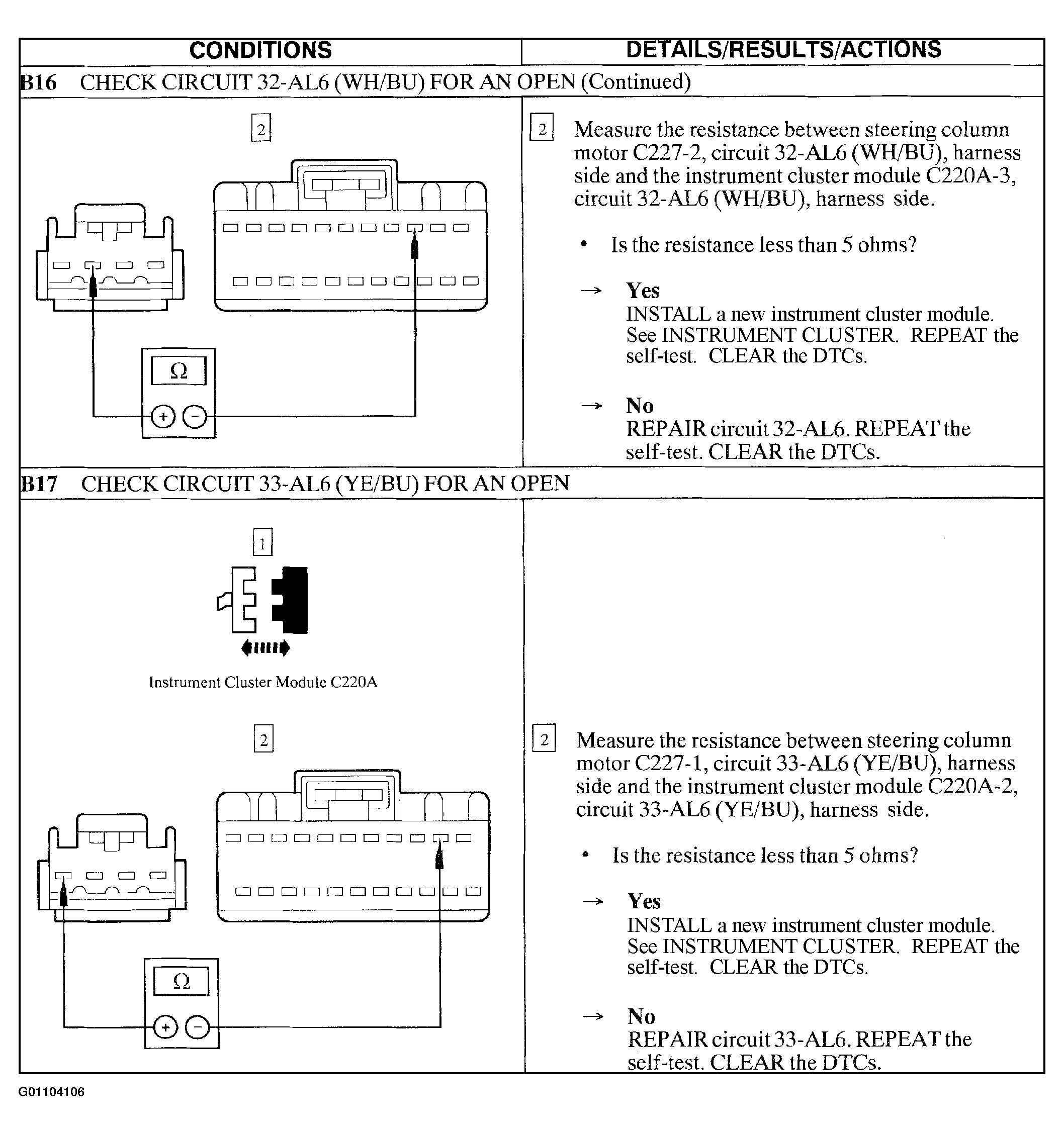

Fig 10: Pinpoint Test B: DTC B2332: Steering Column Tilt Feedback Potentiometer Circuit Failure (Steps B16 Cont. -B17)

Courtesy of FORD MOTOR CO.
