Pinpoint Test A: DTC B2328: Steering Column Reach Feedback Potentiometer Circuit Failure

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Pinpoint Test A: DTC B2328: Steering Column Reach Feedback Potentiometer Circuit Failure (Steps A1-A2)

Courtesy of FORD MOTOR CO.

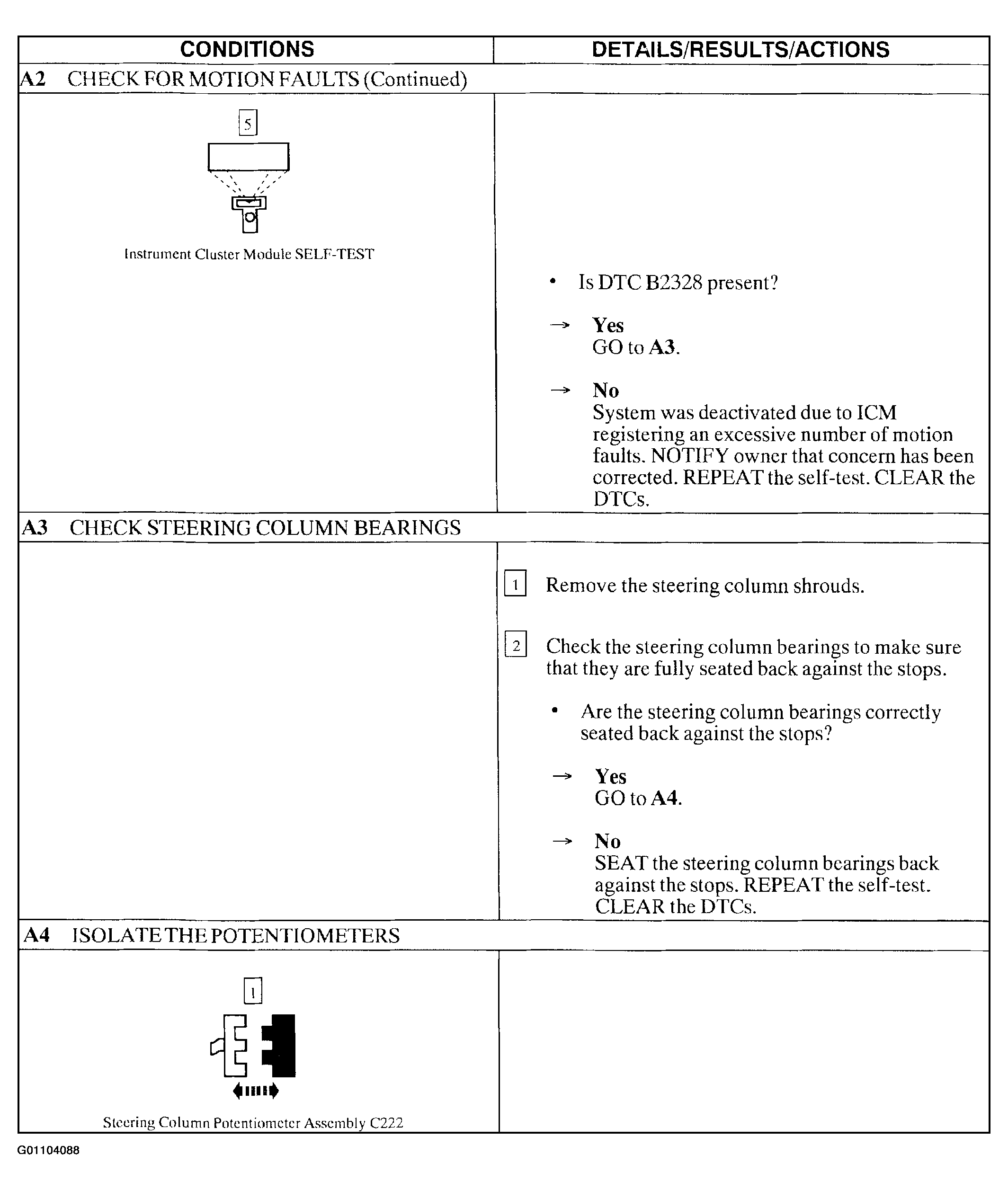

Fig 2: Pinpoint Test A: DTC B2328: Steering Column Reach Feedback Potentiometer Circuit Failure (Steps A2 Cont. -A4)

Courtesy of FORD MOTOR CO.

Fig 3: Pinpoint Test A: DTC B2328: Steering Column Reach Feedback Potentiometer Circuit Failure (Step A4 Cont.)

Courtesy of FORD MOTOR CO.

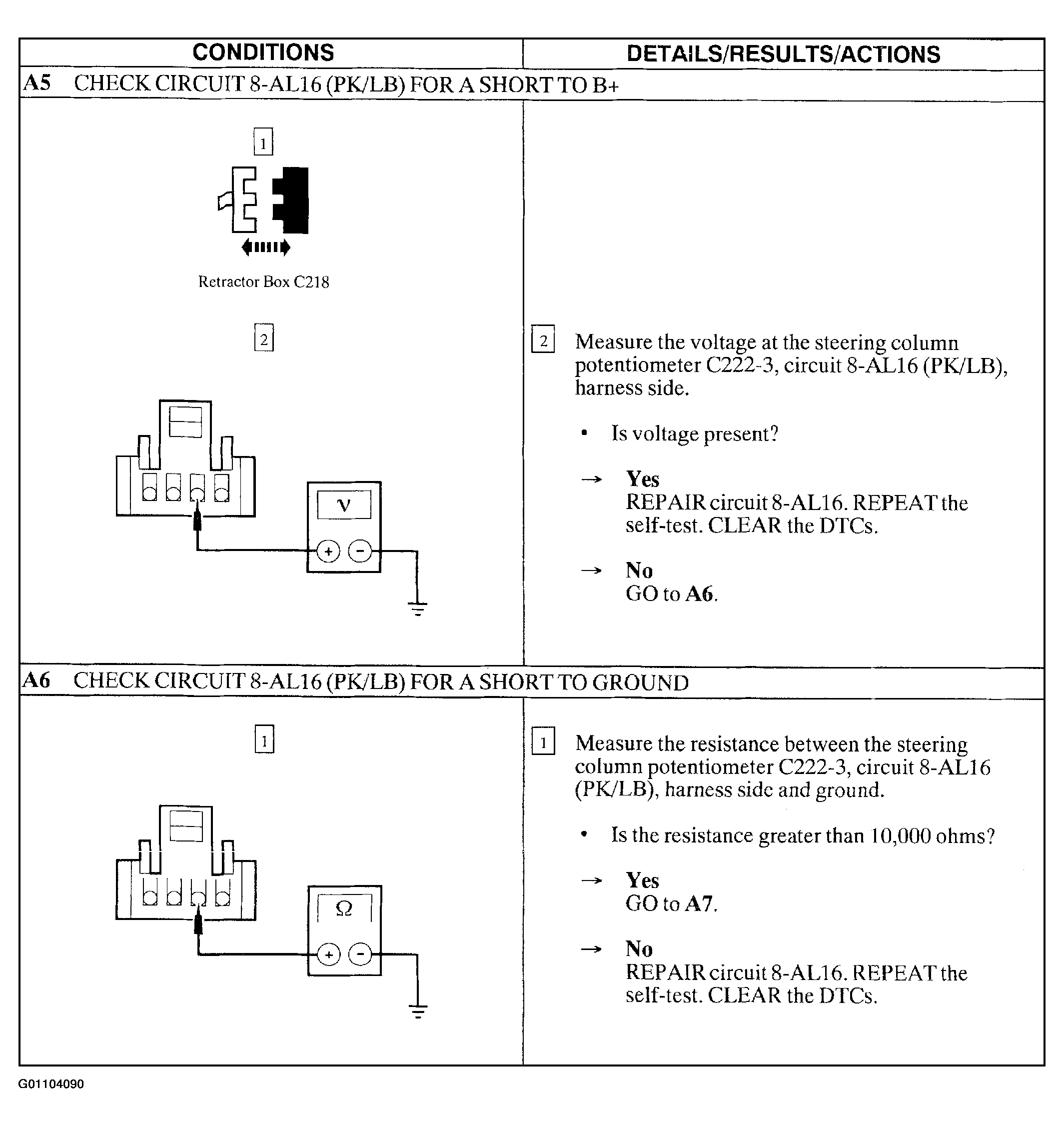

Fig 4: Pinpoint Test A: DTC B2328: Steering Column Reach Feedback Potentiometer Circuit Failure (Steps A5-A6)

Courtesy of FORD MOTOR CO.

Fig 5: Pinpoint Test A: DTC B2328: Steering Column Reach Feedback Potentiometer Circuit Failure (Steps A7-A8)

Courtesy of FORD MOTOR CO.

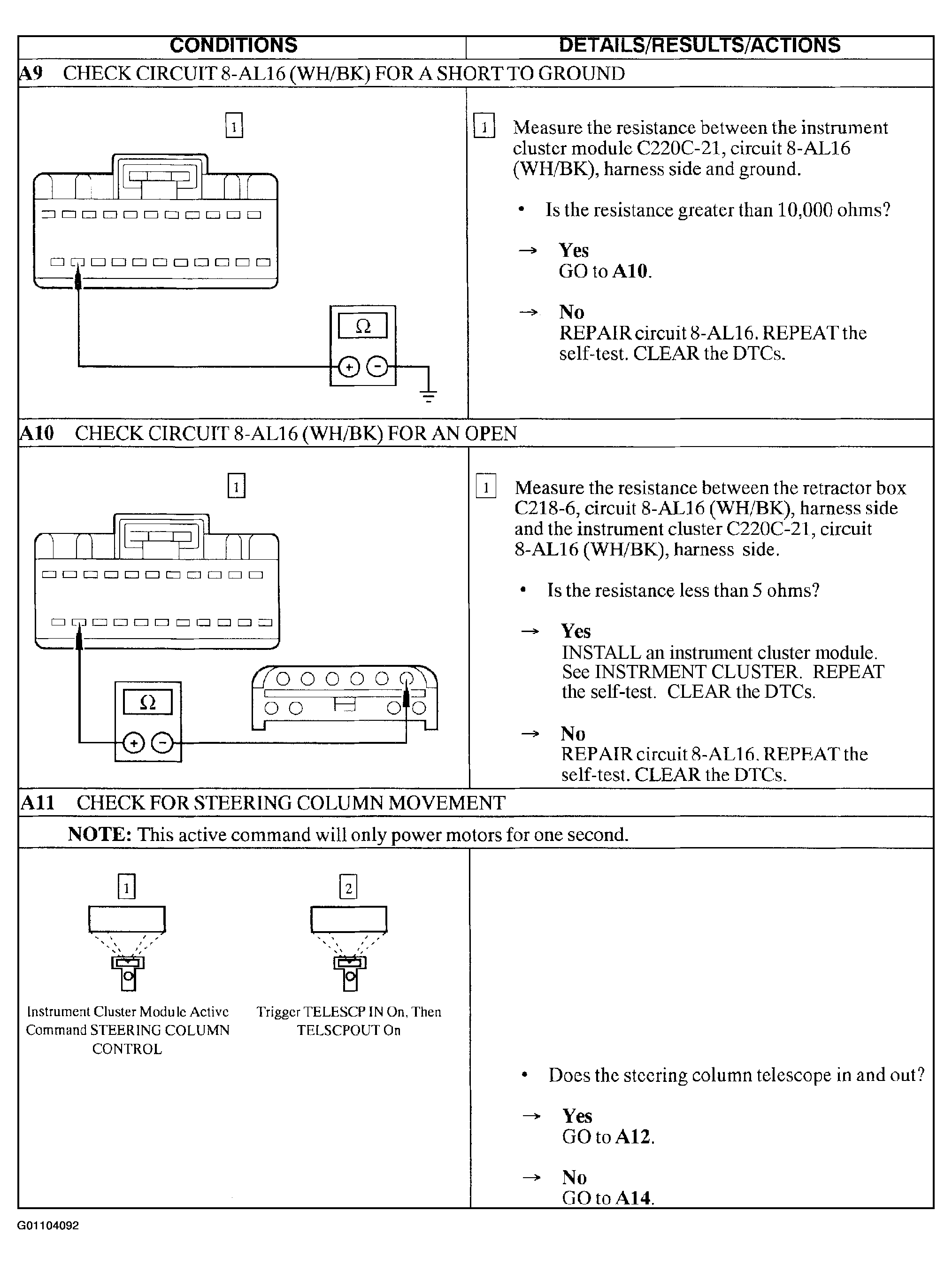

Fig 6: Pinpoint Test A: DTC B2328: Steering Column Reach Feedback Potentiometer Circuit Failure (Steps A9-A11)

Courtesy of FORD MOTOR CO.

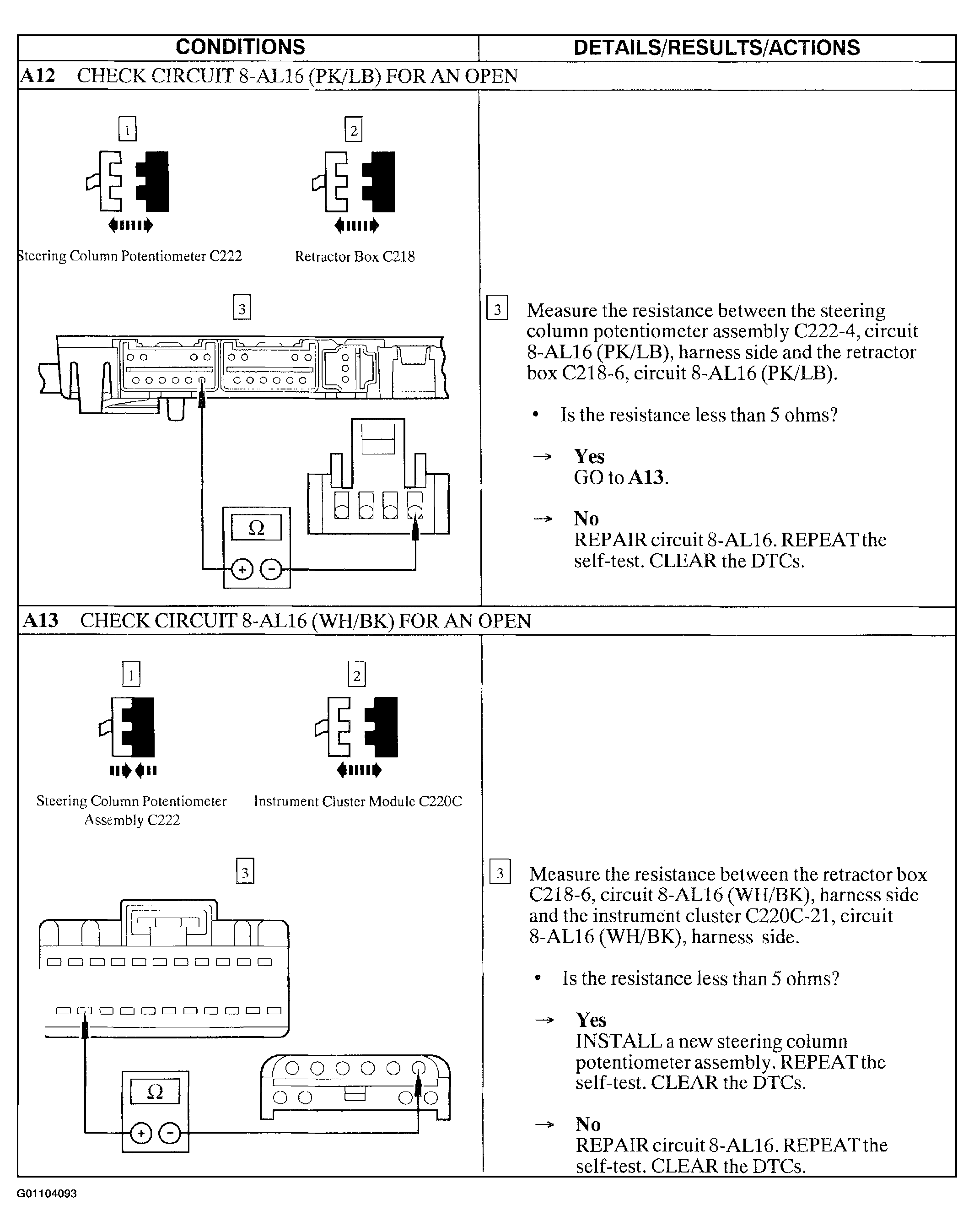

Fig 7: Pinpoint Test A: DTC B2328: Steering Column Reach Feedback Potentiometer Circuit Failure (Steps A12-A13)

Courtesy of FORD MOTOR CO.

Fig 8: Pinpoint Test A: DTC B2328: Steering Column Reach Feedback Potentiometer Circuit Failure (Step A14)

Courtesy of FORD MOTOR CO.

Fig 9: Pinpoint Test A: DTC B2328: Steering Column Reach Feedback Potentiometer Circuit Failure (Steps A15-A16)

Courtesy of FORD MOTOR CO.

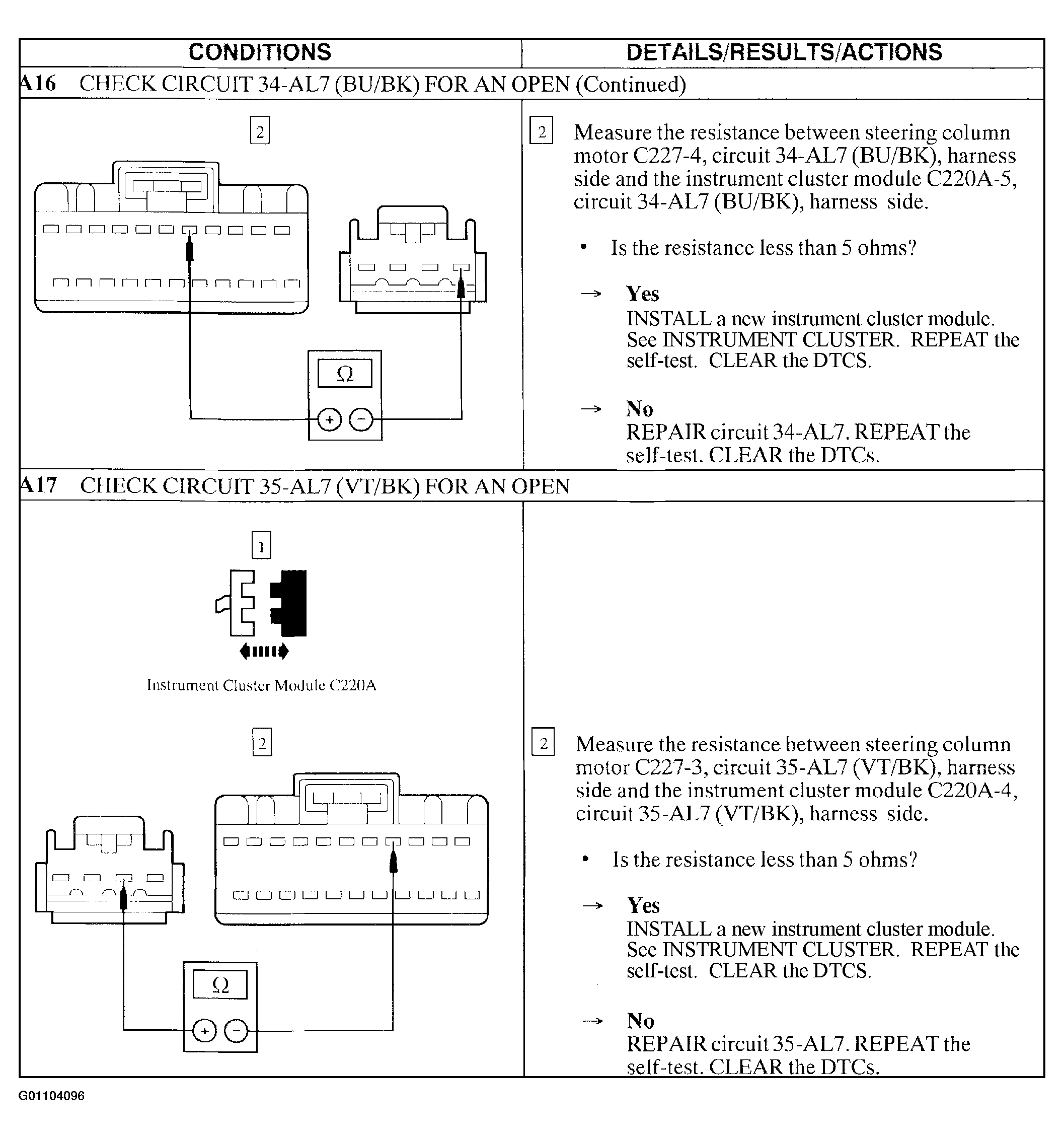

Fig 10: Pinpoint Test A: DTC B2328: Steering Column Reach Feedback Potentiometer Circuit Failure (Steps A16 Cont. -A17)

Courtesy of FORD MOTOR CO.
