Removal and Installation

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable.

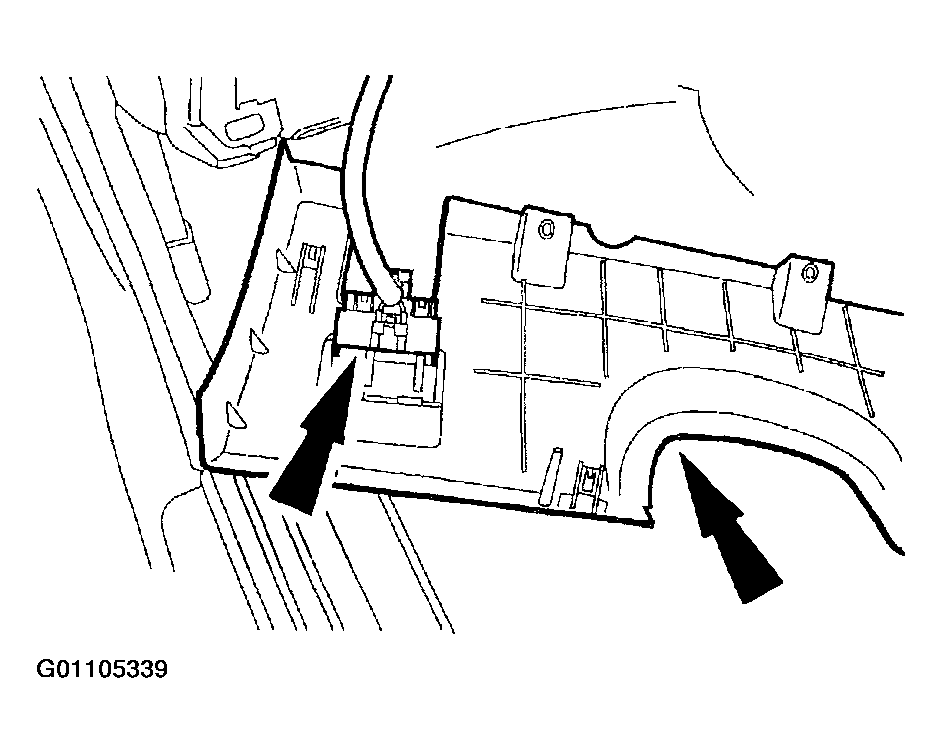

Remove the screws and pull the lower steering column opening finish panel out far enough to access the electrical connectors.

Fig 1: Lowering Steering Column Opening Finish Panel
Courtesy of FORD MOTOR CO.
Disconnect the electrical connectors and remove the finish panel.

Fig 2: Disconnecting Electrical Connectors
Courtesy of FORD MOTOR CO.
Remove the screws and disconnect the hood release assembly.

Fig 3: Removing Hood Release Assembly
Courtesy of FORD MOTOR CO.

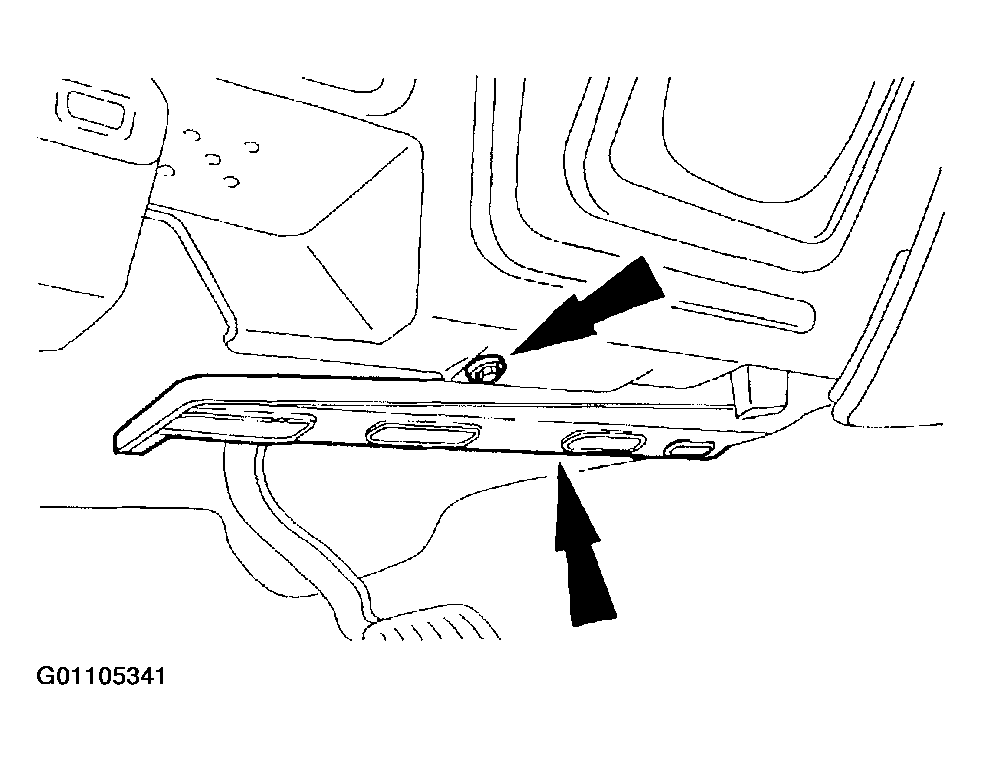

Remove the screw and the heater duct.

Fig 4: Removing Heater Duct
Courtesy of FORD MOTOR CO.

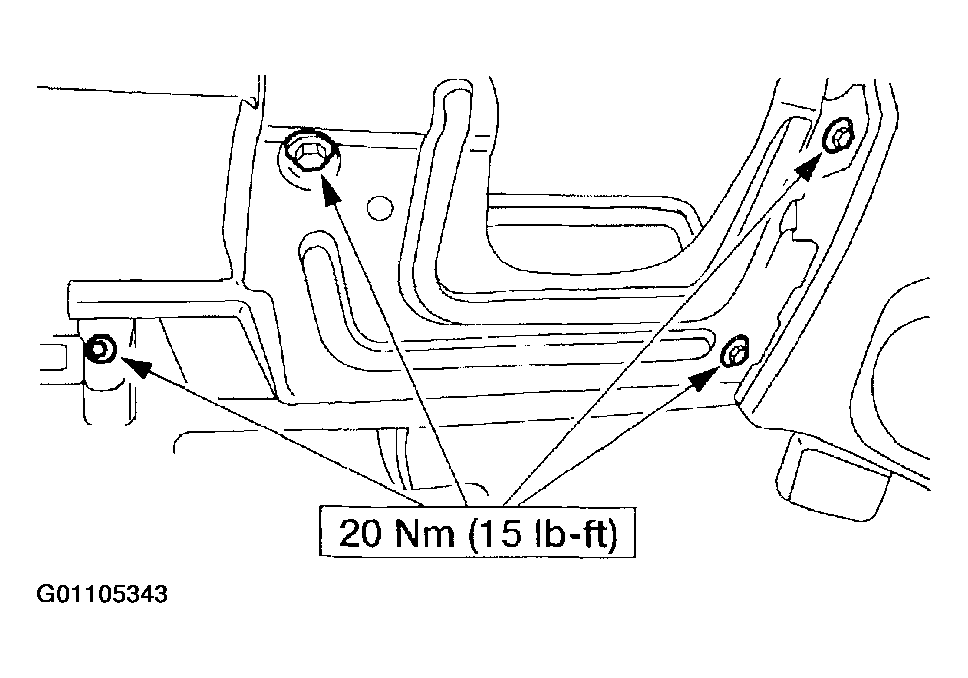

Pull the carpet away from the console tunnel and loosen the bolts.

Fig 5: Loosening Bolts
Courtesy of FORD MOTOR CO.
Remove four screws and the steering column opening reinforcement.

Fig 6: Removing Steering Column Opening Reinforcement
Courtesy of FORD MOTOR CO.

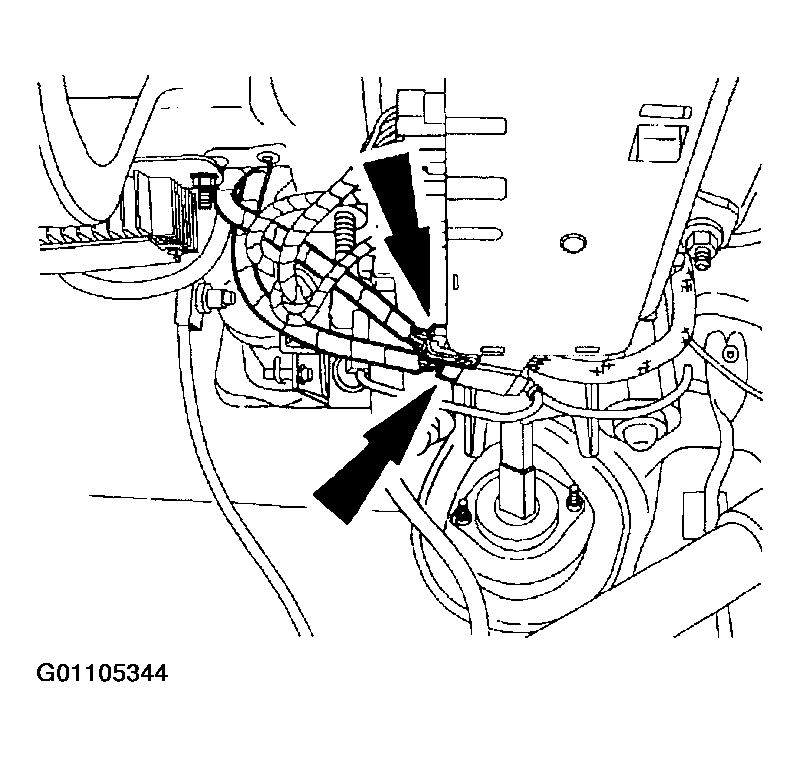

Disconnect the steering wheel rotation sensor and the electric tilt/telescoping motor electrical connectors.

Fig 7: Disconnecting Electrical Connectors
Courtesy of FORD MOTOR CO.

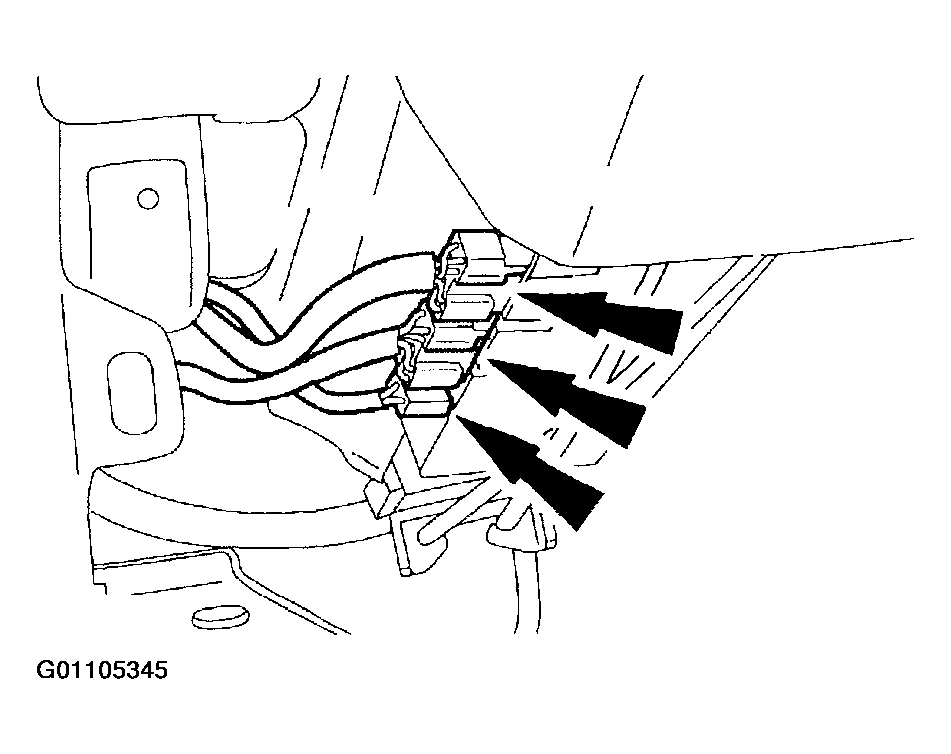

Disconnect the electrical connectors.

Fig 8: Disconnecting Electrical Connectors
Courtesy of FORD MOTOR CO.

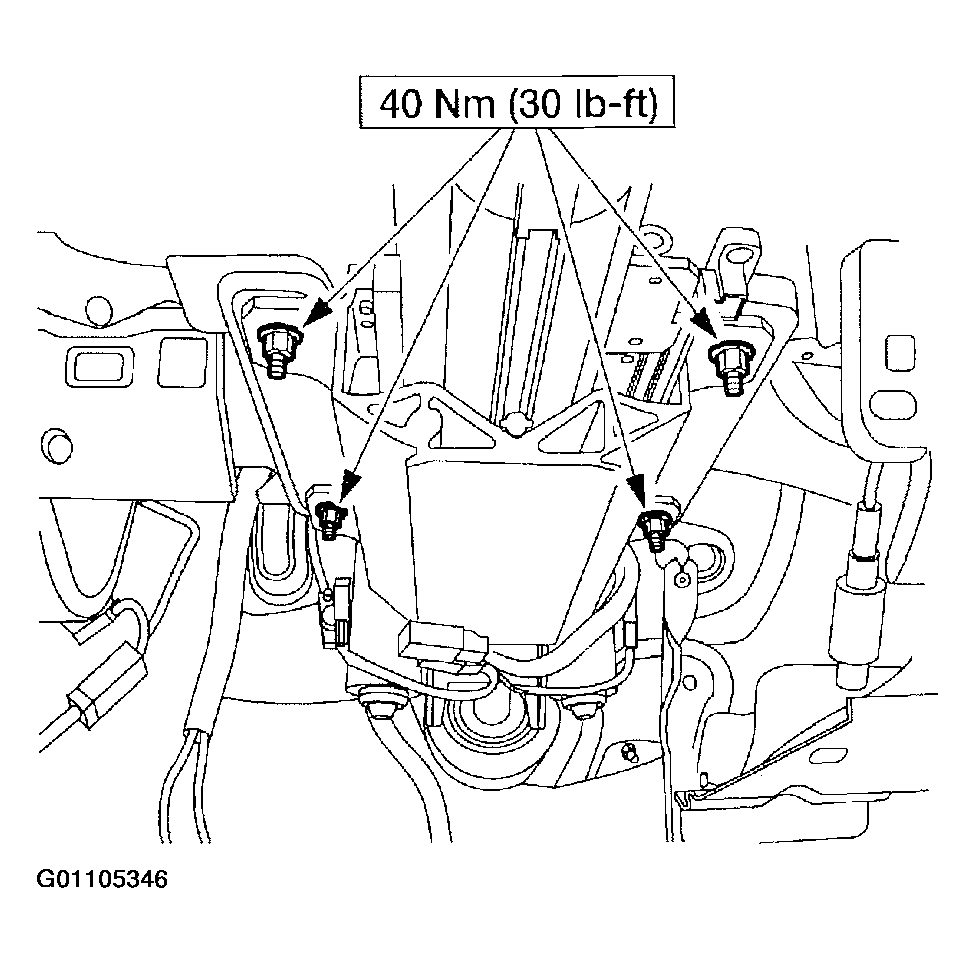

While supporting the steering column, remove the lock nuts and the steering column.
- Discard the nuts.
Fig 9: Removing Steering Column
Courtesy of FORD MOTOR CO.

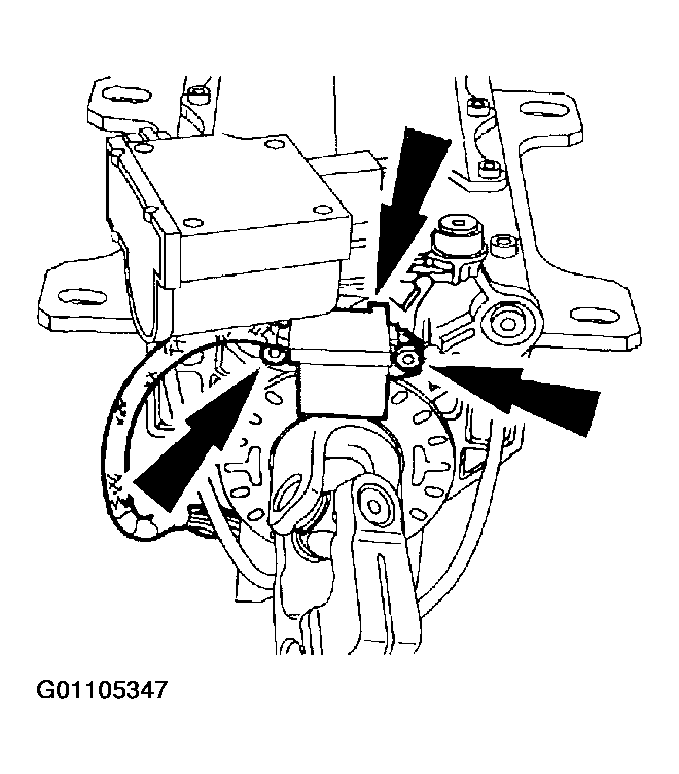

Remove the screws. Detach the electrical connector from the steering column and remove the sensor.

Fig 10: Removing Sensor
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
