Power Steering Pump-3.9L: Removal

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

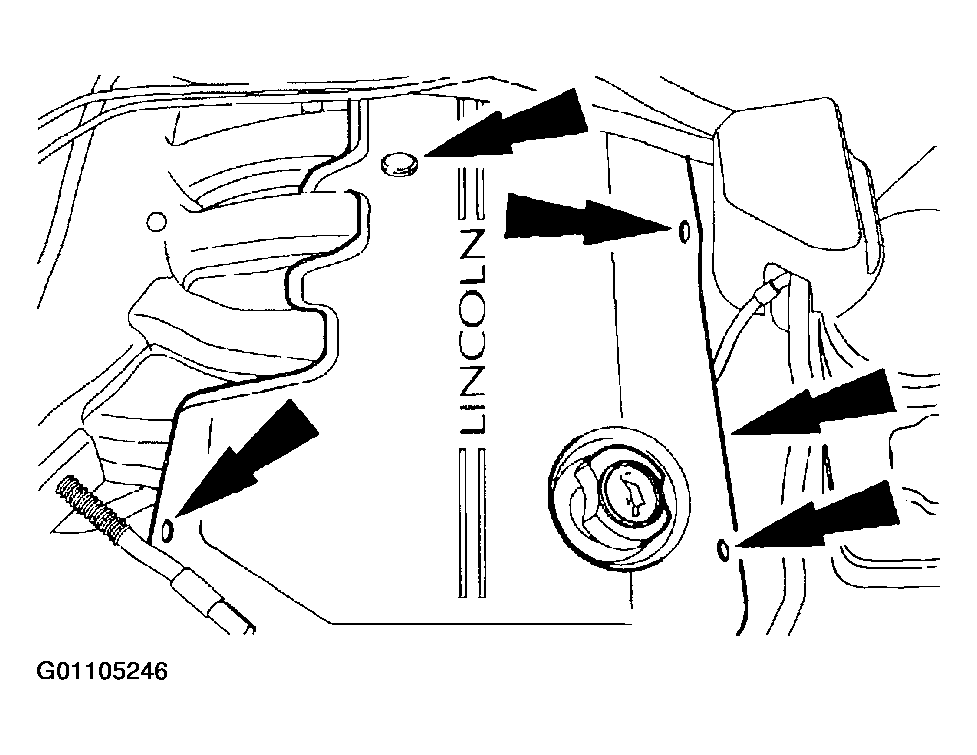

Remove four pushpins and the engine cover.

Fig 1: Removing Engine Cover
Courtesy of FORD MOTOR CO.
Remove the air cleaner and the air cleaner outlet tube.
Remove the bolts.

Fig 2: Removing Bolts
Courtesy of FORD MOTOR CO.
Remove the accessory drive belt. For additional information, see ACCESSORY DRIVE .

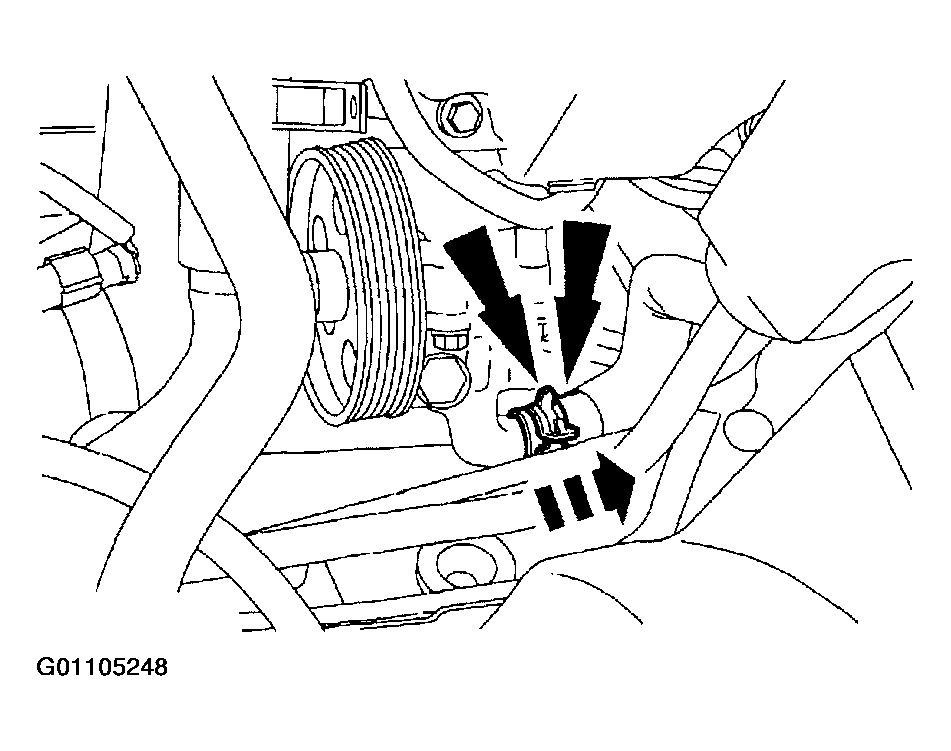

Unclamp and disconnect the power steering reservoir-to-pump hose (3691) and drain the reservoir (3E764) into a suitable container.

Fig 3: Disconnecting Power Steering Reservoir-To-Pump Hose
Courtesy of FORD MOTOR CO.

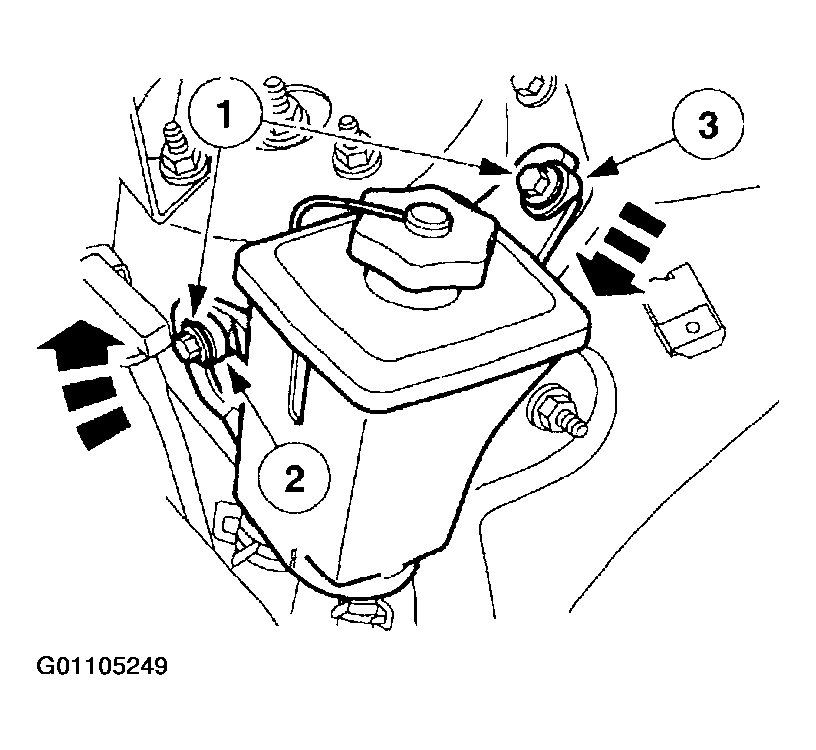

Position the power steering reservoir out of the way.
1. Loosen the bolts.
2. Rotate the reservoir from the insulator.
3. Pull the reservoir down from the insulator and position the reservoir out of the way.
Fig 4: Positioning Reservoir Out Of Way
Courtesy of FORD MOTOR CO.
Raise the vehicle on a hoist. For additional information, see JACKING & HOISTING .
Remove the wheel and tire assembly.

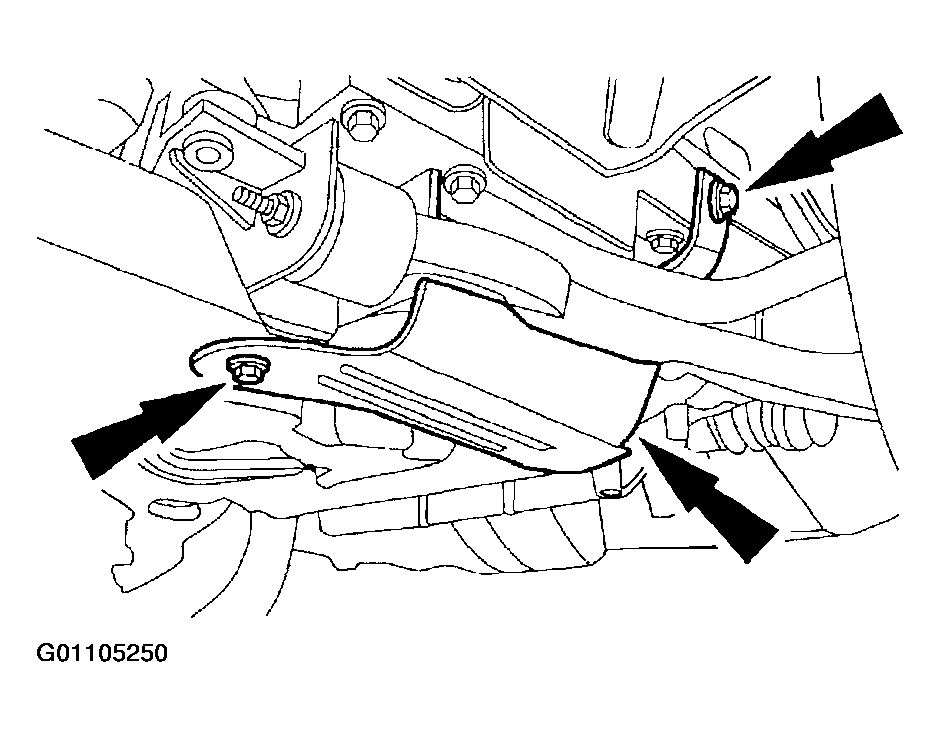

Remove two bolts, one pushpin and the shield.

Fig 5: Removing Shield
Courtesy of FORD MOTOR CO.

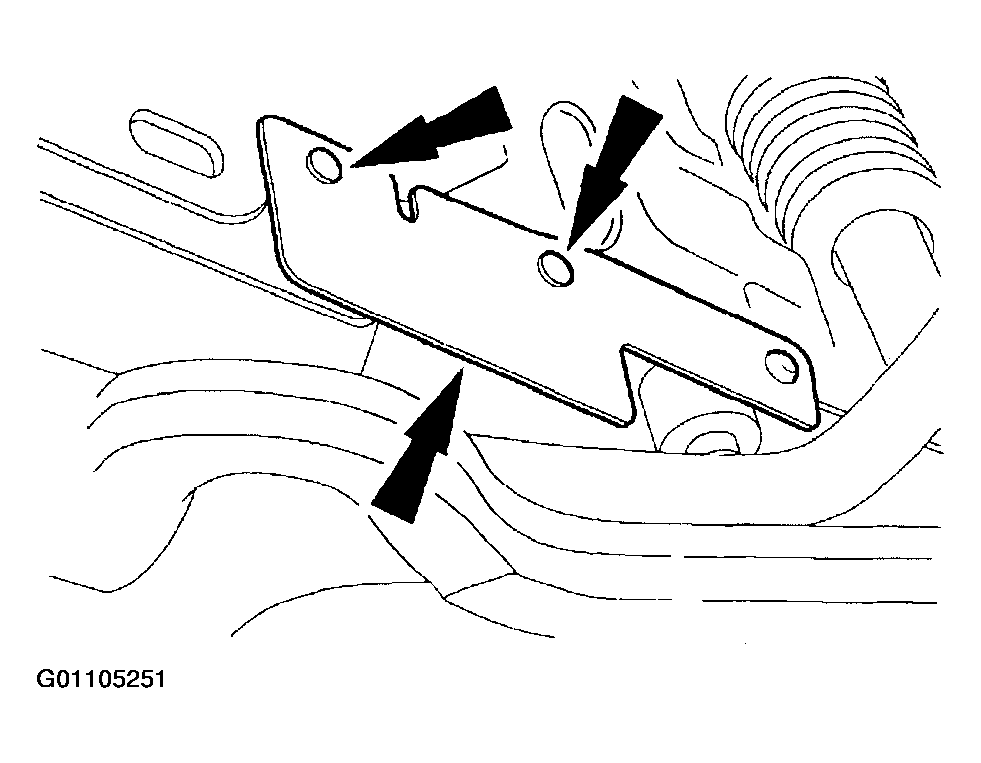

Remove two pushpins and the shield.

Fig 6: Removing Shield
Courtesy of FORD MOTOR CO.
Remove the bolt.

Fig 7: Removing Bolt
Courtesy of FORD MOTOR CO.

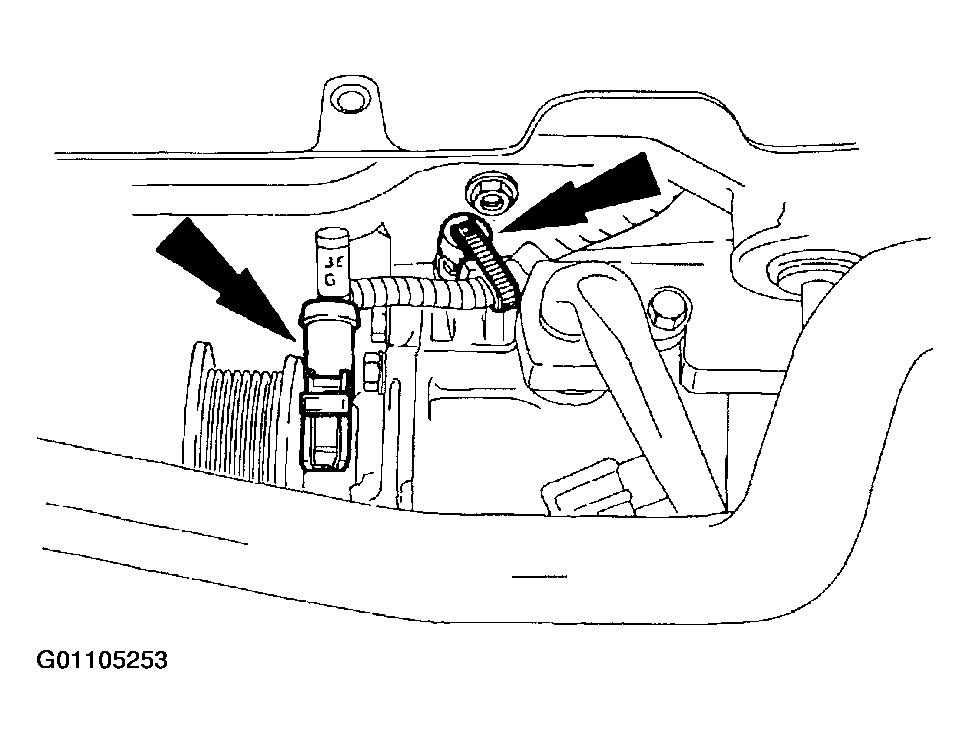

Disconnect the electrical connector and the wire retainer.

Fig 8: Disconnecting Electrical Connector & Wire Retainer
Courtesy of FORD MOTOR CO.
Remove four bolts and position the A/C compressor out of the way.

Fig 9: Positioning A/C Compressor Out Of Way
Courtesy of FORD MOTOR CO.

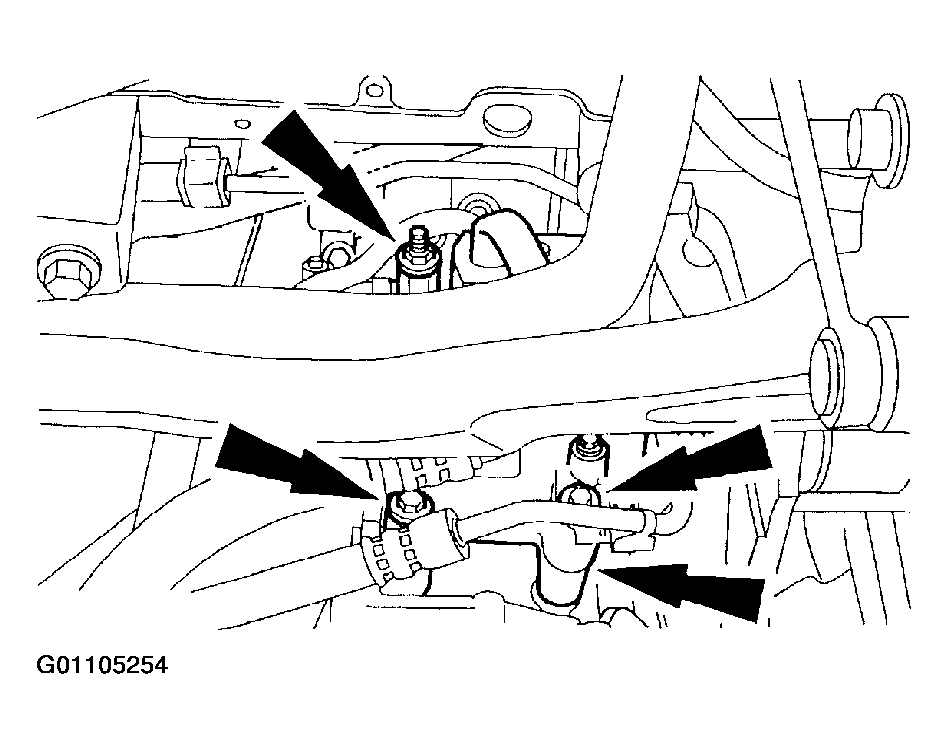

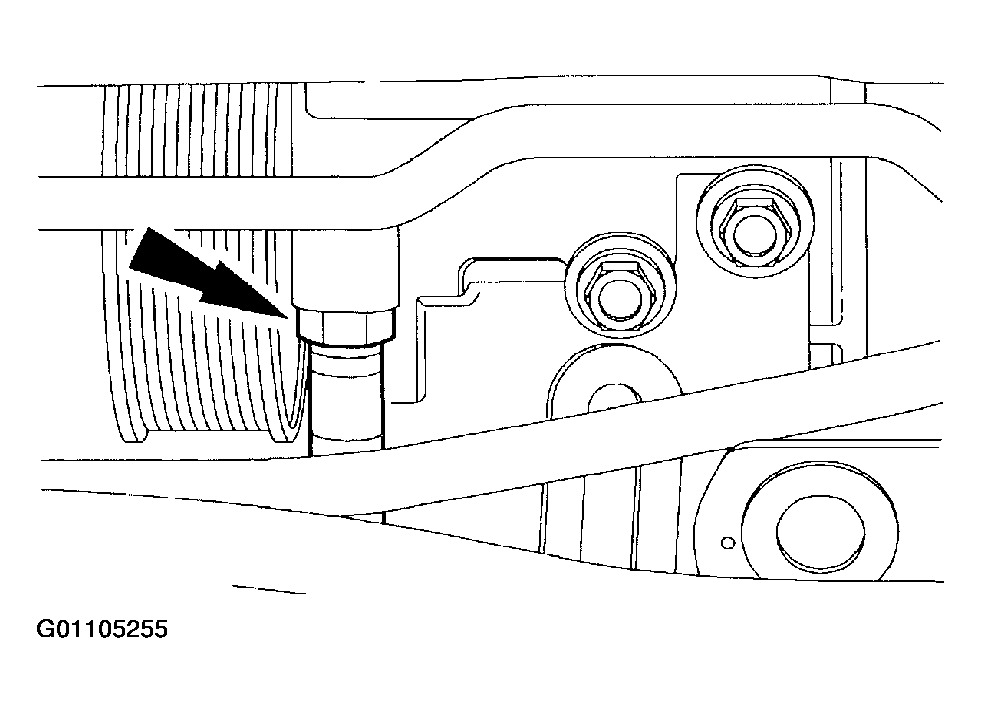

Disconnect the power steering pressure hose (3A714).

Fig 10: Disconnecting Power Steering Pressure Hose
Courtesy of FORD MOTOR CO.

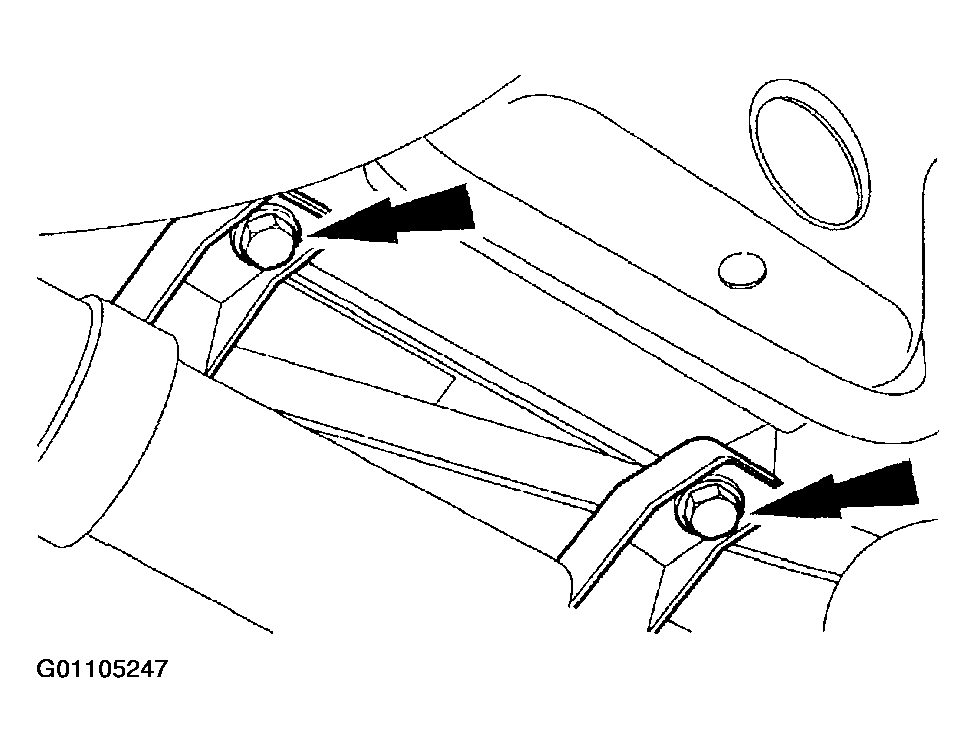

Remove the bolts.

Fig 11: Removing Bolts
Courtesy of FORD MOTOR CO.
Lower the vehicle.

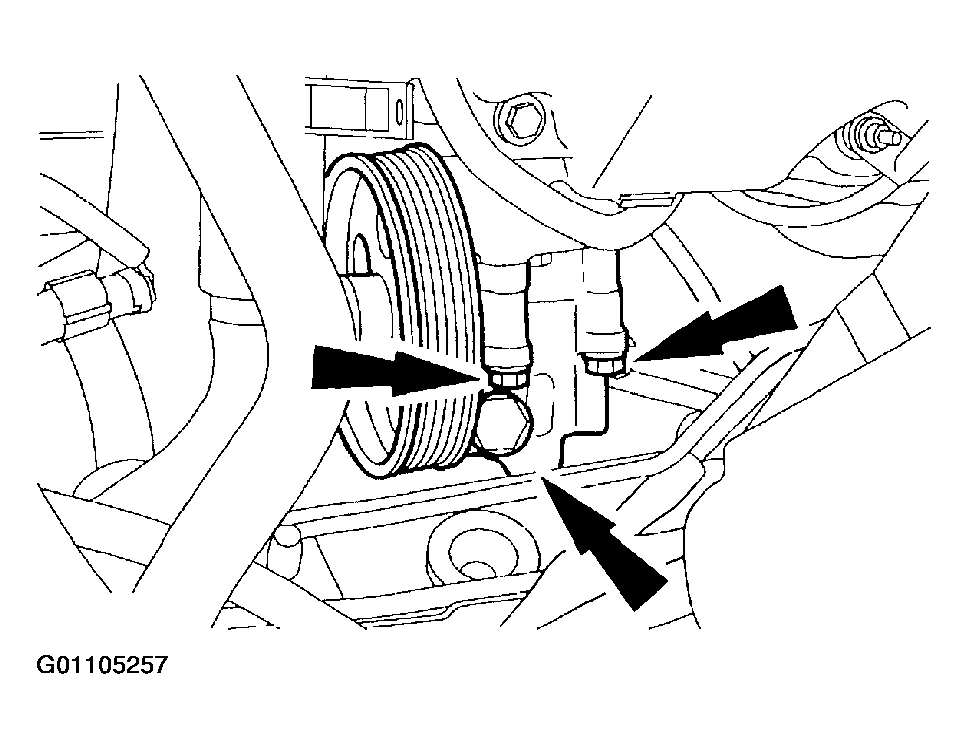

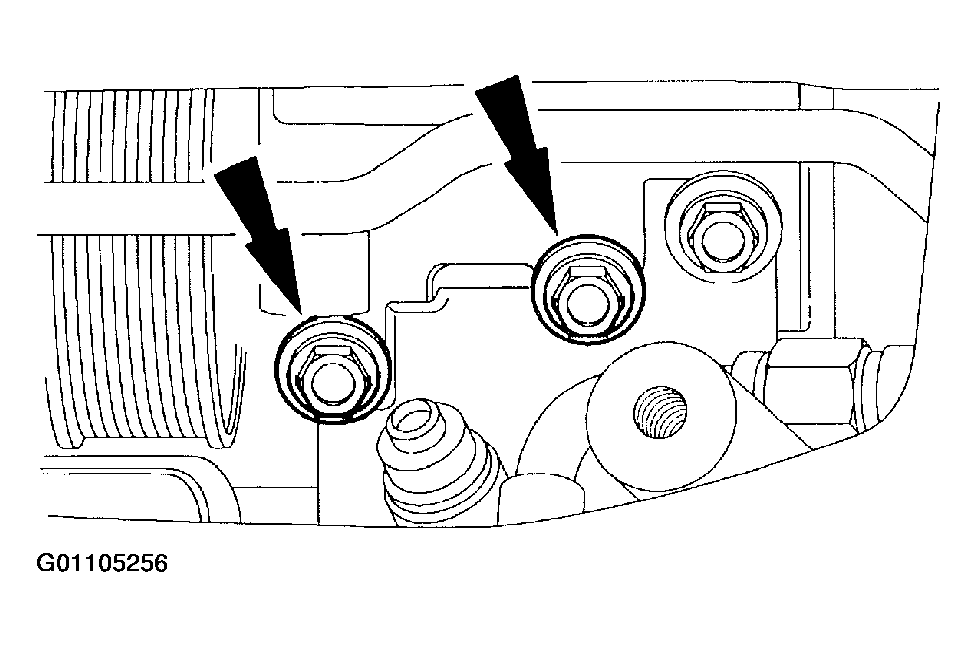

Remove the bolts and the pump (3A674).

Fig 12: Removing Power Steering Pump
Courtesy of FORD MOTOR CO.
