Power Steering Pump-3.9L: Installation

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Using the appropriate special tool, install a new O-ring on the power steering pressure hose fitting.

Fig 1: Installing New O-Rings On Power Steering Hose Fitting
Courtesy of FORD MOTOR CO.

NOTE: Do not tighten the upper bolts until the lower bolts are installed.

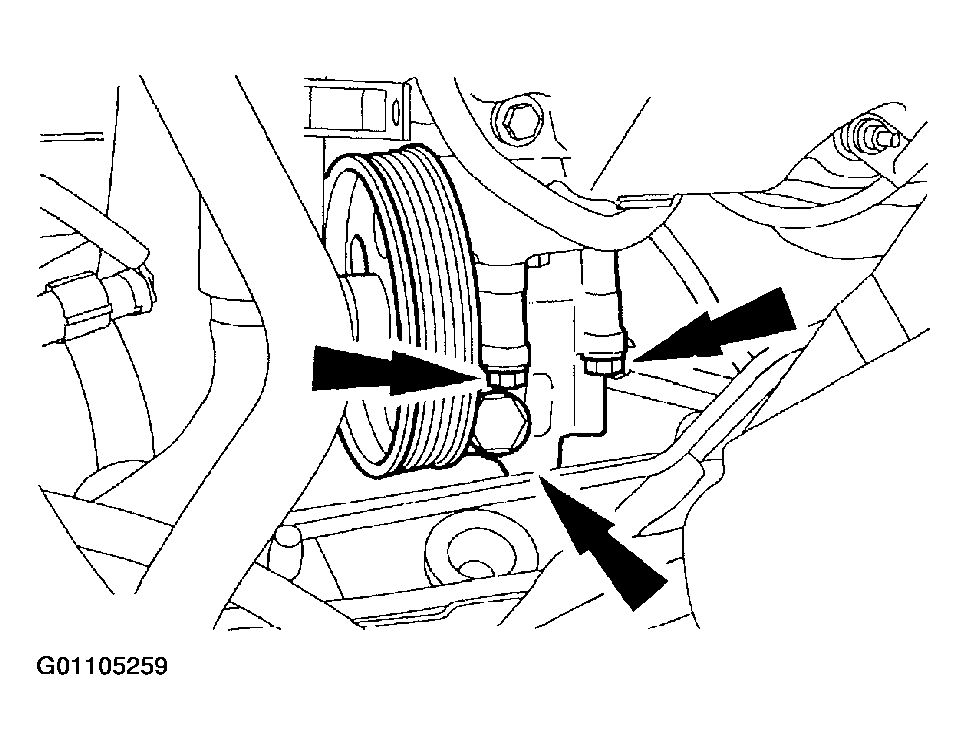

Fig 2: Installing Power Steering Pump

Courtesy of FORD MOTOR CO.

Position the pump and install the bolts.
Raise the vehicle.
Install the bolts.

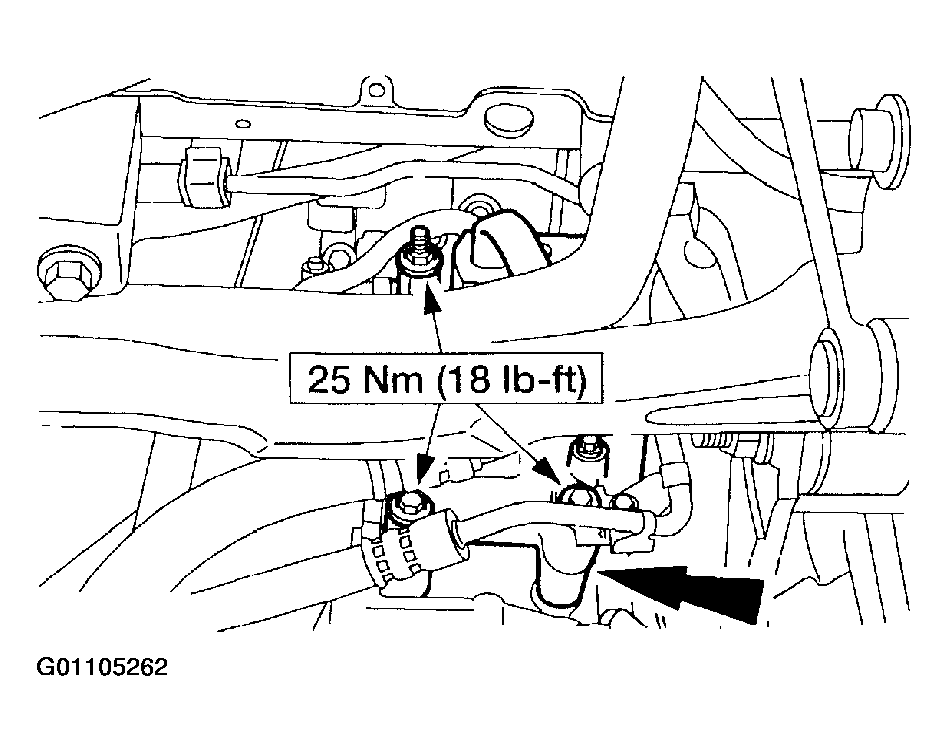

Fig 3: Installing Bolts
Courtesy of FORD MOTOR CO.
Connect the power steering pressure hose.

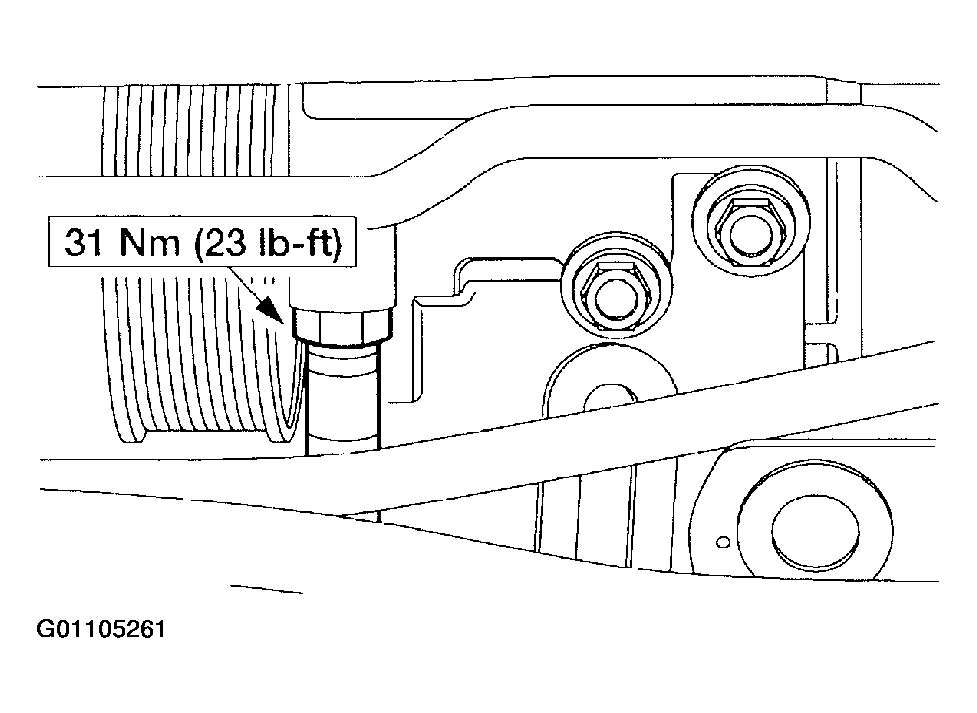

Fig 4: Connecting Power Steering Pressure Hose
Courtesy of FORD MOTOR CO.
Position the A/C compressor and install four bolts.

Fig 5: Installing A/C Compressor
Courtesy of FORD MOTOR CO.

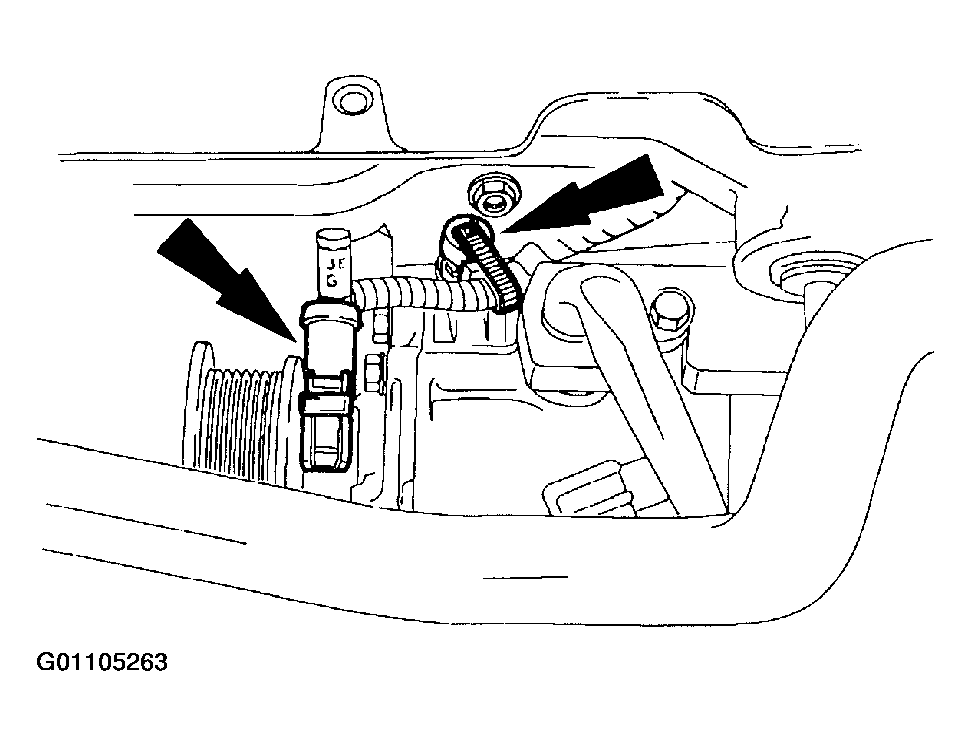

Connect the wire retainer and the electrical connector.

Fig 6: Connecting Wire Retainer & Electrical Connector
Courtesy of FORD MOTOR CO.

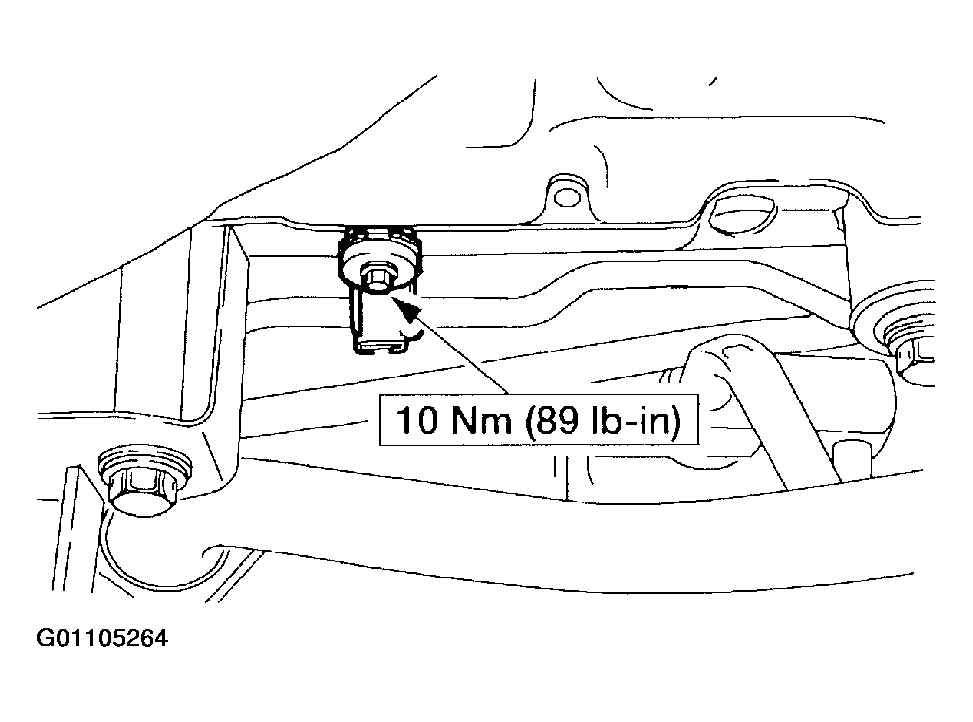

Install the bolt.

Fig 7: Installing Bolt
Courtesy of FORD MOTOR CO.

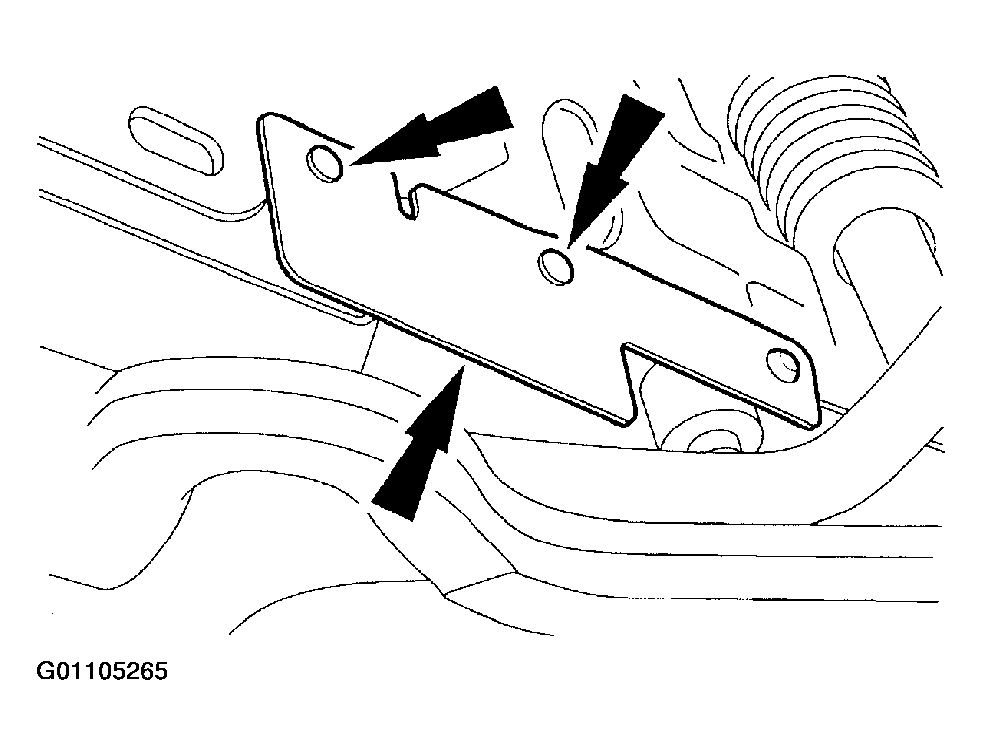

Install the shield and two pushpins.

Fig 8: Installing Shield
Courtesy of FORD MOTOR CO.

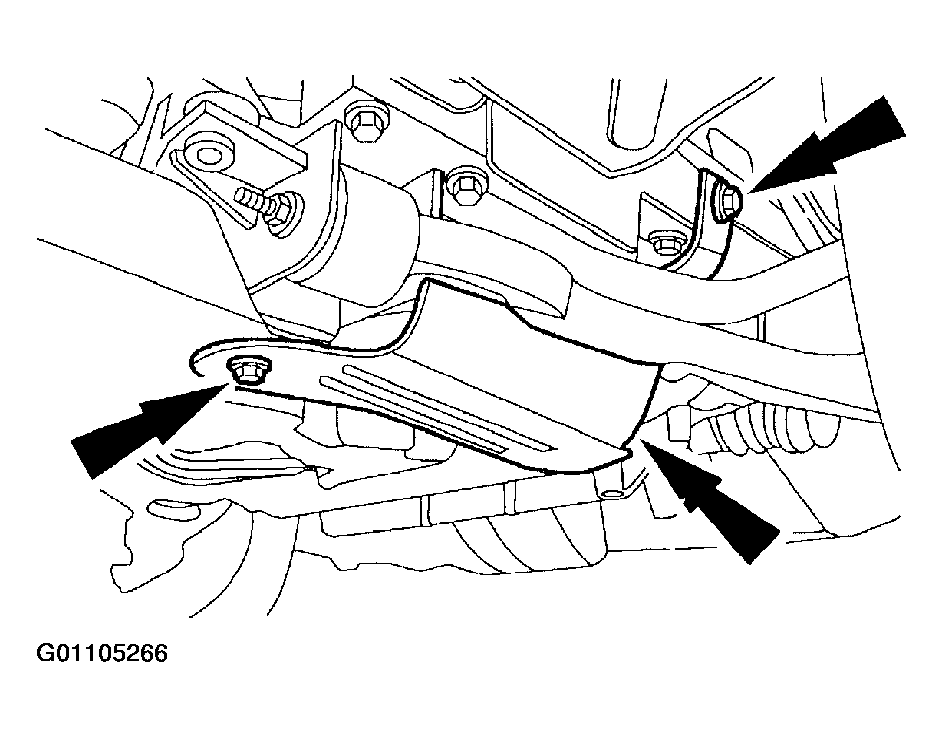

Install the shield, one pushpin and two bolts.

Fig 9: Installing Shield
Courtesy of FORD MOTOR CO.
Install the wheel and tire assembly.
Lower the vehicle.

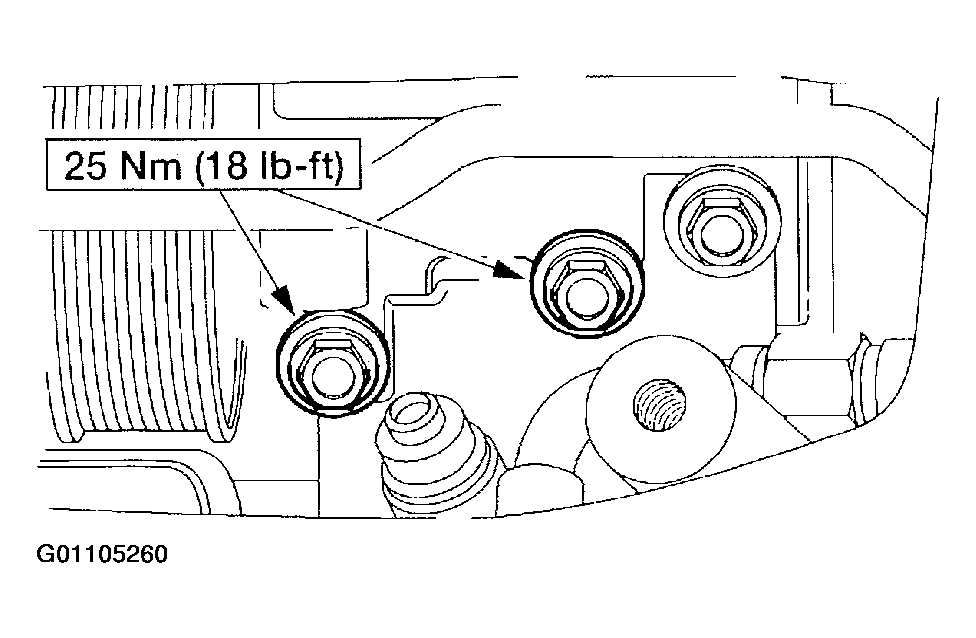

Tighten the bolts.

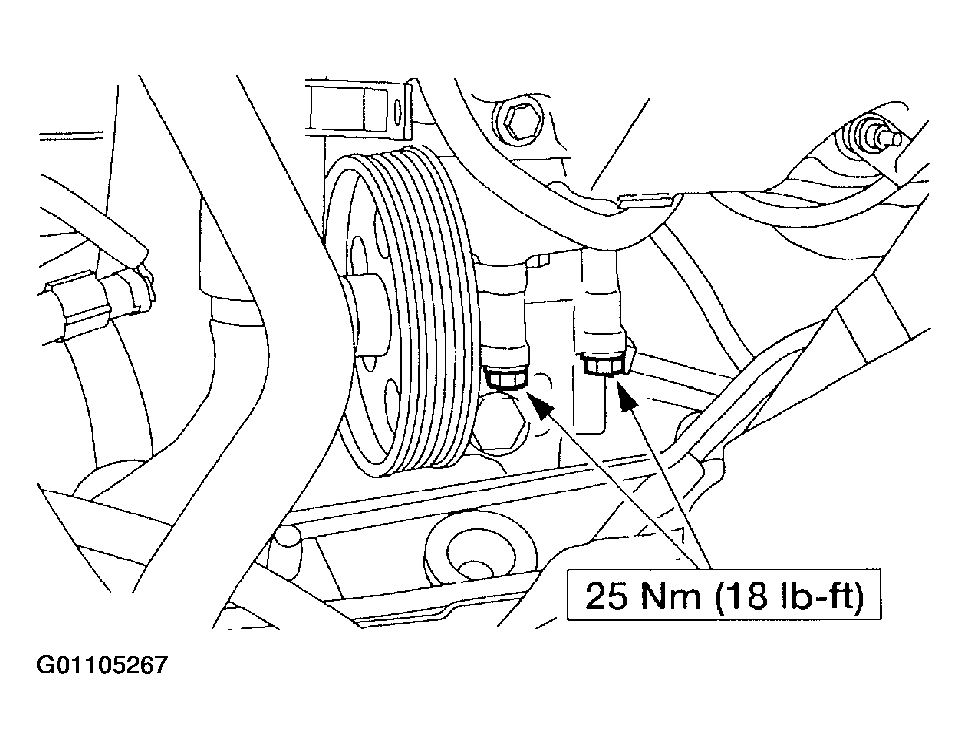

Fig 10: Tightening Pump Bolts
Courtesy of FORD MOTOR CO.

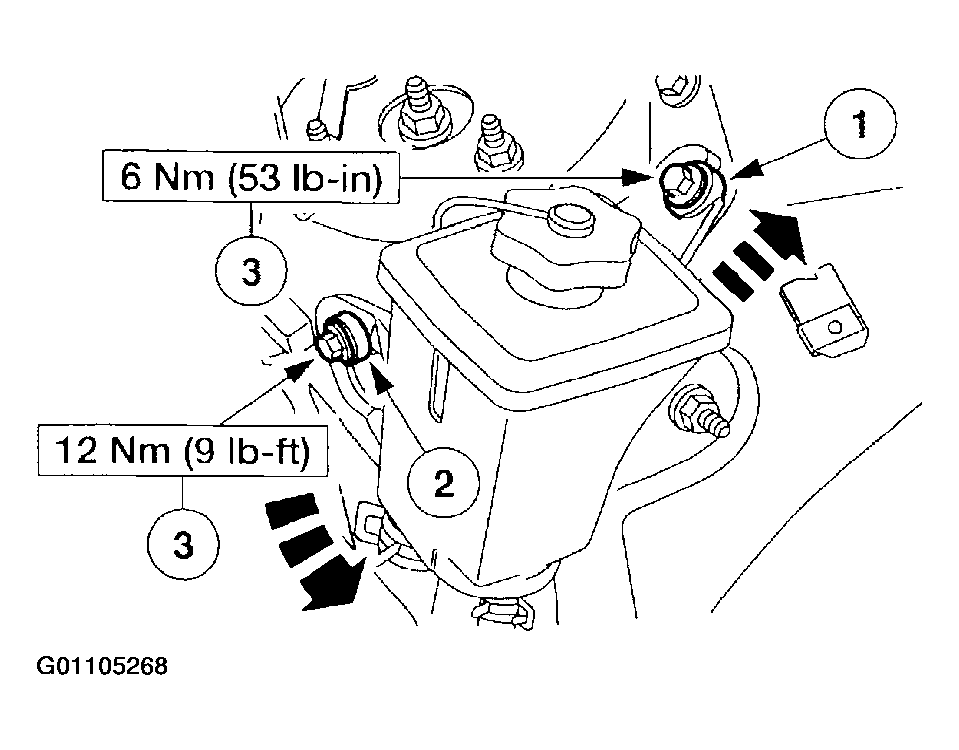

Connect the reservoir.
1. Push the reservoir up on the insulator.
2. Rotate the reservoir on the insulator.
3. Tighten the bolts.
Fig 11: Installing Reservoir
Courtesy of FORD MOTOR CO.

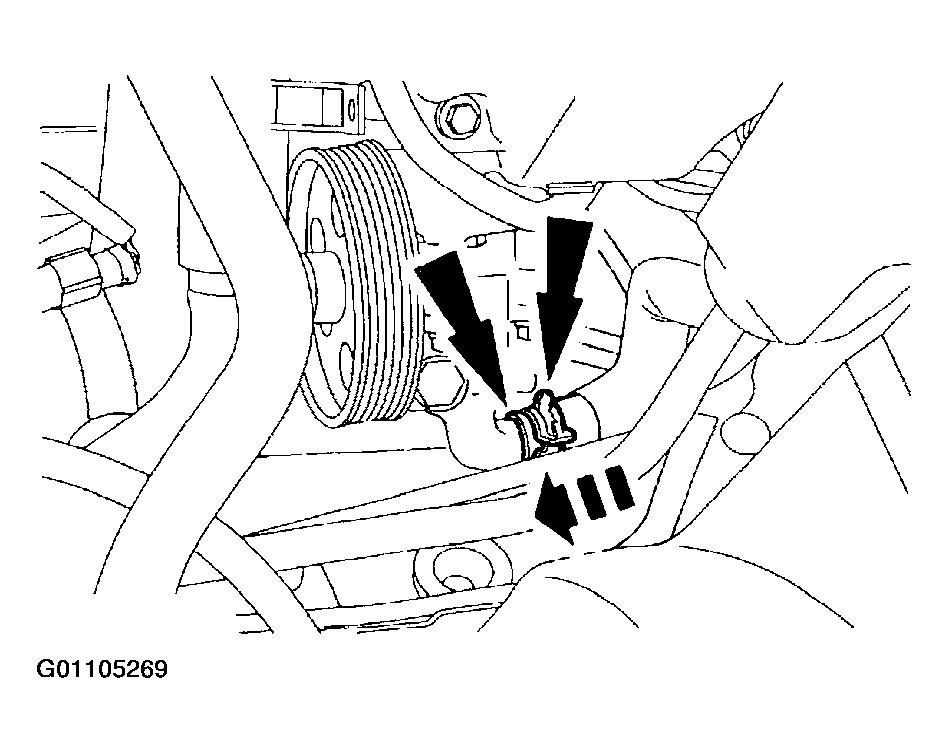

Connect and clamp the power steering reservoir-to-pump hose.

Fig 12: Connecting Power Steering Reservoir-To-Pump Hose
Courtesy of FORD MOTOR CO.
Install the accessory drive belt. For additional information, see ACCESSORY DRIVE .

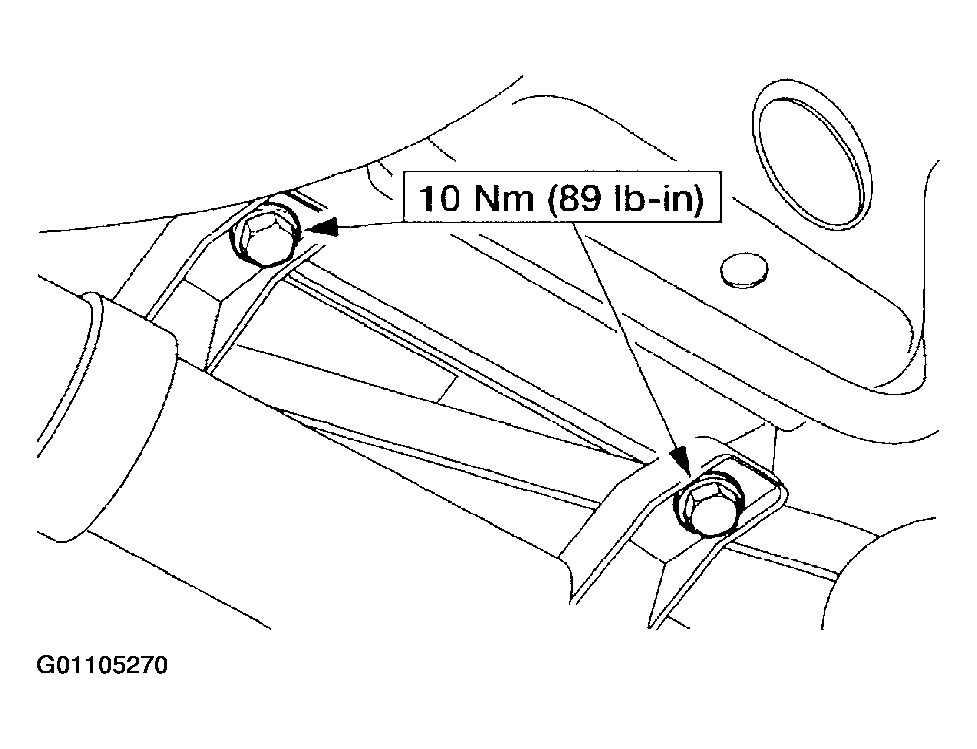

Install the bolts.

Fig 13: Installing Bolts
Courtesy of FORD MOTOR CO.
Install the air cleaner outlet tube and the air cleaner.

NOTE: Inspect the pushpins for cracks or other damage. Install new pushpins if necessary.

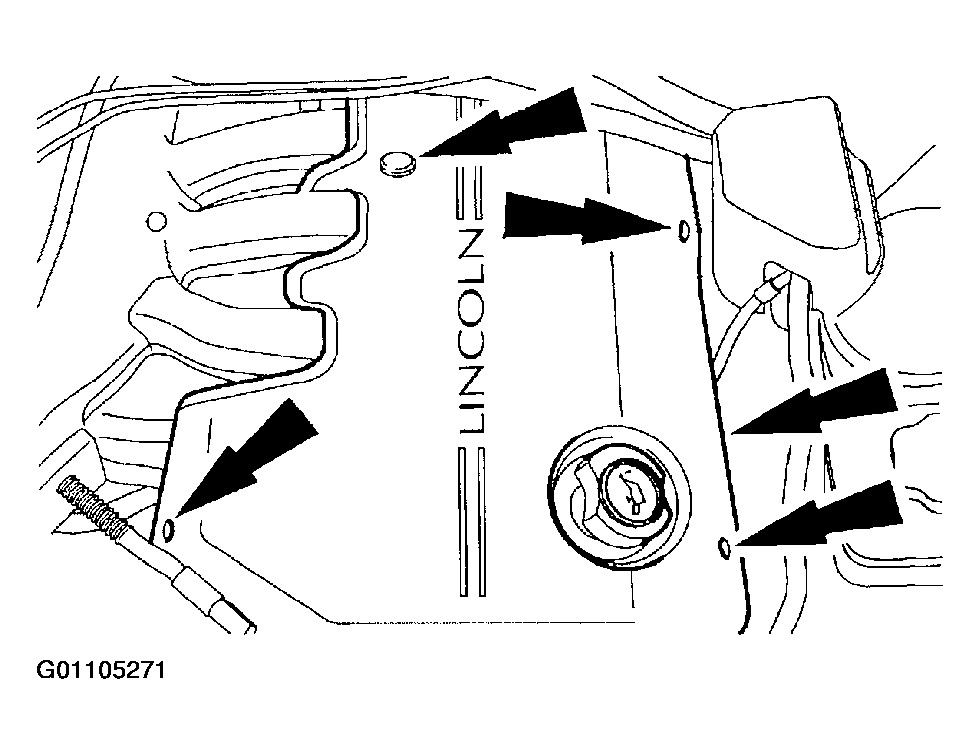

Fig 14: Installing Engine Cover

Courtesy of FORD MOTOR CO.

Install the engine cover and four pushpins.
Fill and leak check the system. For additional information, see POWER STEERING SYSTEM FILLING .
