Removal and Installation

All vehicles

1. Raise and support the vehicle. For additional information, see JACKING & HOISTING .
2. Remove the screw, pushpin and the shield.

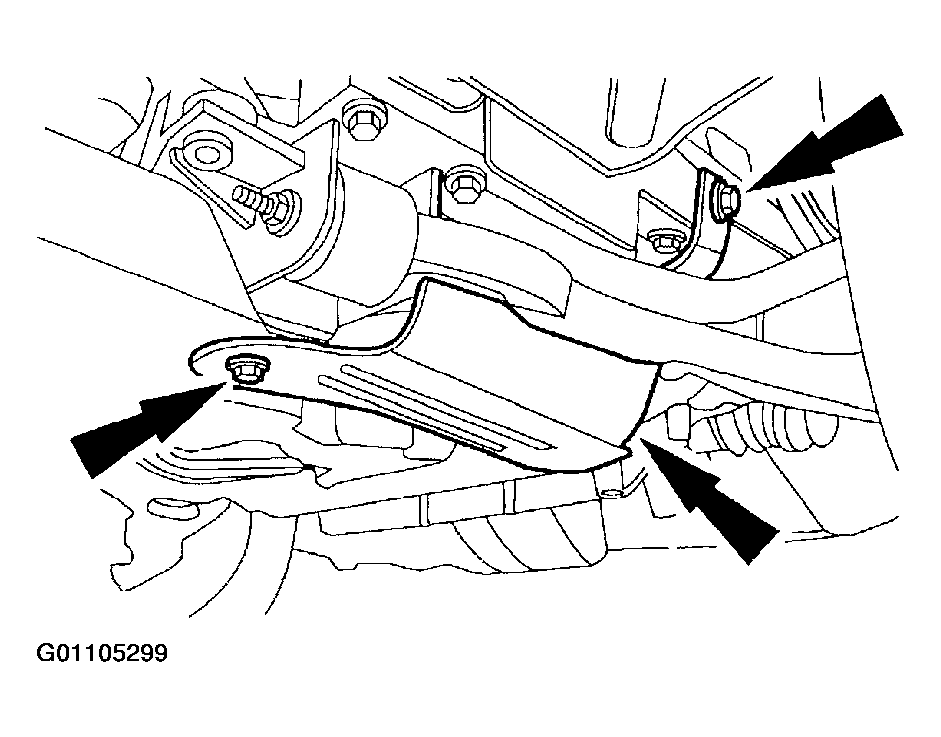

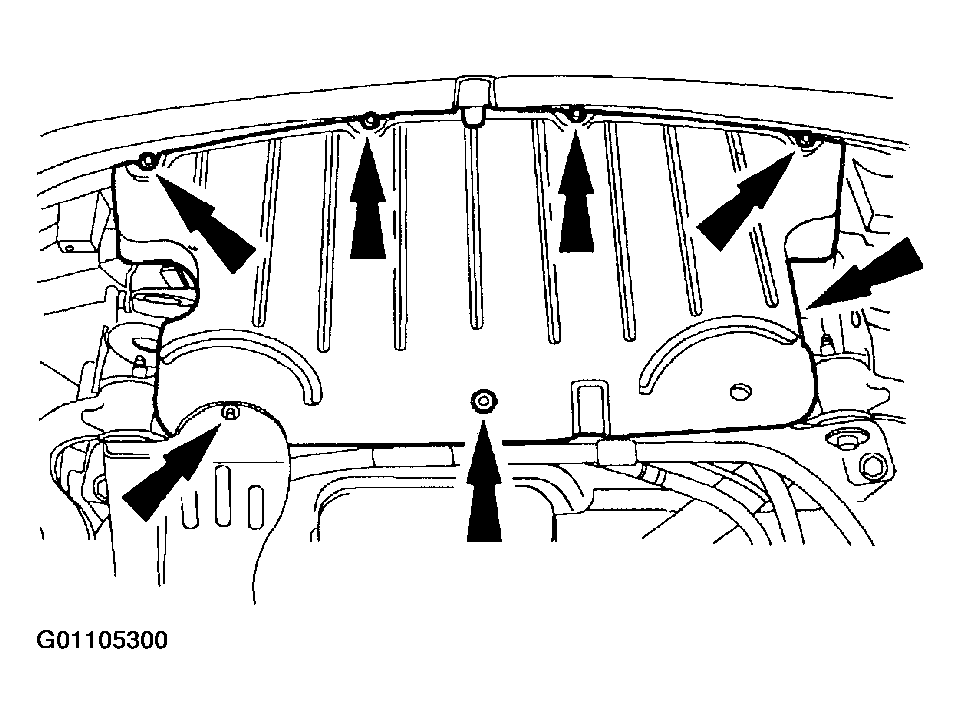

   Fig 1: Removing shield

   Courtesy of FORD MOTOR CO.
3. Remove the screws and the air deflector.
   Fig 2: Removing Air Deflector

   Courtesy of FORD MOTOR CO.
4. Remove the bolt.
   Fig 3: Removing Bolt

   Courtesy of FORD MOTOR CO.
5. Remove the bolt, bracket and bushings.

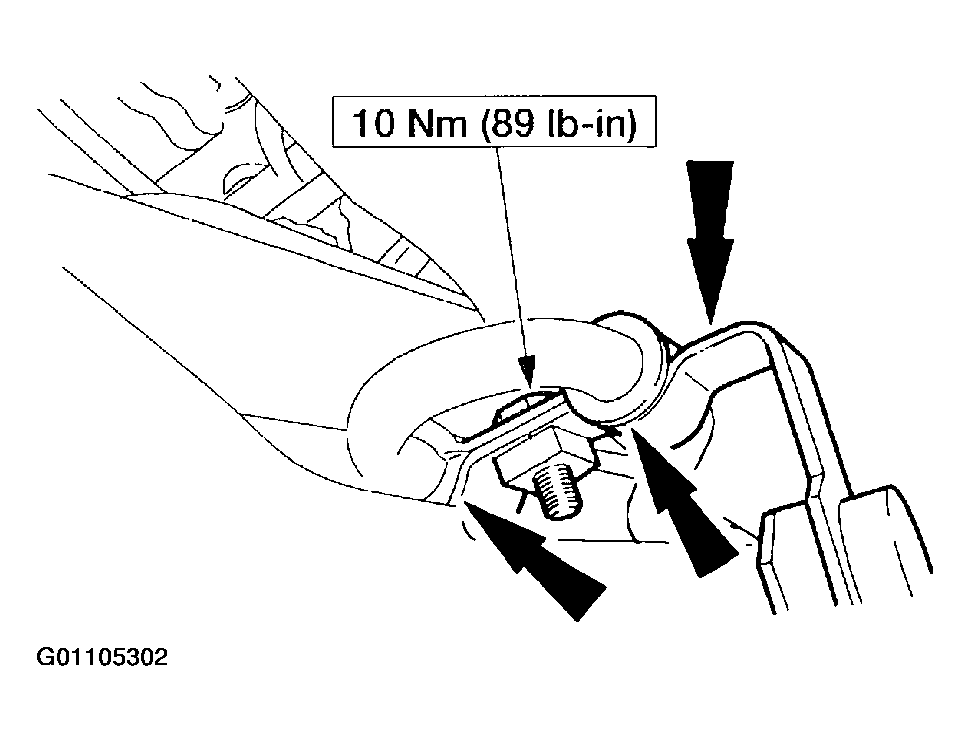

   Fig 4: Removing Bolt, Bracket & Bushings

   Courtesy of FORD MOTOR CO.
6. Remove the bolt.

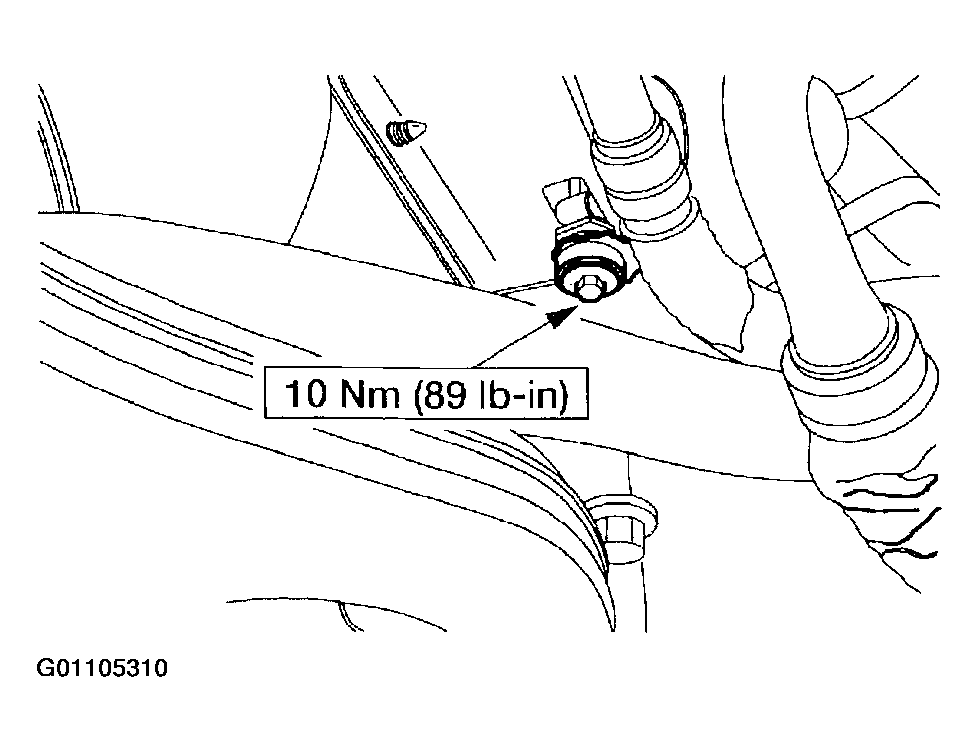

   Fig 5: Removing Bolt

   Courtesy of FORD MOTOR CO.
7. Unclip the retainer.

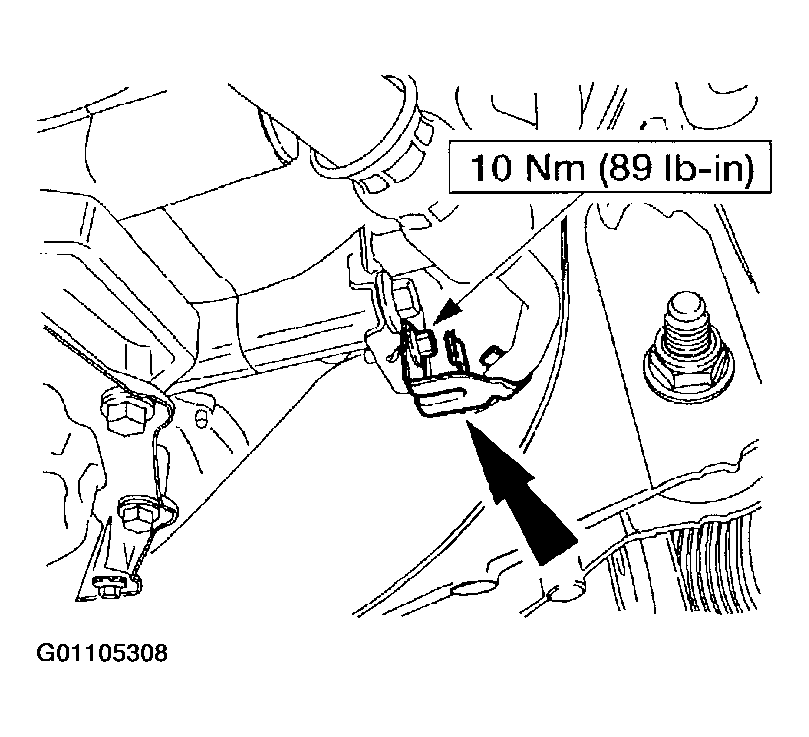

   Fig 6: Removing Retainer Clip

   Courtesy of FORD MOTOR CO.
8. Pull the hose rearward between the oil pan and the radiator support crossmember.

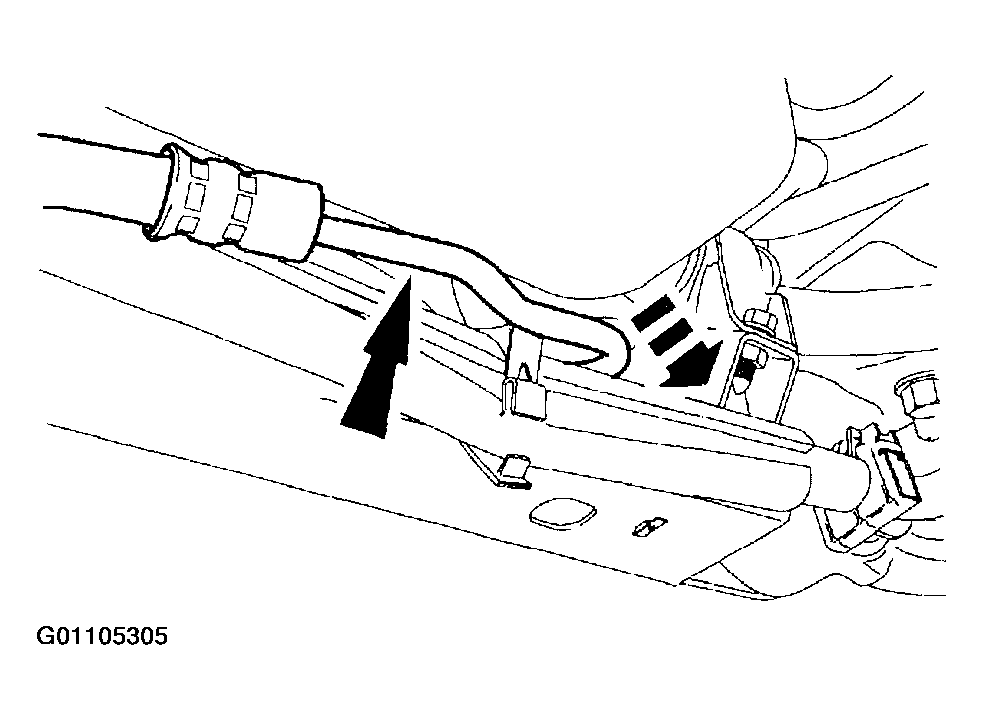

   Fig 7: Pulling Hose Rearward

   Courtesy of FORD MOTOR CO.

   3.0L engine

9. Remove the bolt and the bracket.

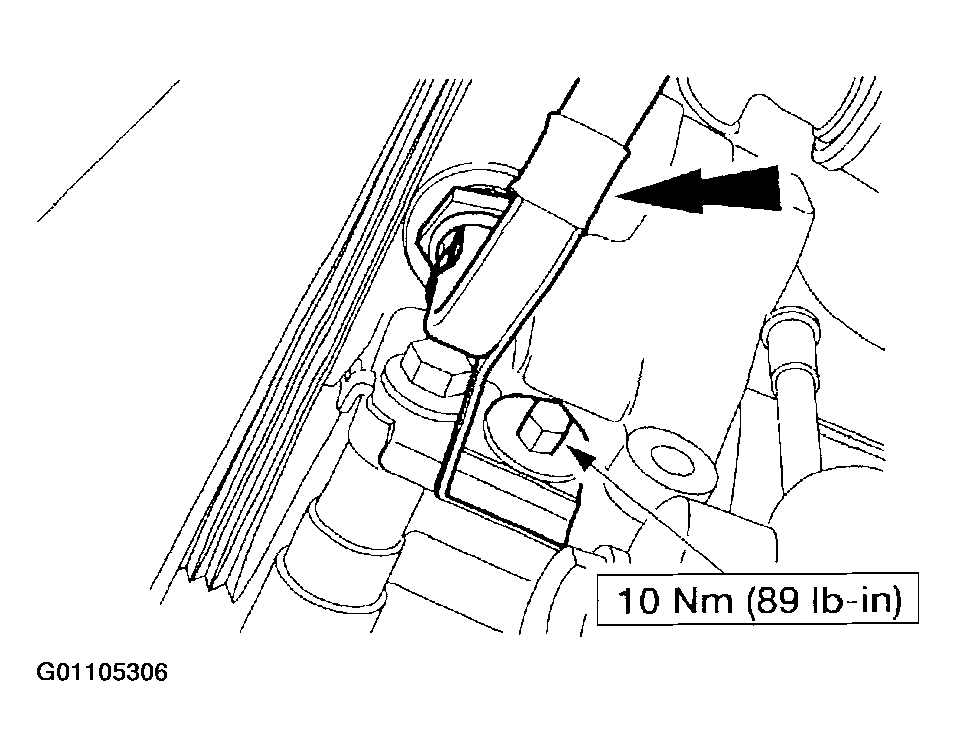

   Fig 8: Removing Bolt & Bracket

   Courtesy of FORD MOTOR CO.
10. Disconnect the hose (3A719) at the pump.

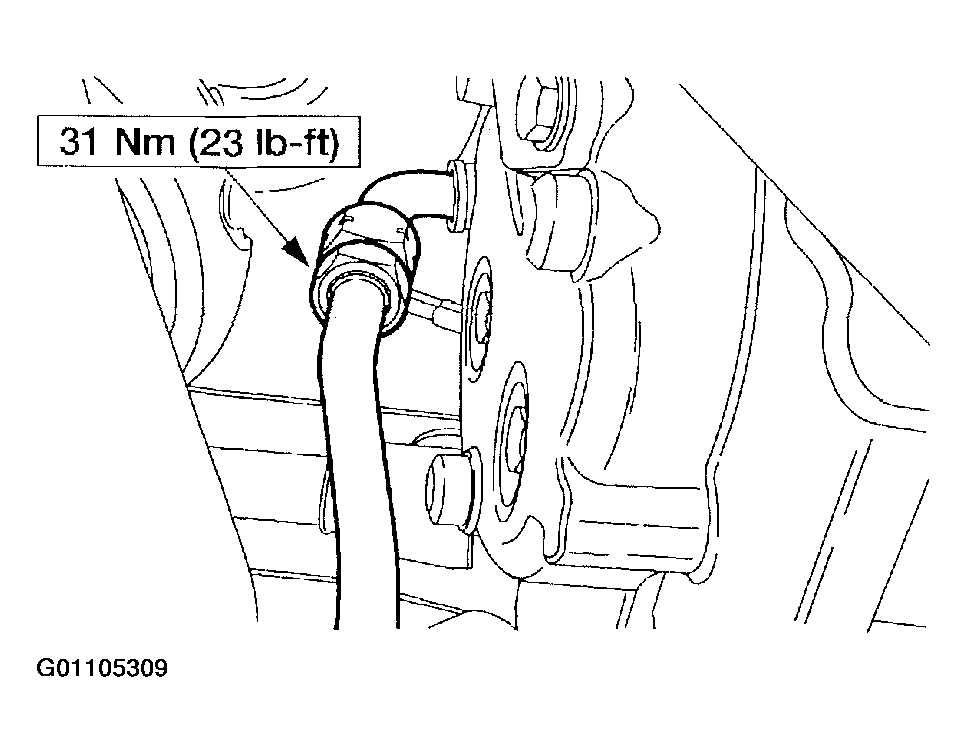

    Fig 9: Disconnecting Hose At Pump

    Courtesy of FORD MOTOR CO.

    3.9L engine

11. Remove the bolt and the bracket.
    Fig 10: Removing Bolt & Bracket

    Courtesy of FORD MOTOR CO.
12. Disconnect the hose (3A719) at the pump.
    • Drain the fluid into a suitable container.
    Fig 11: Disconnecting Hose At Pump

    Courtesy of FORD MOTOR CO.

    All vehicles

13. Remove the bolt.
    Fig 12: Removing Bolt

    Courtesy of FORD MOTOR CO.
14. Disconnect the wiring at the pressure switch (3N824).

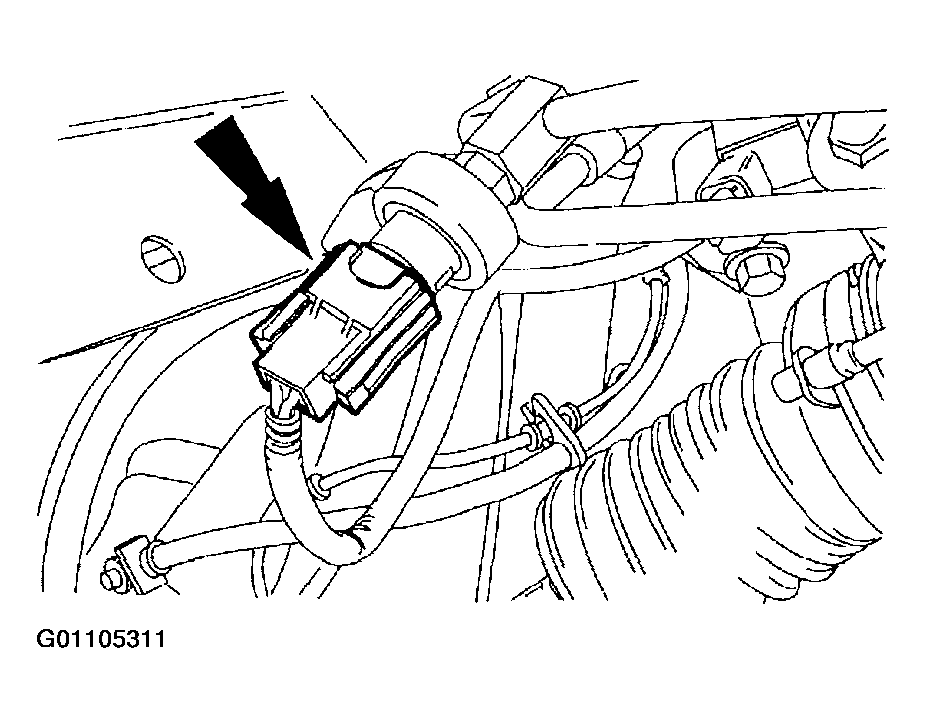

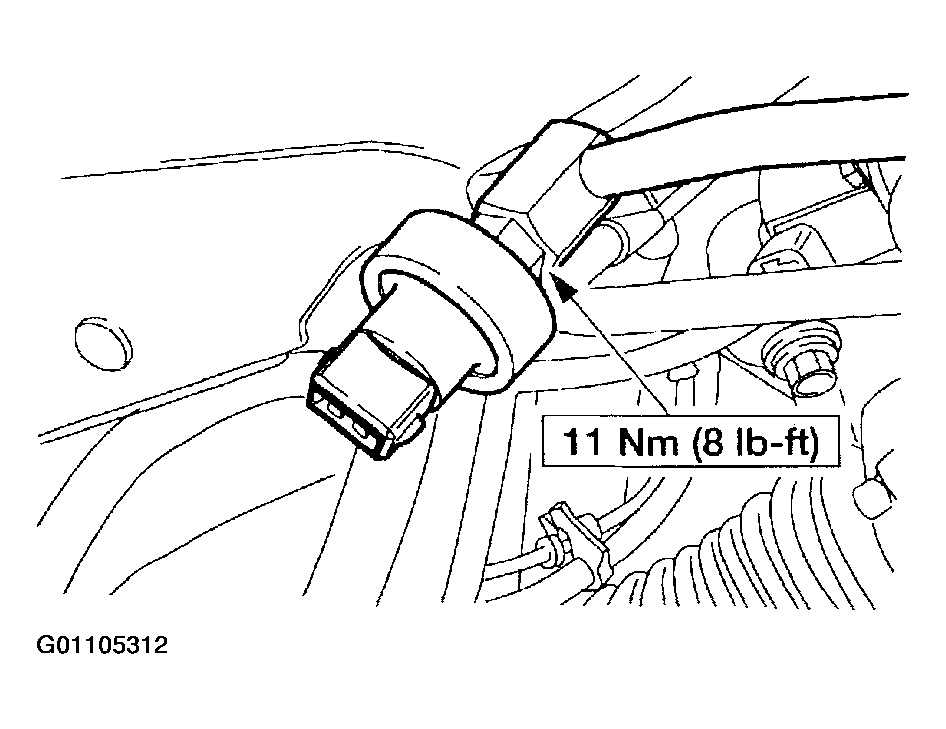

    Fig 13: Disconnecting Wiring At Pressure Switch

    Courtesy of FORD MOTOR CO.
15. Remove the pressure switch.
    • Drain the fluid into a suitable container.
    Fig 14: Removing Pressure Switch

    Courtesy of FORD MOTOR CO.
16. Disconnect the hose at the steering gear.

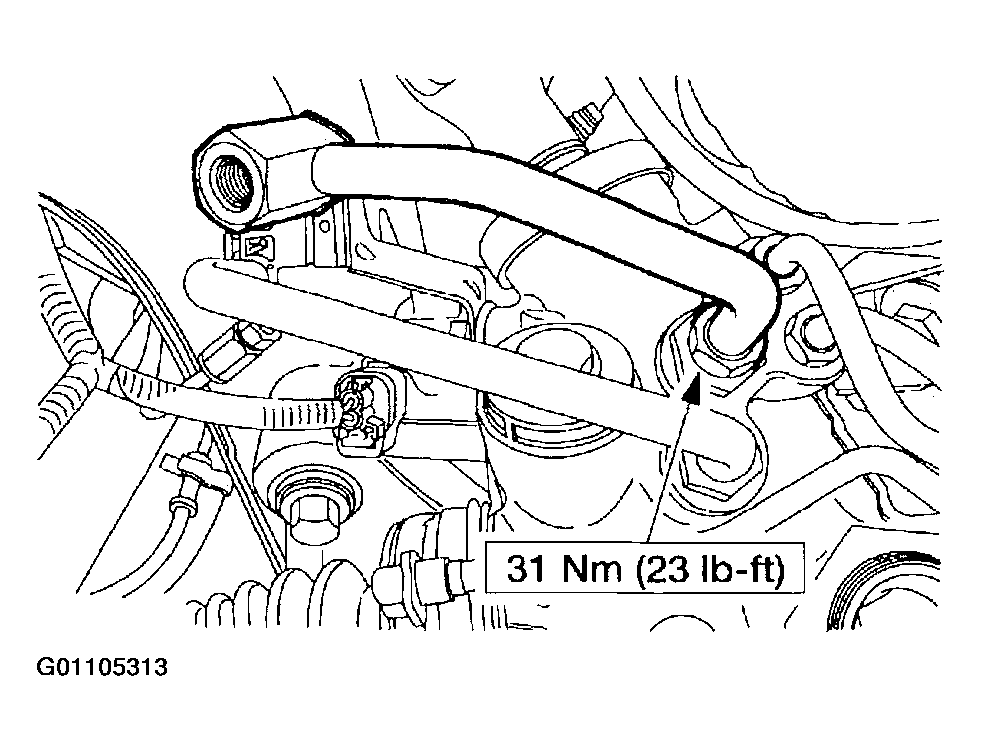

    Fig 15: Disconnecting Hose At Steering Gear

    Courtesy of FORD MOTOR CO.
17. Unclip the retainer and detach the hose.

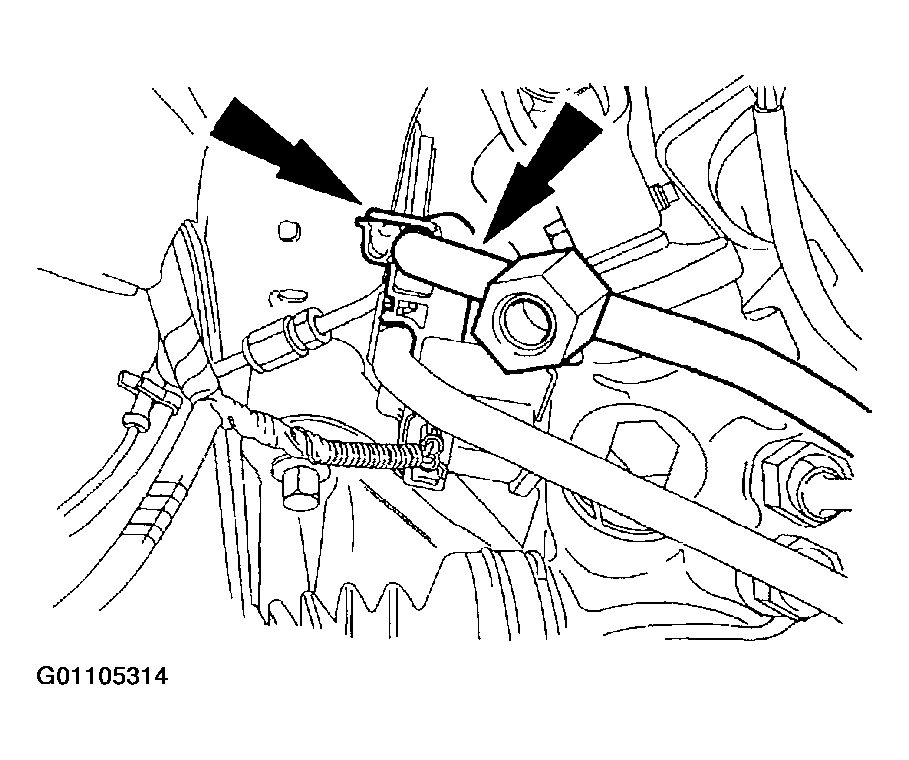

    Fig 16: Unclipping Retainer

    Courtesy of FORD MOTOR CO.
18. Remove the hose.

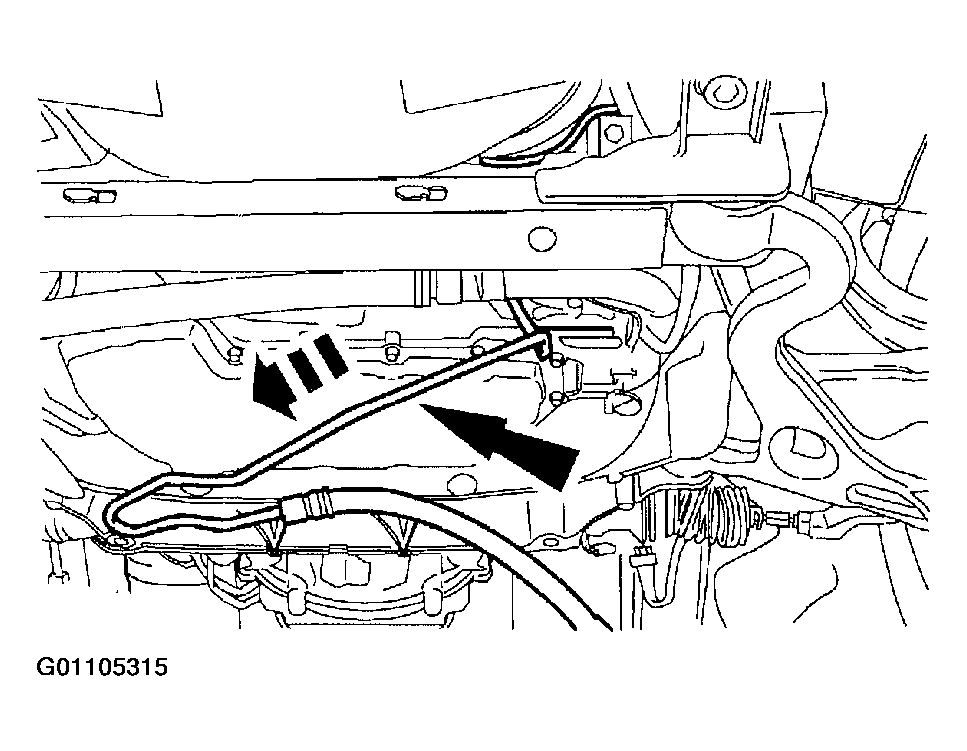

    Fig 17: Removing Hose

    Courtesy of FORD MOTOR CO.
19. To install, reverse the removal procedure.
    • Install a new seal using the special tool.
    Fig 18: Installing New O-Ring

    Courtesy of FORD MOTOR CO.
20. Fill and leak check the system. For additional information, see POWER STEERING SYSTEM FILLING .
