Power Steering Pump Pulley - 3.9L: Removal

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air cleaner and the air cleaner outlet tube.
  2. Remove the bolts.

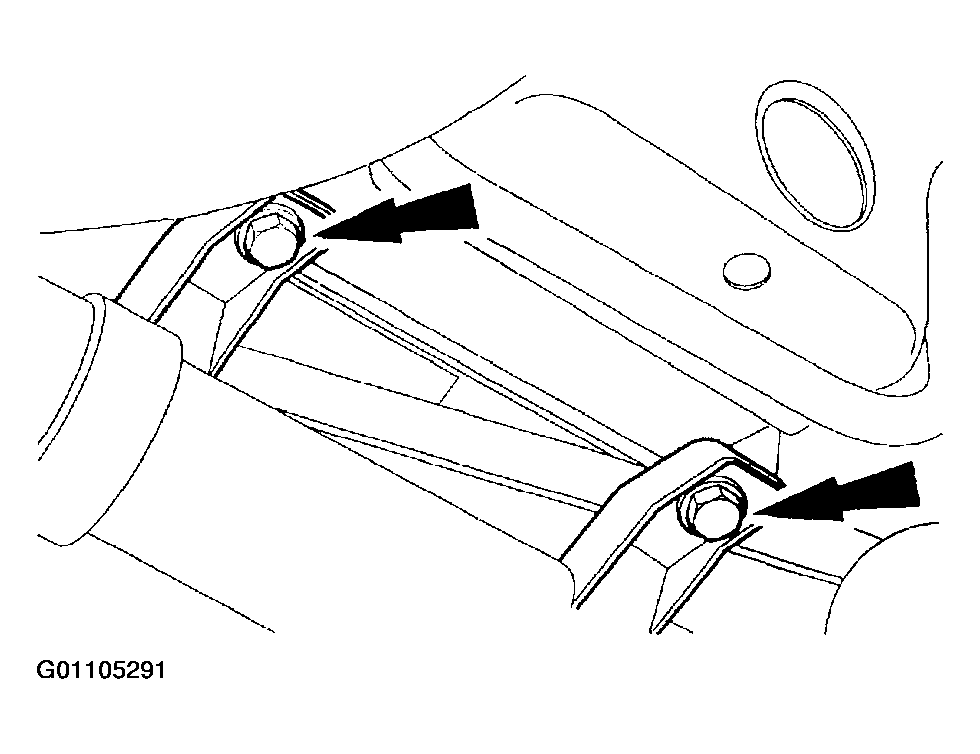

    Fig 1: Removing Bolts
    G01105291Courtesy of FORD MOTOR CO.
  3. Remove the accessory drive belt. For additional information, see ACCESSORY DRIVE .
  4. Using the special tool, remove the pulley (3A733).

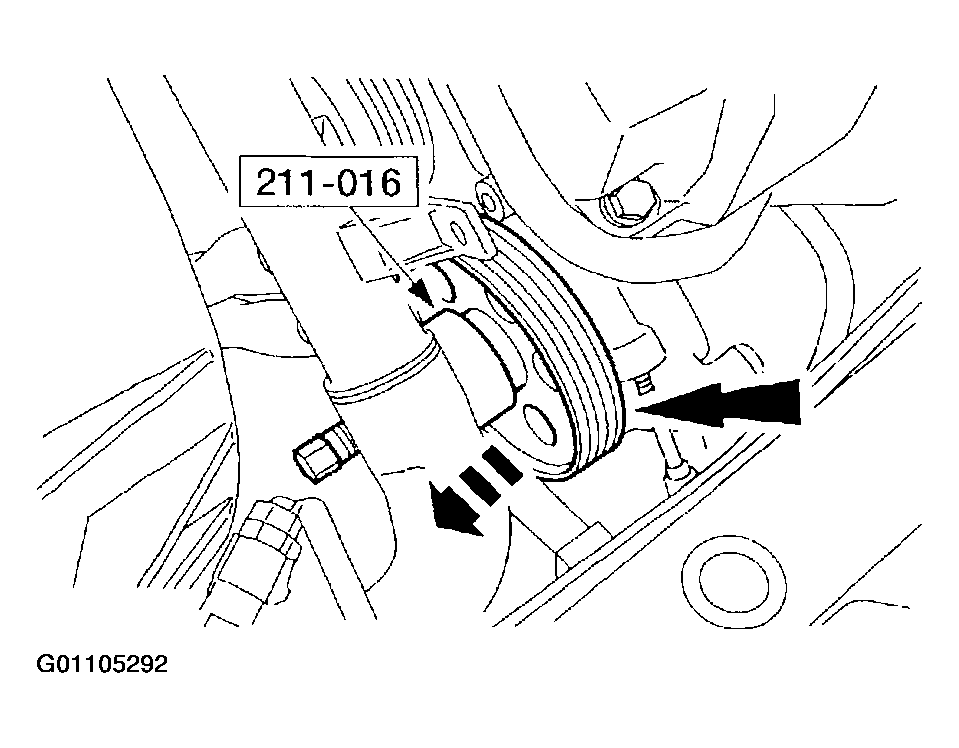

    Fig 2: Removing Pulley
    G01105292Courtesy of FORD MOTOR CO.
