Power Steering Pump Pulley - 3.9L: Installation

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Using the special tool, install the pulley.

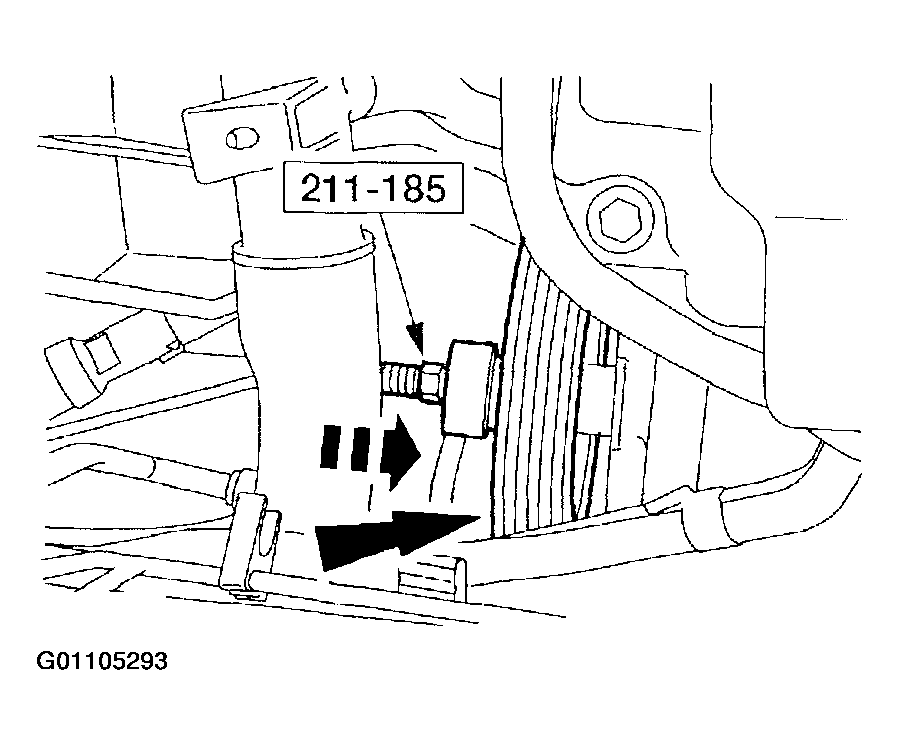

Fig 1: Installing Pulley
Courtesy of FORD MOTOR CO.
Install the accessory drive belt. For additional information, see ACCESSORY DRIVE .
Install the bolts.

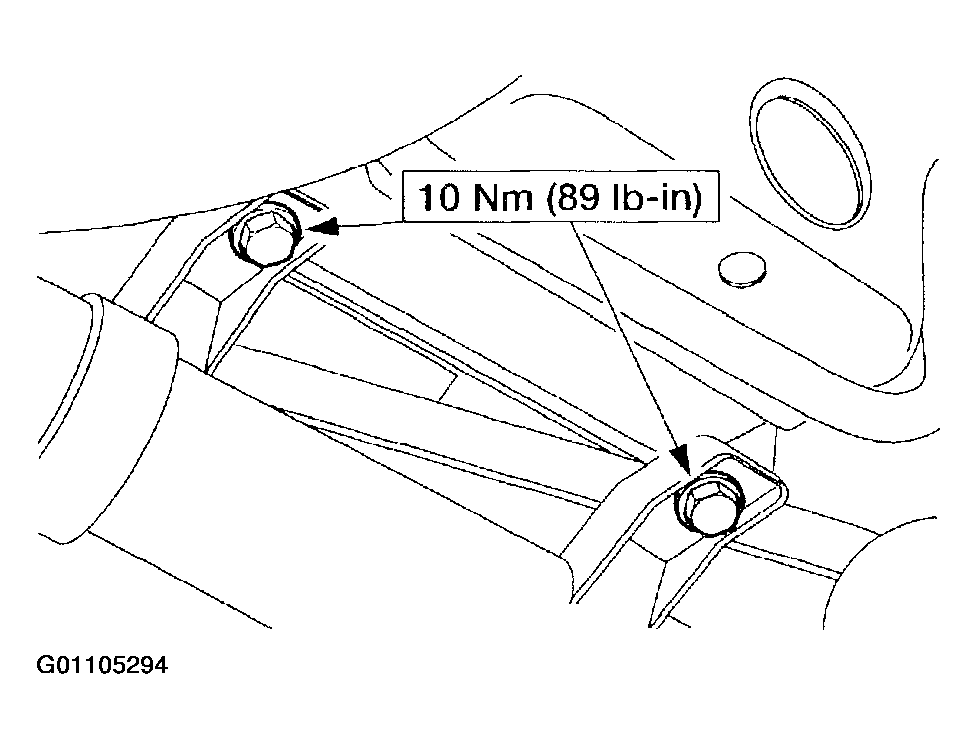

Fig 2: Installing Bolts
Courtesy of FORD MOTOR CO.
Install the air cleaner outlet tube and the air cleaner.
