Power Steering Pump Pulley - 3.0L: Removal

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air cleaner cover and the air cleaner outlet tube.
  2. Remove the accessory drive belt. For additional information, see ACCESSORY DRIVE .
  3. Using the special tool, remove the pulley (3A733).

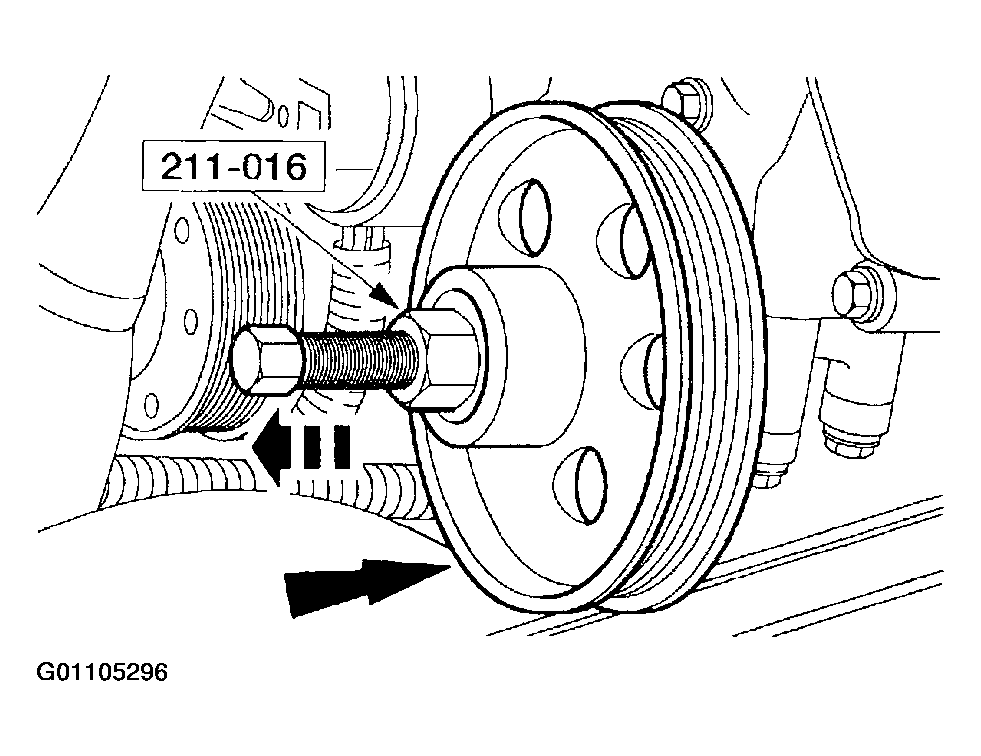

    Fig 1: Removing Pulley
    G01105296Courtesy of FORD MOTOR CO.
