Power Steering Pump - 3.0L: Removal

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

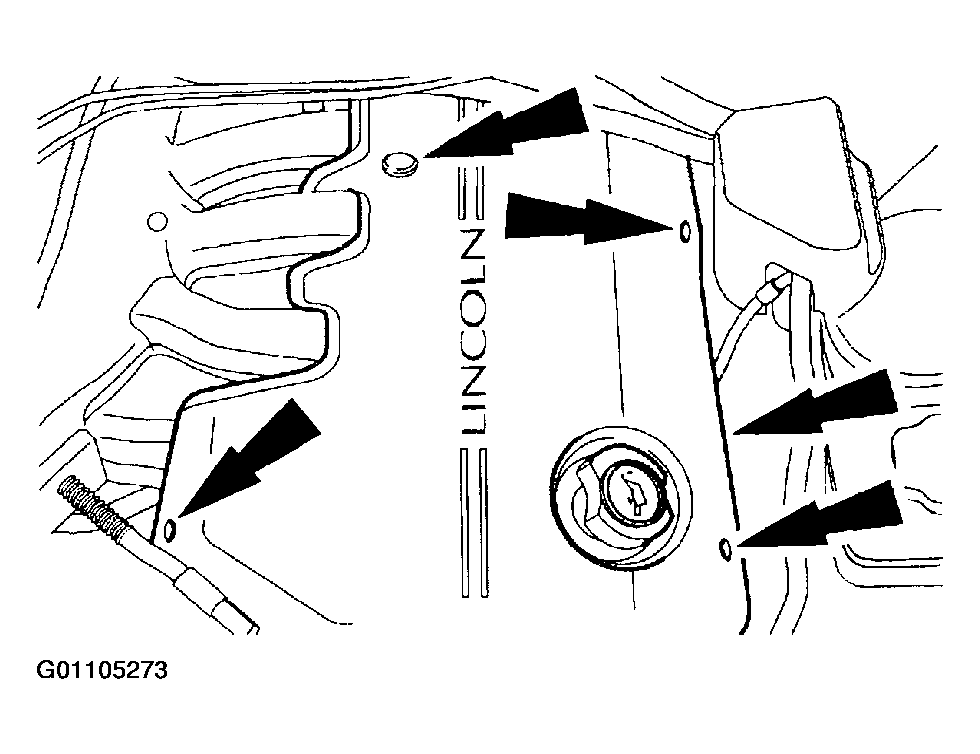

Remove four pushpins and the engine cover.

Fig 1: Removing Engine Cover
Courtesy of FORD MOTOR CO.
Remove the air cleaner and the air cleaner outlet tube.
Remove the accessory drive belt. For additional information, see ACCESSORY DRIVE .

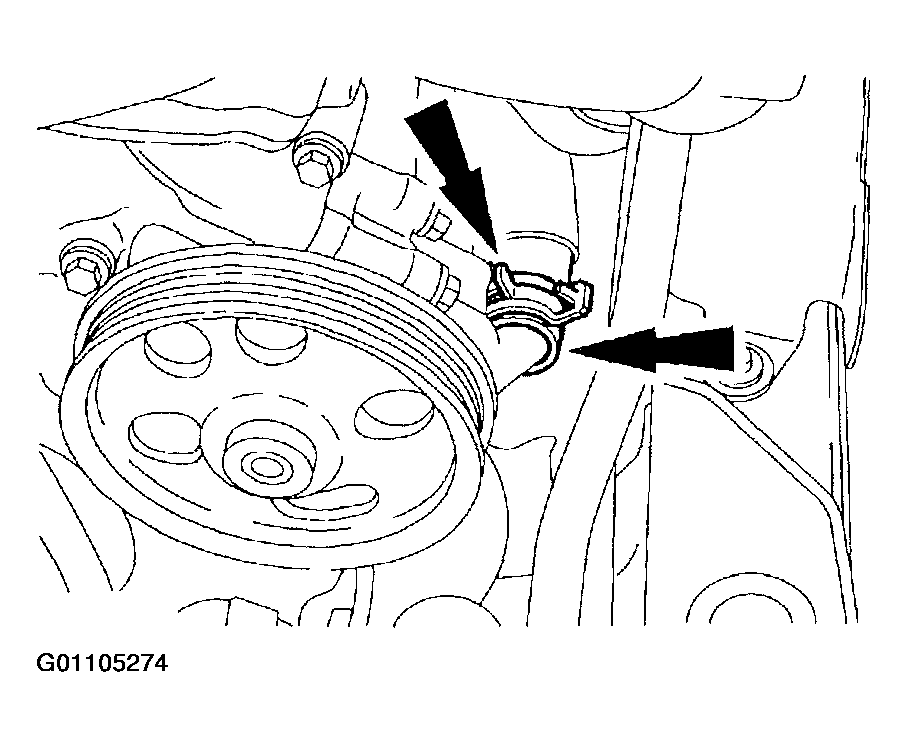

Unclamp and disconnect the power steering reservoir-to-pump hose (36911) and drain the reservoir into a suitable container.

Fig 2: Disconnecting Power Steering Reservoir-To-Pump Hose
Courtesy of FORD MOTOR CO.
Raise the vehicle on a hoist. For additional information, see JACKING & HOISTING .
Remove the wheel and tire assembly.

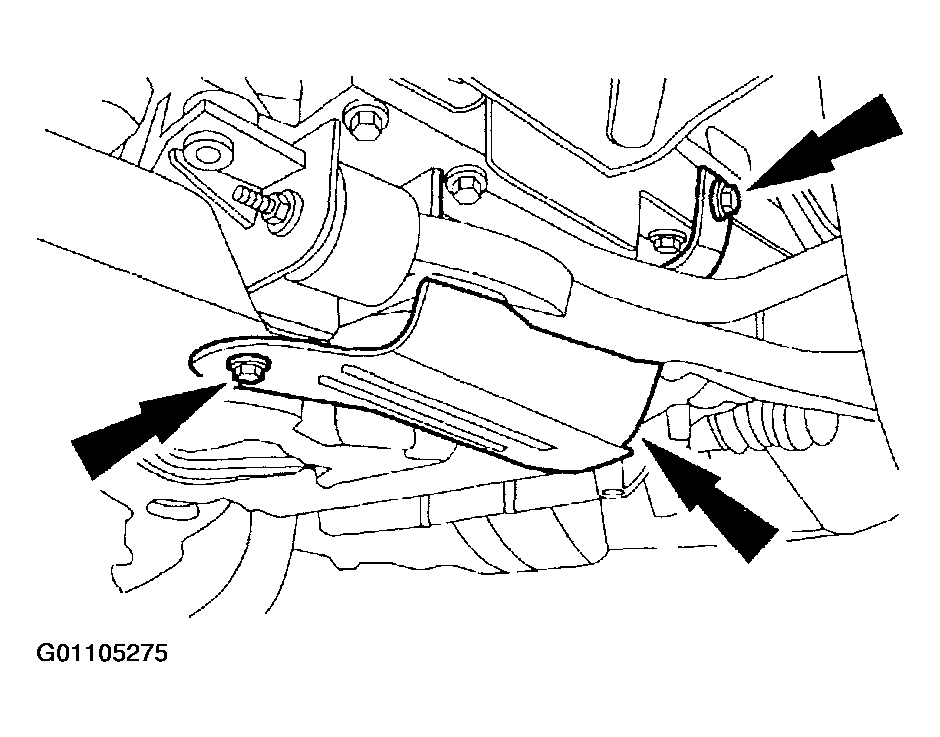

Remove two bolts, one pushpin and the shield.

Fig 3: Removing Shield
Courtesy of FORD MOTOR CO.

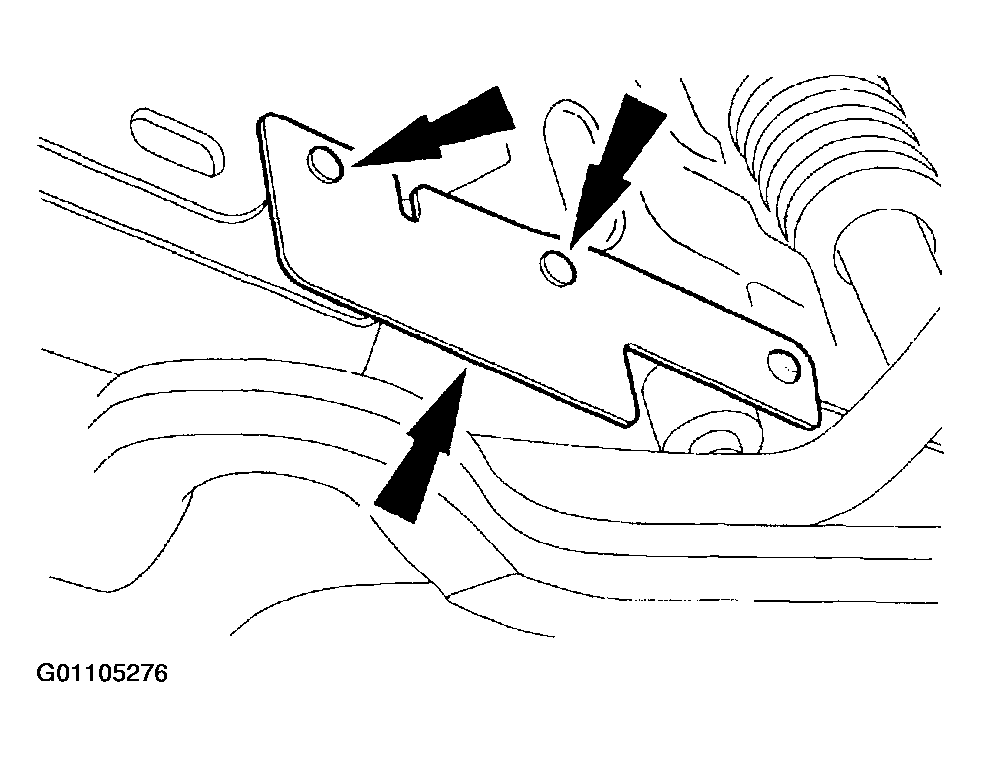

Remove two pushpins and the shield.

Fig 4: Removing Shield
Courtesy of FORD MOTOR CO.

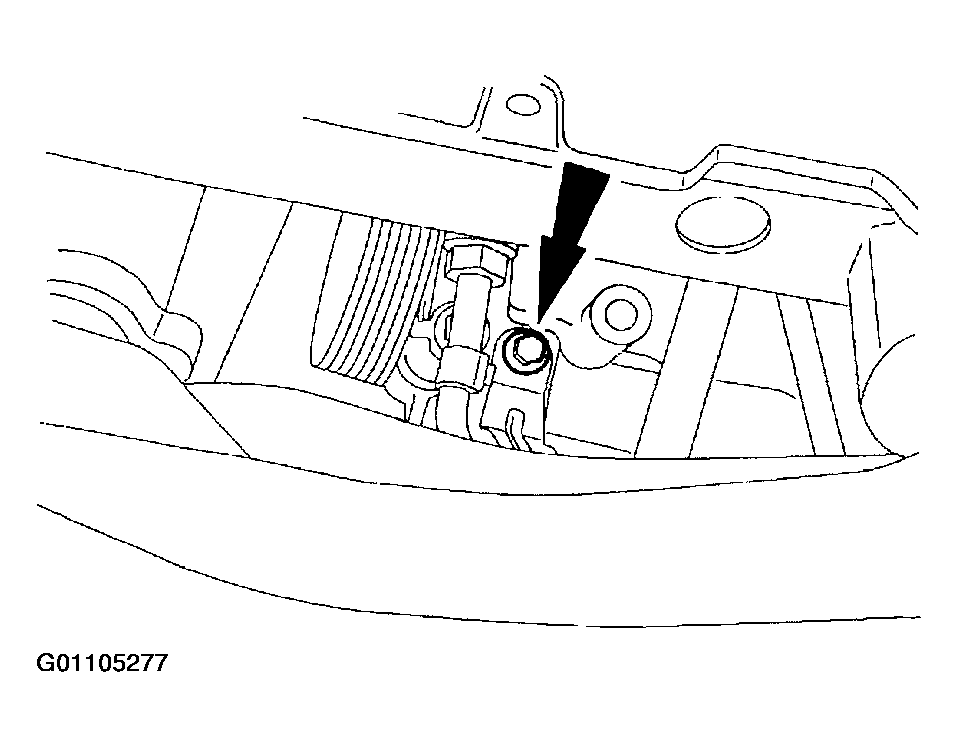

Remove the bolt.

Fig 5: Removing Bolt
Courtesy of FORD MOTOR CO.
Disconnect the power steering pressure hose (3A714).

Fig 6: Disconnecting Power Steering Pressure Hose
Courtesy of FORD MOTOR CO.
Remove the bolt.

Fig 7: Removing Bolt
Courtesy of FORD MOTOR CO.
Lower the vehicle.

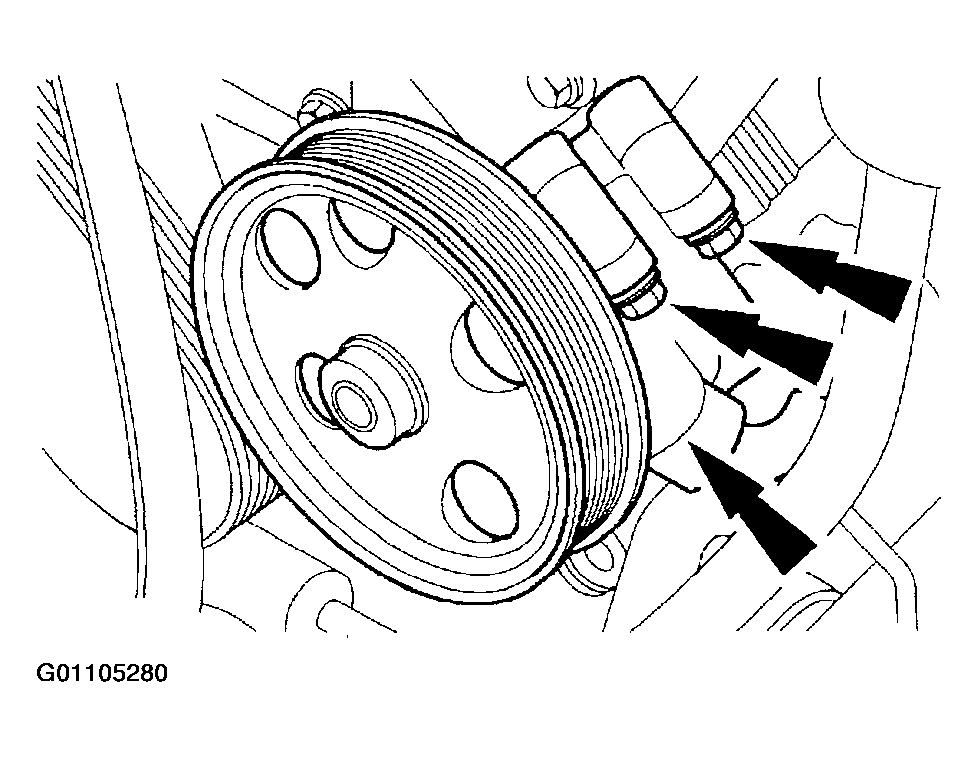

Remove the bolts and the pump (3A674).

Fig 8: Removing Power Steering Pump
Courtesy of FORD MOTOR CO.
