Power Steering Pump - 3.0L: Installation

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Install a new O-ring on the power steering pressure hose fitting.

Fig 1: Installing New O-Ring On Power Steering Pressure Hose Fitting
Courtesy of FORD MOTOR CO.

NOTE: Do not tighten the upper bolts until the lower bolts are installed.

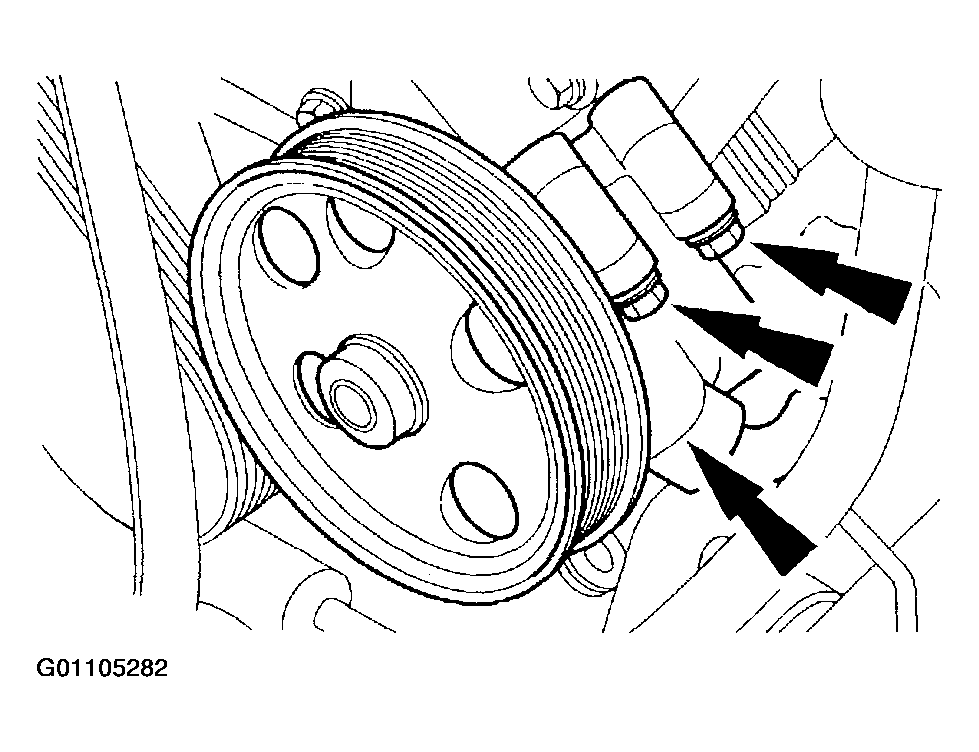

Fig 2: Installing Power Steering Pump

Courtesy of FORD MOTOR CO.

Install the pump and the bolts.
Raise the vehicle.
Install the bolt.

Fig 3: Installing Bolt
Courtesy of FORD MOTOR CO.
Connect the power steering pressure hose.

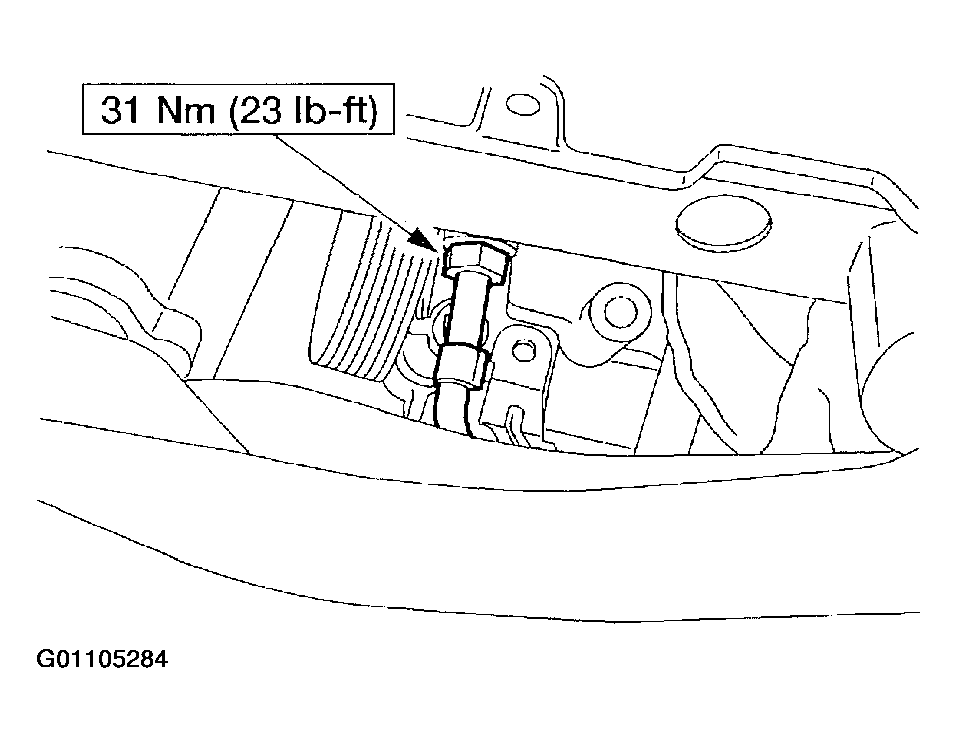

Fig 4: Connecting Power Steering Pressure Hose
Courtesy of FORD MOTOR CO.
Install the bolt.

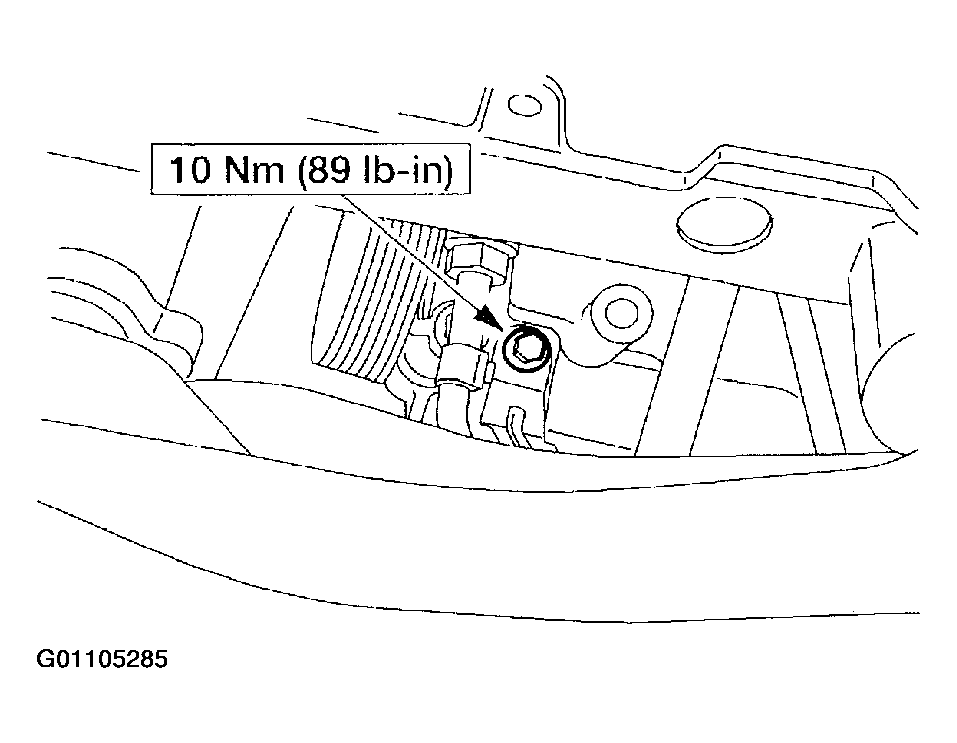

Fig 5: Installing Bolt
Courtesy of FORD MOTOR CO.
Install the shield and two pushpins.

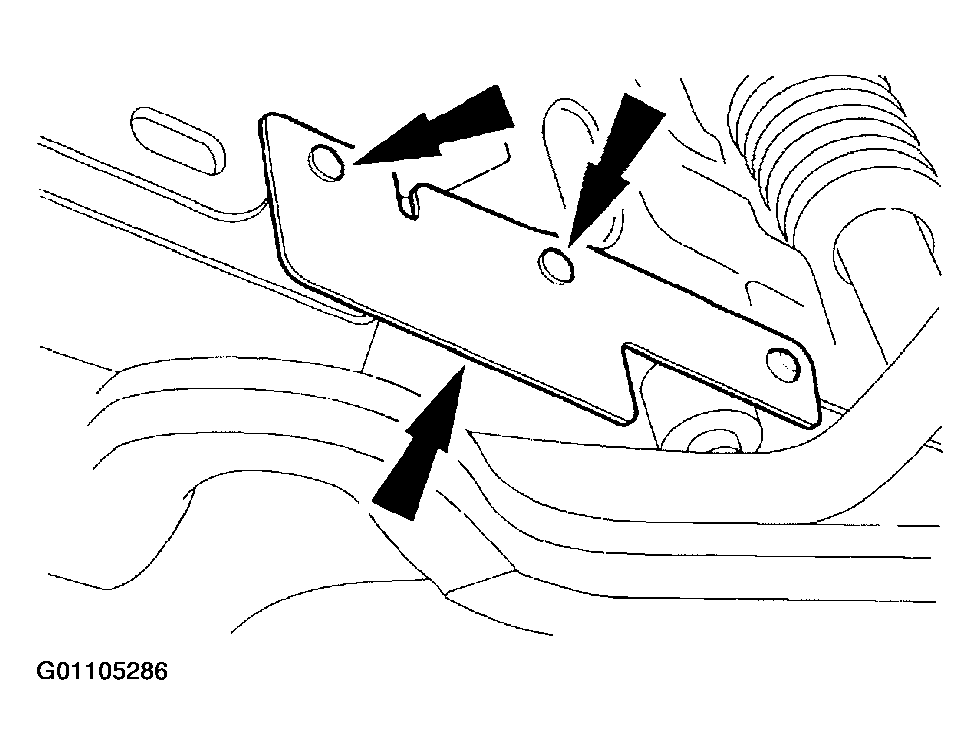

Fig 6: Installing Shield
Courtesy of FORD MOTOR CO.
Install the shield, one pushpin and two bolts.

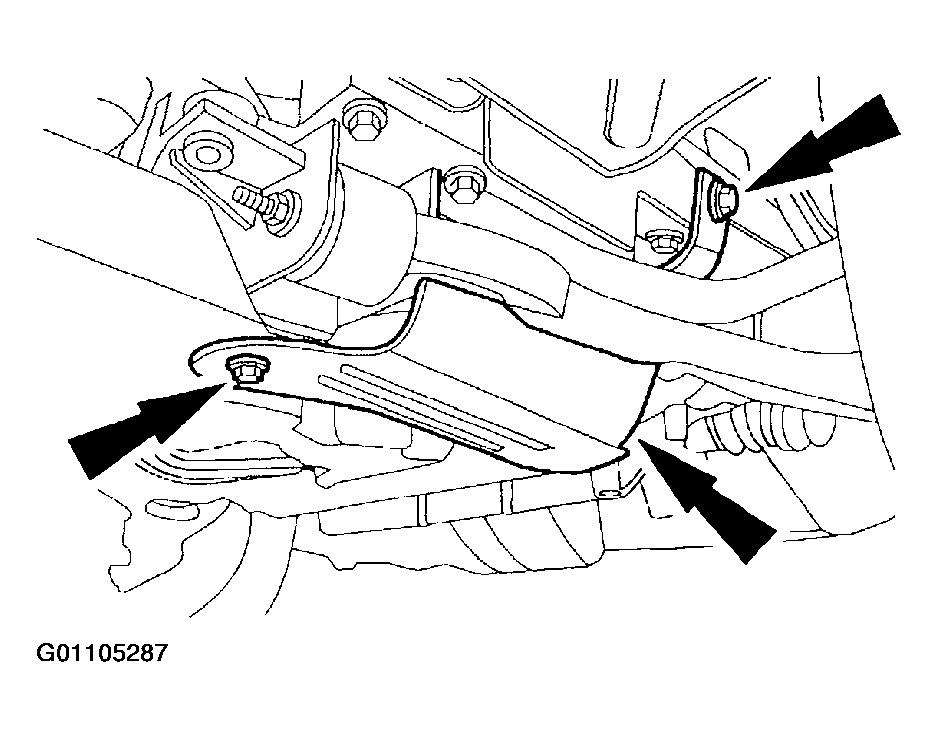

Fig 7: Installing Shield
Courtesy of FORD MOTOR CO.
Install the wheel and tire assembly.
Lower the vehicle.
Tighten the bolts.

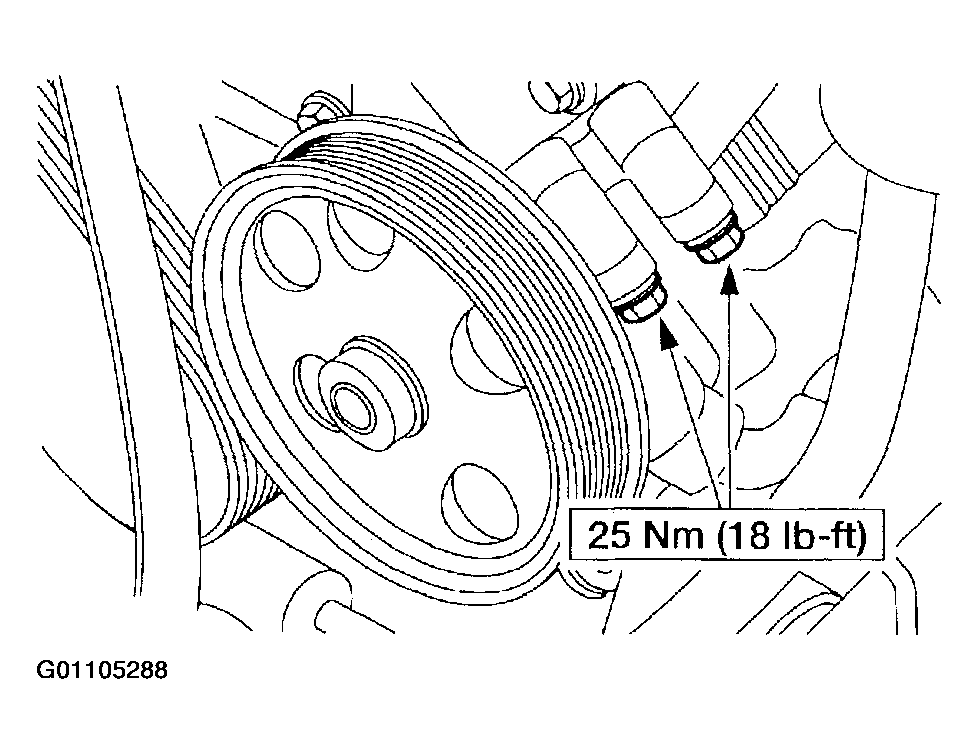

Fig 8: Tightening Bolts
Courtesy of FORD MOTOR CO.
Install the accessory drive belt. For additional information, see ACCESSORY DRIVE .
Install the air cleaner outlet tube and the air cleaner cover.

NOTE: Inspect the pushpins for cracks or other damage. Install new pushpins if necessary.

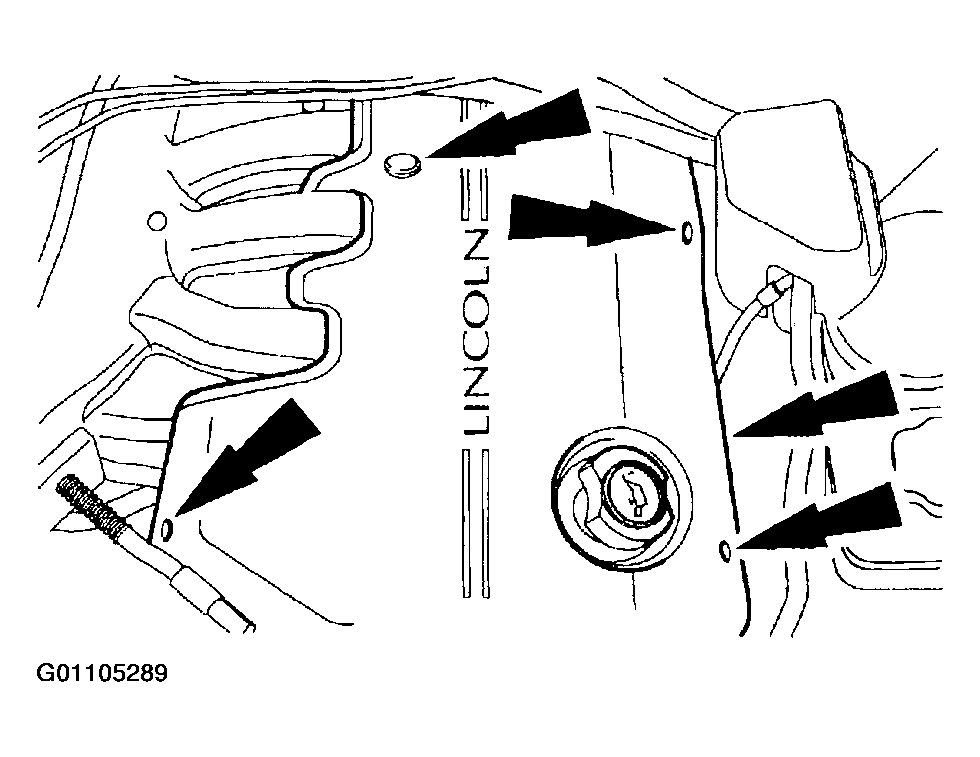

Fig 9: Installing Engine Cover

Courtesy of FORD MOTOR CO.

Install the engine cover and four pushpins.
Fill and leak check the system. For additional information, see GENERAL PROCEDURES .
