Removal and Installation

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Remove the air cleaner.
Unclamp and disconnect the power steering reservoir-to-pump hose (3691) and drain the reservoir into a suitable container. Plug the pump inlet fitting.

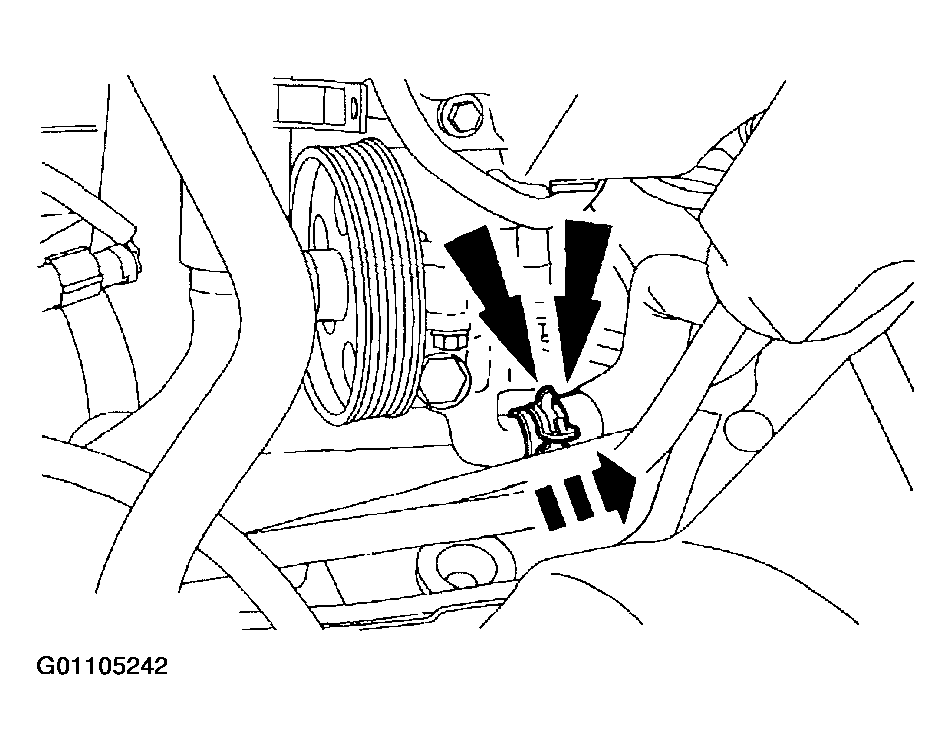

Fig 1: Disconnecting Power Steering Reservoir-To-Pump Hose
Courtesy of FORD MOTOR CO.
Loosen the bolts and detach the reservoir from the insulators.

Fig 2: Loosening Reservoir Bolts
Courtesy of FORD MOTOR CO.
Unclamp and disconnect the hoses.

Fig 3: Disconnect Hoses
Courtesy of FORD MOTOR CO.
Remove the reservoir.
To install, reverse the removal procedure.
Fill, purge and leak check the system. For additional information, see GENERAL PROCEDURES .
