Power Steering Fluid Cooler: Removal

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Remove the A/C condenser core. For additional information, see CONDENSER CORE .
Remove and discard the six clamps.

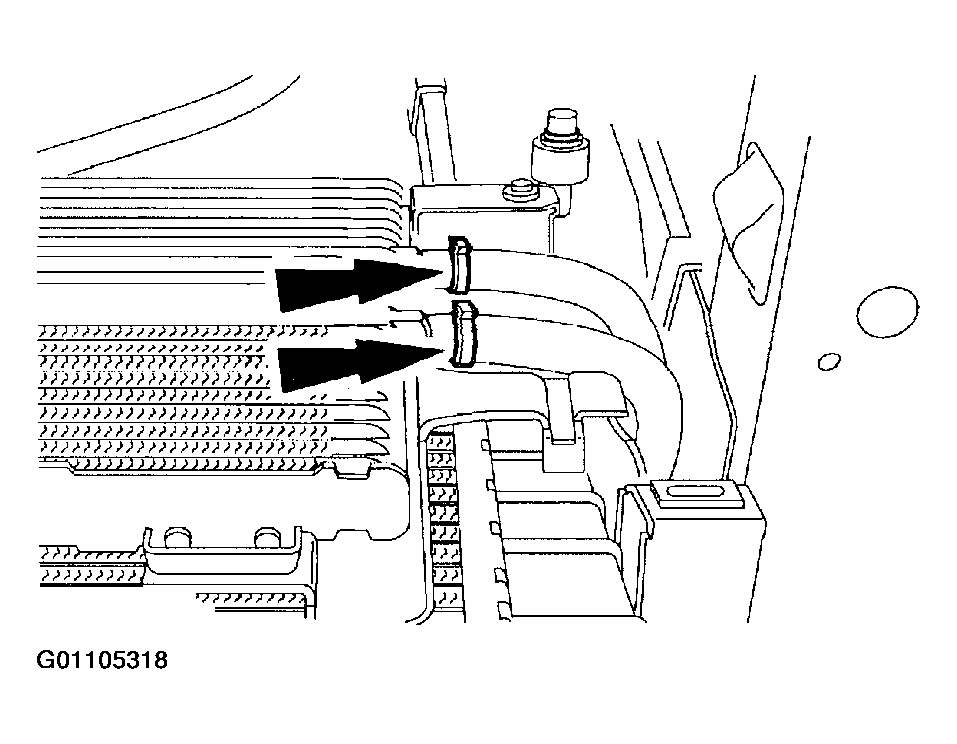

Fig 1: Removing Clamps
Courtesy of FORD MOTOR CO.

NOTE: Position a drain pan under the vehicle to catch any fluid that may spill.

Disconnect the hoses. Plug the hoses and the cooler (3D746).
Remove the cooler.
1. Remove two bolts.
2. Lift the cooler from the retainers and remove the cooler.

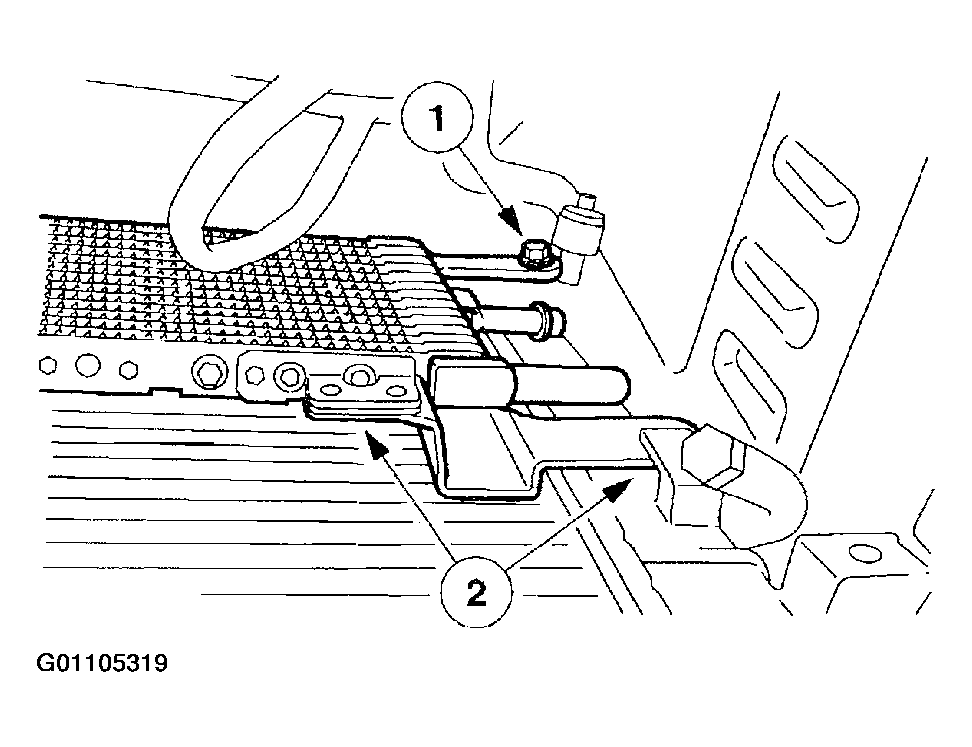

Fig 2: Removing Cooler
Courtesy of FORD MOTOR CO.
