Power Steering Fluid Cooler: Installation

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cooler.
    1. Position the cooler on the retainers.
    2. Install two bolts.

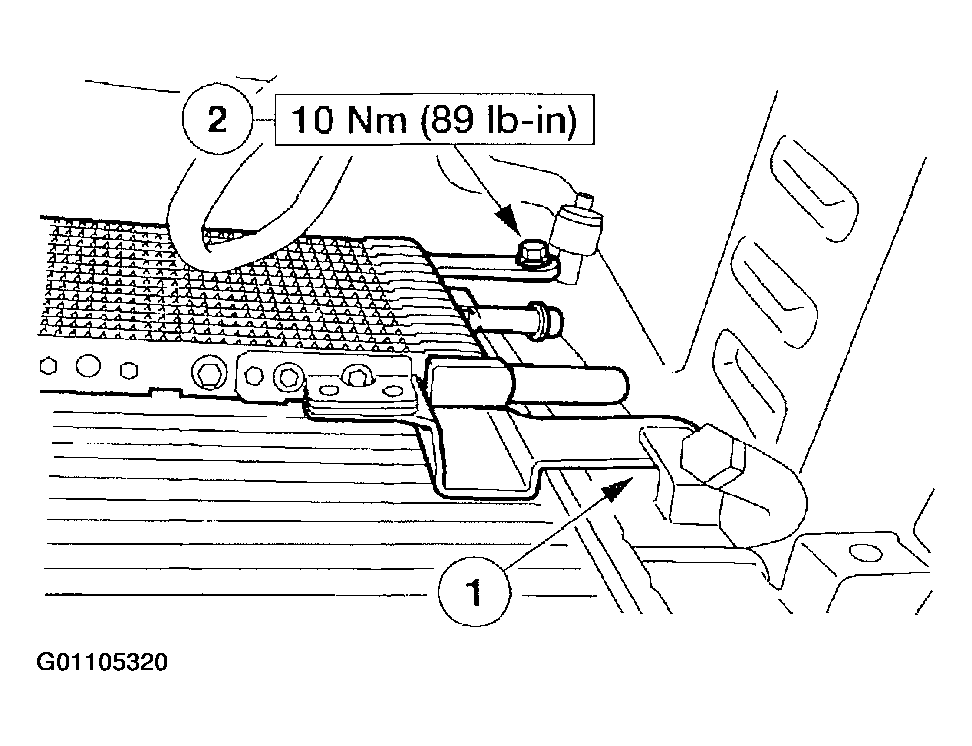

    Fig 1: Installing Cooler
    G01105320Courtesy of FORD MOTOR CO.
  2. Position new clamps on the hoses.
    3. NOTE: The fluid cooler ports and the hoses are color coded to ensure correct installation.
  3. Unplug the hoses and the cooler. Connect the hoses.
  4. Using the special tool, tighten the clamps.

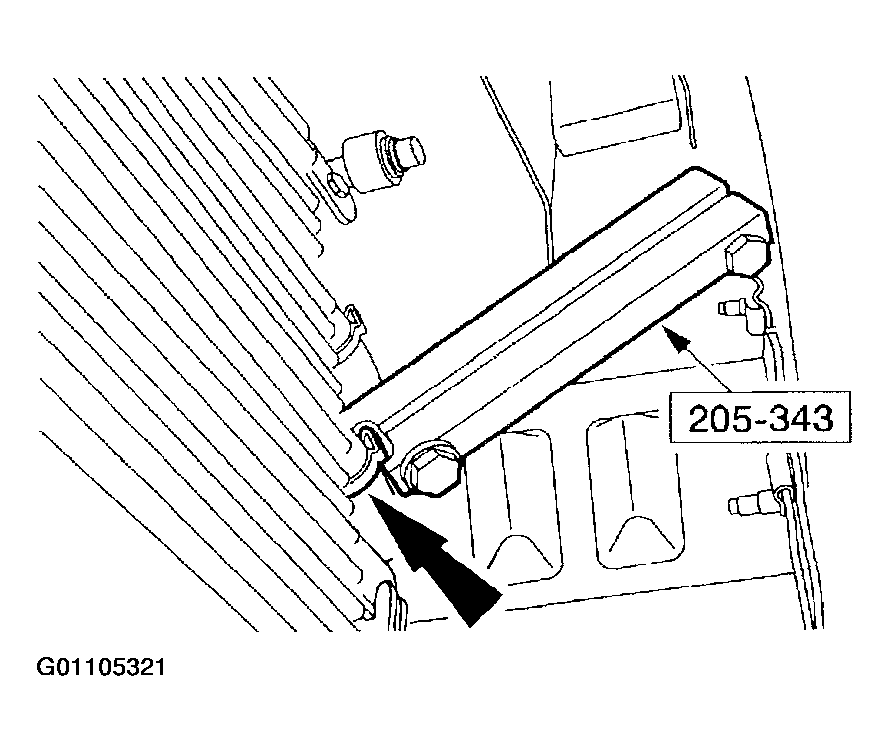

    Fig 2: Tightening Hose Clamps
    G01105321Courtesy of FORD MOTOR CO.
  5. Install the A/C condenser. For additional information, see CONDENSER CORE .
  6. Fill, purge and leak check the system. For additional information, see GENERAL PROCEDURES .
  7. Check and fill the transmission. For additional information, see SERVICING - A/T .
  8. Fill the cooling fan reservoir. For additional information, see HYDRAULIC COOLING FAN SYSTEM FILLING & BLEEDING .
