Removal and Installation

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Raise the vehicle on a hoist. For additional information, see JACKING & HOISTING .
Disconnect the electrical connector.

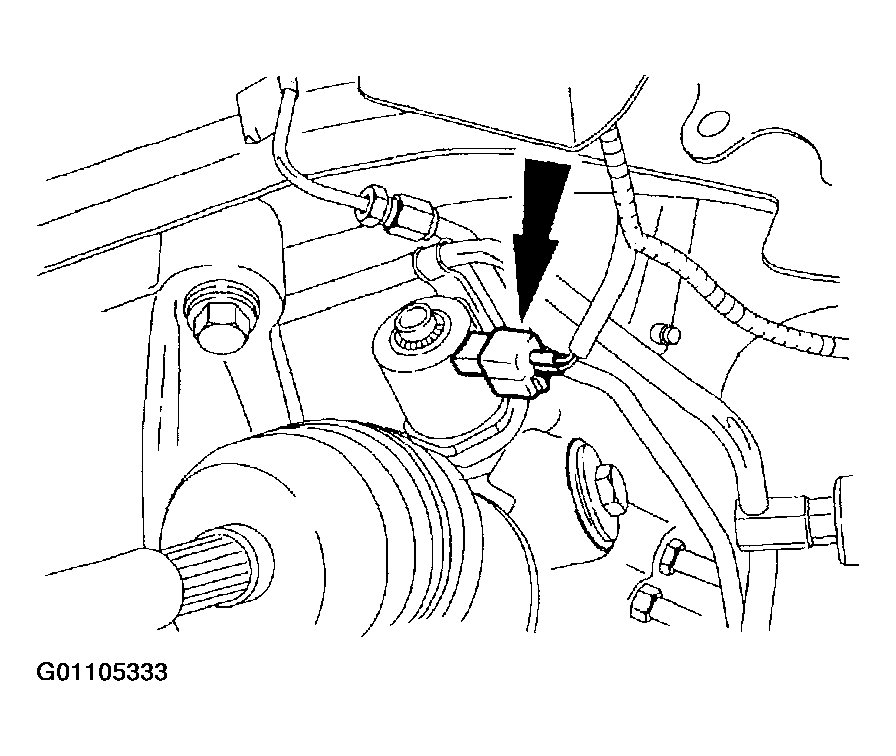

Fig 1: Disconnecting Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the bolt and disconnect the power steering hose bracket.

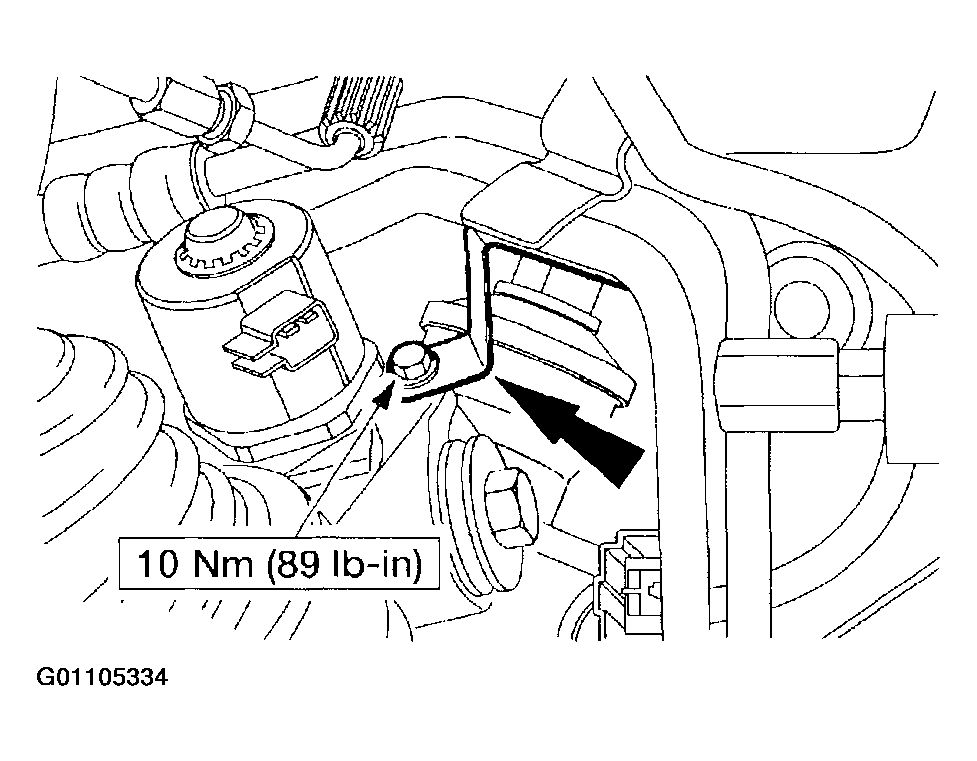

Fig 2: Disconnecting Power Steering Hose Bracket
Courtesy of FORD MOTOR CO.
Disconnect the power steering hoses. Plug the hose ends and the gear.

Fig 3: Disconnecting Power Steering Hoses
Courtesy of FORD MOTOR CO.
Remove the control valve actuator.

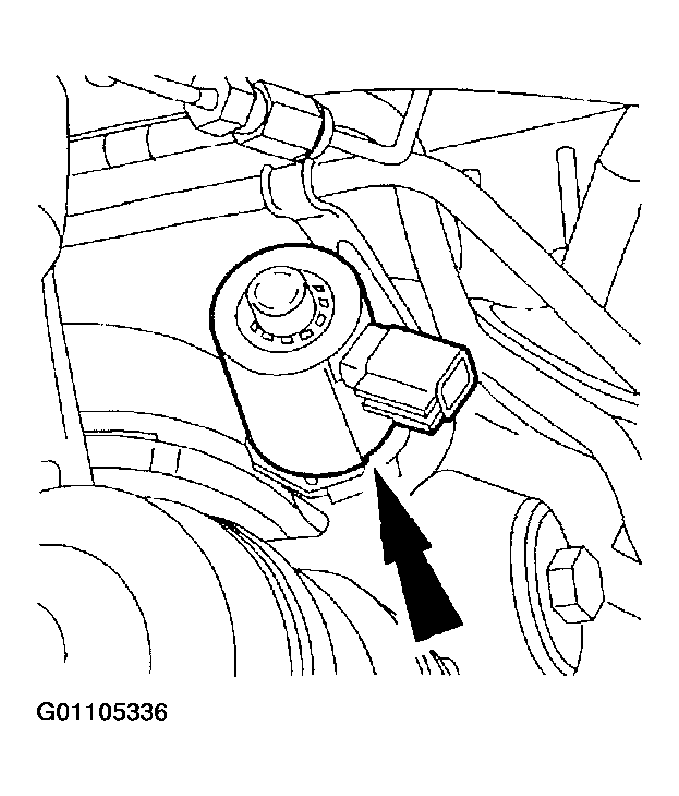

Fig 4: Removing Control Valve Actuator
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
Using the appropriate special tool, install new O-rings on the power steering hose fittings.

Fig 5: Installing New O-Rings On Power Steering Hose Fittings
Courtesy of FORD MOTOR CO.
