Steering Gear: Disassembly

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Position the power steering gear (3504) in a vice with protective caps.

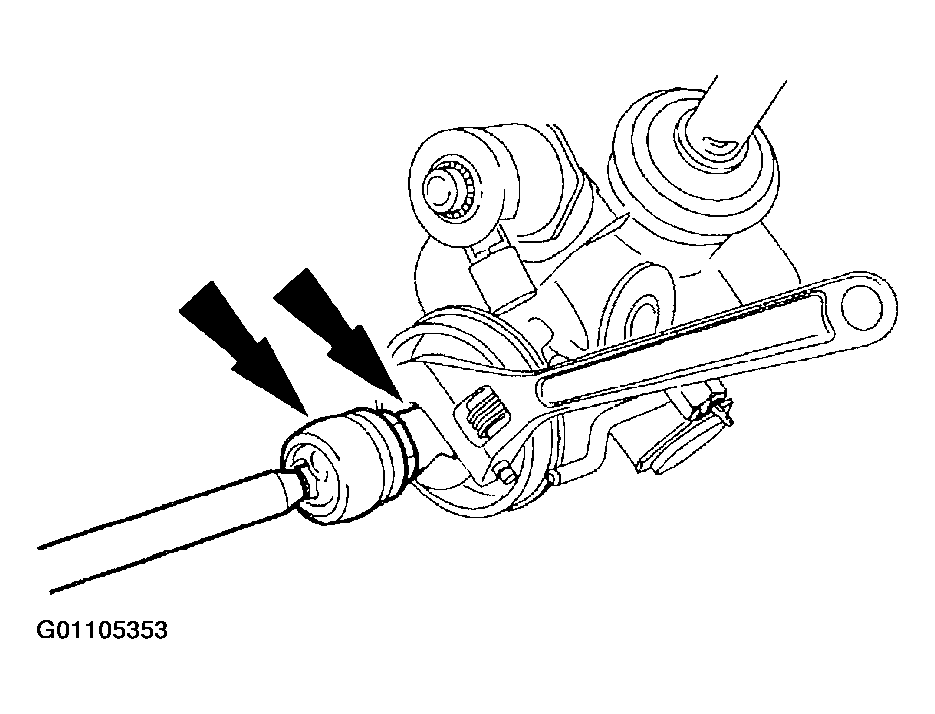

Mark the jam nuts and the tie-rods for installation reference.

Fig 1: Identifying Jam Nut
Courtesy of FORD MOTOR CO.
Loosen the jam nuts and remove the tie-rod ends (3A130).

Fig 2: Removing Tie-Rod Ends
Courtesy of FORD MOTOR CO.
Remove the jam nuts.

Fig 3: Removing Jam Nuts
Courtesy of FORD MOTOR CO.

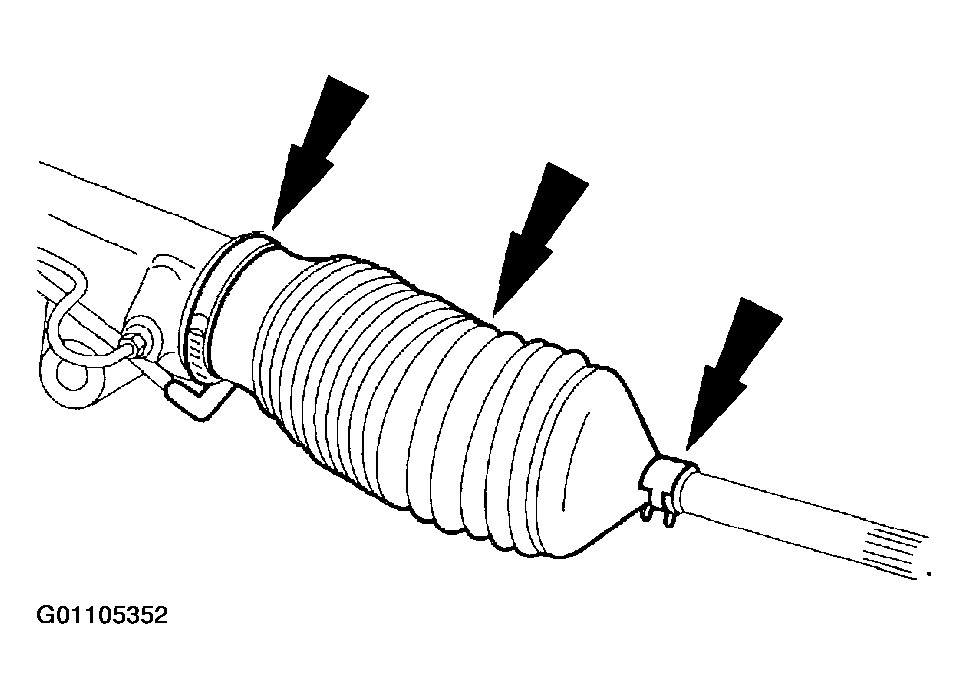

Remove the boot clamps and the boots.

Fig 4: Removing Boots
Courtesy of FORD MOTOR CO.
While holding the rack, remove the tie-rods.

Fig 5: Removing Tie-Rods
Courtesy of FORD MOTOR CO.
