Steering Gear: Assembly

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

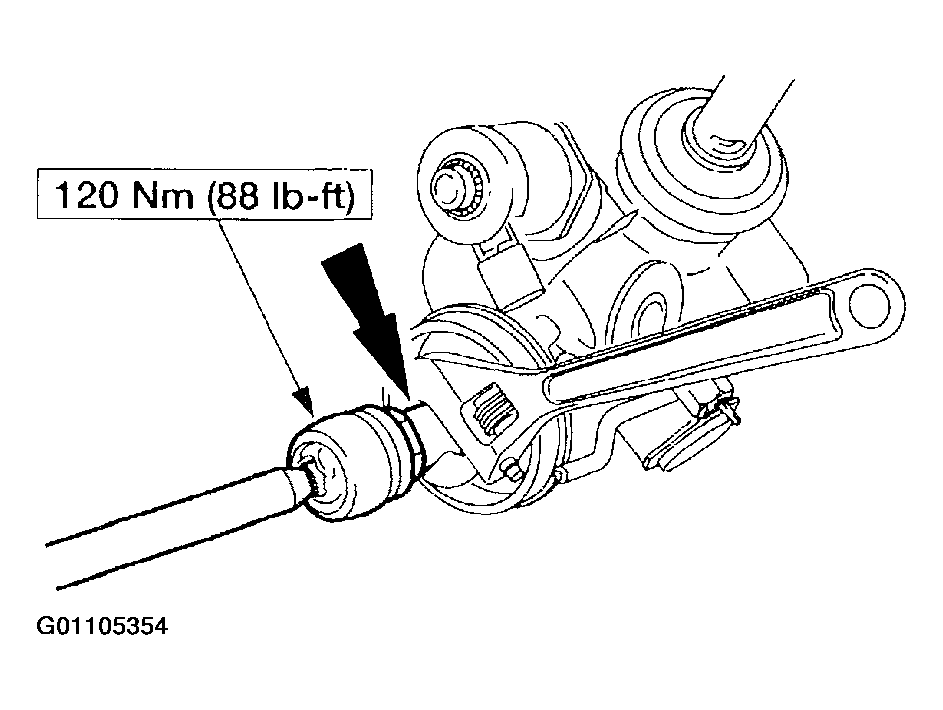

While holding the rack, install the tie-rods.

Fig 1: Installing Tie-Rods
Courtesy of FORD MOTOR CO.

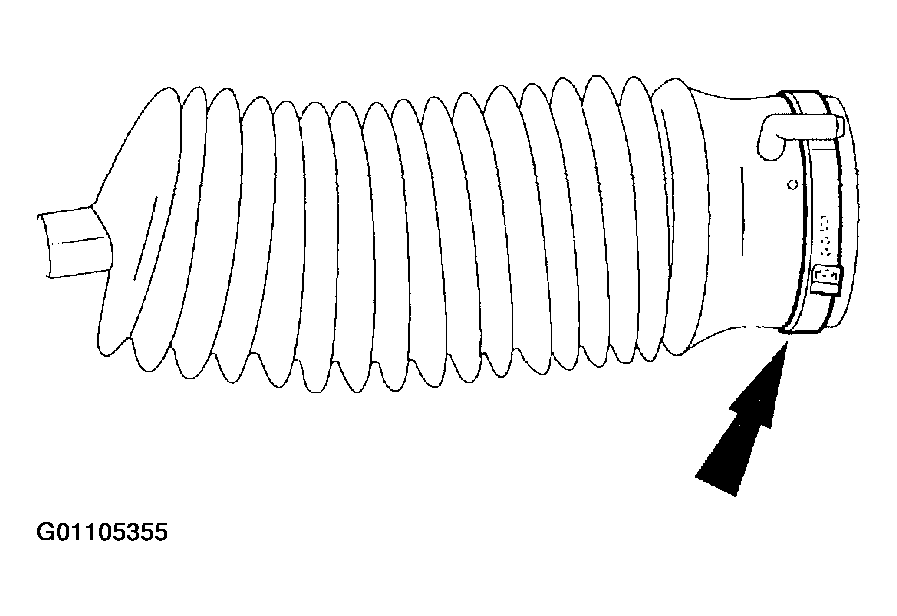

Position new inner clamps on the boots.

Fig 2: Positioning Inner Clamps
Courtesy of FORD MOTOR CO.

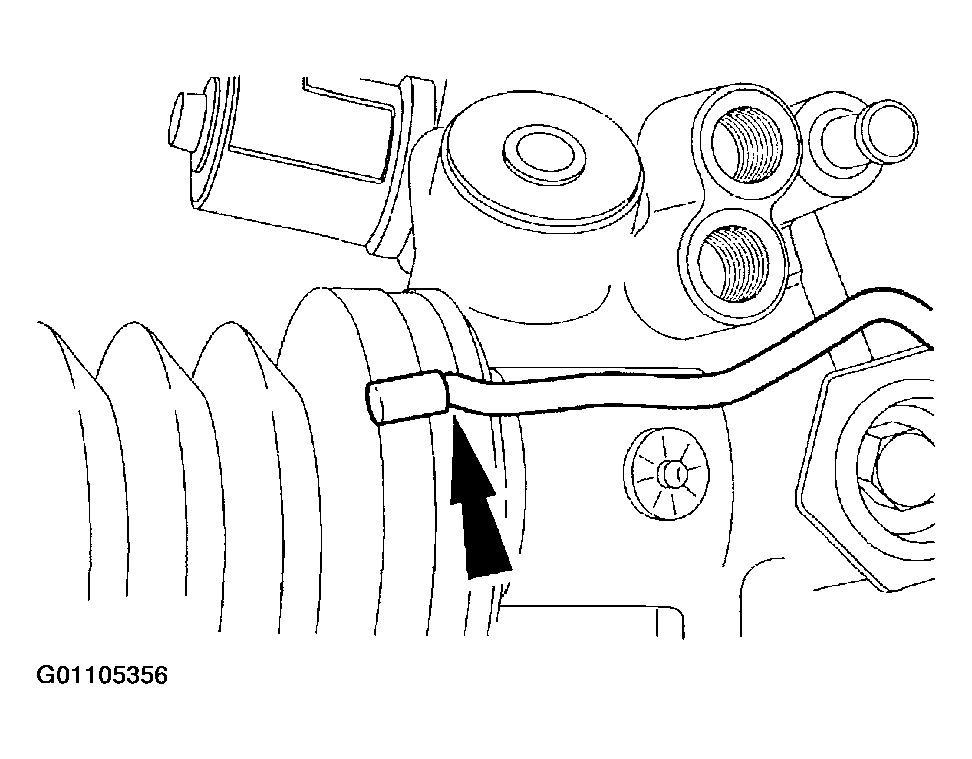

Position the boots on the gear, making sure the air tube is correctly installed in the boots and aligned between the locating marks on the gear housing.

Fig 3: Positioning Boots On Gear
Courtesy of FORD MOTOR CO.
Using the special tool, tighten the clamps.

Fig 4: Tightening Inner Clamps
Courtesy of FORD MOTOR CO.
Install the clamp.

Fig 5: Installing Outer Clamps
Courtesy of FORD MOTOR CO.
Install the jam nuts to the marks made during installation.

Fig 6: Installing Jam Nuts
Courtesy of FORD MOTOR CO.
Install the tie-rod ends.

Fig 7: Installing Tie-Rod Ends
Courtesy of FORD MOTOR CO.
