Removal and Installation

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wire harness connector and sensor.

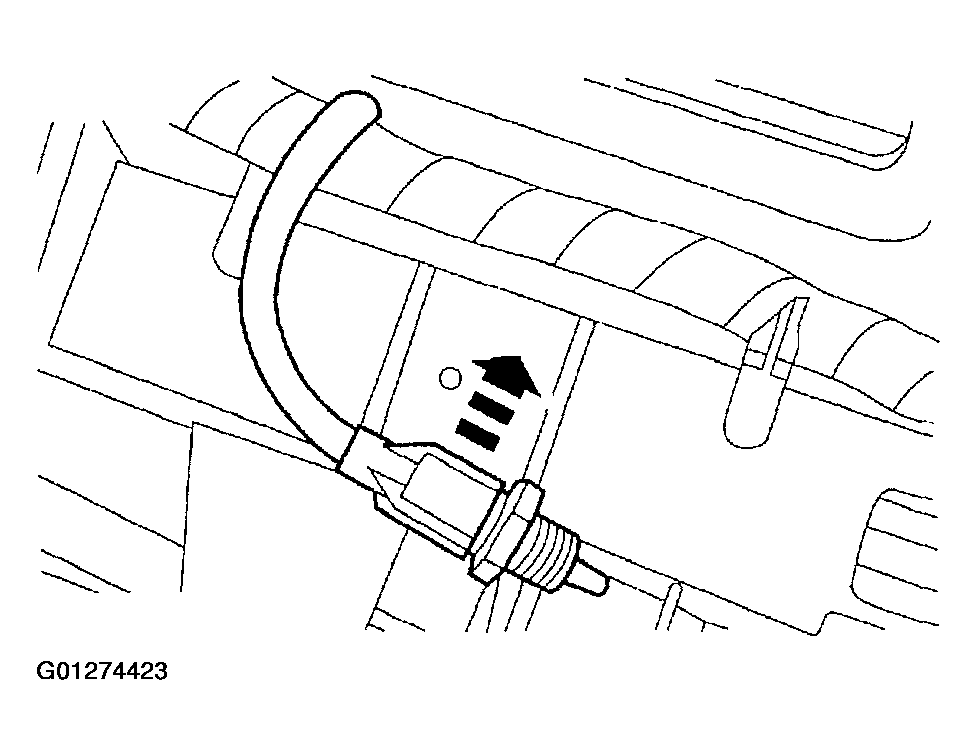

    Fig 1: Removing Wire Harness & Sensor
    G01274423Courtesy of FORD MOTOR CO.
  2. Disconnect the wire harness connector.

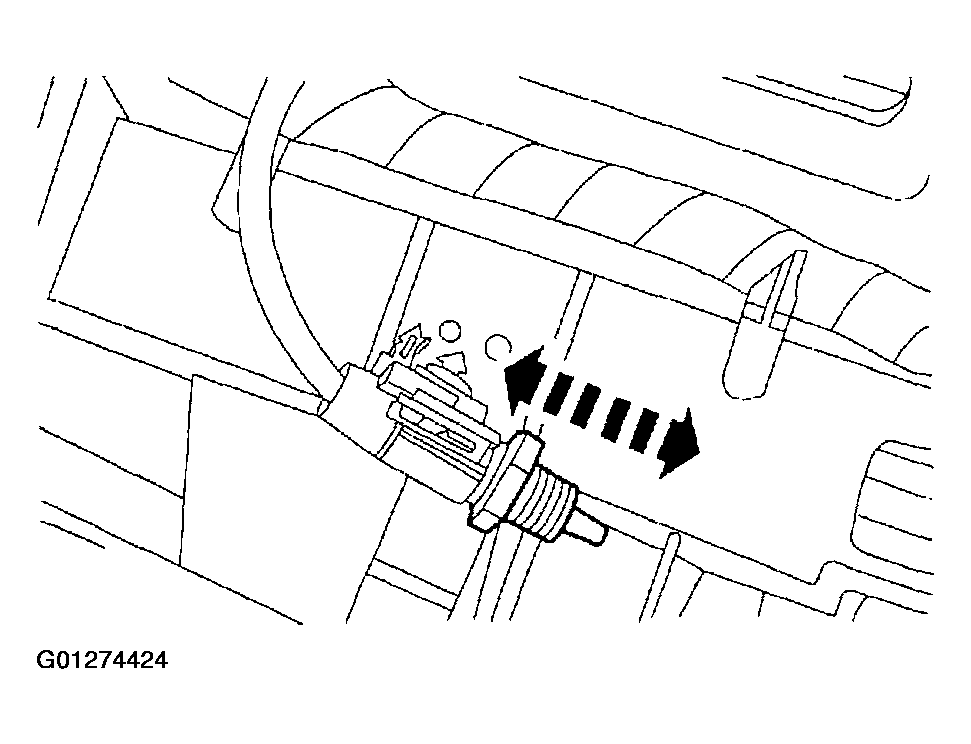

    Fig 2: Disconnecting Wire Harness Connector
    G01274424Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
