Removal and Installation

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Recover the refrigerant. For additional information, see AIR CONDITIONING (A/C) SYSTEM RECOVERY, EVACUATION & CHARGING .
Remove the A/C compressor pressure relief valve (3.0L shown, 3.9L similar).

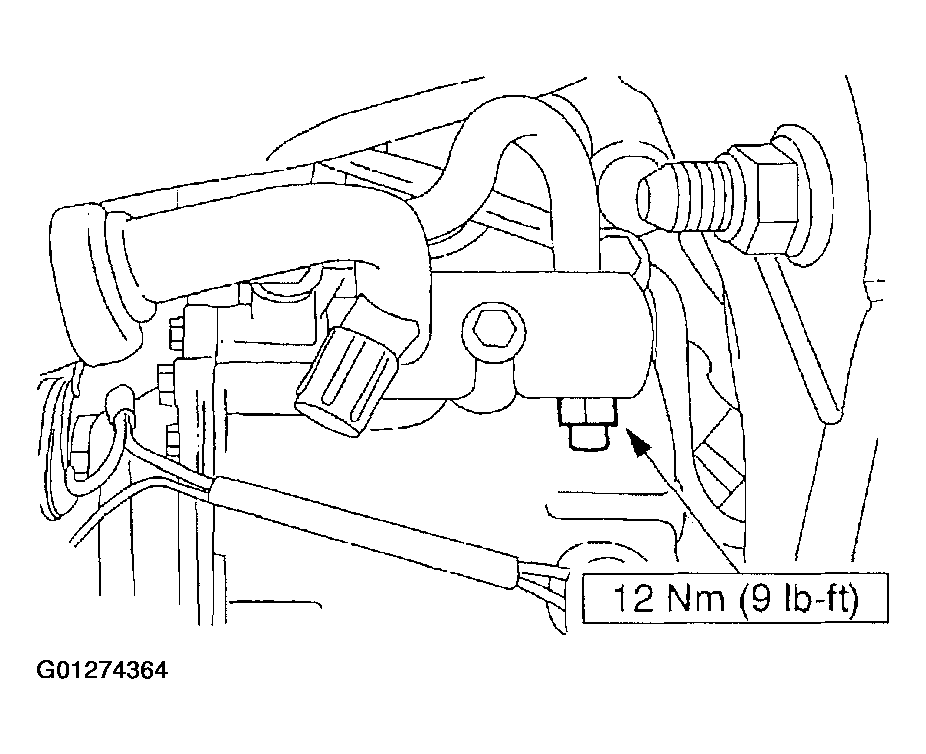

Fig 1: Removing A/C Compressor Pressure Relief Valve
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
- Lubricate the O-ring seal with PAG Refrigerant Compressor Oil (R-134a Systems) F7AZ-19589-DA (Motorcraft YN-12-C) or equivalent meeting Ford specification WSH-M1C231-B.
