Removal and Installation

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Remove the A/C compressor. For additional information, see COMPRESSOR - 3.0L .
Disengage the wire harness pin-type retainer.

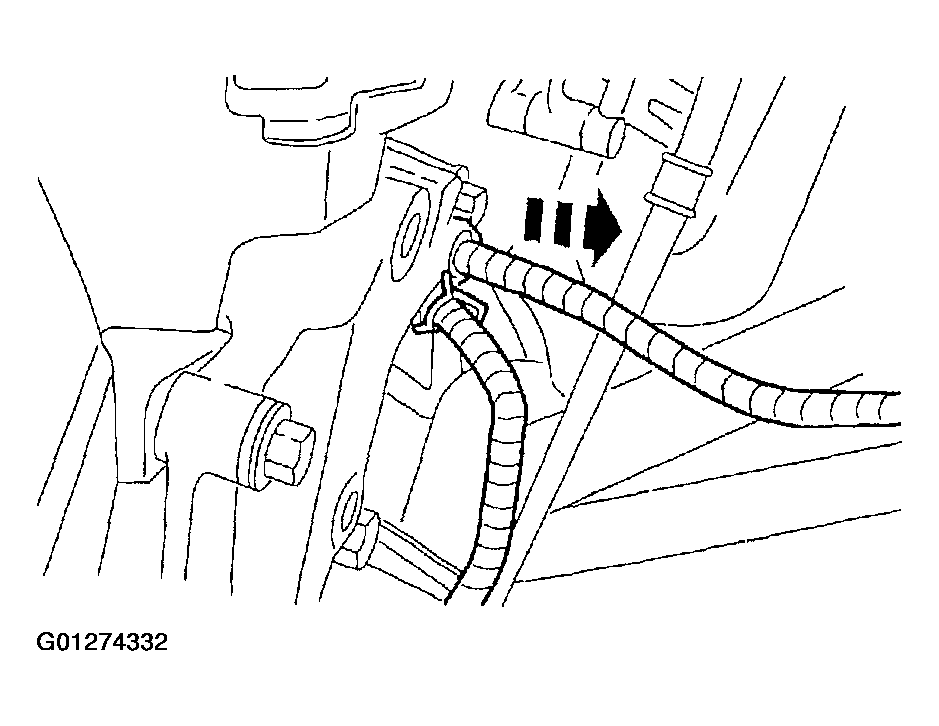

Fig 1: Disengaging Wire Harness Pin-Type Retainer
Courtesy of FORD MOTOR CO.
Remove the bolts and remove the bracket.

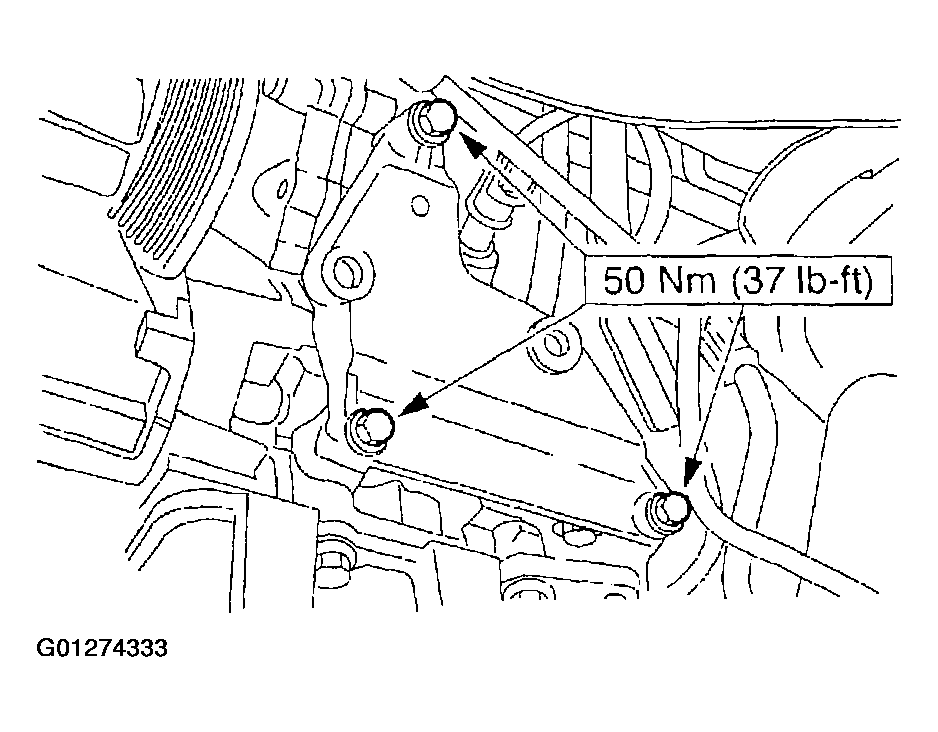

Fig 2: Removing Bracket
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
