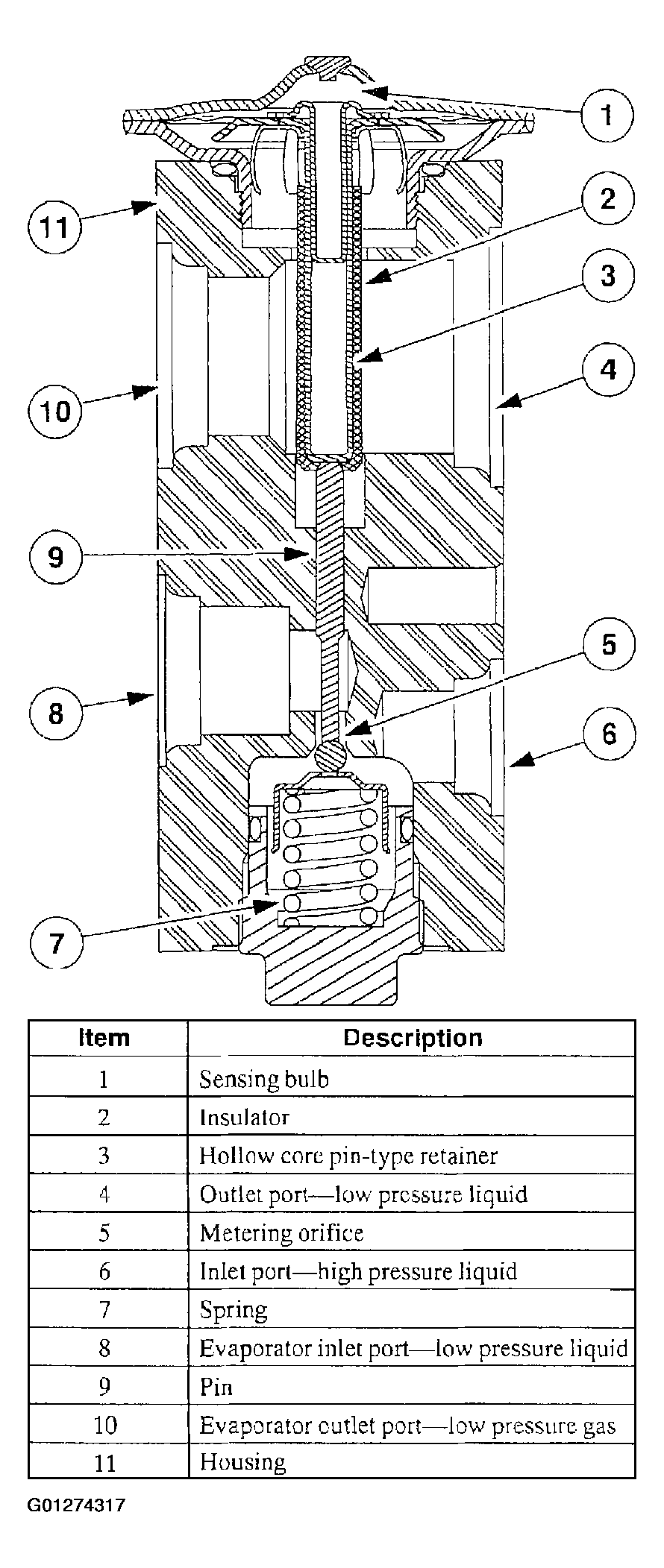

A/C Thermostatic Expansion Valve
WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
The thermostatic expansion valve has the following characteristics:
- It is mounted on the A/C evaporator core inlet and outlet tubes.
- It is a block-type valve.
- It contains an internal sensing bulb to increase the effectiveness of temperature sensing.
- It is not serviceable. A new thermostatic expansion valve must be installed as a unit.
