Removal and Installation

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable.
  2. Drain the radiator. For additional information, see ENGINE COOLING .
  3. Disconnect the connector.

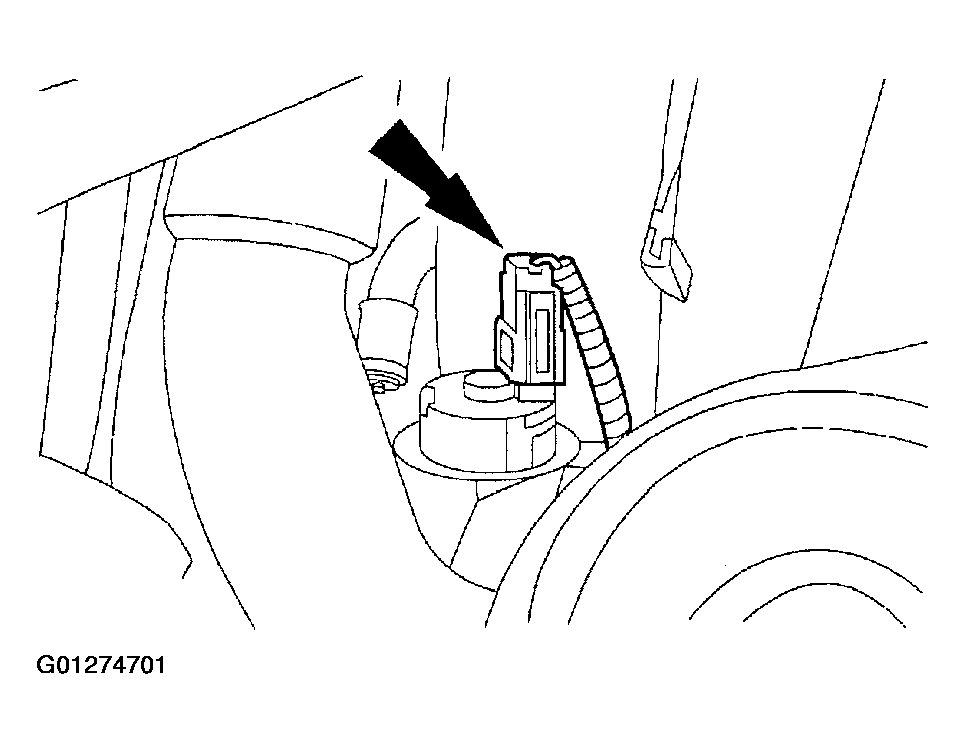

    Fig 1: Disconnecting Electrical Connector
    G01274701Courtesy of FORD MOTOR CO.
  4. Remove the two auxiliary coolant pump to fan shroud bolts.
    Fig 2: Removing Auxiliary Coolant Pump To Fan Shroud Bolts
    G01274702Courtesy of FORD MOTOR CO.
  5. Disconnect the hoses and remove the pump.

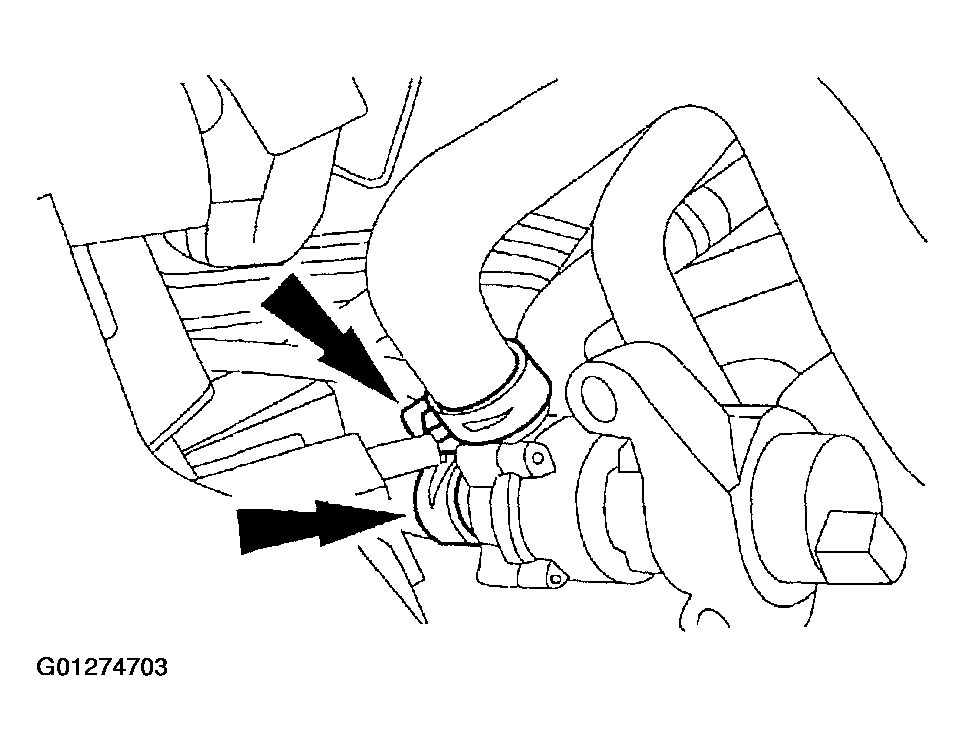

    Fig 3: Disconnecting Hoses
    G01274703Courtesy of FORD MOTOR CO.
  6. To install, reverse the removal procedure.
    • Make sure that the heater hoses are installed in the correct position. For additional information, see HEATING AND DEFROSTING  .
    • Lubricate the coolant hoses with MERPOL(R) meeting Ford specification ESE-M99B144-B or plain water only, if needed.
    • Check for correct hose installation by verifying DATC system operation.
