Heater Hose - Assembly: Removal

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Drain the radiator. For additional information, see ENGINE COOLING .
Remove the throttle body air intake tube.

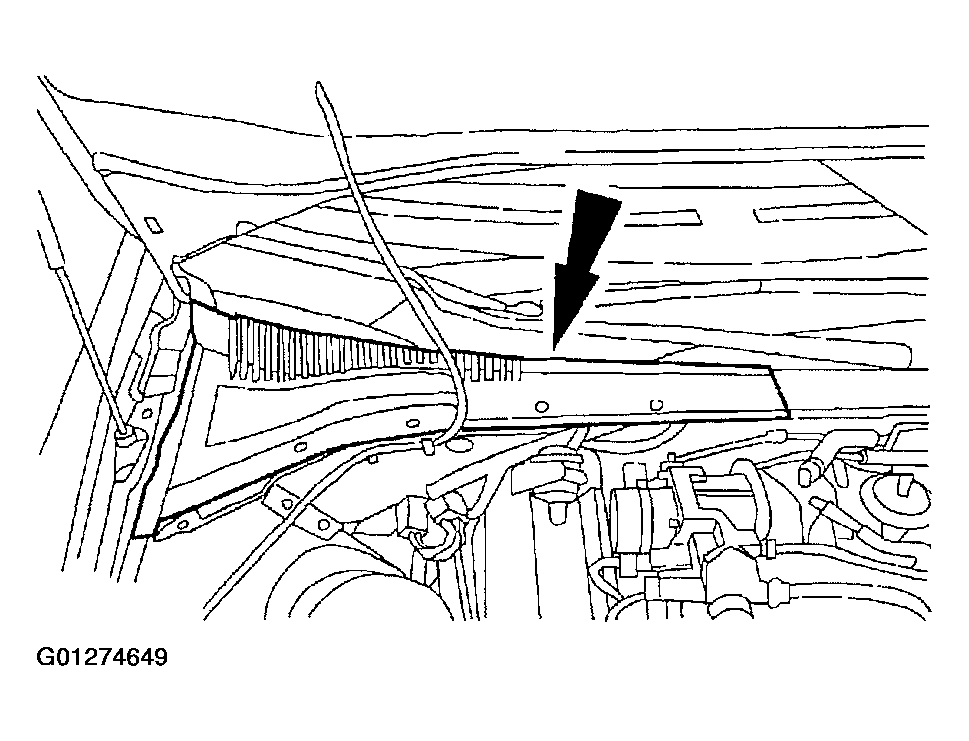

Remove the RH cowl cover.

Fig 1: Removing Right Cowl Cover
Courtesy of FORD MOTOR CO.

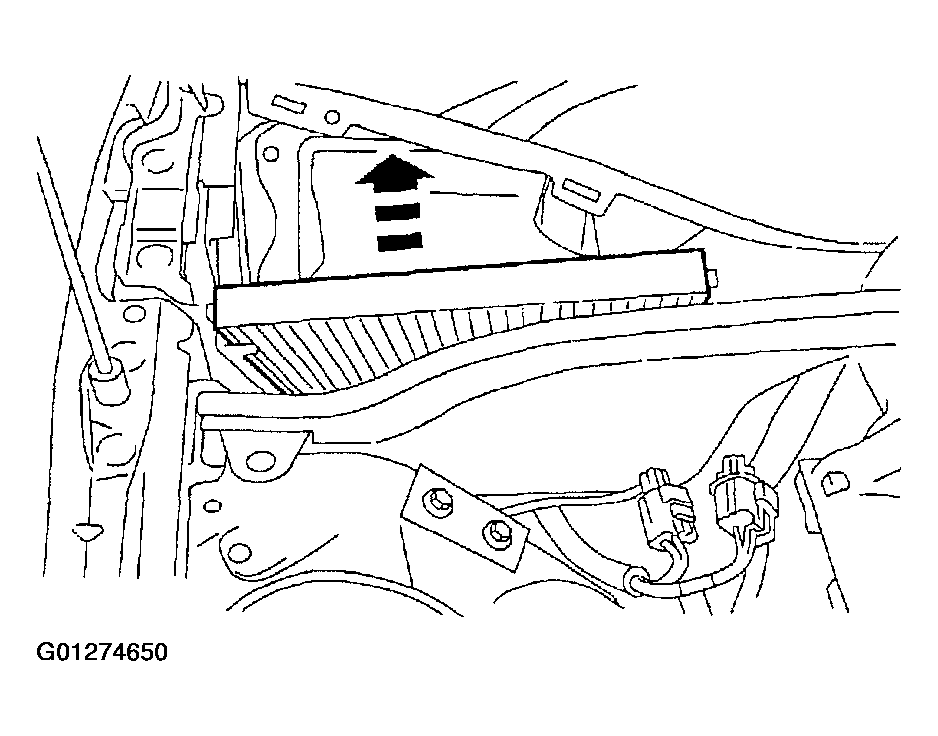

Push on the RH corner of the filter to release the clip. Release the LH clip and remove the cabin air filter.

Fig 2: Removing Cabin Air Filter
Courtesy of FORD MOTOR CO.

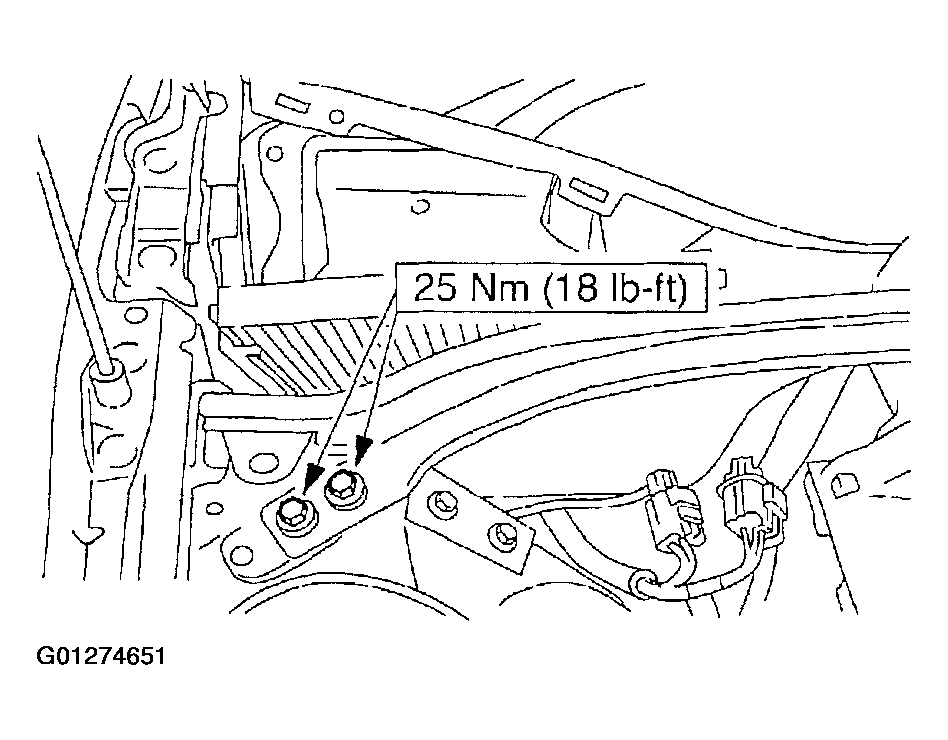

Remove the seven bolts and remove the cross-vehicle support.

Fig 3: Removing Cross-Vehicle Support
Courtesy of FORD MOTOR CO.

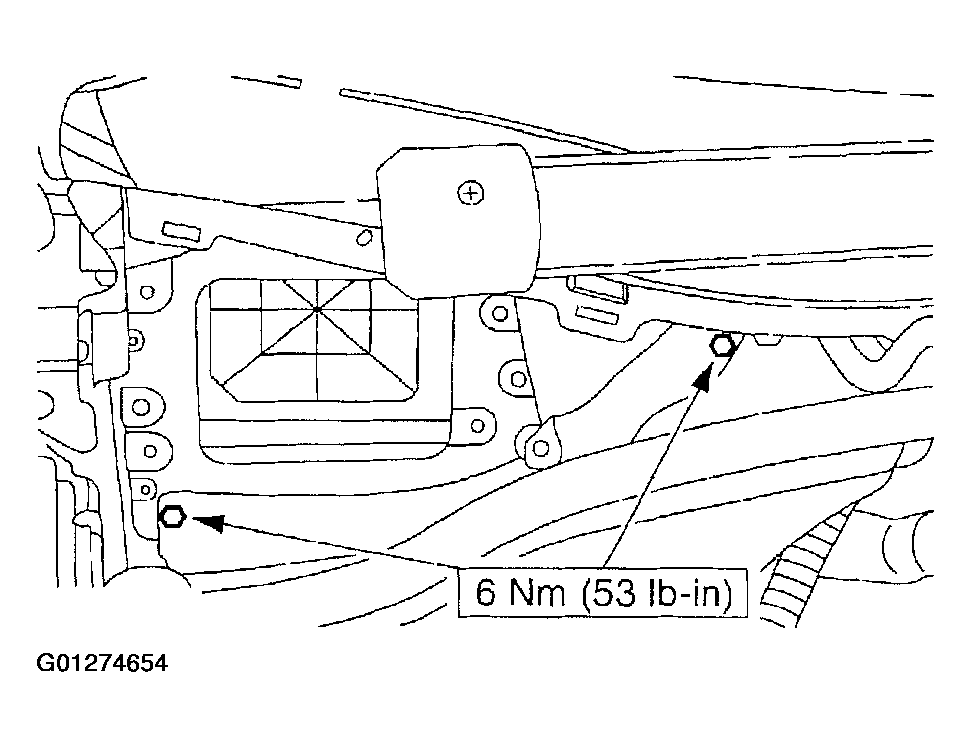

Remove the bolts.

Fig 4: Removing Bolts
Courtesy of FORD MOTOR CO.

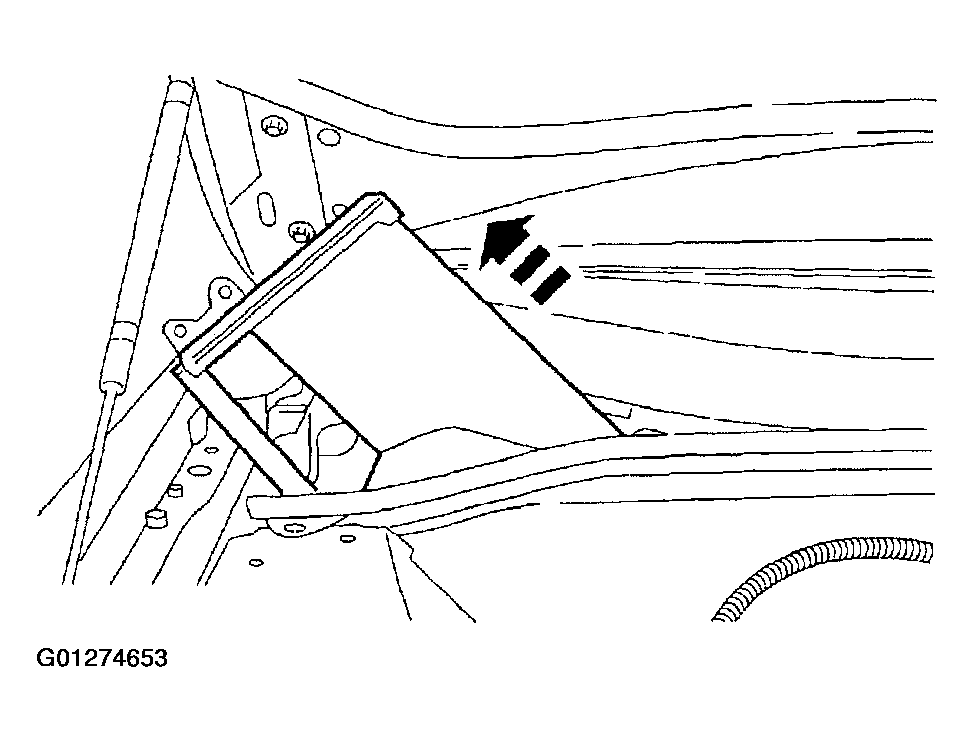

Remove the cabin air filter housing by lifting the outboard side then removing the housing.

Fig 5: Removing Cabin Air Filter Housing
Courtesy of FORD MOTOR CO.

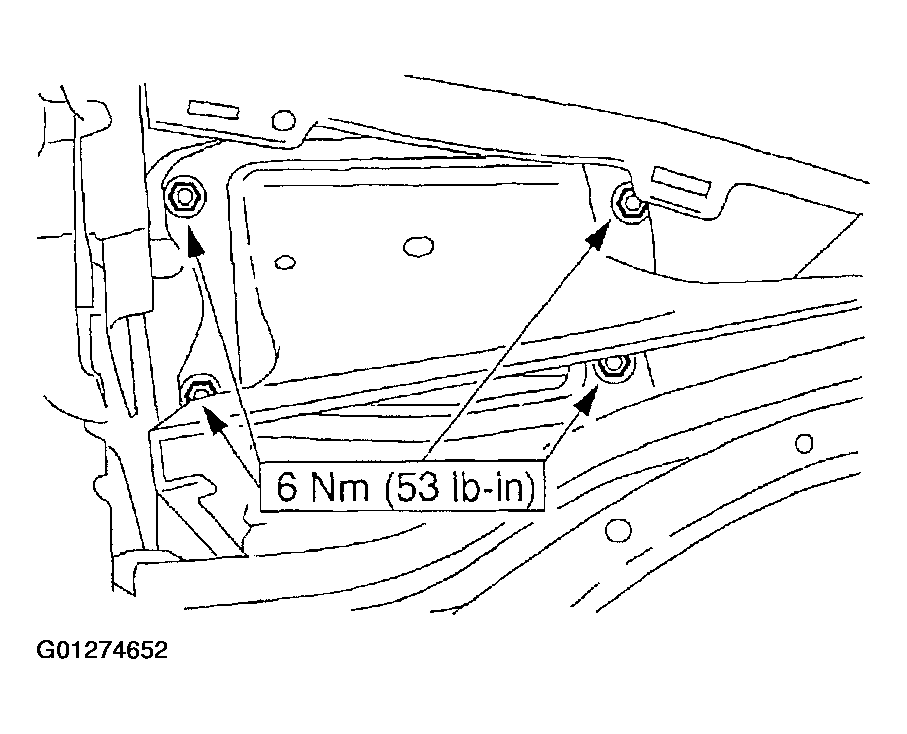

Remove the three bolts and remove the plenum panel.

Fig 6: Removing Plenum Panel
Courtesy of FORD MOTOR CO.

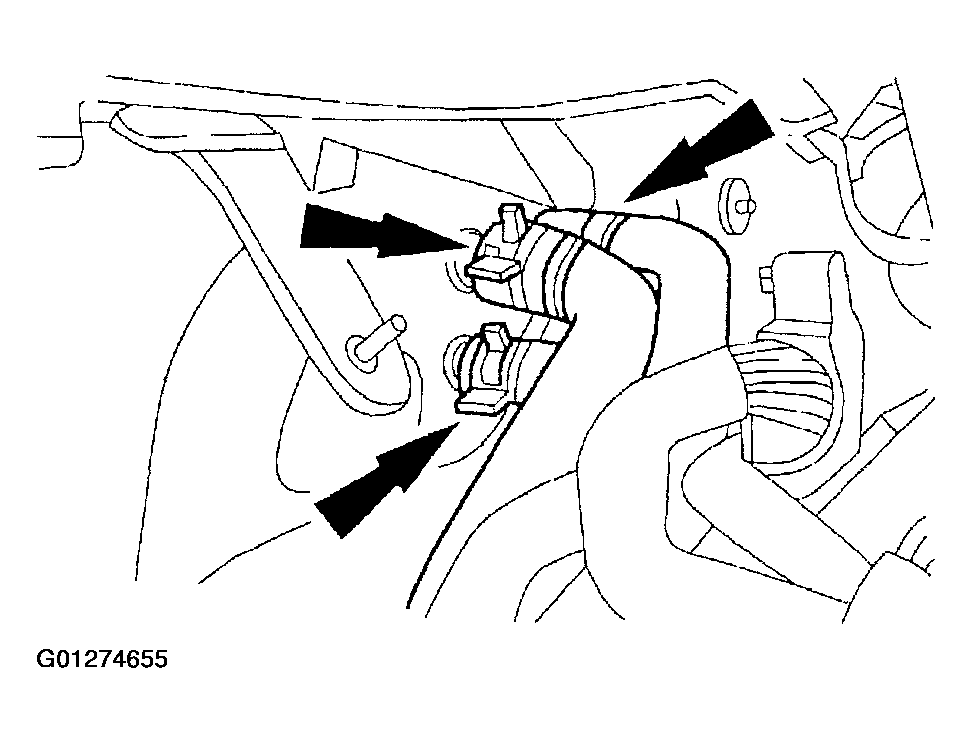

Disconnect the heater hoses from the heater core.

Fig 7: Disconnecting Heater Hoses
Courtesy of FORD MOTOR CO.

NOTE: The top heater hose has a green identifying mark to match the hose on the dual coolant flow valve. If the marking is not visible, make sure to mark the hoses for location prior to disconnecting the couplings. This will aid in the correct installation of the hose assemblies.

NOTE: Hose connections shown with components removed for clarity.

Fig 8: Disconnecting Quick-Disconnect Couplings From Coolant Control Valve Hoses

Courtesy of FORD MOTOR CO.

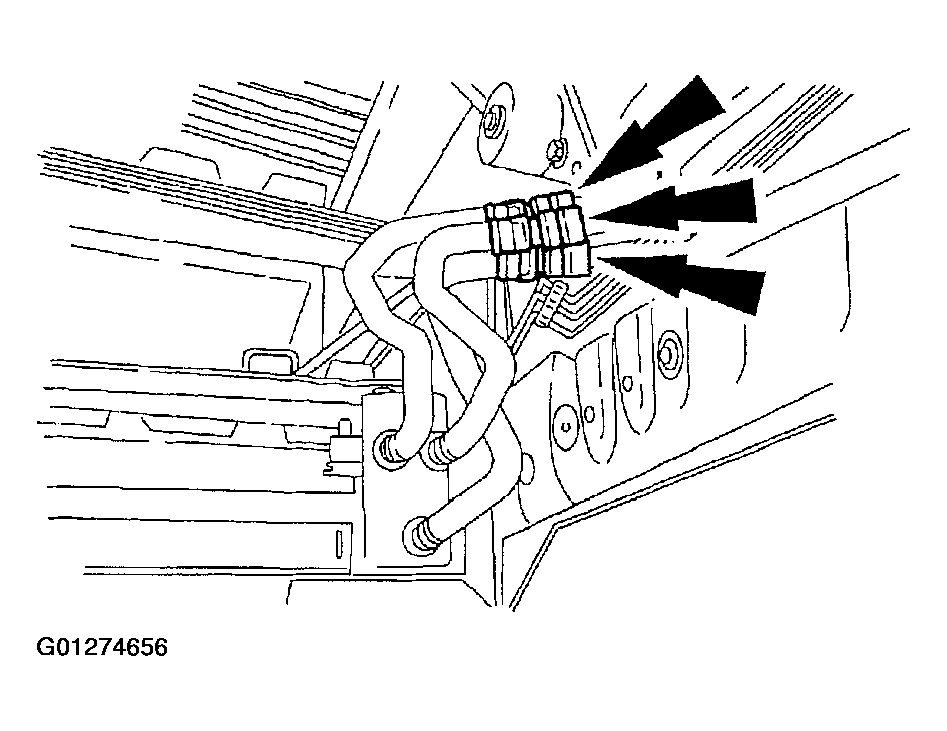

Disconnect the three quick-disconnect couplings from the coolant control valve hoses. For additional information, see SPRING LOCK COUPLING .

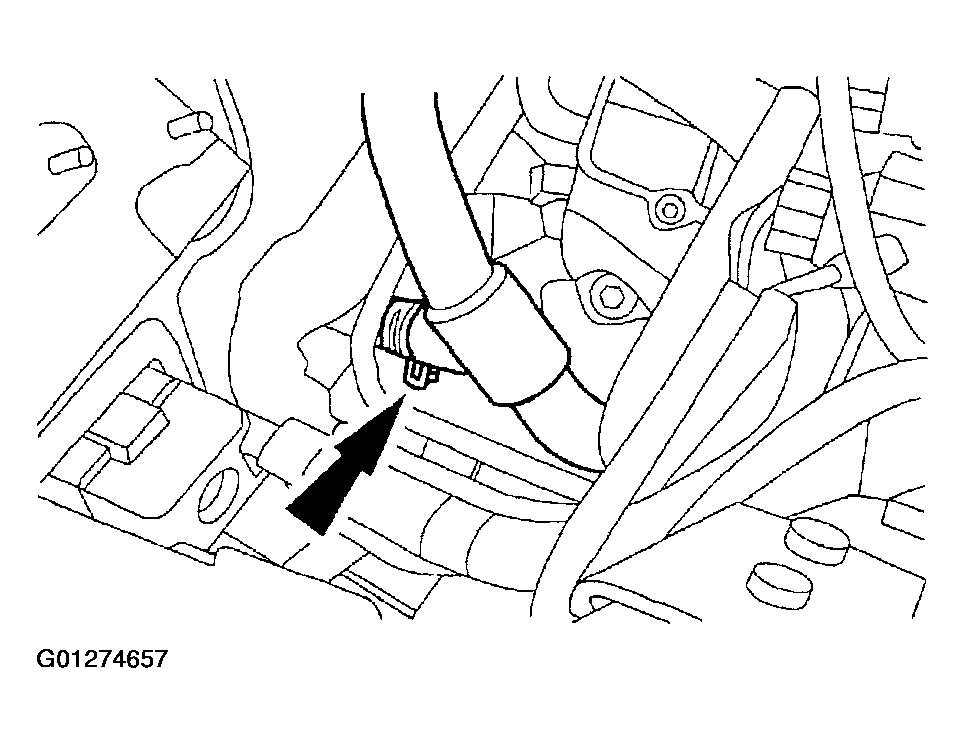

Disconnect the coolant recovery line.

Fig 9: Disconnecting Coolant Recovery Line
Courtesy of FORD MOTOR CO.

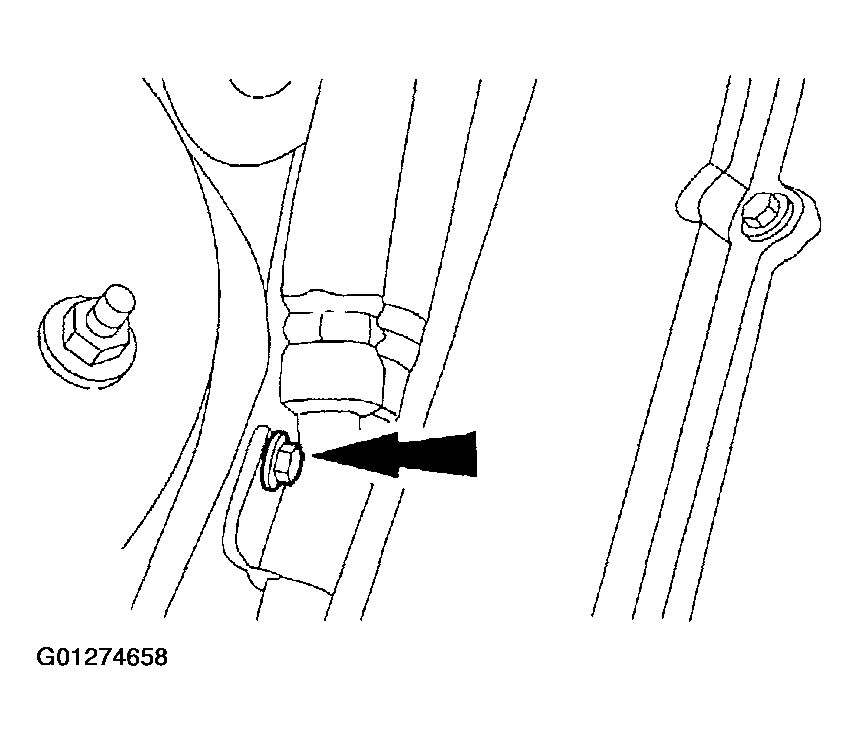

Remove the forward heater hose mounting bolt at the RH shock tower.

Fig 10: Removing Forward Heater Hose Mounting Bolt
Courtesy of FORD MOTOR CO.
Raise the vehicle. For additional information, see JACKING & HOISTING .

NOTE: View shown with components removed for clarity.

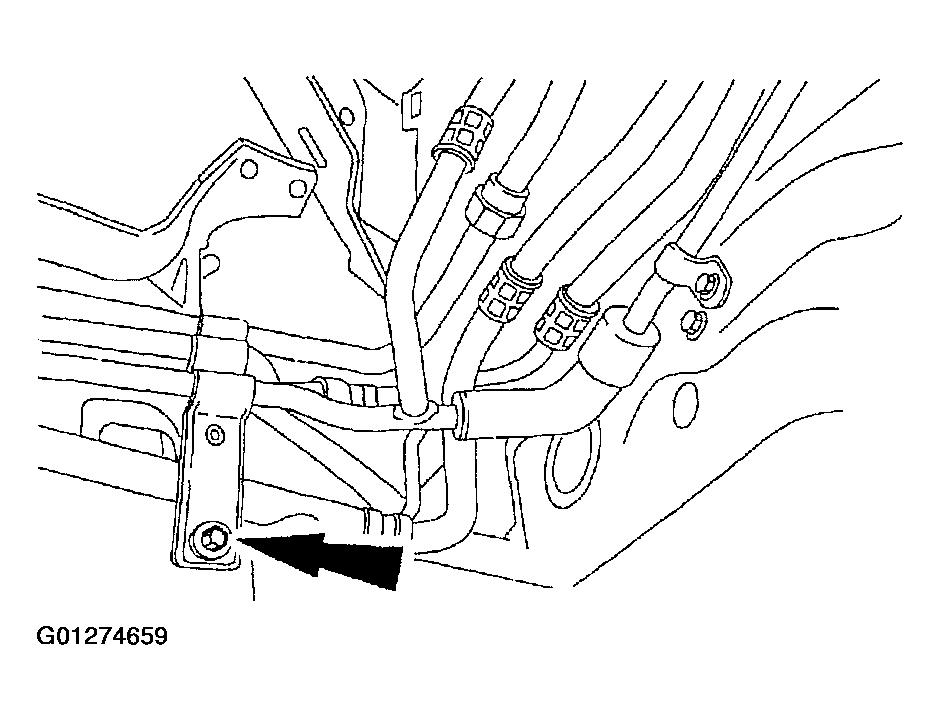

Fig 11: Removing Rear Heater Hose Mounting Bolt

Courtesy of FORD MOTOR CO.

Remove the rear heater hose mounting bolt from the body side.

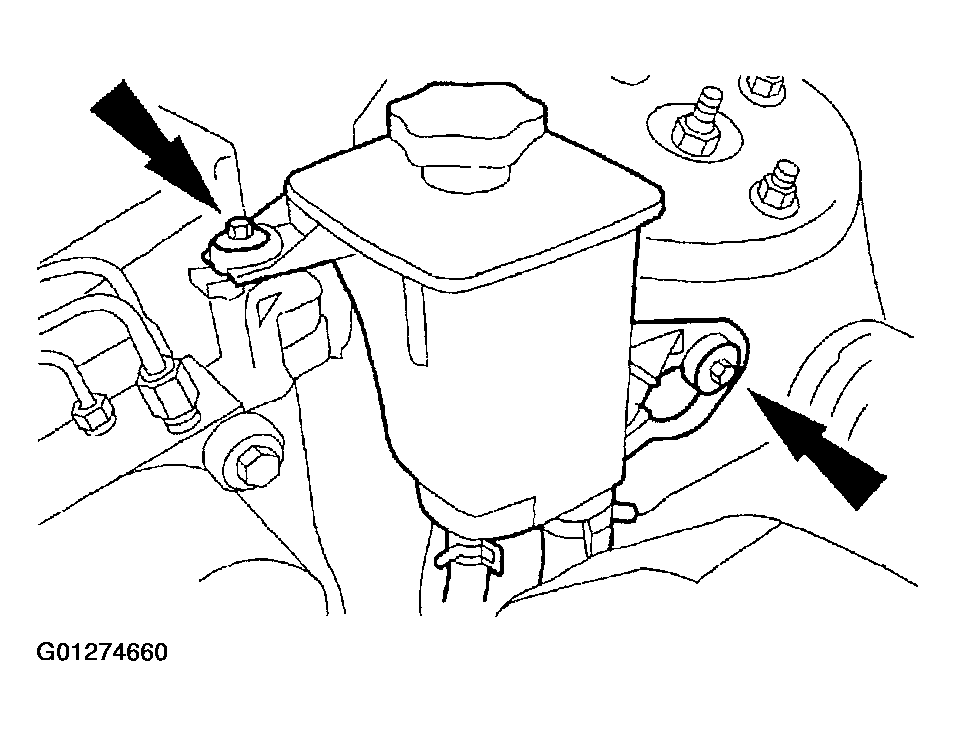

Position the hydraulic cooling fan reservoir aside.

Fig 12: Positioning Hydraulic Cooling Fan Reservoir Aside
Courtesy of FORD MOTOR CO.

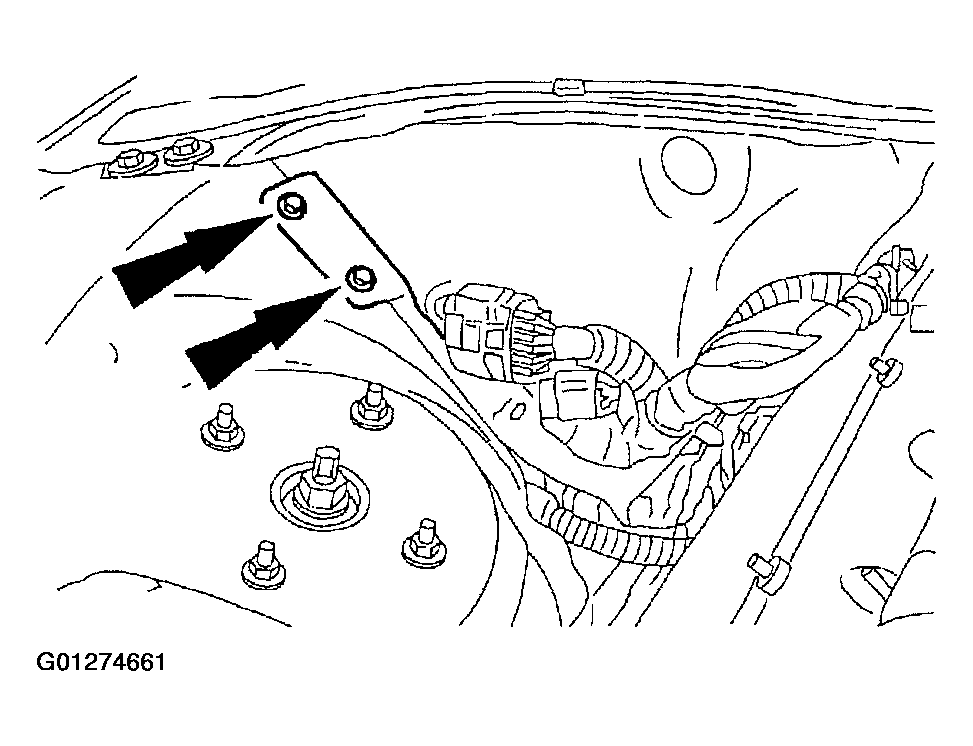

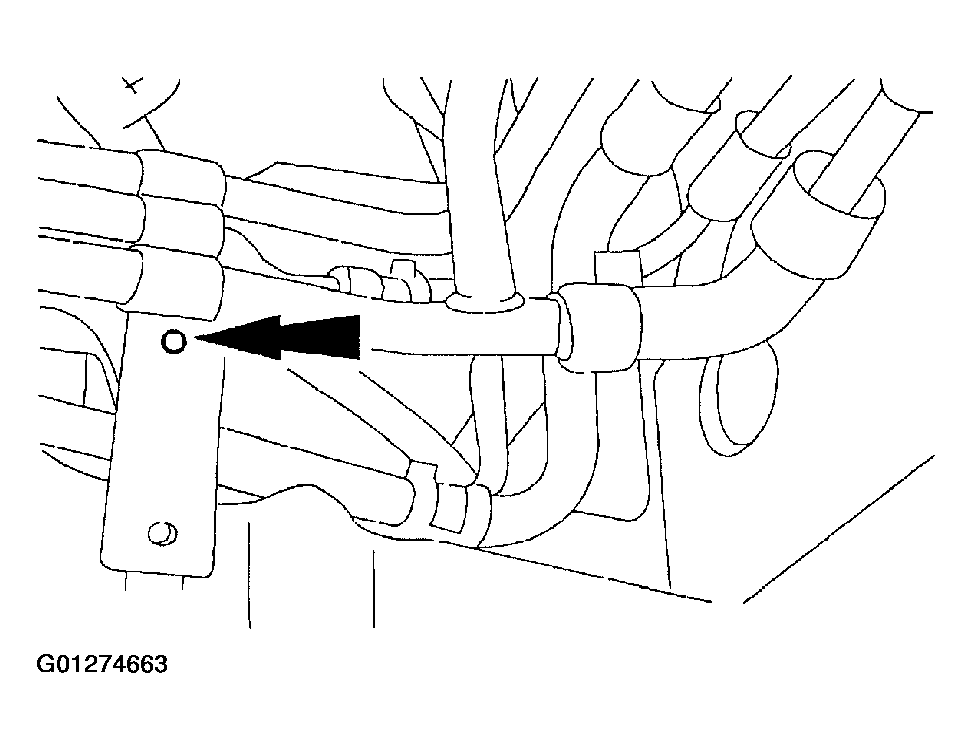

Position the PCM wiring harness bracket aside.

Fig 13: Positioning PCM Wiring Harness Bracket Aside
Courtesy of FORD MOTOR CO.
Lower the vehicle and remove the heater hose assembly.

NOTE: Steps 18 and 19 are required only if the heater hose assembly is being separated.

Fig 14: Removing Crimps & Bracket

Courtesy of FORD MOTOR CO.

If necessary, remove the crimps and remove the bracket.
If necessary, remove the rivet and remove the bracket.

Fig 15: Removing Rivet & Bracket
Courtesy of FORD MOTOR CO.
