Heater Hose - Assembly: Installation

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Install heater hose assembly.
Install the hydraulic cooling fan reservoir.

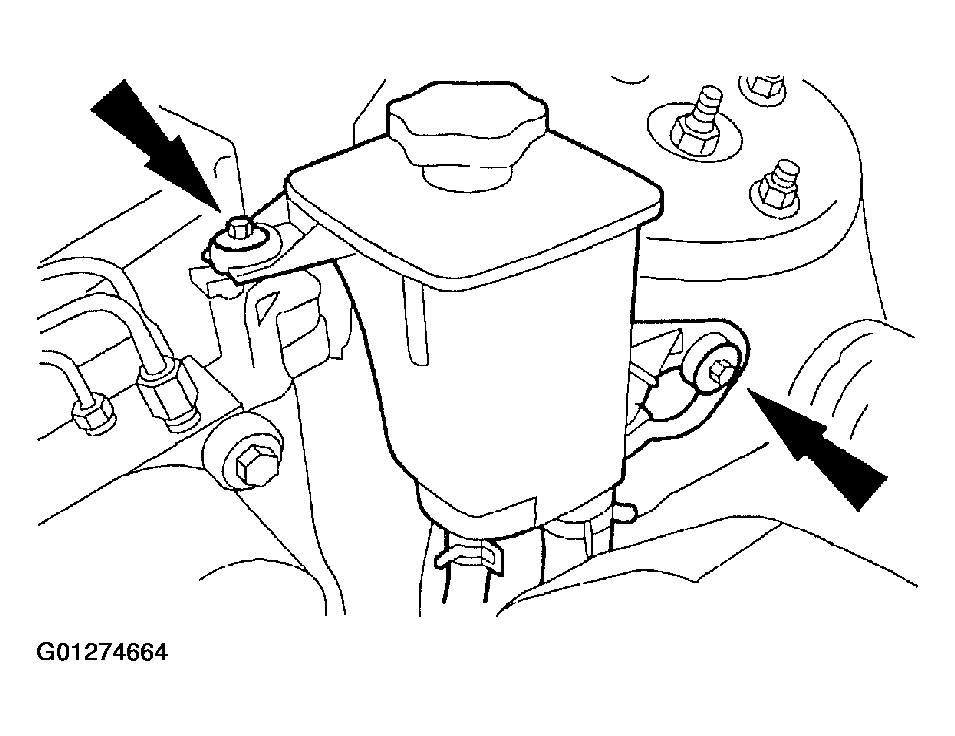

Fig 1: Installing Hydraulic Cooling Fan Reservoir
Courtesy of FORD MOTOR CO.
Install the PCM wiring harness bracket.

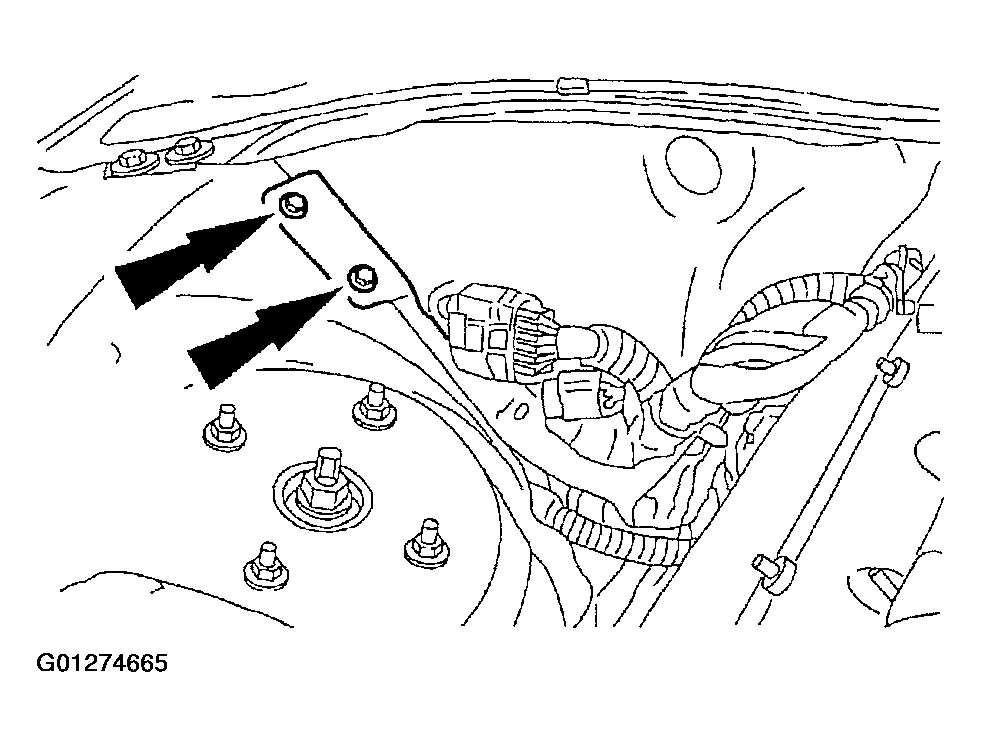

Fig 2: Installing PCM Wiring Harness Bracket
Courtesy of FORD MOTOR CO.

NOTE: If the hose assembly has been separated, install the bracket removed using a new rivet.

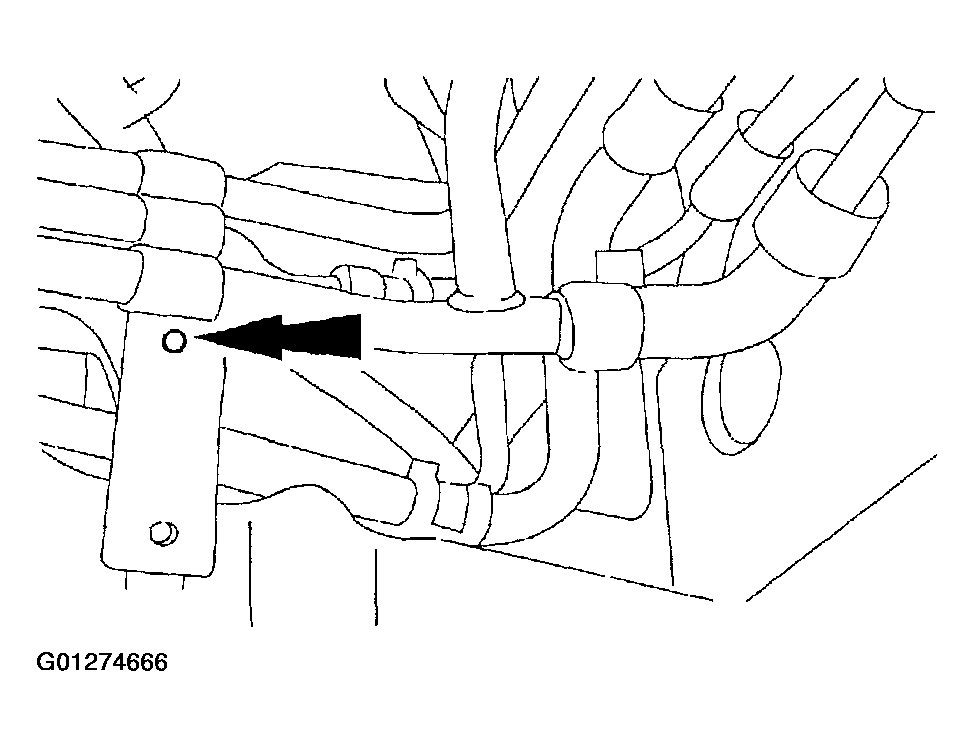

Fig 3: Installing Bracket With Rivet

Courtesy of FORD MOTOR CO.

Install the bracket using a new rivet.
Install the rear heater hose mounting bolt.

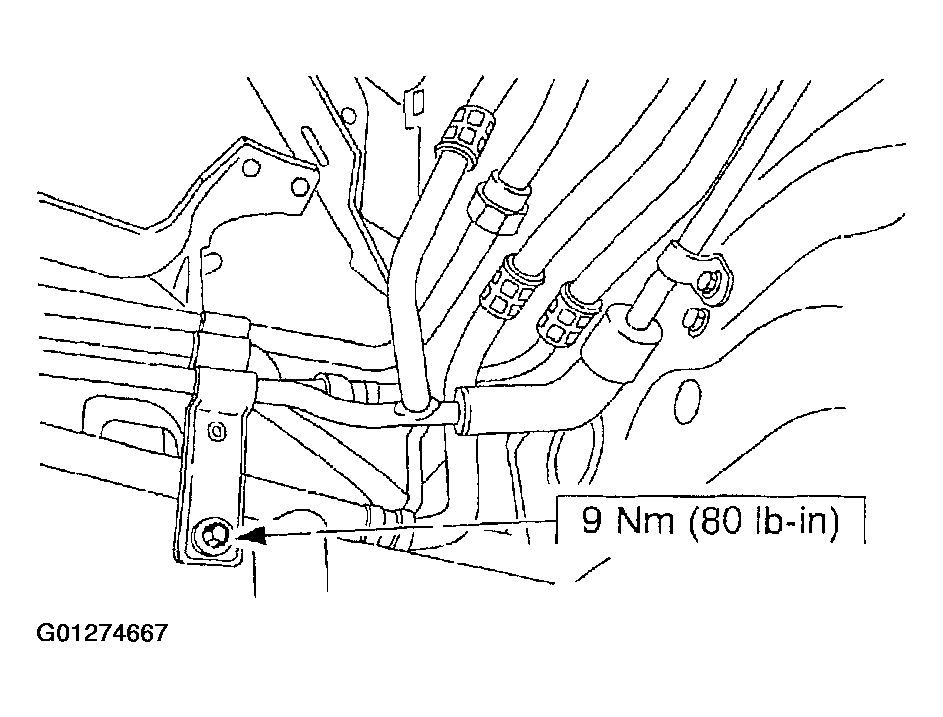

Fig 4: Installing Rear Heater Hose Mounting Bolt
Courtesy of FORD MOTOR CO.

NOTE: If the hose assembly has been separated, a new bracket must be installed.

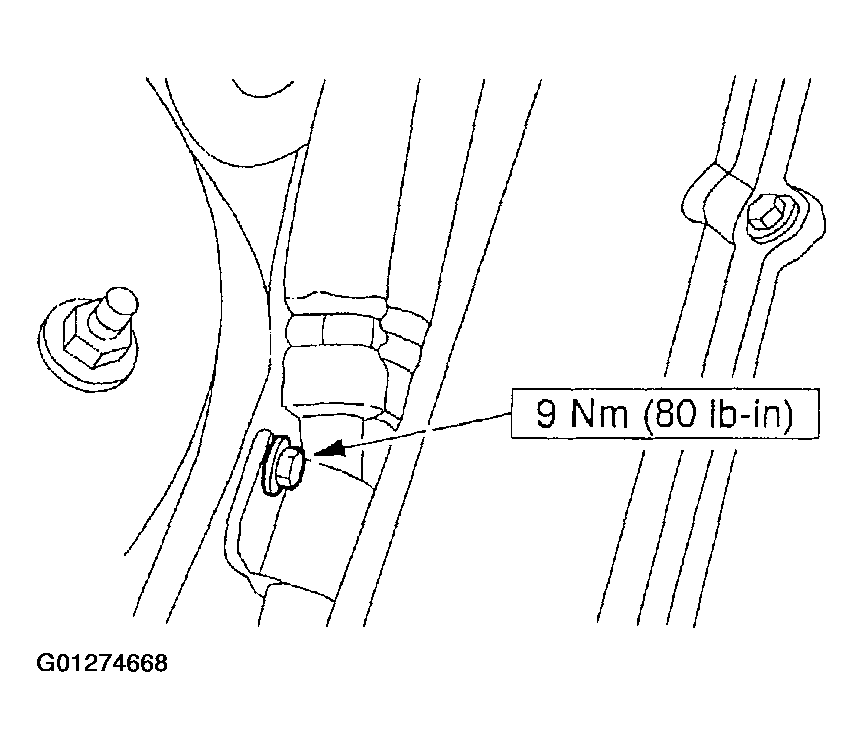

Fig 5: Installing Forward Heater Hose Mounting Bolt

Courtesy of FORD MOTOR CO.

Install the forward heater hose mounting bolt.
Connect the coolant recovery line.

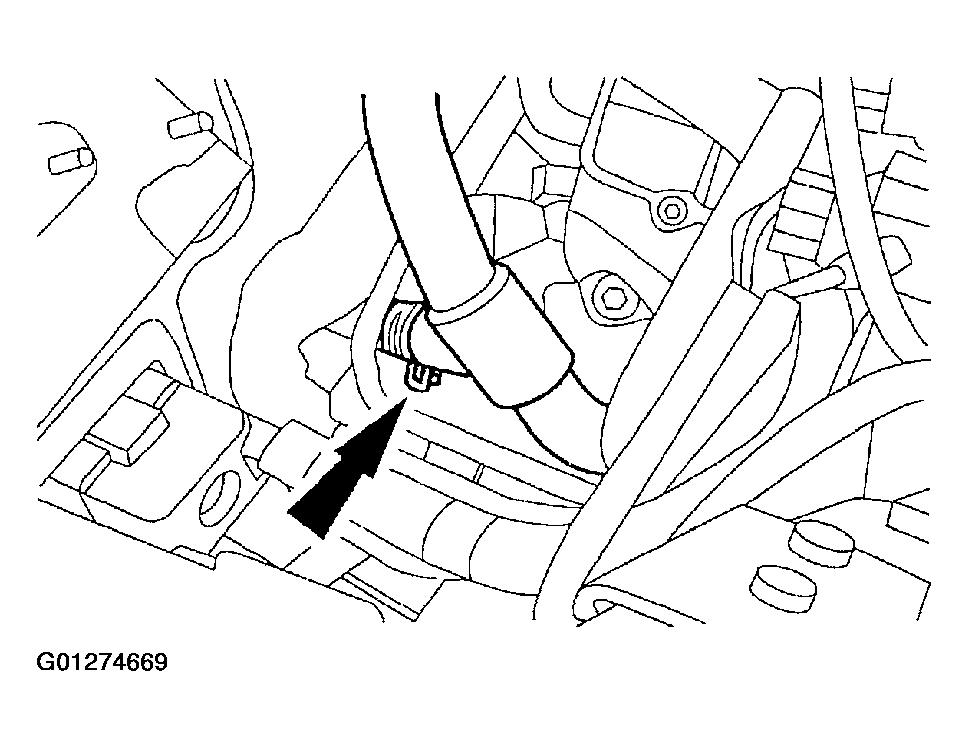

Fig 6: Connecting Coolant Recovery Line
Courtesy of FORD MOTOR CO.
Install the couplings.
- Make sure that the heater hoses are installed in the correct position. For additional information, see HEATING AND DEFROSTING .
- Lubricate the coolant hoses with MERPOL(R) meeting Ford specification ESE-M99B144-B or plain water only, if needed.

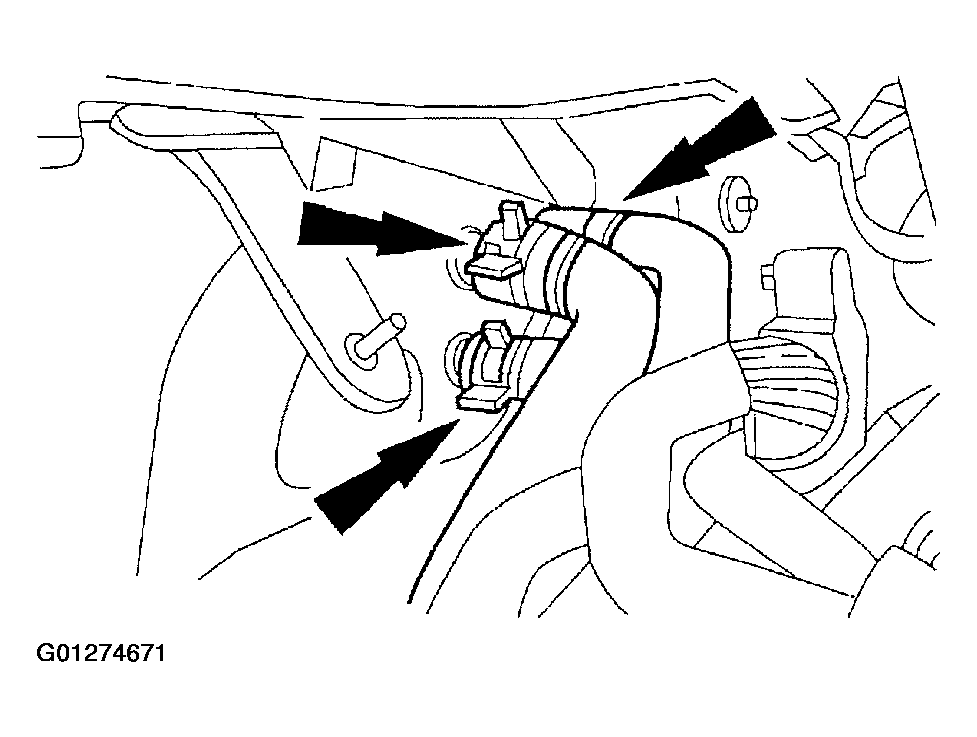

Fig 7: Installing Couplings
Courtesy of FORD MOTOR CO.
Install the heater hoses at the heater core.
- Make sure that the heater hoses are installed in the correct position. For additional information, see HEATING AND DEFROSTING .
- Lubricate the coolant hoses with MERPOL(R) meeting Ford specification ESE-M99B144-B or plain water only, if needed.
- Check for correct hose installation by verifying DATC system operation.

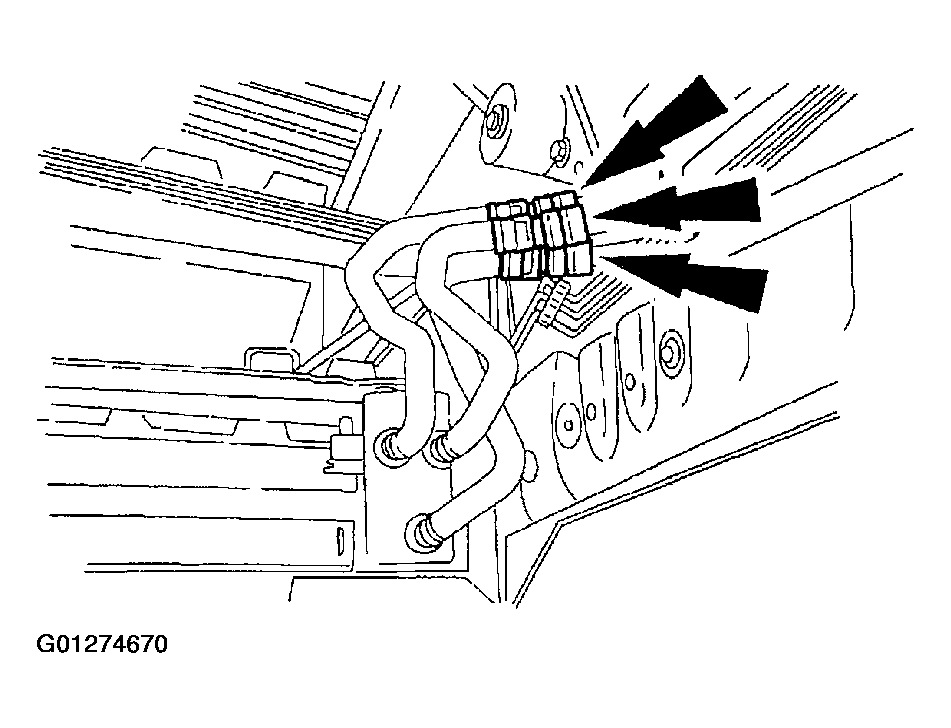

Fig 8: Installing Heater Hoses At Heater Core
Courtesy of FORD MOTOR CO.
Install the cabin air intake plenum.
Install the cabin air filter.
Install the RH cowl cover.
Install the throttle body intake tube.
Fill the cooling system.
