Removal and Installation

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery ground cable.
Remove the passenger side floor duct. For additional information, see DUCT - FRONT FLOOR .
Remove the screws and remove the cover.

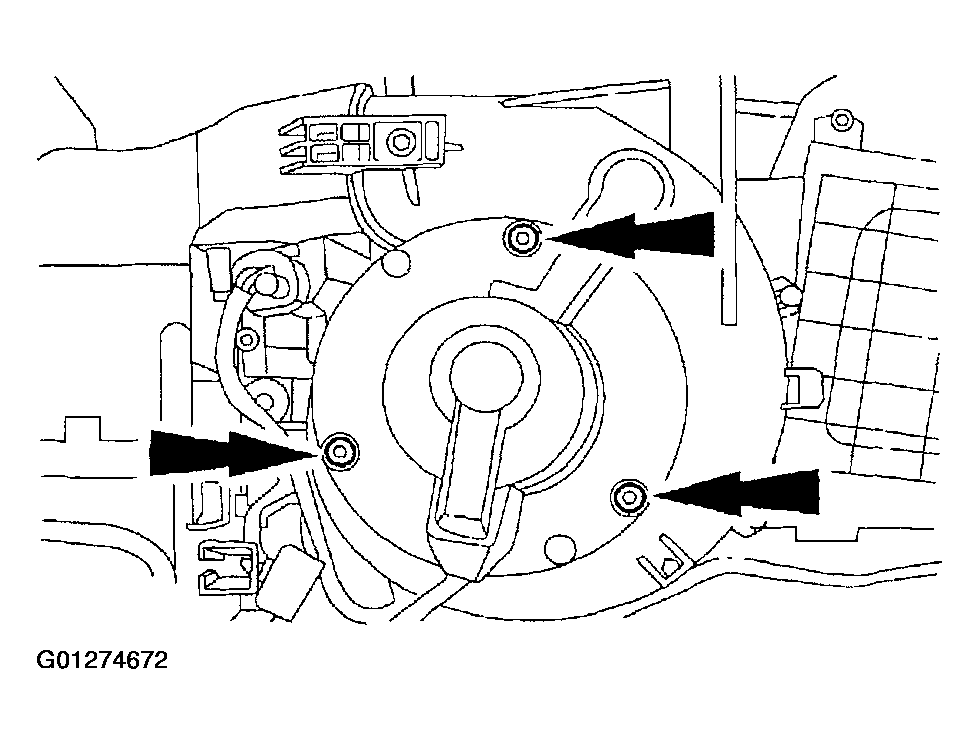

Fig 1: Removing Cover
Courtesy of FORD MOTOR CO.
Disconnect the connector and remove the blower motor.

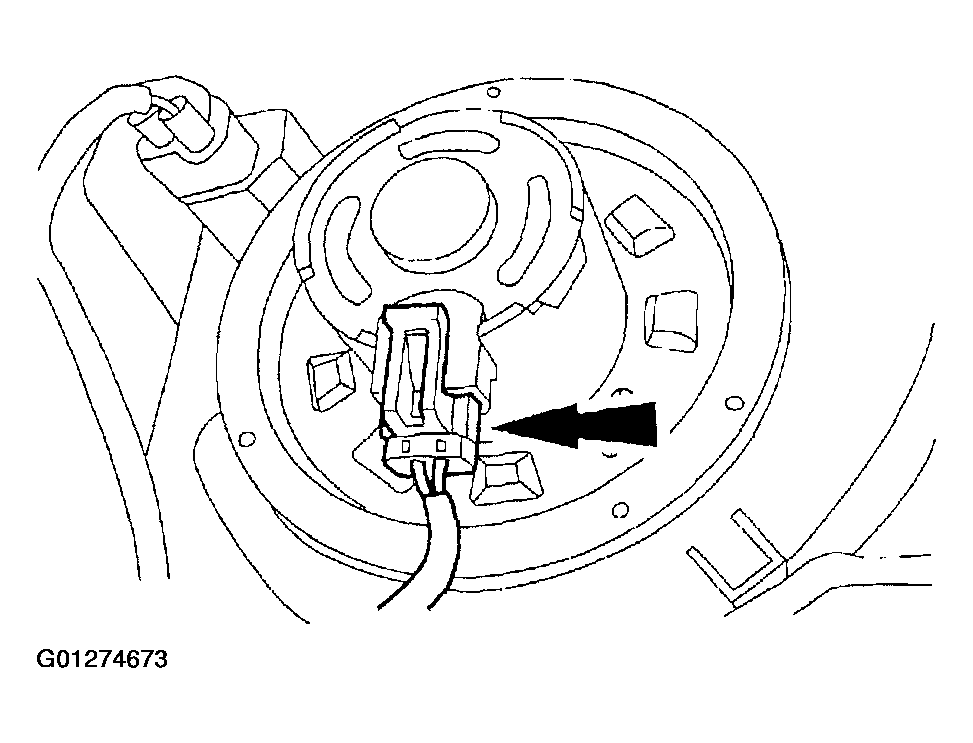

Fig 2: Disconnecting Electrical Connector
Courtesy of FORD MOTOR CO.

CAUTION: Prior to removing a wheel that is to be reused, clean any corrosion from the blower motor shaft to prevent damage to the wheel mounting diameter.

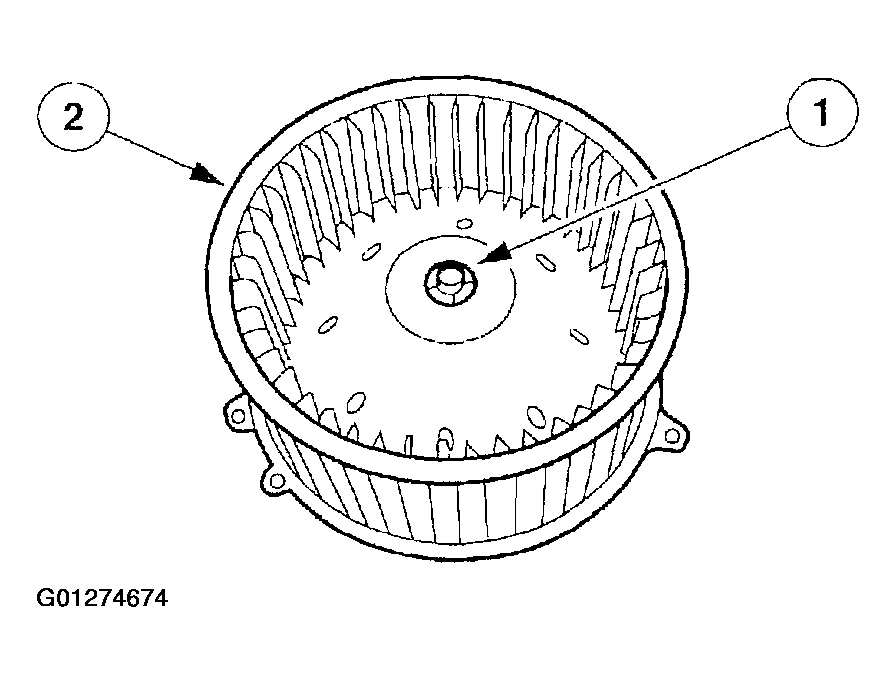

Fig 3: Removing Wheel From Blower Motor

Courtesy of FORD MOTOR CO.

Remove the wheel from the blower motor.
1. Remove the push clip.
2. Remove the wheel from the blower motor.

NOTE: Make sure to install the blower motor cover. It is necessary for correct cooling.

To install, reverse the removal procedure.
