Removal and Installation

WARNING: This page is about a different car, the 2006 Ford Pickup, 2006 Ford F550 Super Duty, 2006 Ford F450 Super Duty, and 2006 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Drain the engine cooling system. For additional information, refer to ENGINE COOLING .
Remove the air cleaner assembly. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING .
Disconnect the engine vent and radiator vent hoses.

Fig 1: Locating Engine Vent And Radiator Vent Hoses
Courtesy of FORD MOTOR CO.
Remove the 2 bolts and position the degas bottle aside.
- To install, tighten to 10 Nm (89 lb-in).

  Fig 2: Locating Degas Bottle Bolts
  Courtesy of FORD MOTOR CO.
Loosen the clamp at the turbocharger.

Fig 3: Locating Turbocharger Clamp
Courtesy of FORD MOTOR CO.

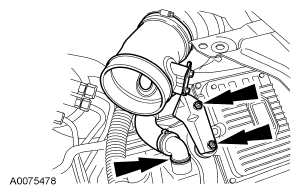

Remove the 2 nuts and the turbocharger intake tube.

Fig 4: Locating Turbocharger Intake Tube Nuts
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
