Removal and Installation

WARNING: This page is about a different car, the 2006 Ford Pickup, 2006 Ford F550 Super Duty, 2006 Ford F450 Super Duty, and 2006 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Always disconnect the battery ground cable prior to working on the electronic engine controls.

Disconnect the battery ground cable. For additional information, on vehicles equipped with dual batteries, refer to BATTERY, MOUNTING AND CABLES .
Disconnect the auxiliary battery positive cable (LH side of the engine compartment).

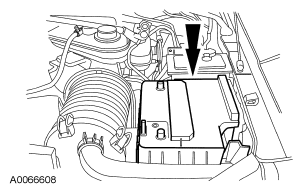

Fig 1: Disconnecting Auxiliary Battery Positive Cable
Courtesy of FORD MOTOR CO.
Remove the auxiliary battery cover.

Fig 2: Locating Auxiliary Battery Cover
Courtesy of FORD MOTOR CO.
Unlatch and disconnect the powertrain control module (PCM) electrical connectors.

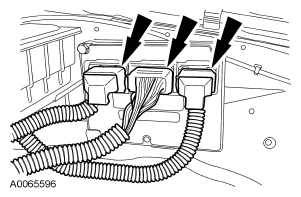

Fig 3: Locating Powertrain Control Module (PCM) Electrical Connectors
Courtesy of FORD MOTOR CO.
Remove the 2 bolts and the PCM.
- To install, tighten to 7 Nm (62 lb-in).

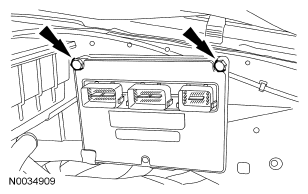

  Fig 4: Locating PCM Bolts
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
