Pinpoint Test N: The Blower Motor Is Inoperative

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

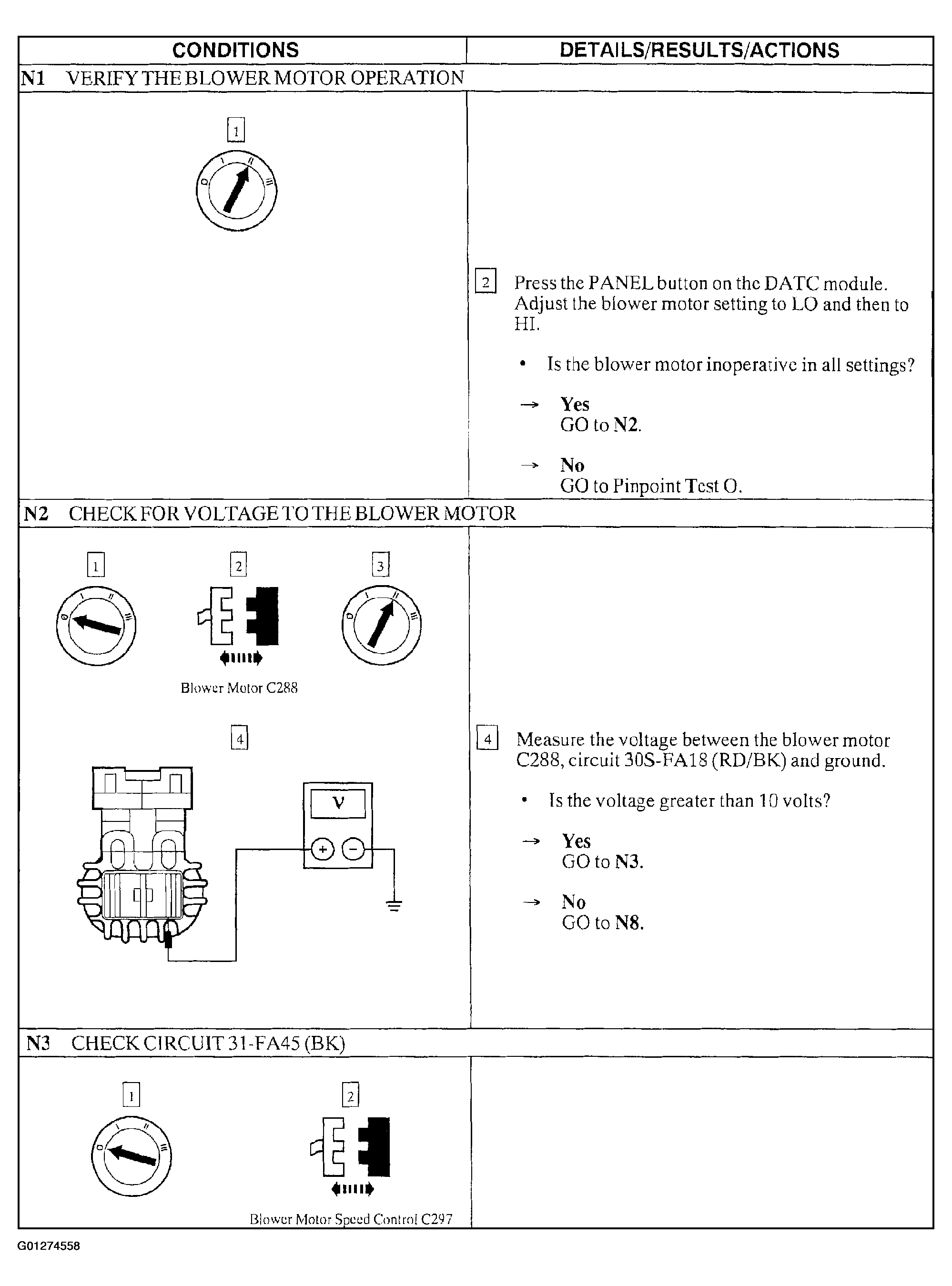

Fig 1: Pinpoint Test N: The Blower Motor Is Inoperative (Steps N1-N3)

Courtesy of FORD MOTOR CO.

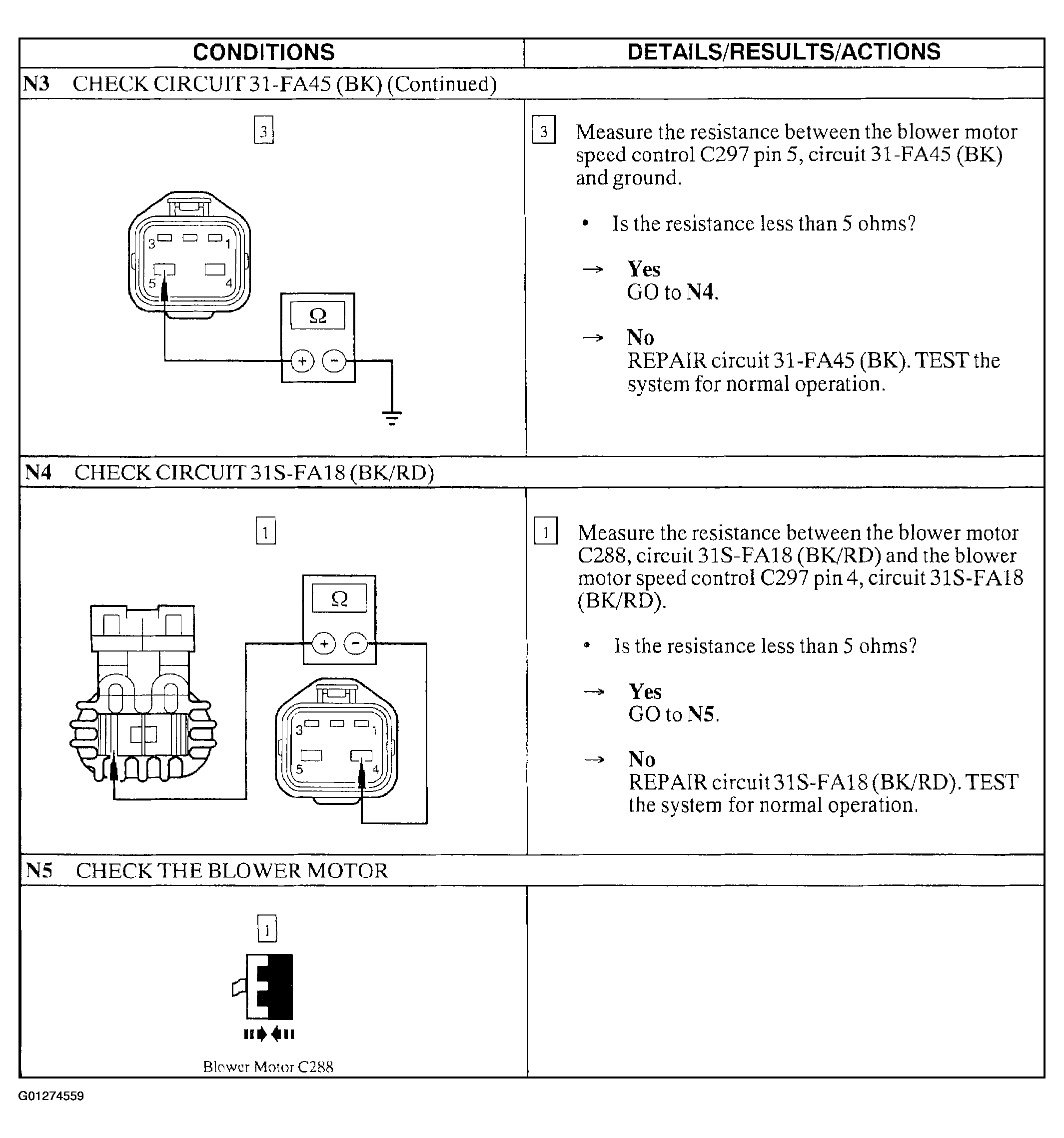

Fig 2: Pinpoint Test N: The Blower Motor Is Inoperative (Steps N3 Cont. -N5)

Courtesy of FORD MOTOR CO.

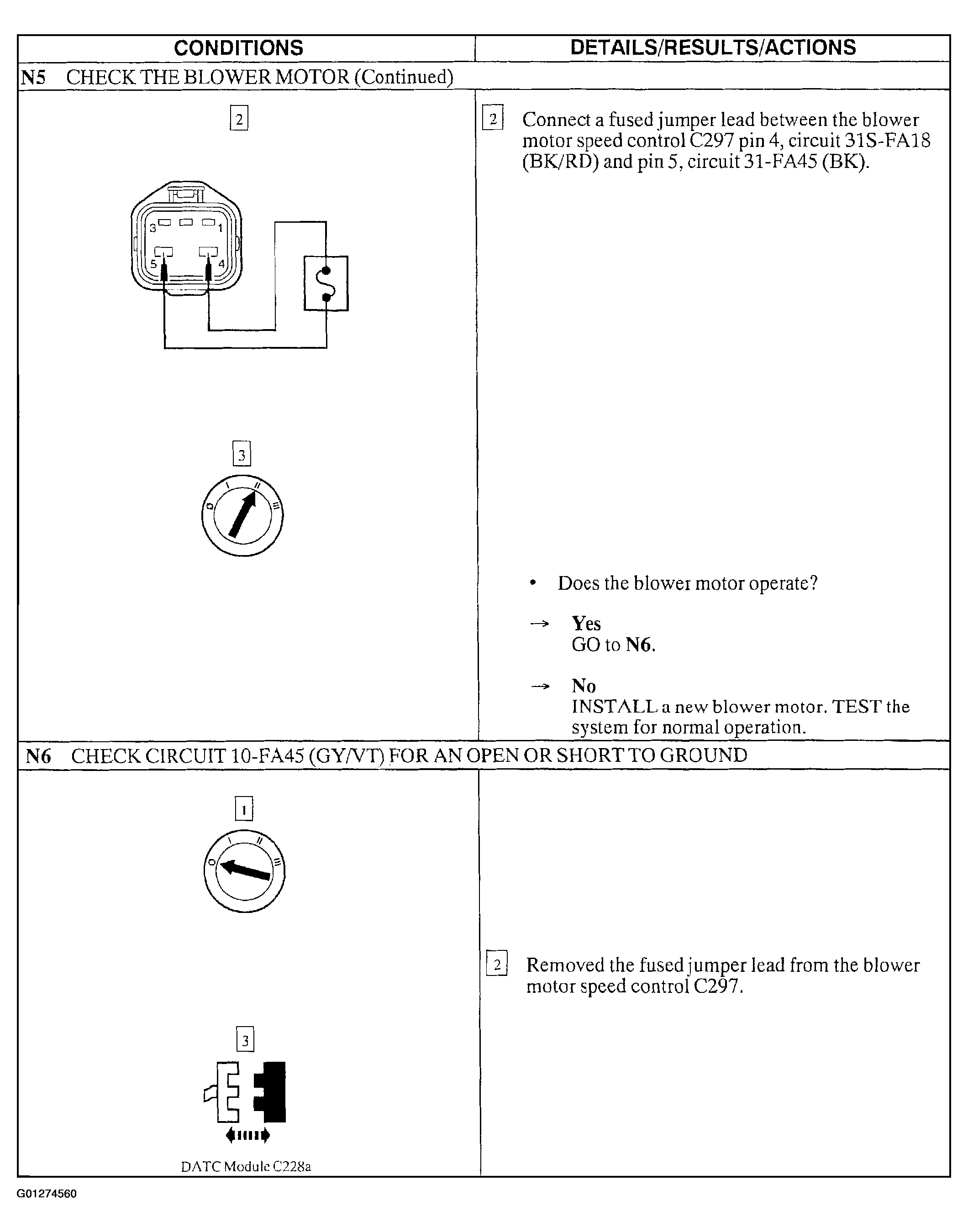

Fig 3: Pinpoint Test N: The Blower Motor Is Inoperative (Steps N5 Cont. -N6)

Courtesy of FORD MOTOR CO.

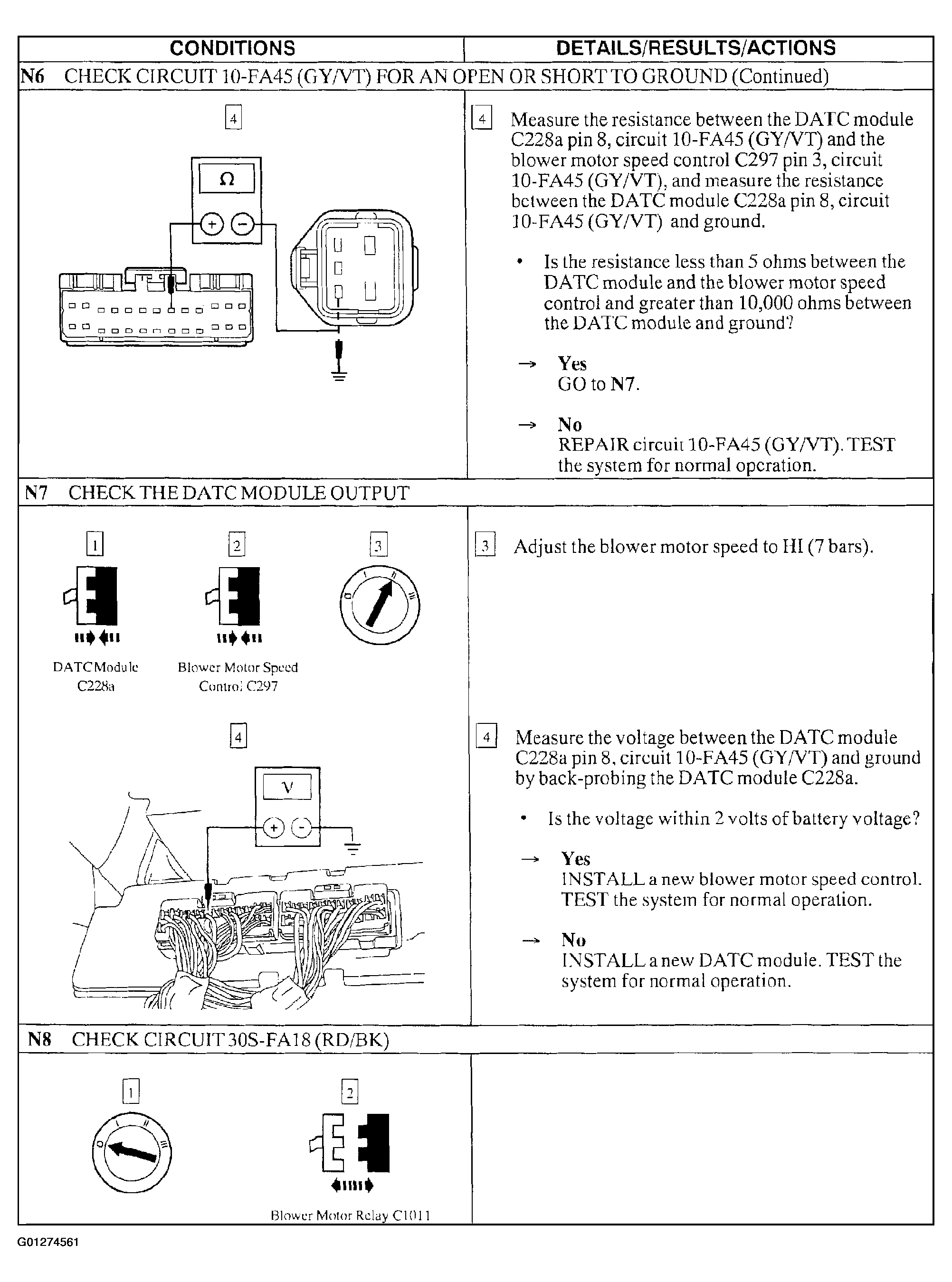

Fig 4: Pinpoint Test N: The Blower Motor Is Inoperative (Steps N6 Cont. -N8)

Courtesy of FORD MOTOR CO.

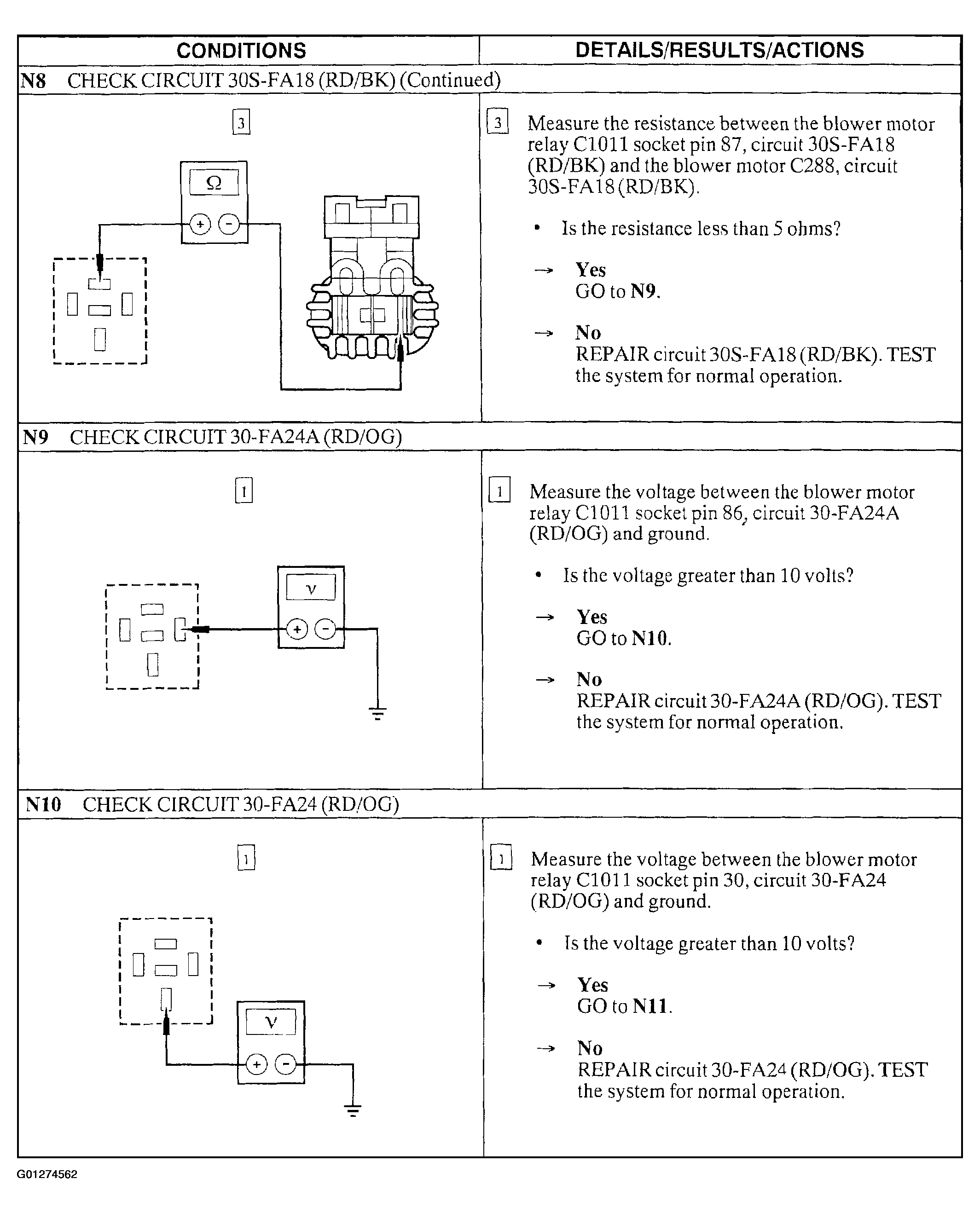

Fig 5: Pinpoint Test N: The Blower Motor Is Inoperative (Steps N8 Cont. -N10)

Courtesy of FORD MOTOR CO.

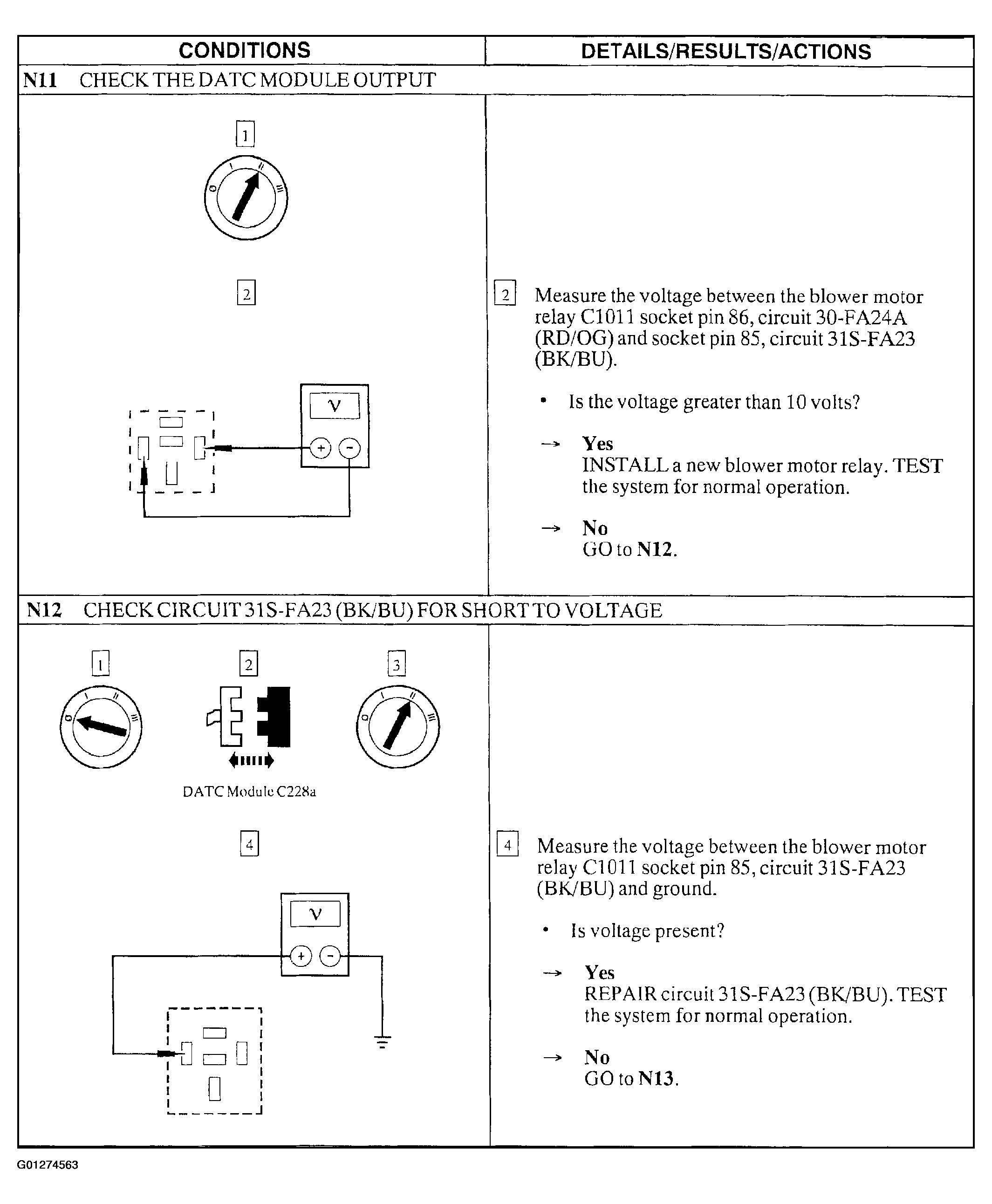

Fig 6: Pinpoint Test N: The Blower Motor Is Inoperative (Steps N11-N12)

Courtesy of FORD MOTOR CO.

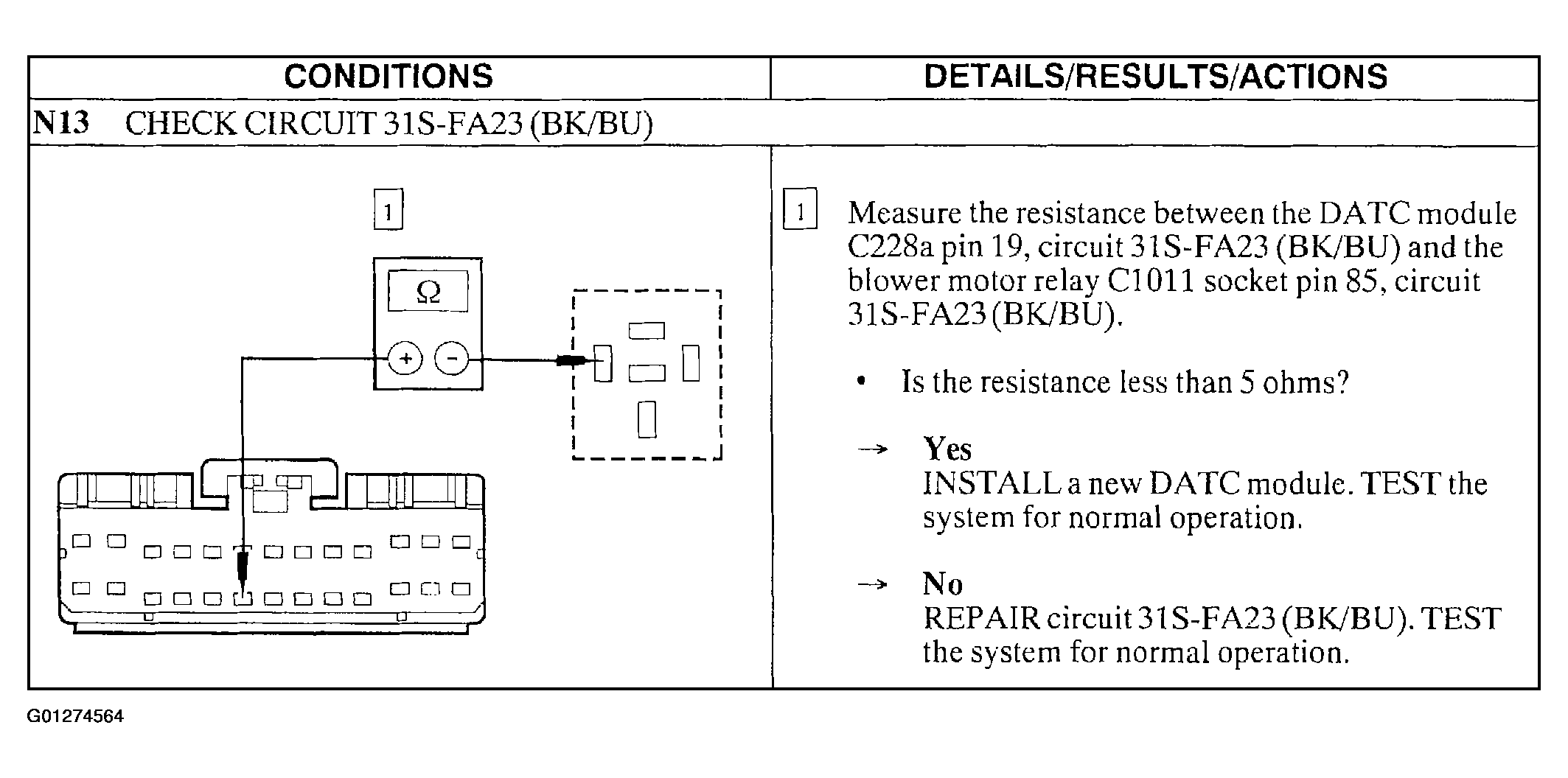

Fig 7: Pinpoint Test N: The Blower Motor Is Inoperative (Step N13)

Courtesy of FORD MOTOR CO.
