Pinpoint Test M: The Air Conditioning (A/C) Is Always On

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

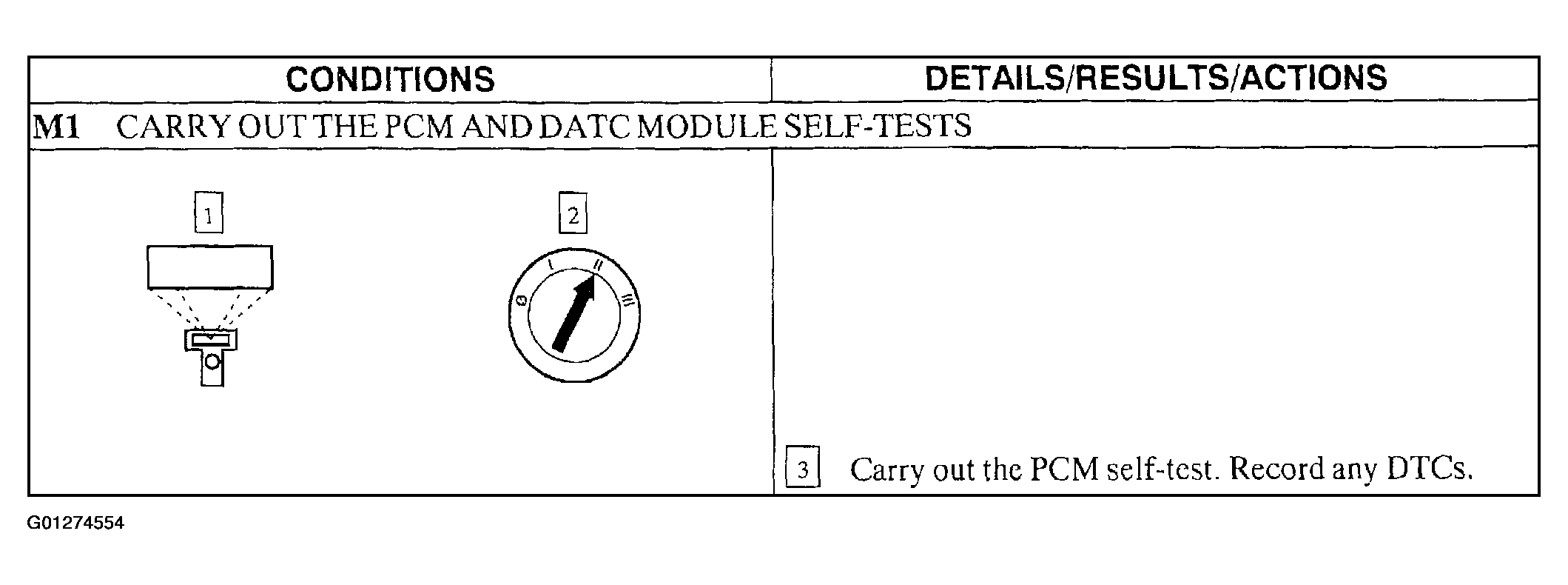

Fig 1: Pinpoint Test M: The Air Conditioning (A/C) Is Always On (Step M1)

Courtesy of FORD MOTOR CO.

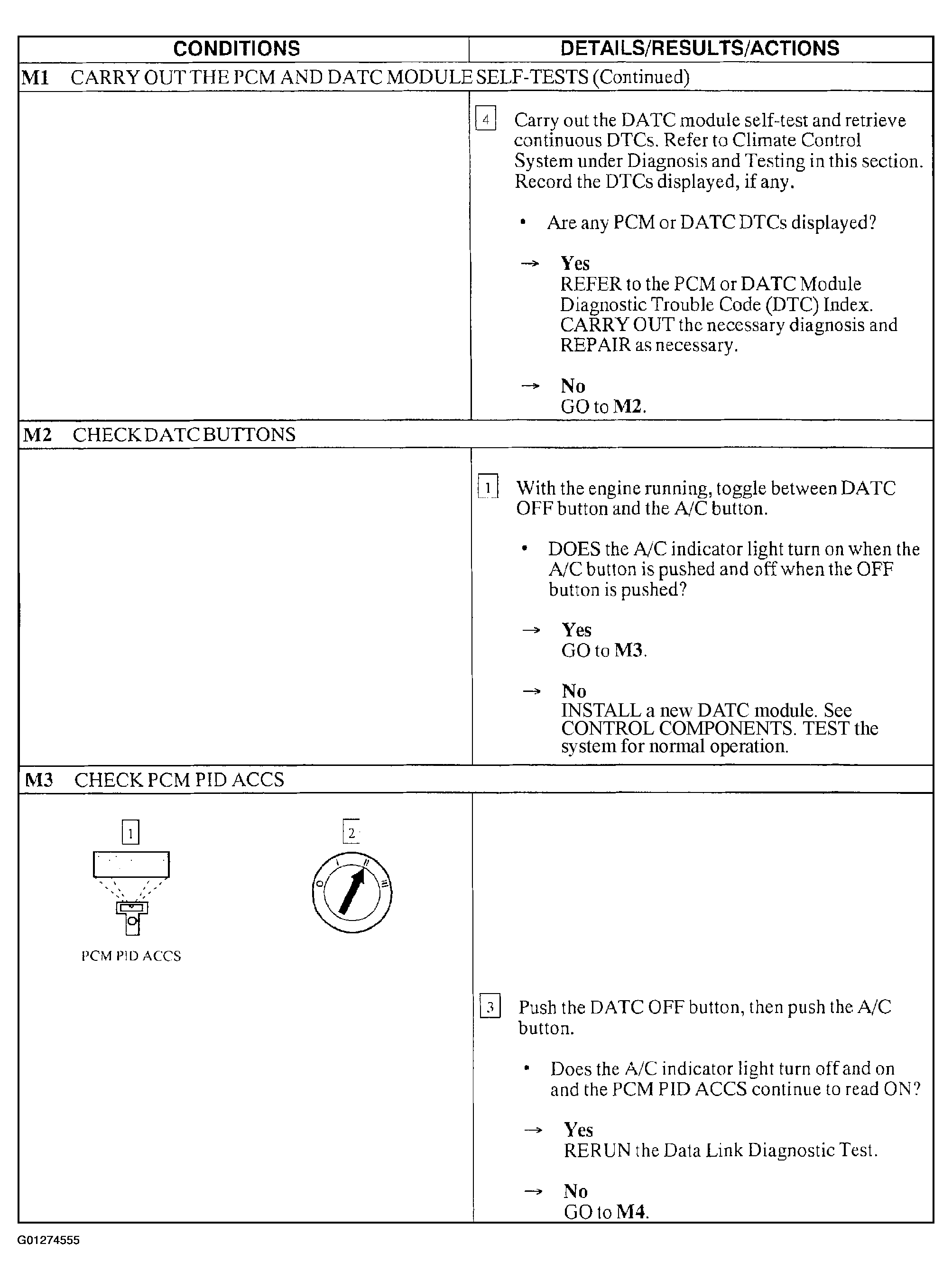

Fig 2: Pinpoint Test M: The Air Conditioning (A/C) Is Always On (Steps M1 Cont. -M3)

Courtesy of FORD MOTOR CO.

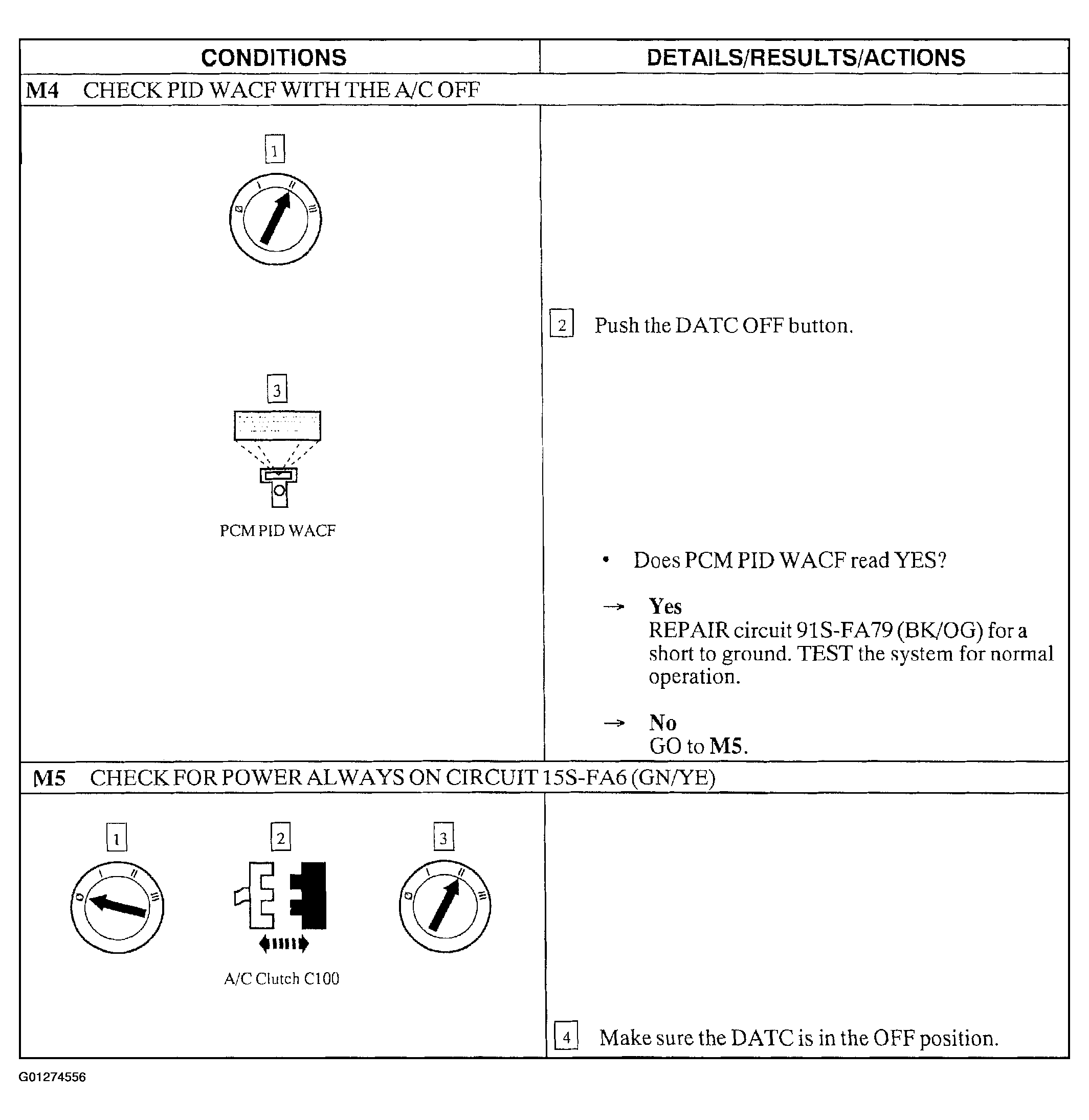

Fig 3: Pinpoint Test M: The Air Conditioning (A/C) Is Always On (Steps M4-M5)

Courtesy of FORD MOTOR CO.

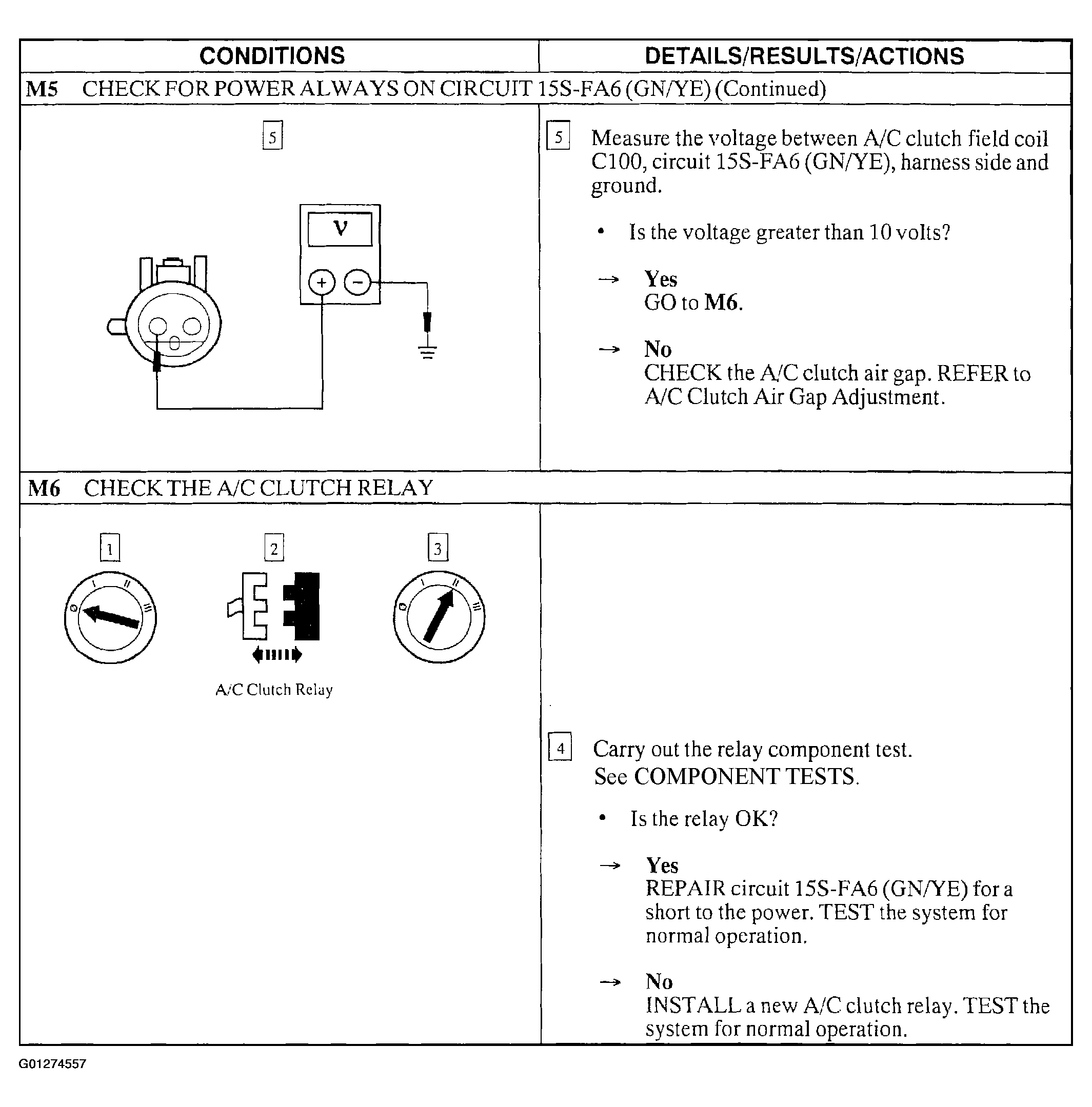

Fig 4: Pinpoint Test M: The Air Conditioning (A/C) Is Always On (Steps M5 Cont. -M6)

Courtesy of FORD MOTOR CO.
