Pinpoint Test J: Full Heat Only In All Modes

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: The coolant control valve jumper harness-to-engine compartment wiring harness connector halves are identified as C134. Make sure to carefully identify the correct half of the connector before carrying out any electrical measurements. Failure to do so can result in damage to the DATC module.

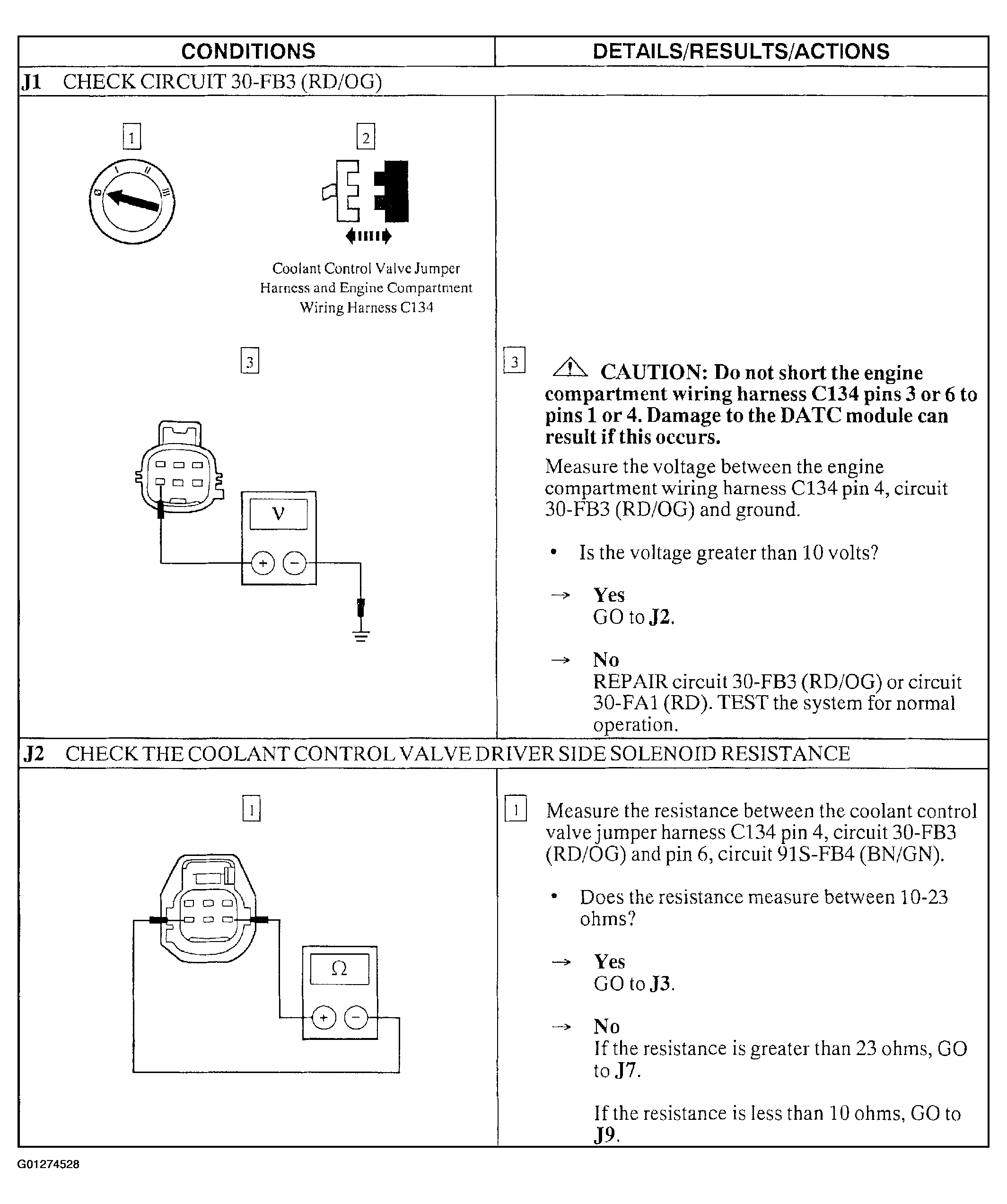

Fig 1: Pinpoint Test J: Full Heat Only In All Modes (Steps J1-J2)

G01274528

Courtesy of FORD MOTOR CO.

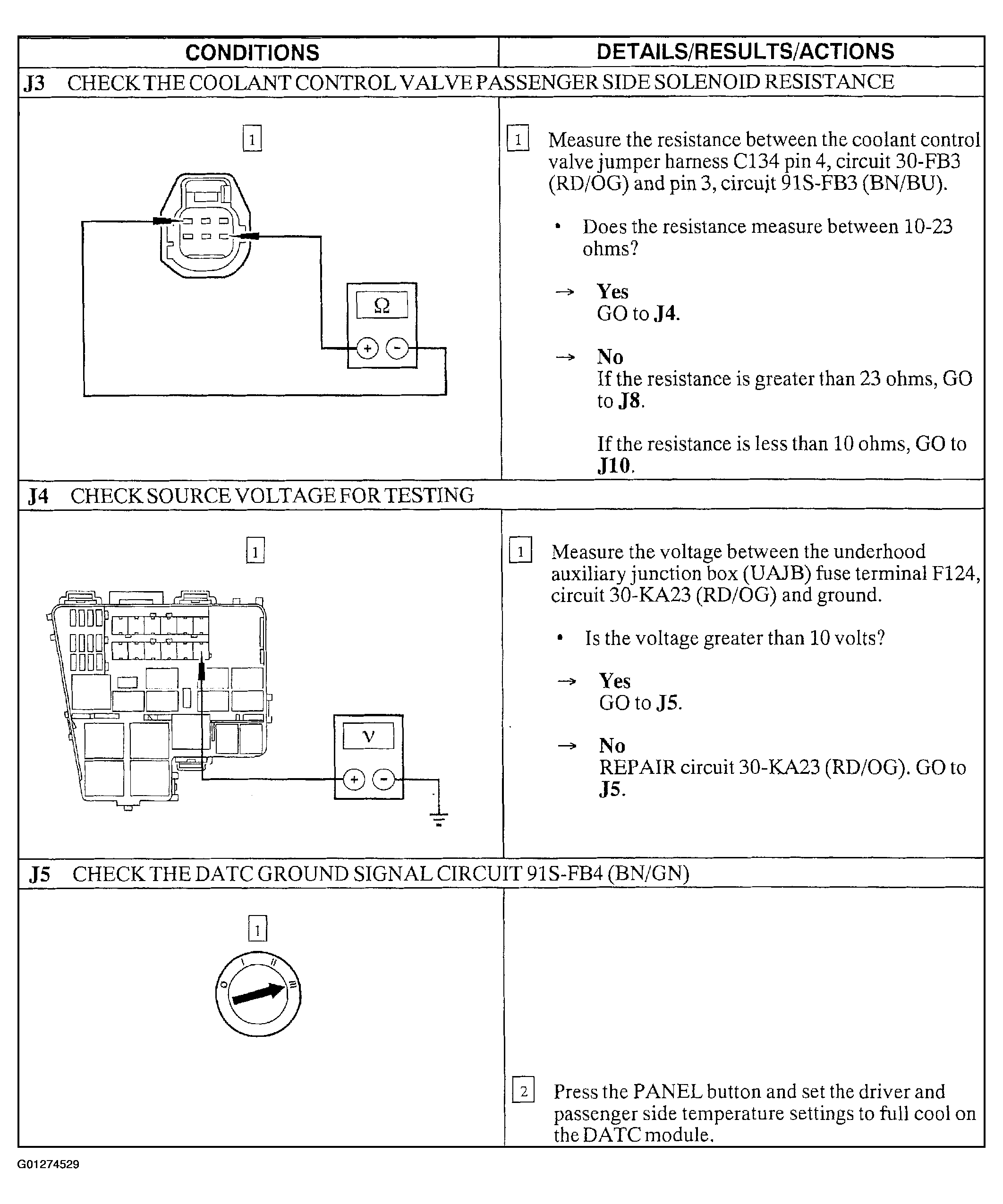

Fig 2: Pinpoint Test J: Full Heat Only In All Modes (Steps J3-J5)

G01274529

Courtesy of FORD MOTOR CO.

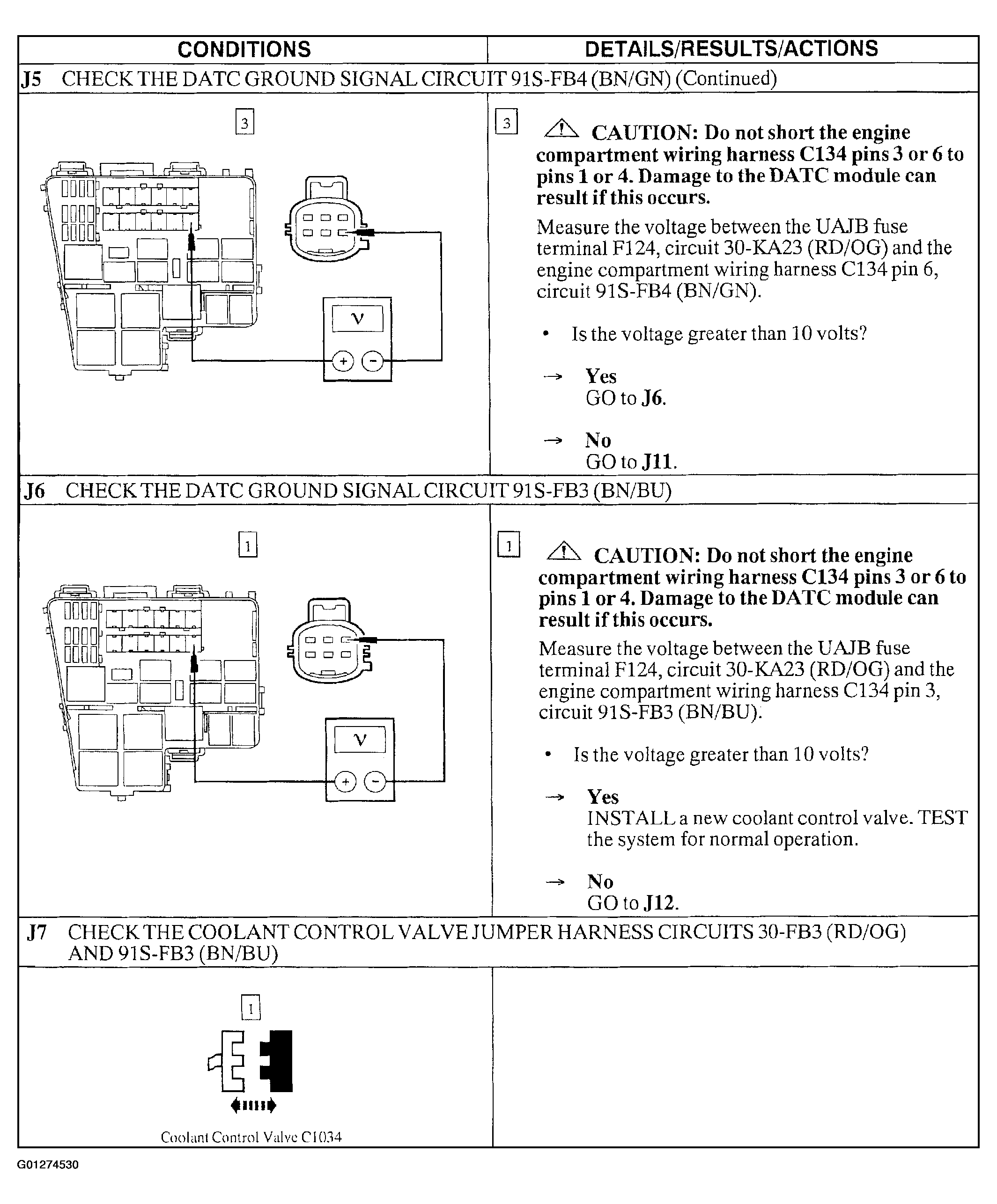

Fig 3: Pinpoint Test J: Full Heat Only In All Modes (Steps J5 Cont. -J7)

G01274530

Courtesy of FORD MOTOR CO.

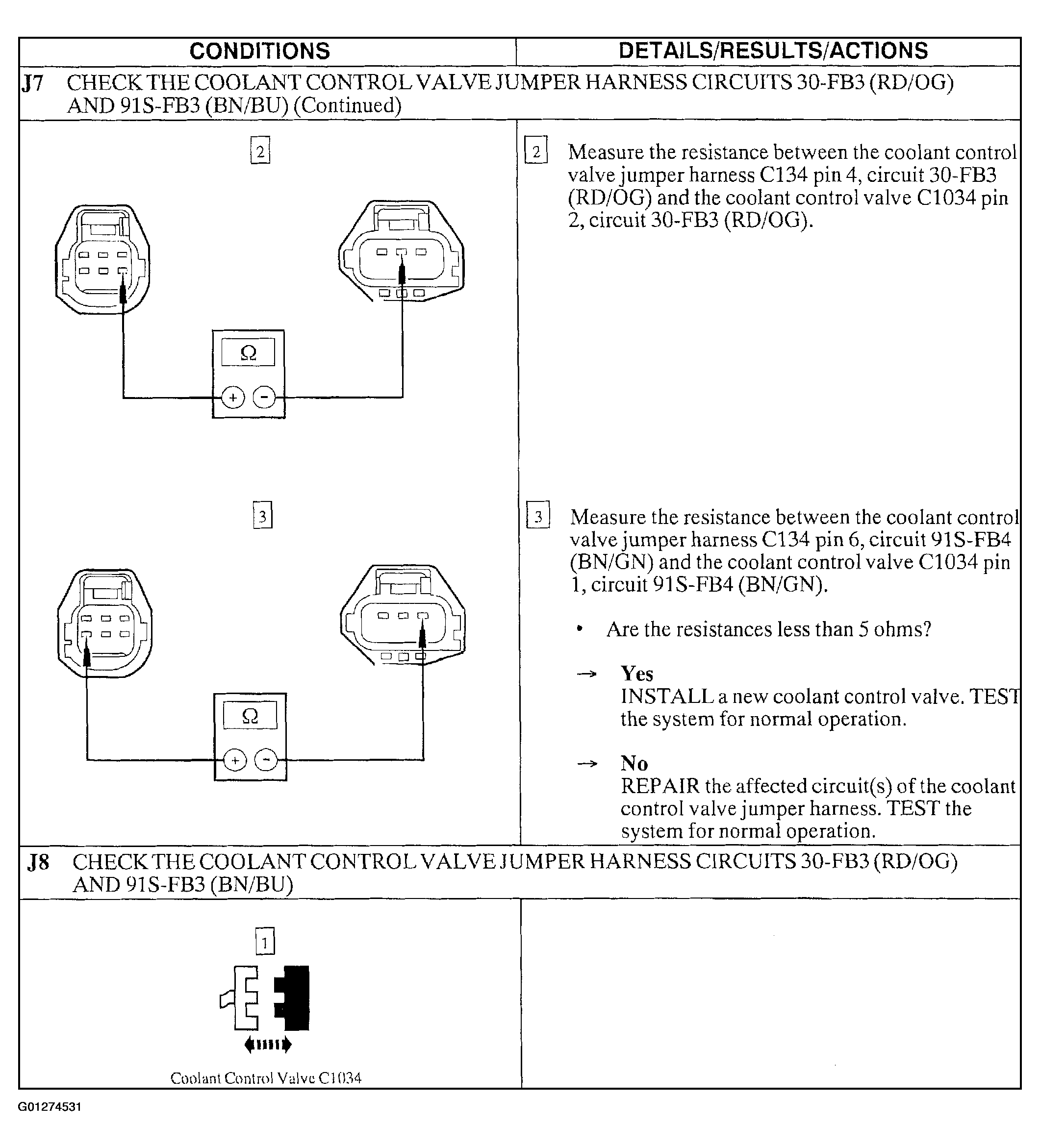

Fig 4: Pinpoint Test J: Full Heat Only In All Modes (Steps J7-J8)

G01274531

Courtesy of FORD MOTOR CO.

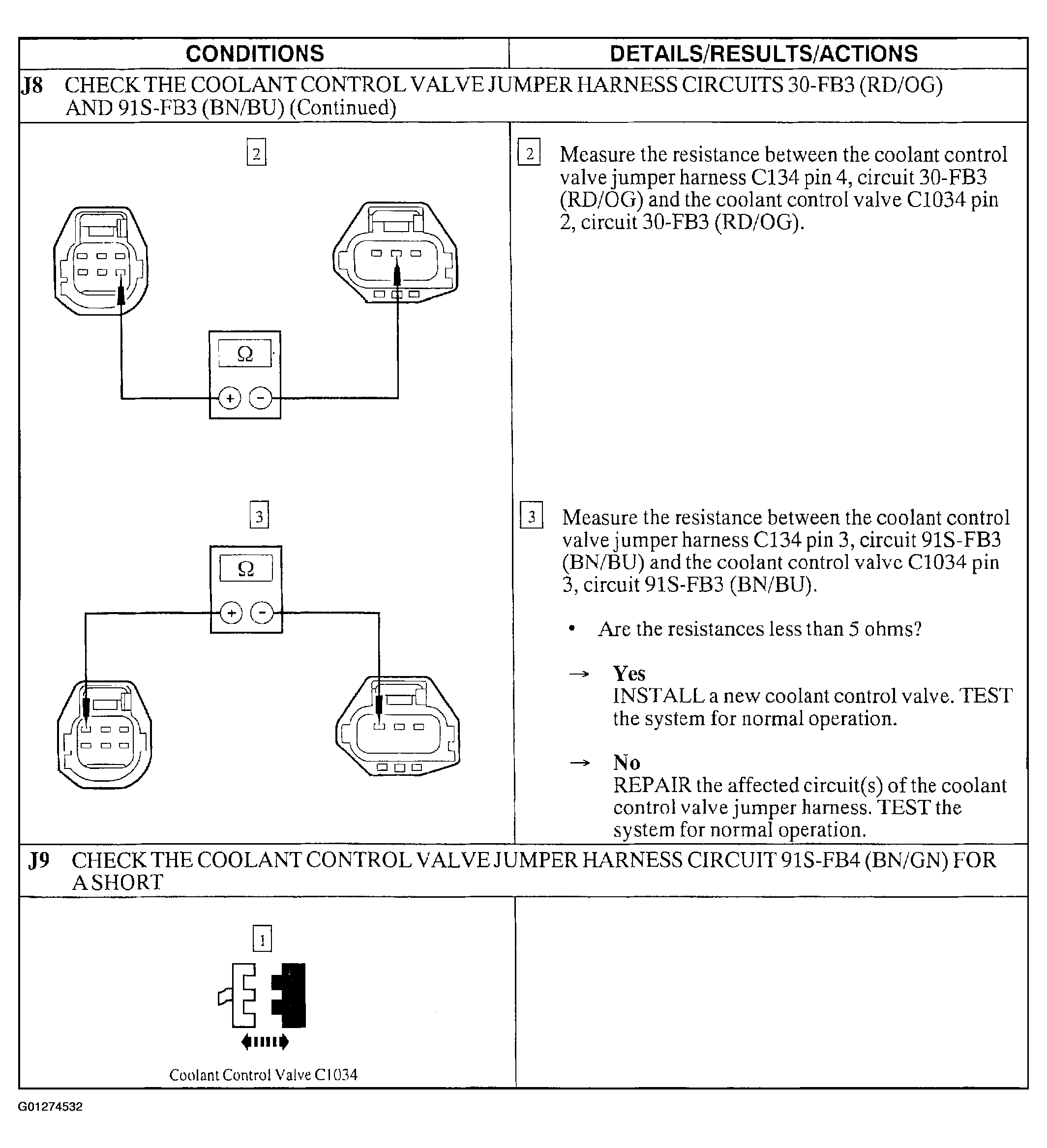

Fig 5: Pinpoint Test J: Full Heat Only In All Modes (Steps J8 Cont. -J9)

G01274532

Courtesy of FORD MOTOR CO.

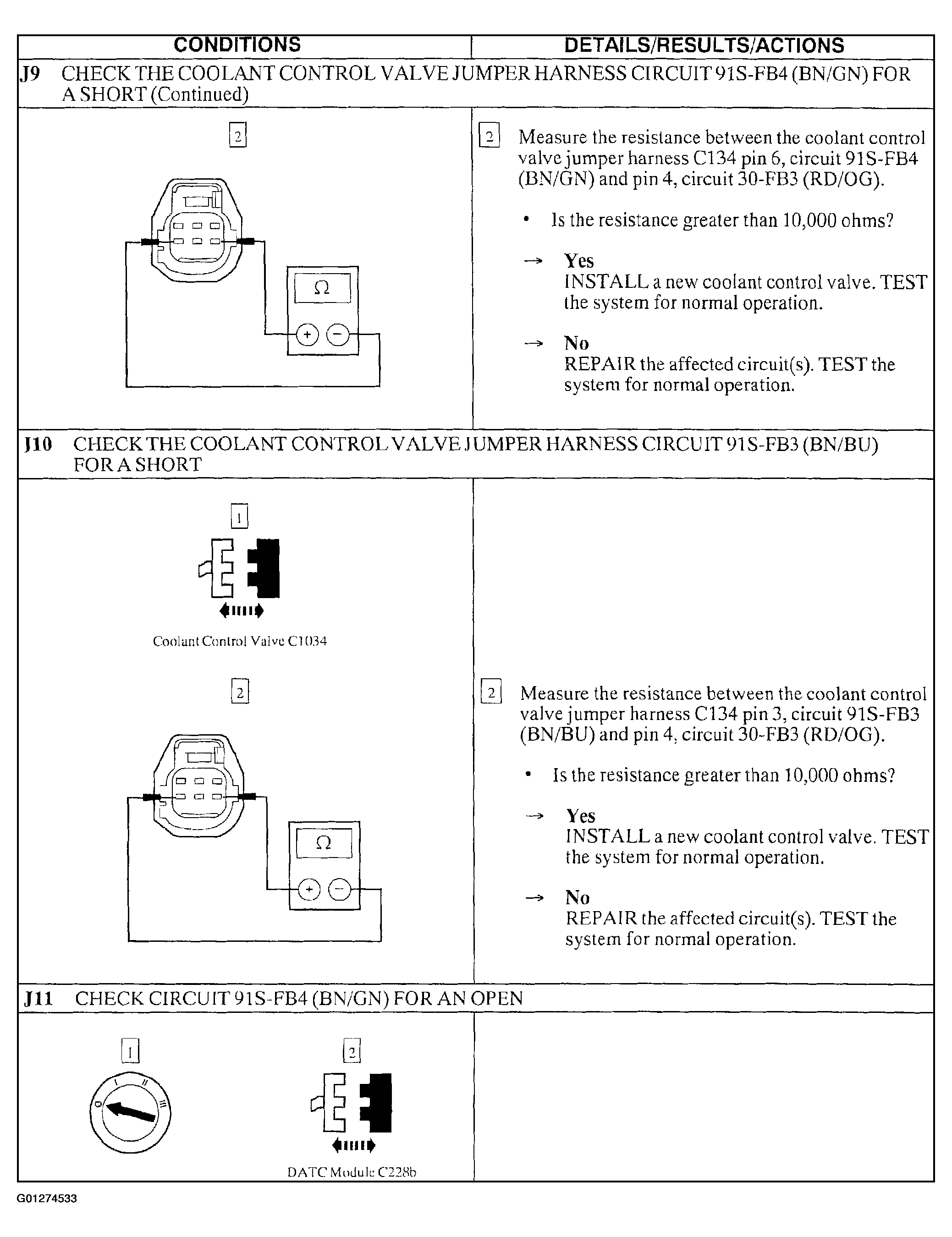

Fig 6: Pinpoint Test J: Full Heat Only In All Modes (Steps J9 Cont. -J11)

G01274533

Courtesy of FORD MOTOR CO.

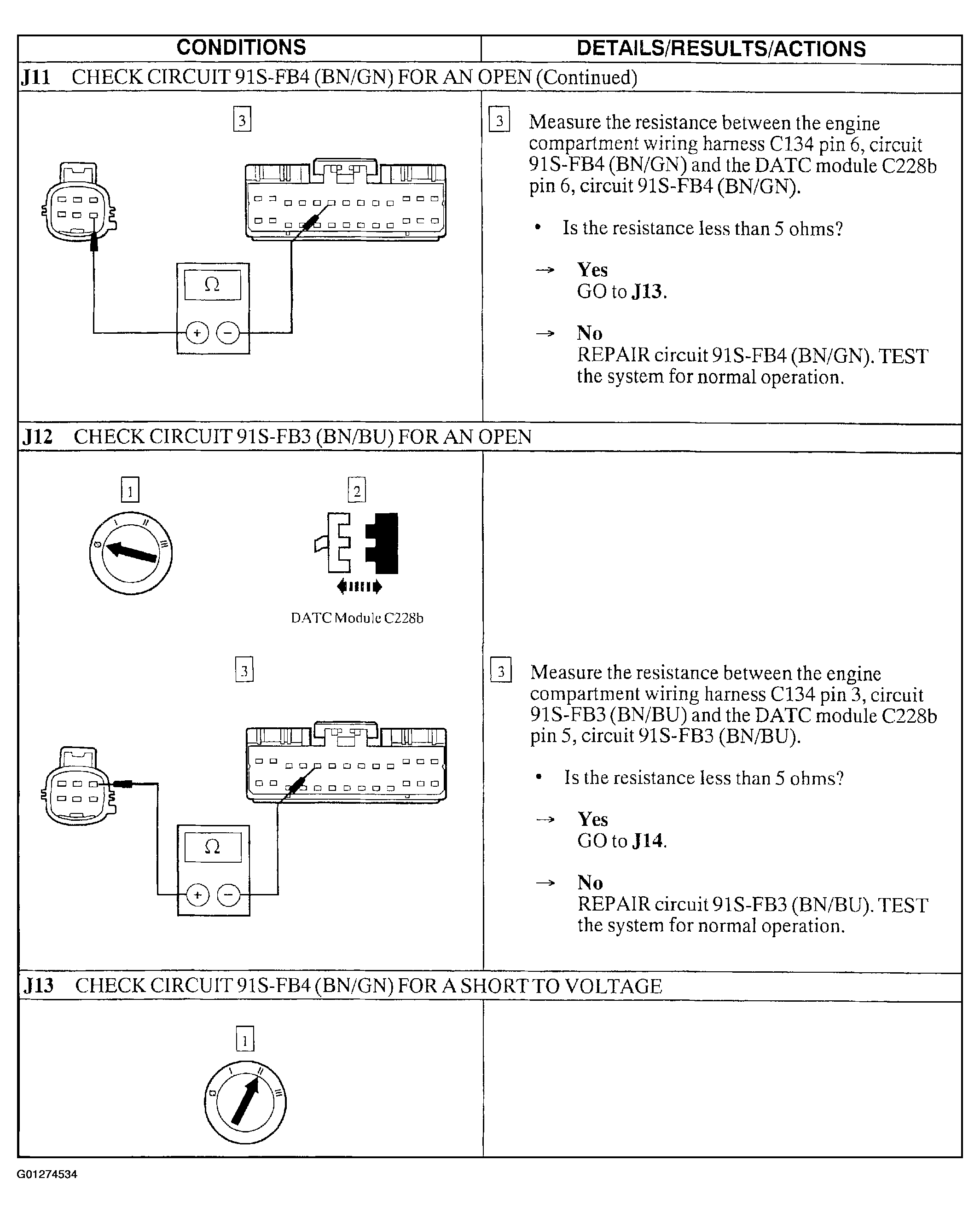

Fig 7: Pinpoint Test J: Full Heat Only In All Modes (Steps J11 Cont. -J13)

G01274534

Courtesy of FORD MOTOR CO.

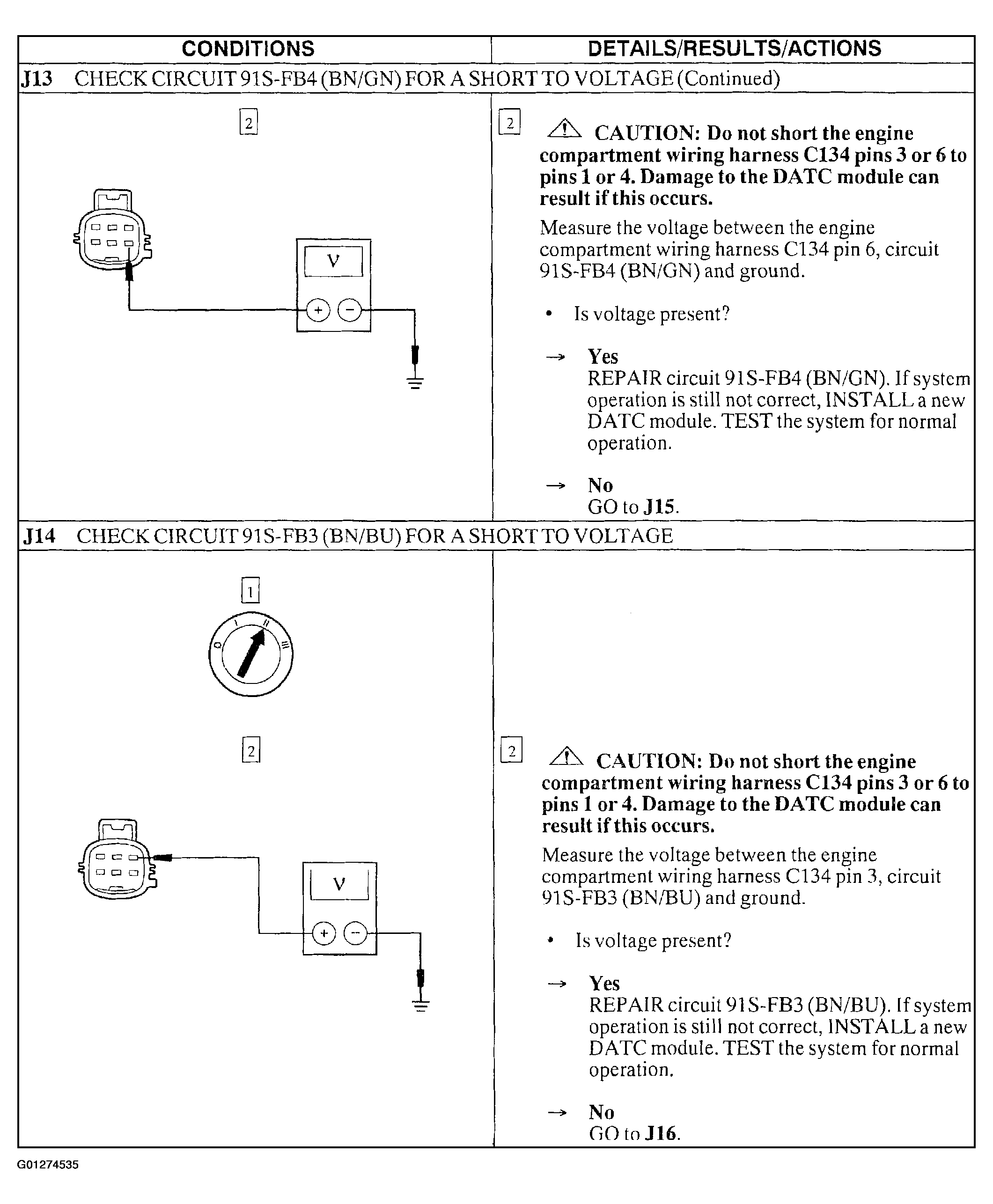

Fig 8: Pinpoint Test J: Full Heat Only In All Modes (Steps J13 Cont. -J14)

G01274535

Courtesy of FORD MOTOR CO.

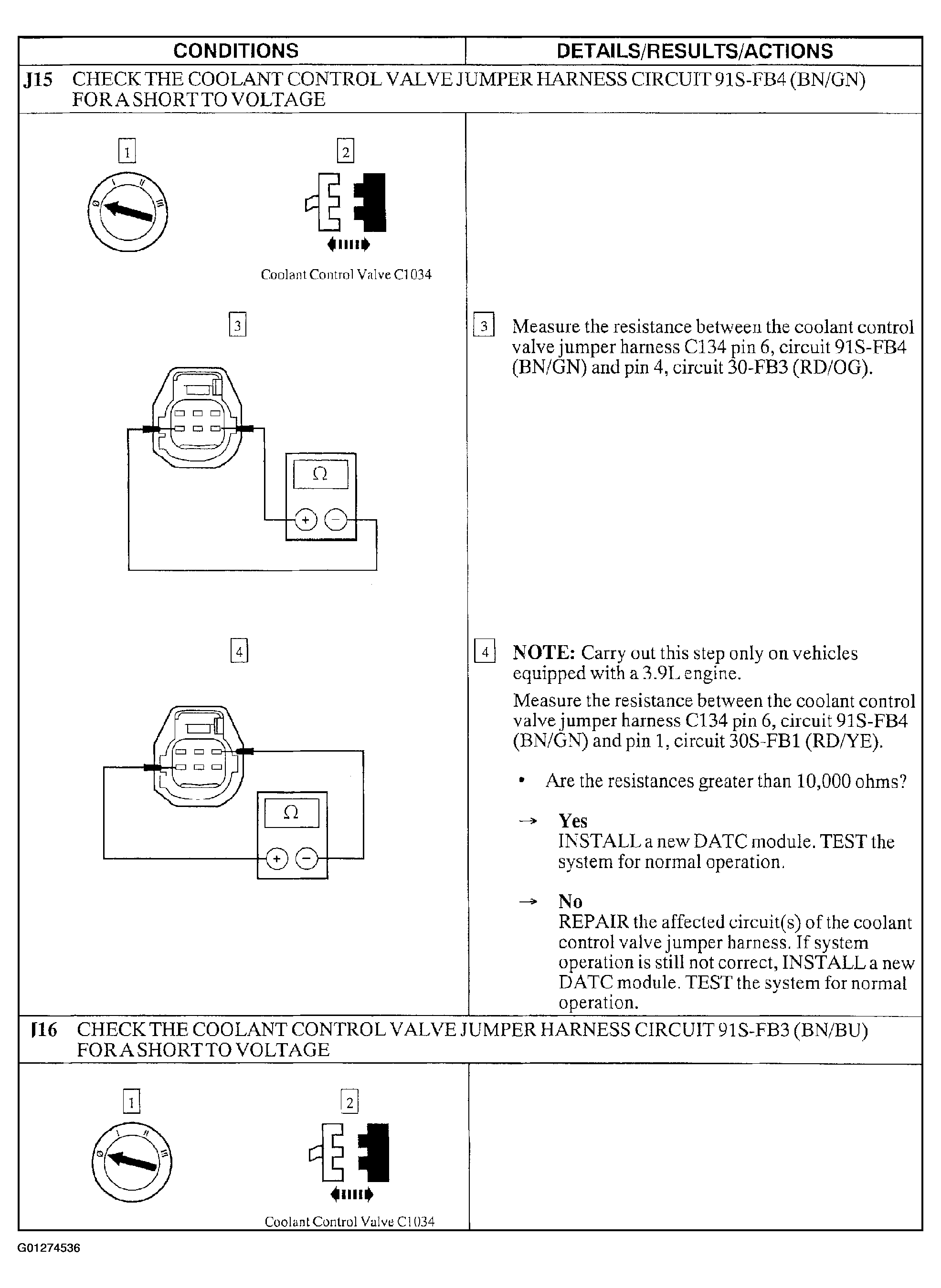

Fig 9: Pinpoint Test J: Full Heat Only In All Modes (Steps J15-J16)

G01274536

Courtesy of FORD MOTOR CO.

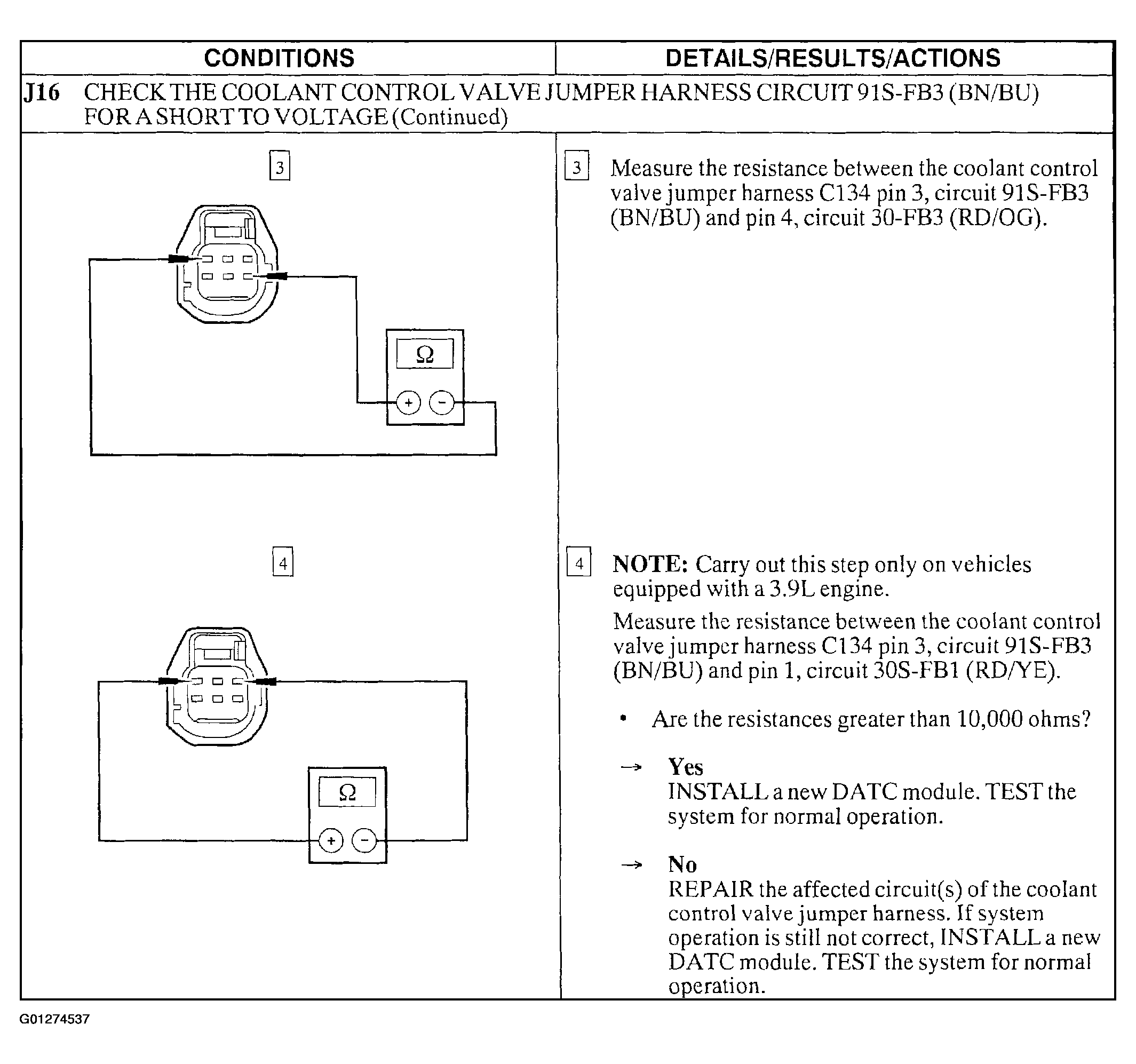

Fig 10: Pinpoint Test J: Full Heat Only In All Modes (Step J16 Cont.)

G01274537

Courtesy of FORD MOTOR CO.
