Pinpoint Test I: Insufficient Heat During Engine Idle-3.9L Engine

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

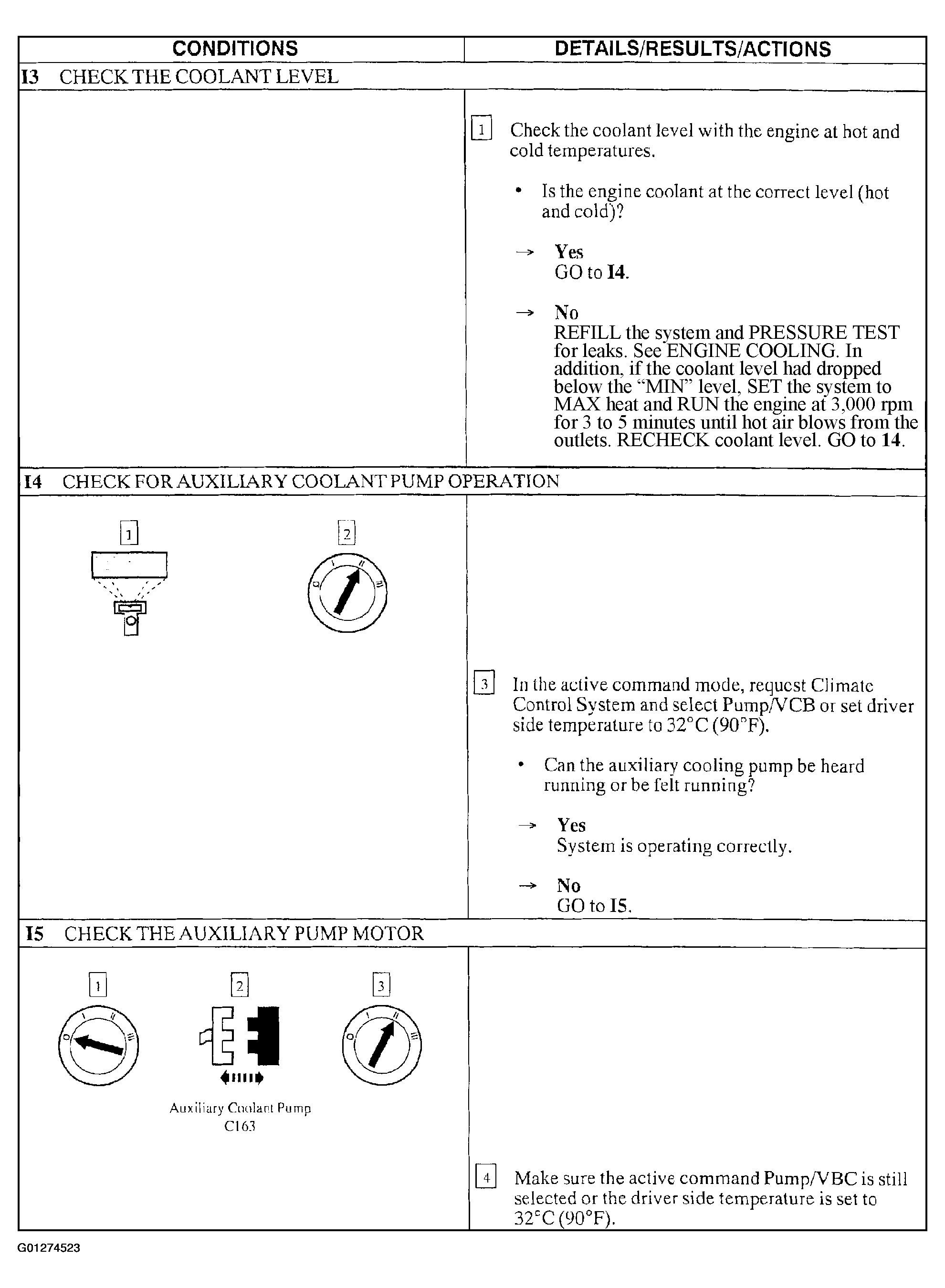

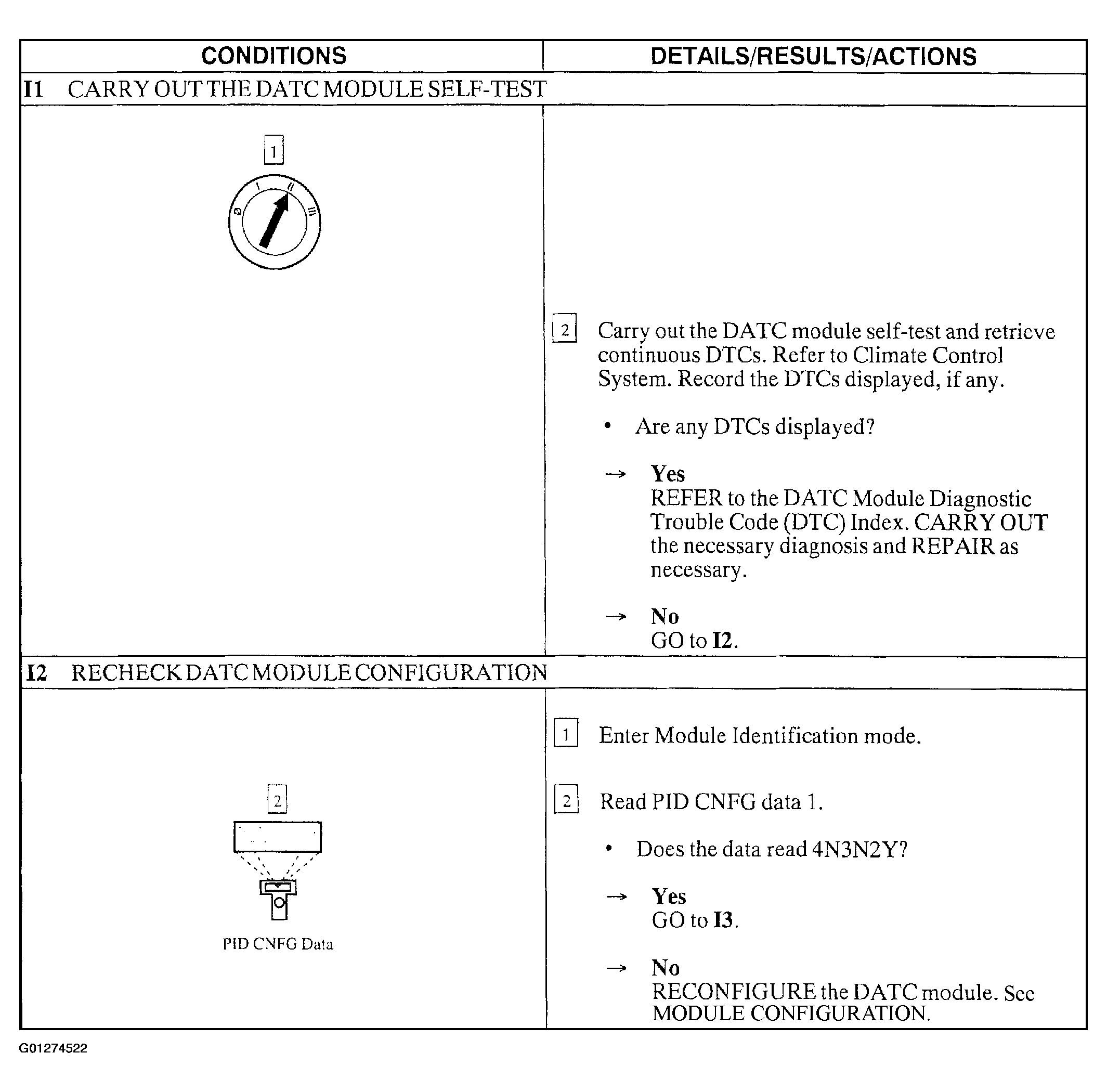

Fig 1: Pinpoint Test I: Insufficient Heat During Engine Idle-3.9L Engine (Steps I1-I2)

Courtesy of FORD MOTOR CO.

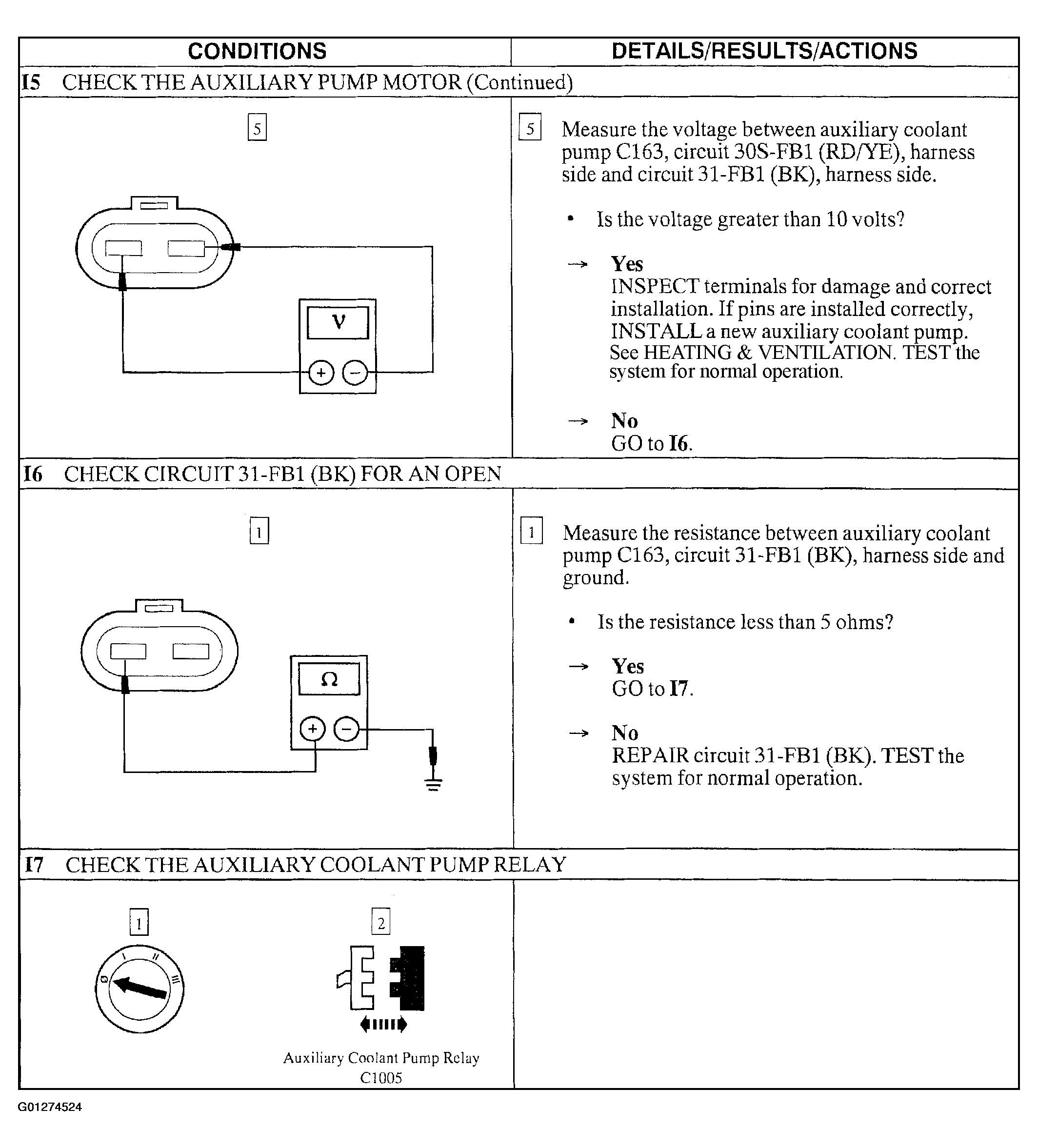

Fig 2: Pinpoint Test I: Insufficient Heat During Engine Idle-3.9L Engine (Steps I3-I5)

Courtesy of FORD MOTOR CO.

Fig 3: Pinpoint Test I: Insufficient Heat During Engine Idle-3.9L Engine (Steps I5 Cont. -I7)

Courtesy of FORD MOTOR CO.

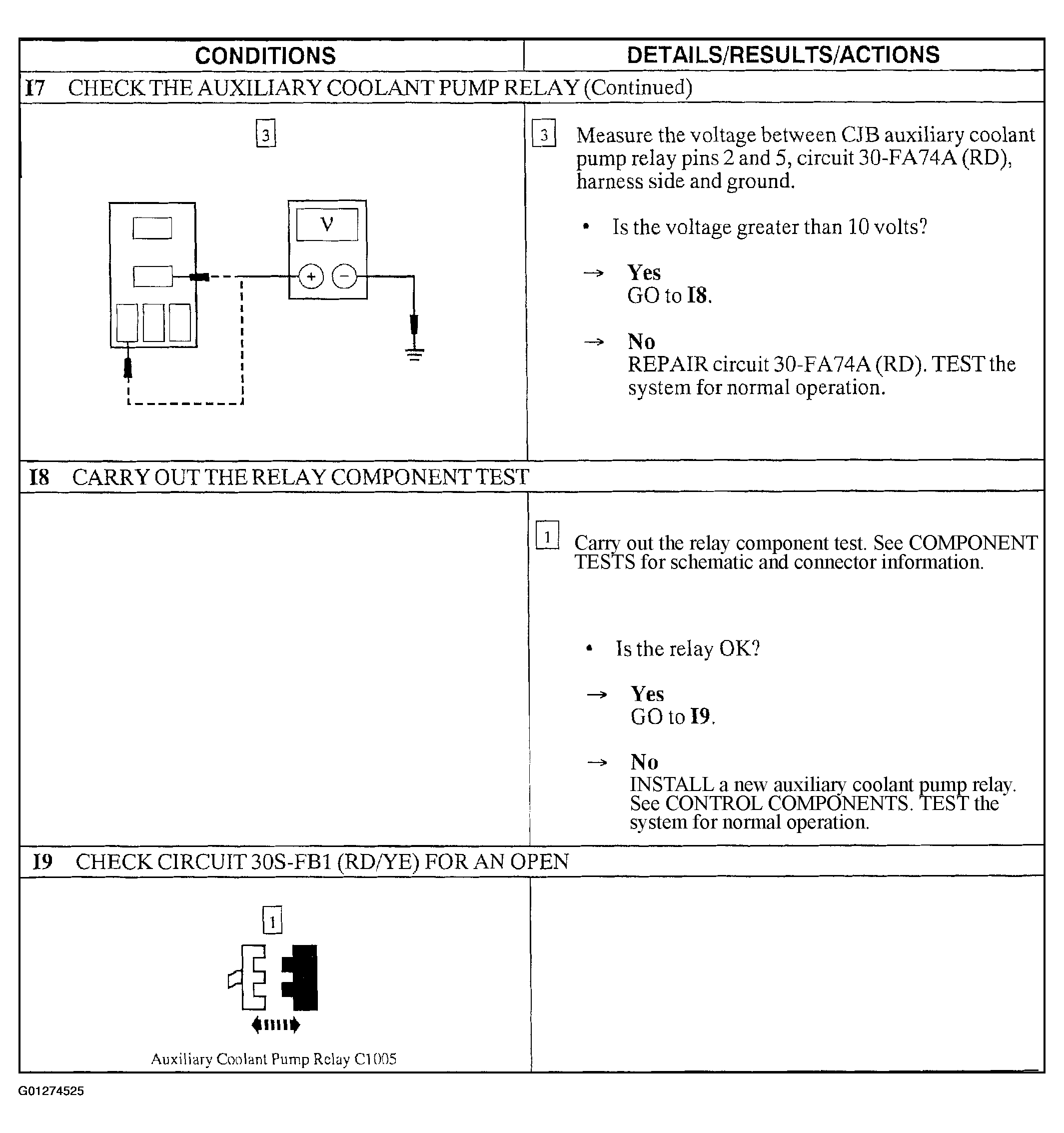

Fig 4: Pinpoint Test I: Insufficient Heat During Engine Idle-3.9L Engine (Steps I7 Cont. -I9)

Courtesy of FORD MOTOR CO.

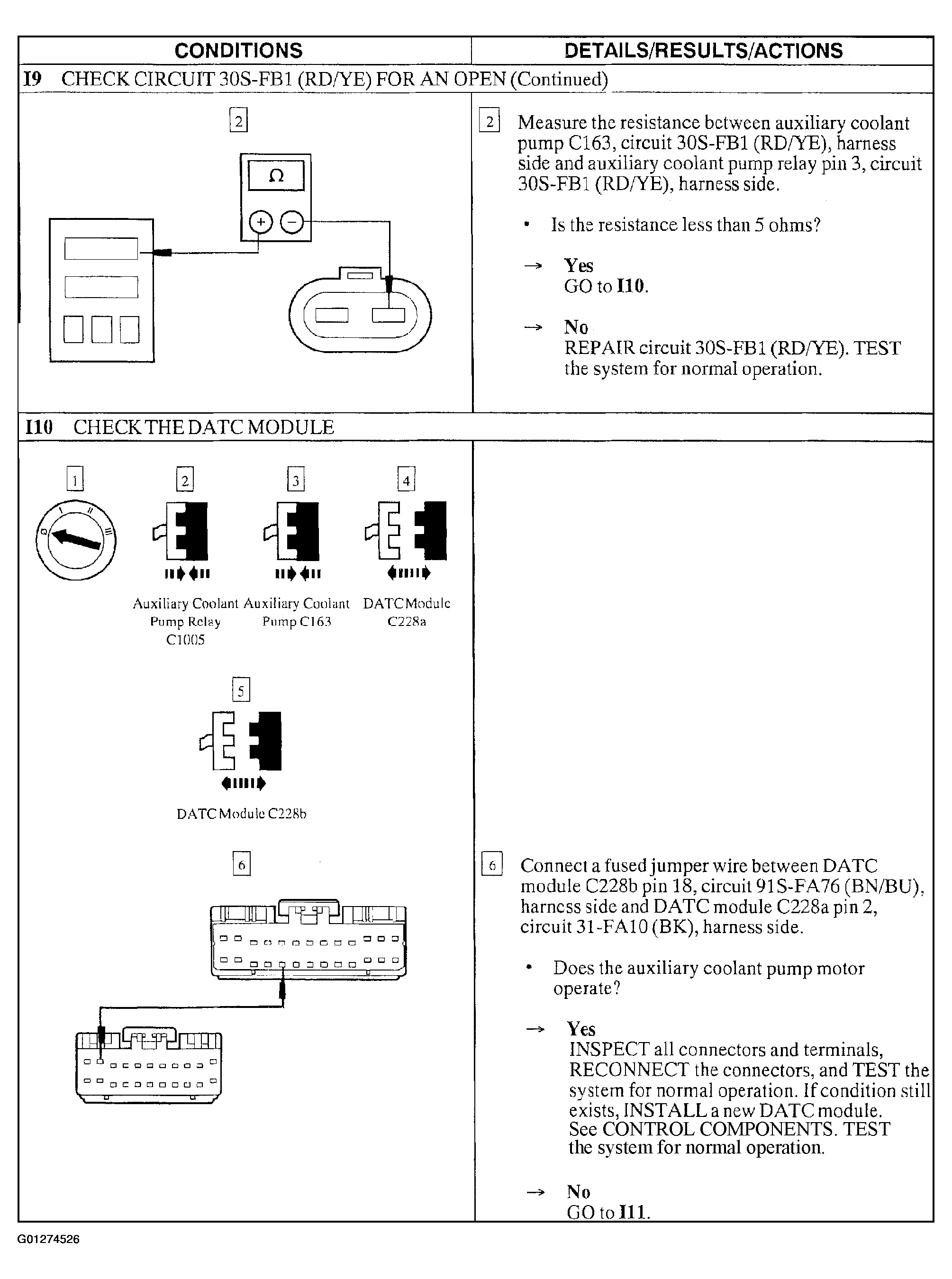

Fig 5: Pinpoint Test I: Insufficient Heat During Engine Idle-3.9L Engine (Steps I9 Cont. -I10)

Courtesy of FORD MOTOR CO.

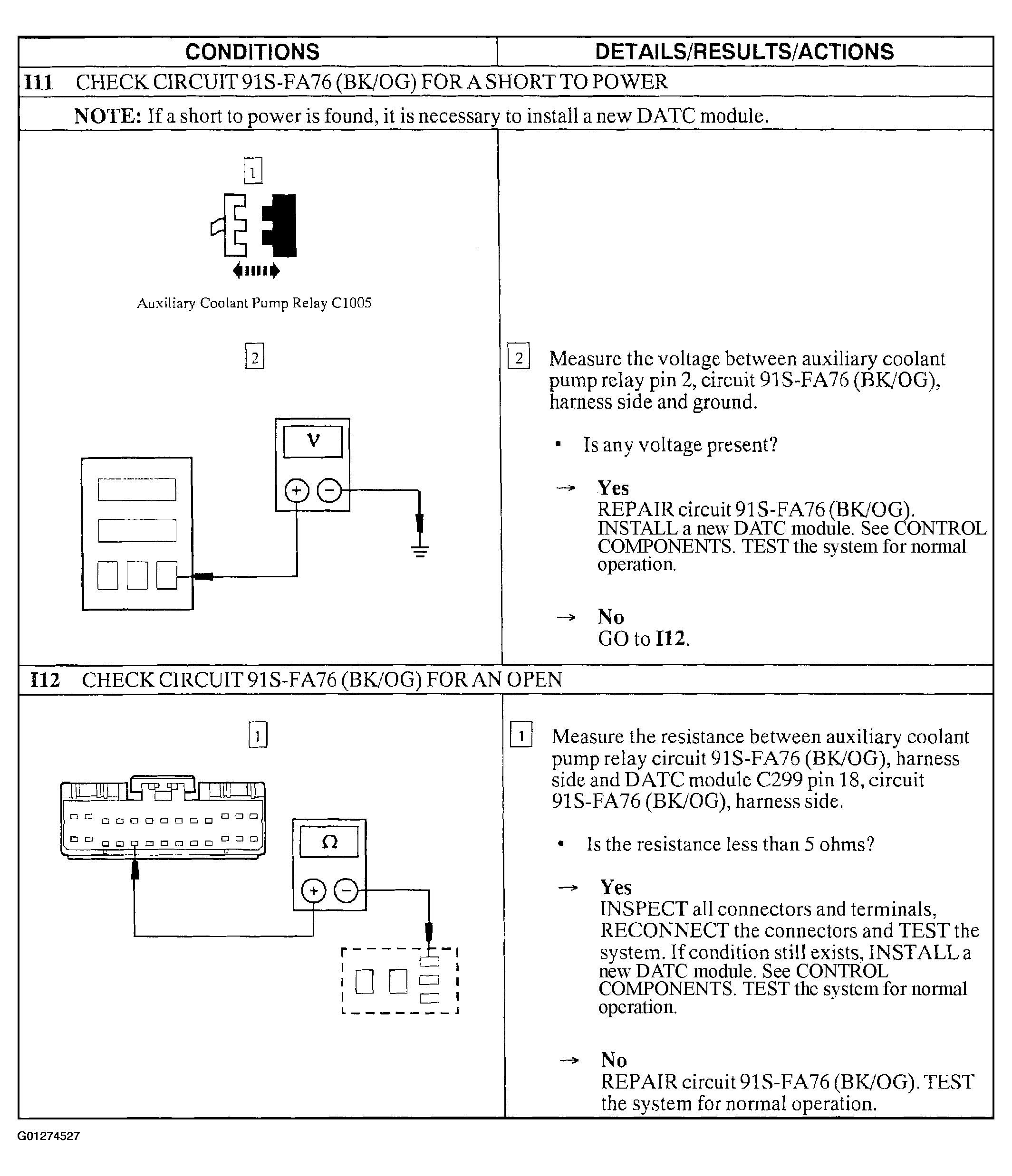

Fig 6: Pinpoint Test I: Insufficient Heat During Engine Idle-3.9L Engine (Steps I11-I12)

Courtesy of FORD MOTOR CO.
