Pinpoint Test G: DTC B1259 Or B1261 - Solar Radiation Sensor Circuit Open Or Short To Ground

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Pinpoint Test G: DTC B1259 Or B1261 - Solar Radiation Sensor Circuit Open Or Short To Ground (Step G1)

Courtesy of FORD MOTOR CO.

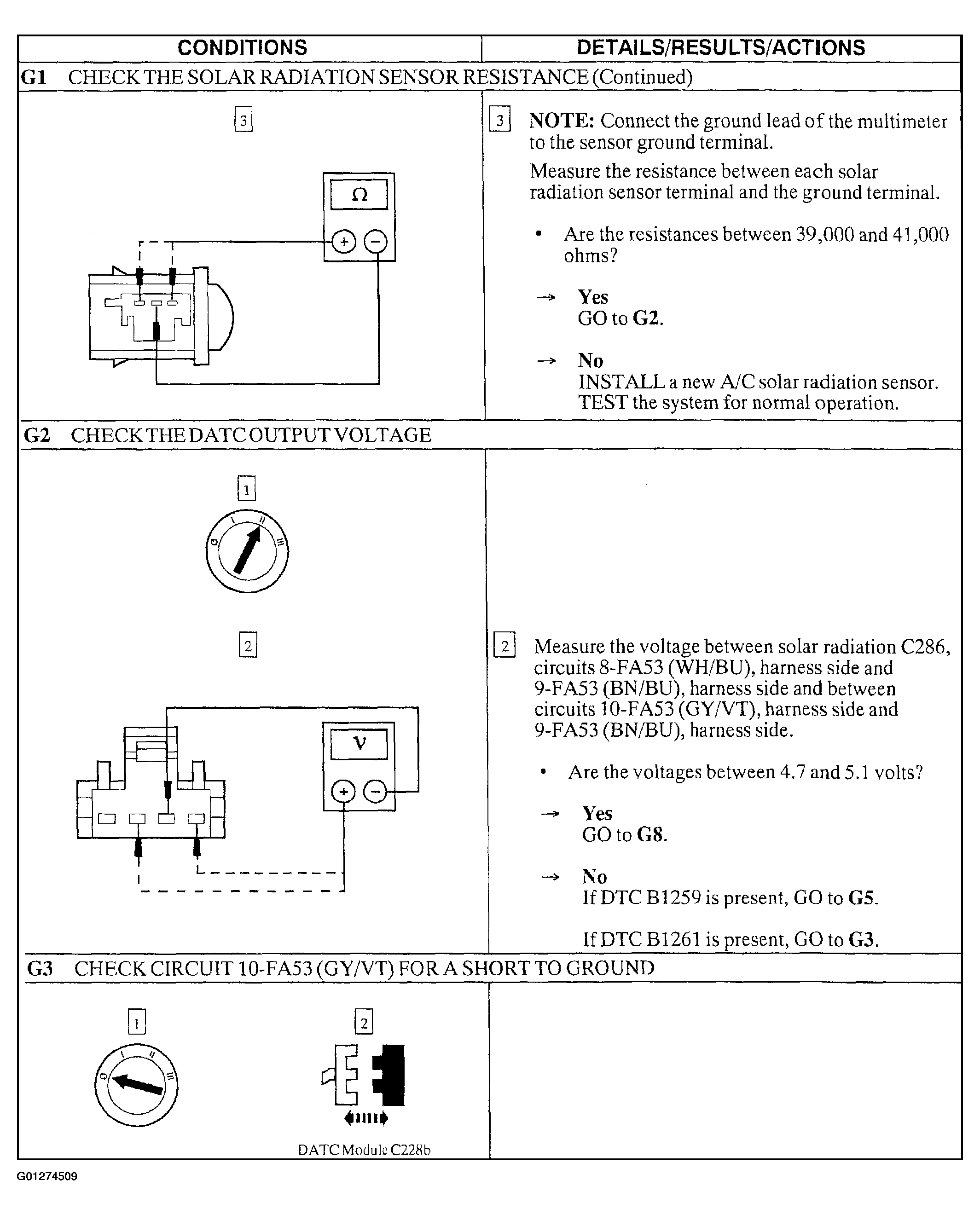

Fig 2: Pinpoint Test G: DTC B1259 Or B1261 - Solar Radiation Sensor Circuit Open Or Short To Ground (Steps G1 Cont. -G3)

Courtesy of FORD MOTOR CO.

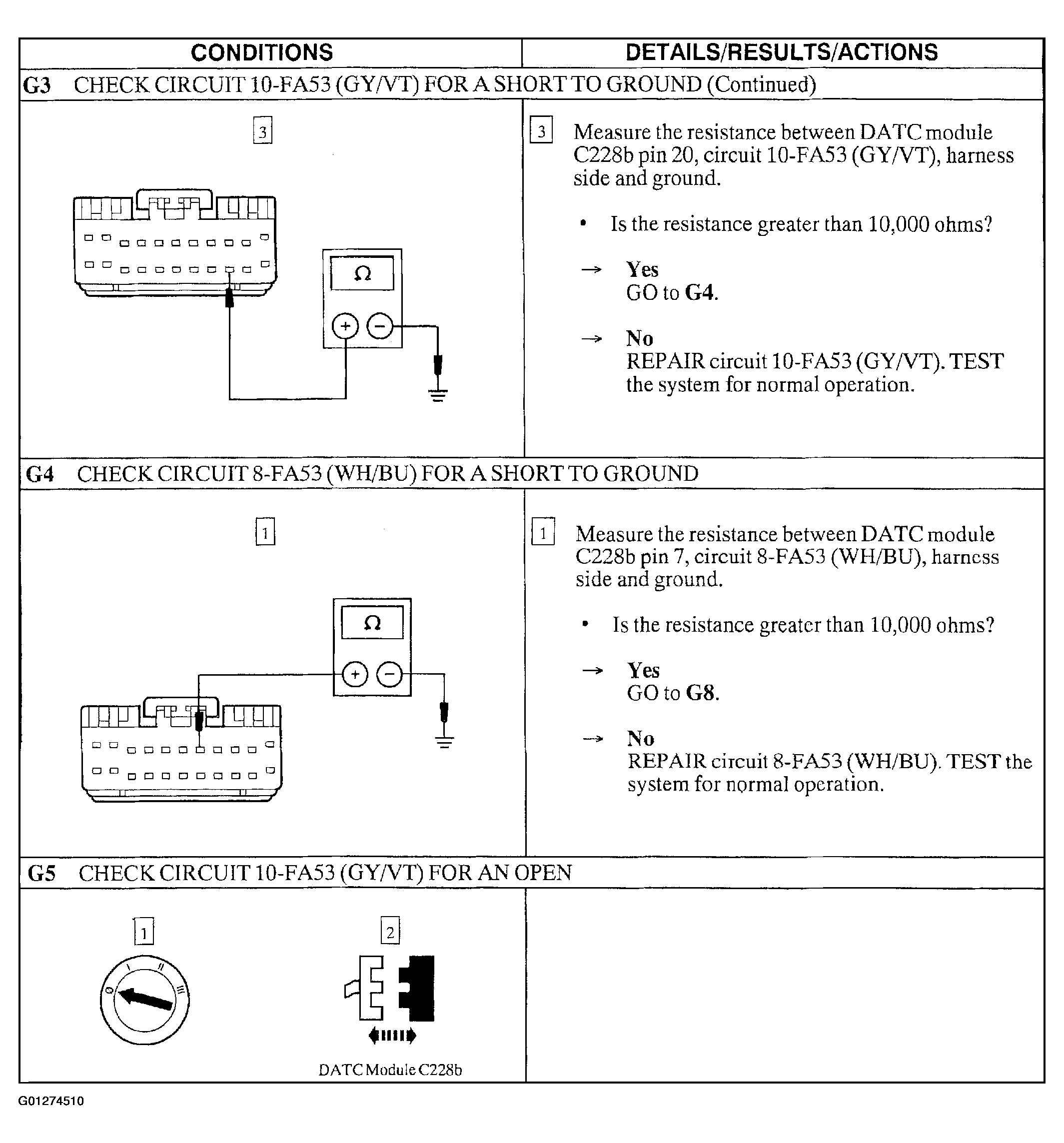

Fig 3: Pinpoint Test G: DTC B1259 Or B1261 - Solar Radiation Sensor Circuit Open Or Short To Ground (Steps G3 Cont. -G5)

Courtesy of FORD MOTOR CO.

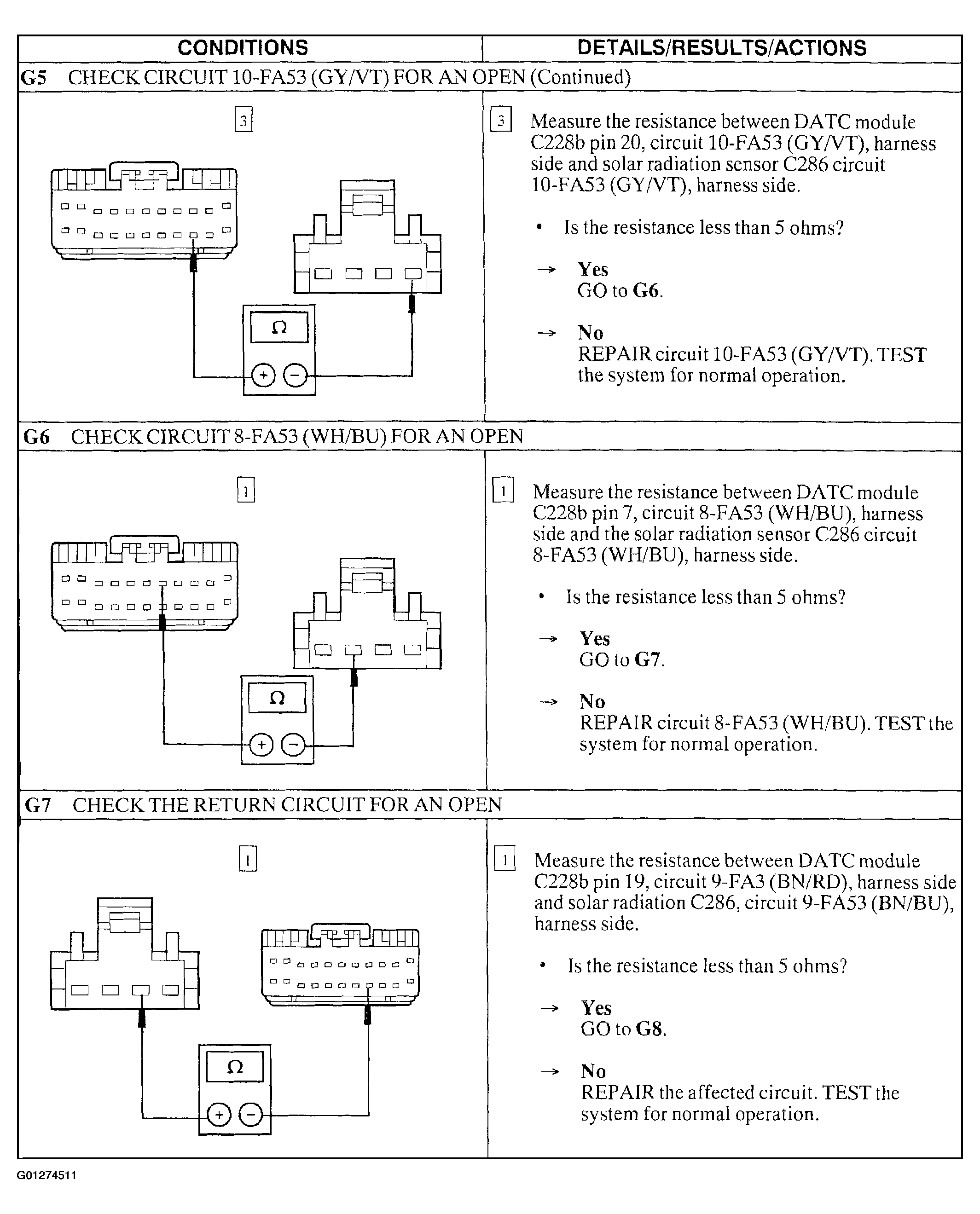

Fig 4: Pinpoint Test G: DTC B1259 Or B1261 - Solar Radiation Sensor Circuit Open Or Short To Ground (Steps G5 Cont. -G7)

Courtesy of FORD MOTOR CO.

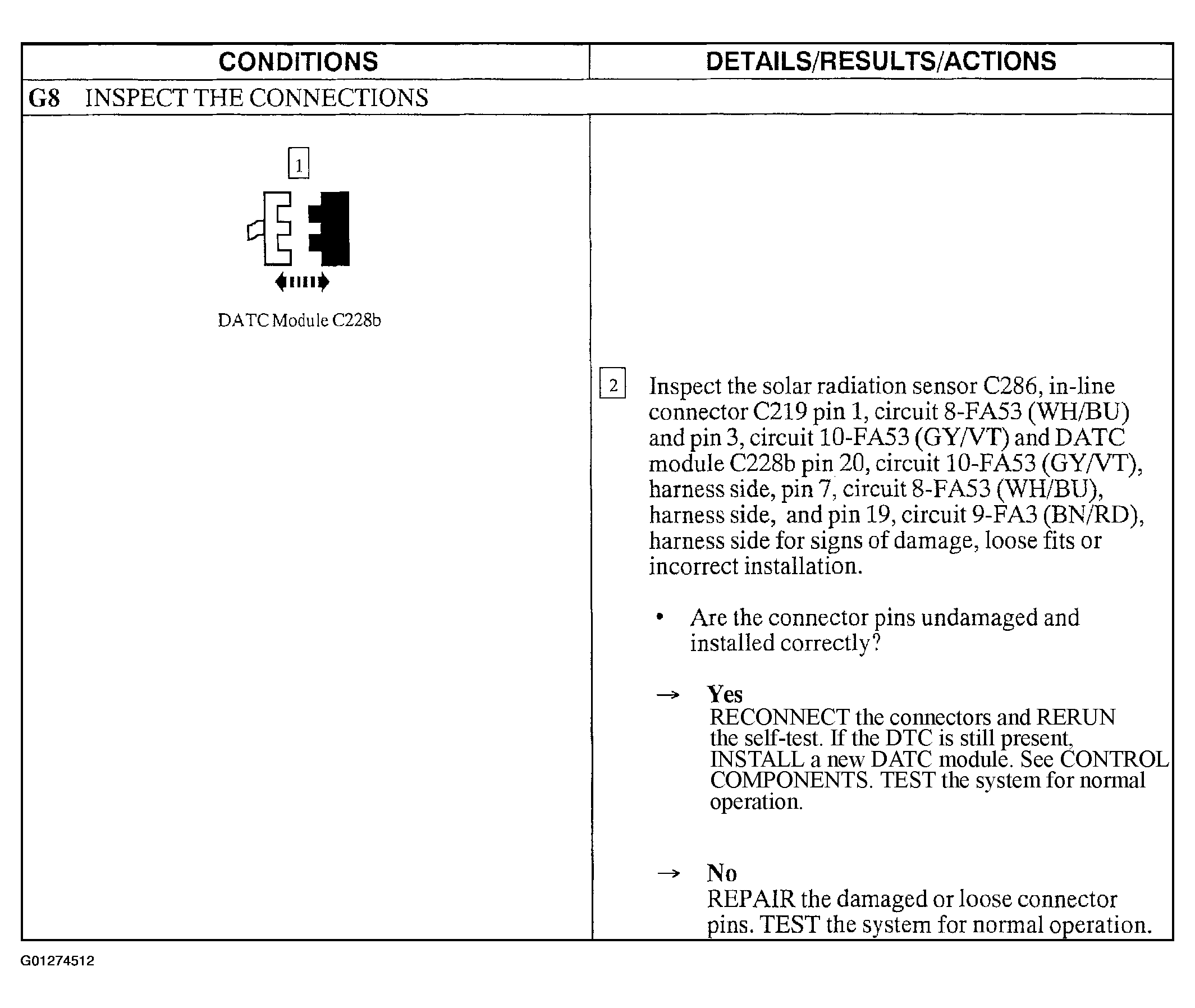

Fig 5: Pinpoint Test G: DTC B1259 Or B1261 - Solar Radiation Sensor Circuit Open Or Short To Ground (Step G8)

Courtesy of FORD MOTOR CO.
