Steering Column - Manual Transmission: Notes

WARNING: This page is about a different car, the 2006 Ford Pickup, 2006 Ford F550 Super Duty, 2006 Ford F450 Super Duty, and 2006 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

SPECIAL TOOL CHART

Steering Column Locking Lever Tool (Shop Fabricated)

MATERIAL SPECIFICATION

Item	Specification
Premium Long-Life Grease XG-1-C or XG-1-K (Canada CXG-1-C)	ESA-M1C75-B

Steering Column Components

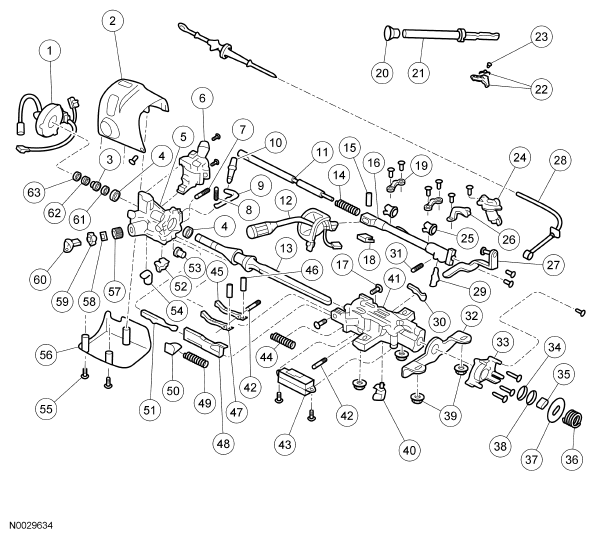

Fig 1: Identifying Steering Column Components

Courtesy of FORD MOTOR CO.

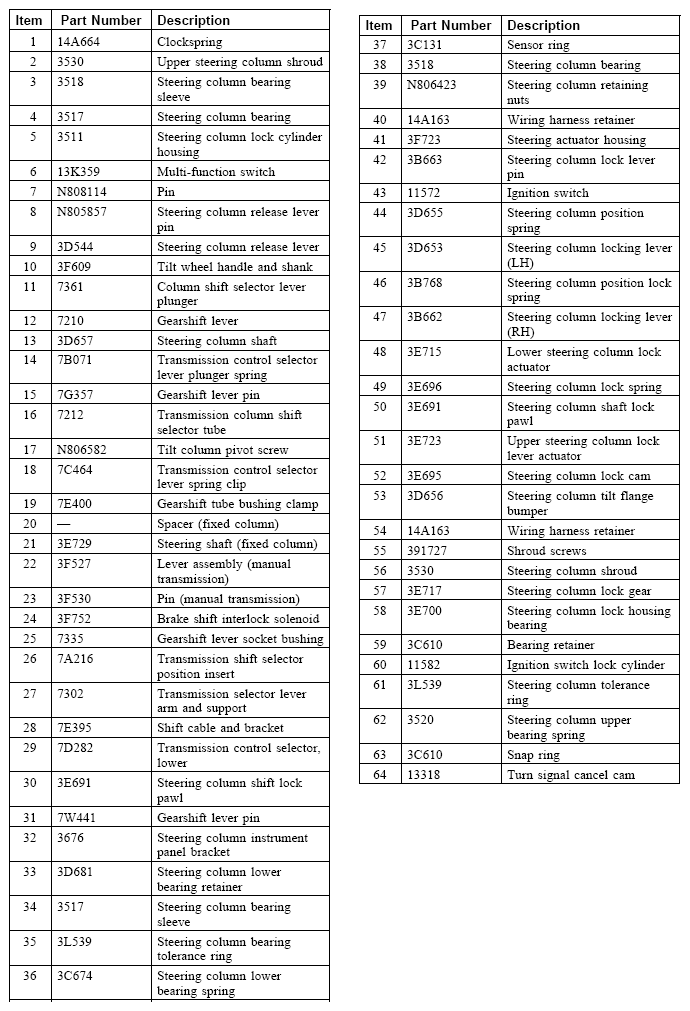

Fig 2: Steering Column Components Description

Courtesy of FORD MOTOR CO.
