Removal and Installation

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Remove the windshield wiper mounting arm and pivot shaft (17566) assembly; see MOUNTING ARM AND PIVOT SHAFT .
Remove the windshield wiper motor (17508).
1. Remove the bolt.
2. Remove the windshield wiper motor crank bolt.
3. Remove the windshield wiper motor.

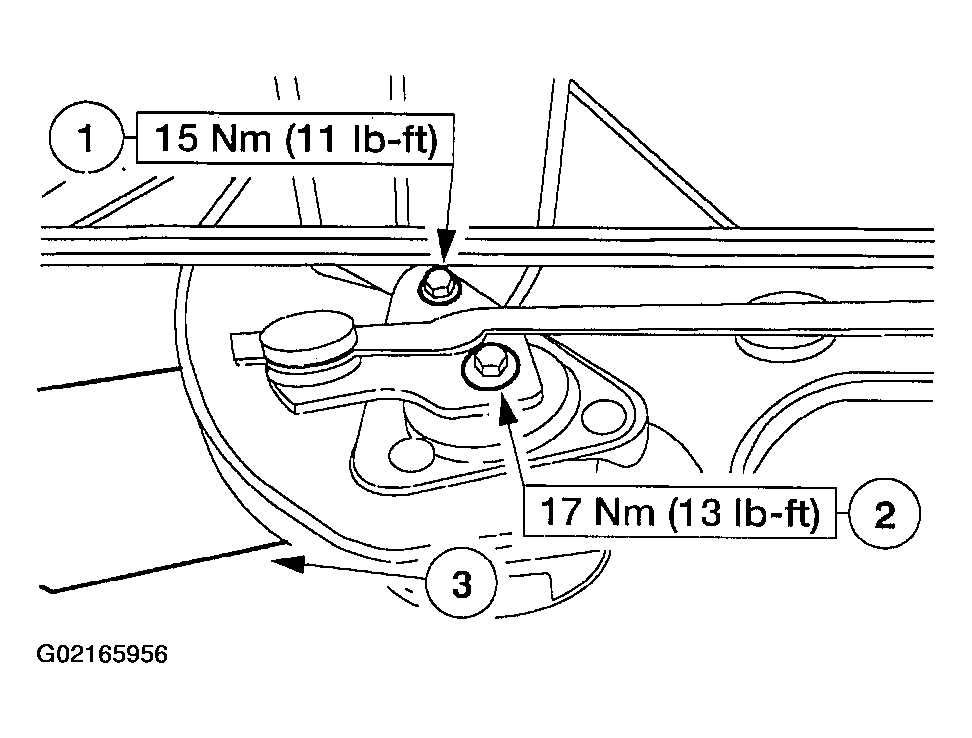

Fig 1: Removing Windshield Wiper Motor
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
