Removal and Installation

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Do not make electrical connections prior to filling the windshield washer reservoir. Do not operate the windshield washer pump prior to filling the windshield washer reservoir.

Disconnect the battery ground cable.
Remove the RF wheel and tire assembly.
Position RF fender splash shield aside.
1. Remove the screws.
2. Remove the pin-type retainers.
3. Position the RF splash shield aside.

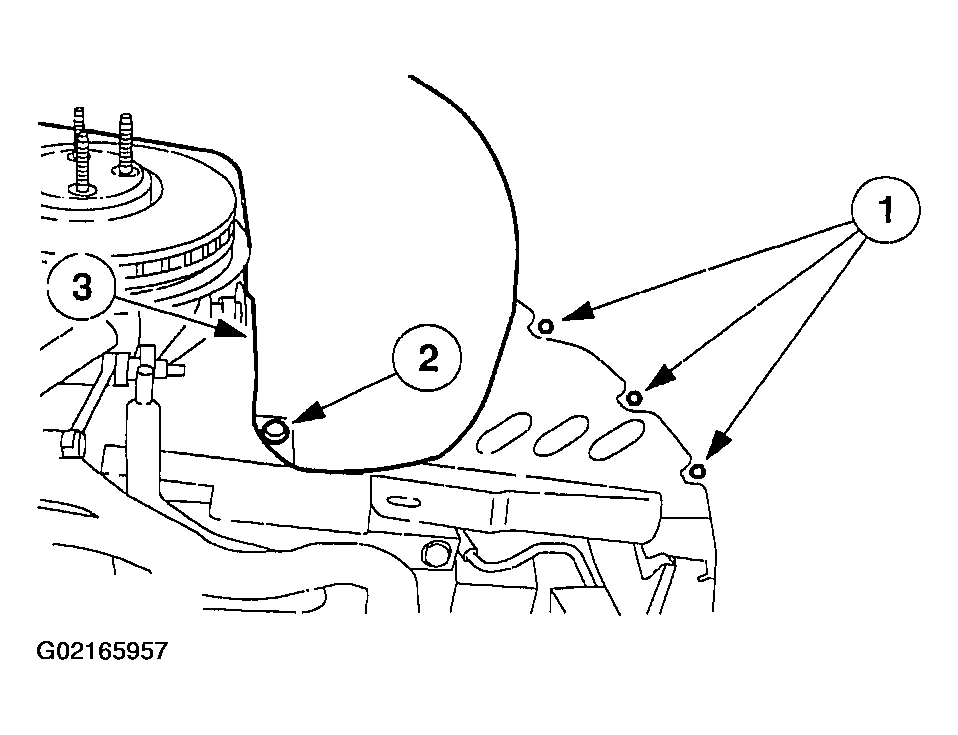

Fig 1: Positioning Right Fender Splash Shield Aside
Courtesy of FORD MOTOR CO.

NOTE: Windshield washer fluid should be collected in a container after the windshield washer hose is disconnected.

Fig 2: Disconnecting Washer Hose

Courtesy of FORD MOTOR CO.

Disconnect the washer hose.
Remove the washer fluid reservoir.
1. Disconnect the two electrical connectors.
2. Remove the bolts.
3. Remove the washer reservoir.

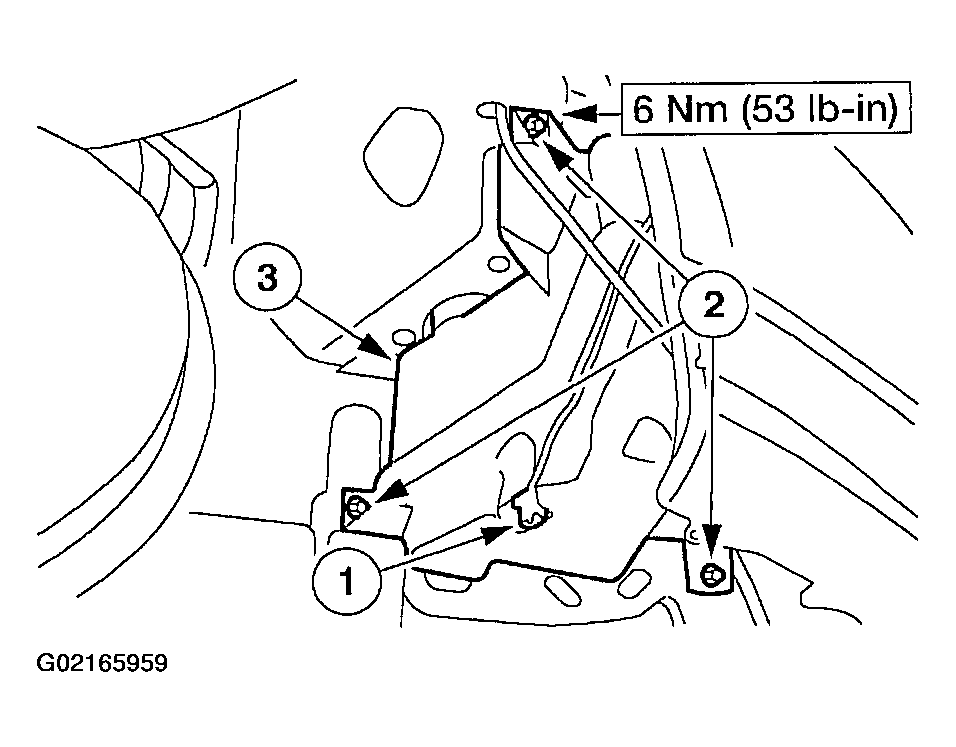

Fig 3: Removing Washer Fluid Reservoir
Courtesy of FORD MOTOR CO.
If necessary remove the windshield washer pump and if equipped remove the headlamp washer pump.

Fig 4: Removing Windshield Washer Pump
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
