Pivot Arm: Removal

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the pivot arm (RH shown, LH similar).
    1. Remove the pivot arm nut cover.
    2. Remove the nut.
    3. Remove the pivot arm.

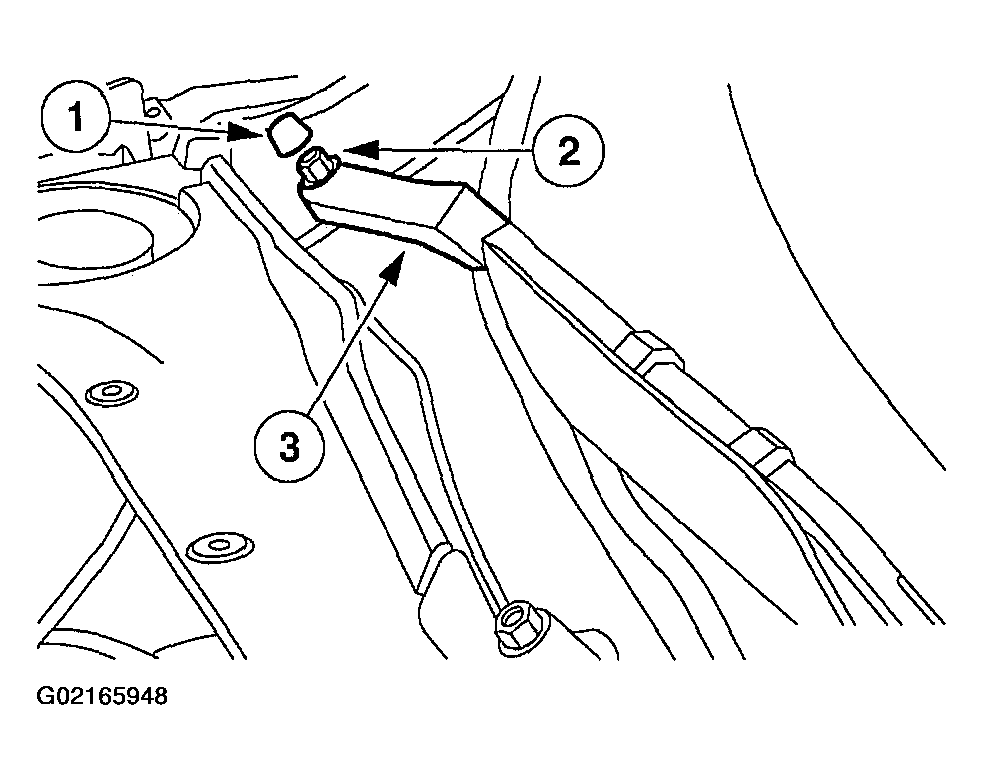

    Fig 1: Removing Pivot Arm(s)
    G02165948Courtesy of FORD MOTOR CO.
