Pivot Arm: Installation

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Cycle and park the windshield wipers.
Install the wiper blade and pivot arm onto the pivot shaft and align the blade to the silver dots in the windshield.

Fig 1: Installing Pivot Arm
Courtesy of FORD MOTOR CO.
Tighten the windshield pivot arm nuts.
- Install the pivot arm nut covers.

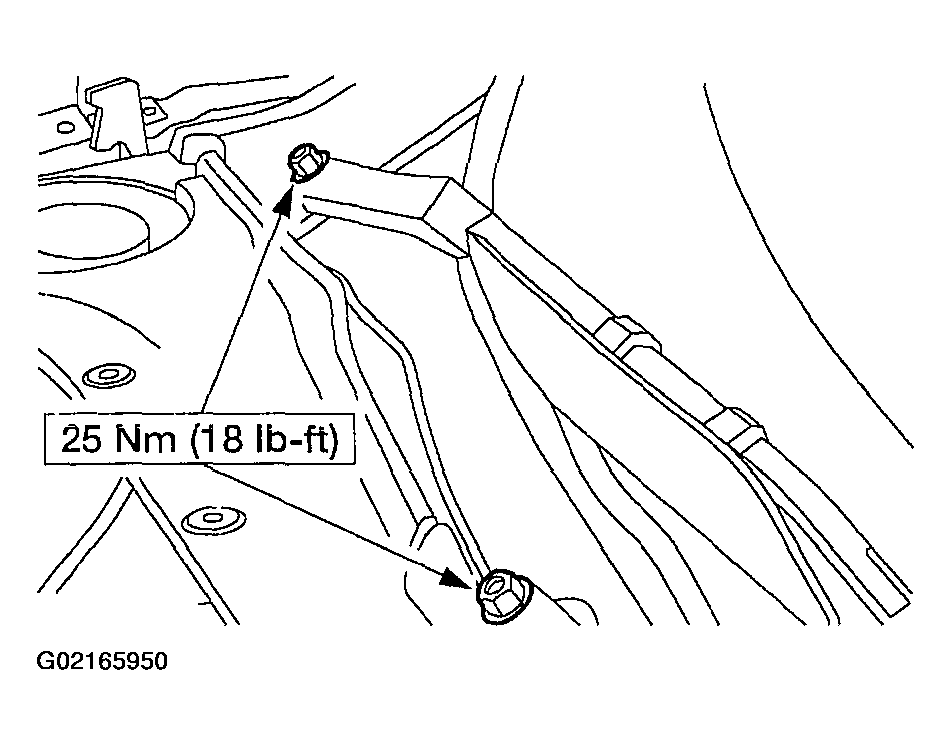

Fig 2: Tightening Pivot Arm Nut(s)
Courtesy of FORD MOTOR CO.
