Wiper Blade and Pivot Arm Adjustment

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Cycle and park the windshield wipers.
Remove the pivot arm(s).
1. Remove the pivot arm nut cover(s).
2. Remove the nut(s).
3. Remove the pivot arm(s).

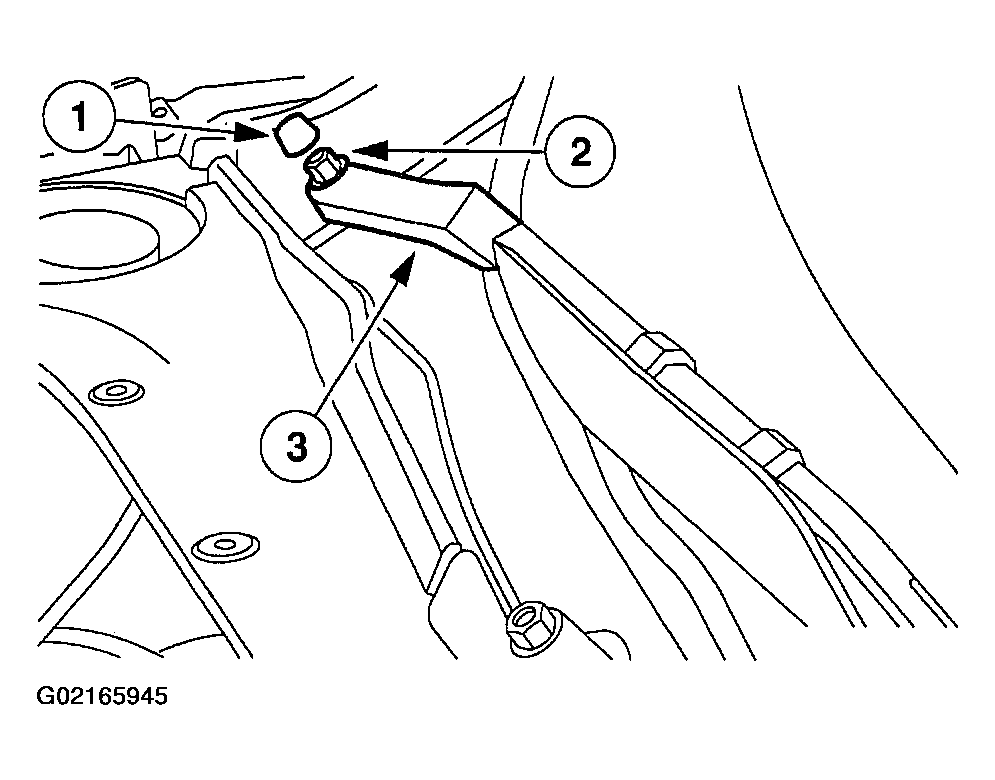

Fig 1: Removing Pivot Arm(s)
Courtesy of FORD MOTOR CO.
Install the wiper blade and pivot arm onto the pivot shaft and align the blade to the silver dots in the windshield.

Fig 2: Installing Pivot Arm
Courtesy of FORD MOTOR CO.
Tighten the windshield wiper pivot arm nut(s).
- Install the pivot arm nut cover(s).

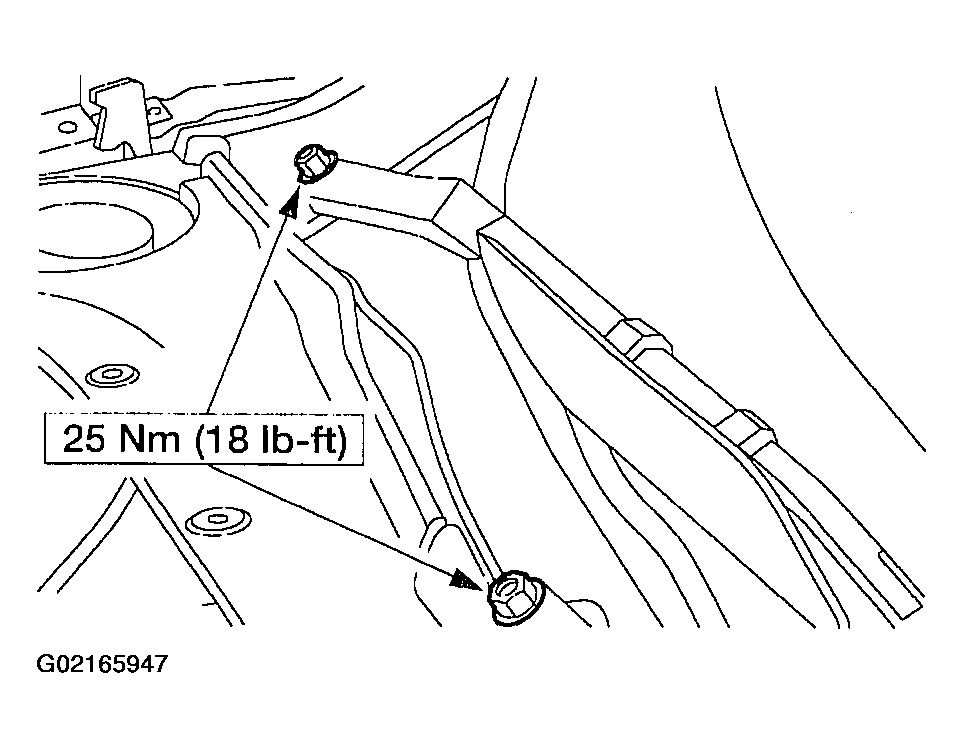

Fig 3: Tightening Pivot Arm Nut(s)
Courtesy of FORD MOTOR CO.
