Pinpoint Test H: The Rain Moisture Sensitive Function Does Not Operate Correctly

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Electronic modules are sensitive to electrical charges. If exposed to these charges, damage may result.

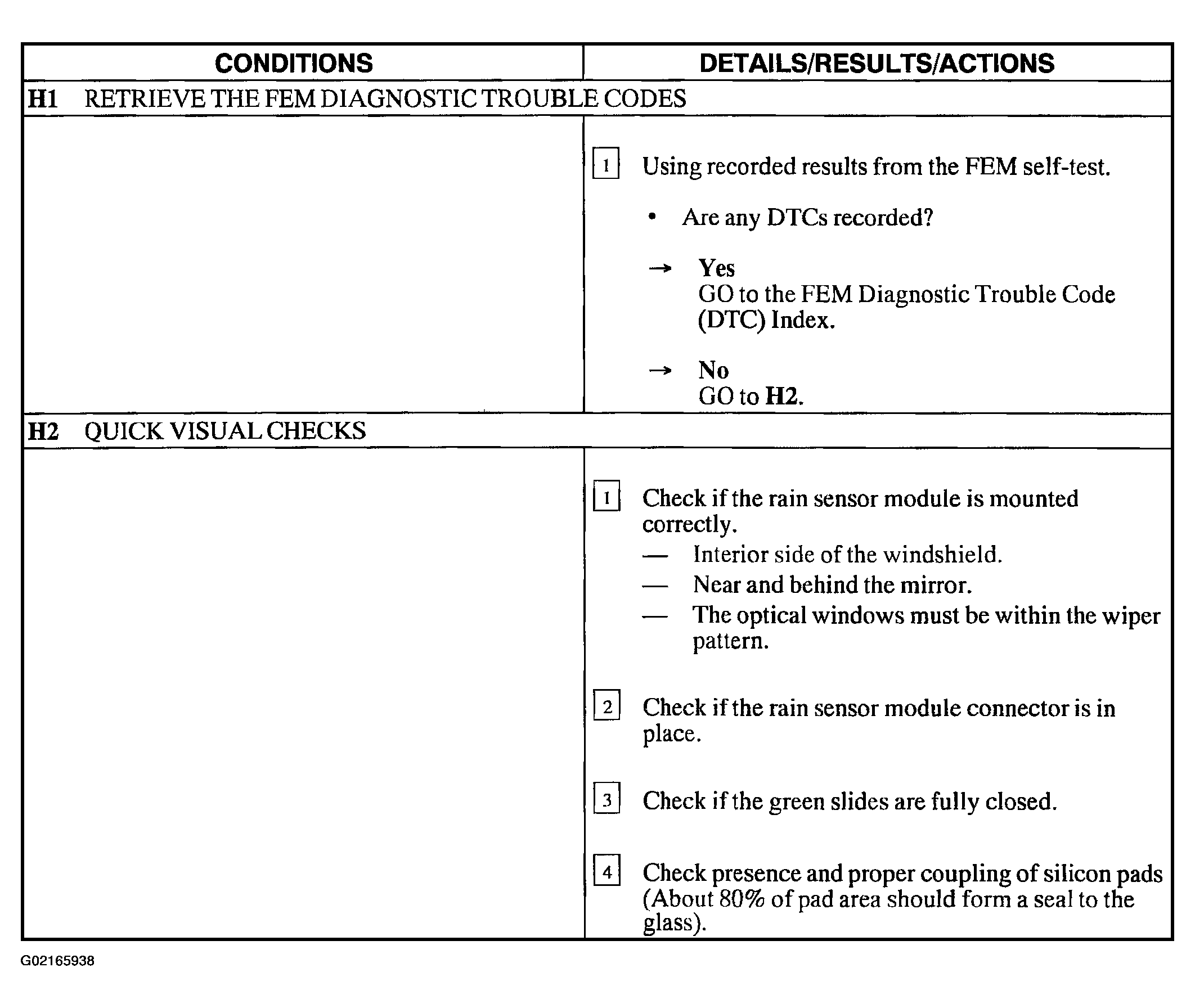

Fig 1: Pinpoint Test H: The Rain Moisture Sensitive Function Does Not Operate Correctly (Steps H1-H2)

Courtesy of FORD MOTOR CO.

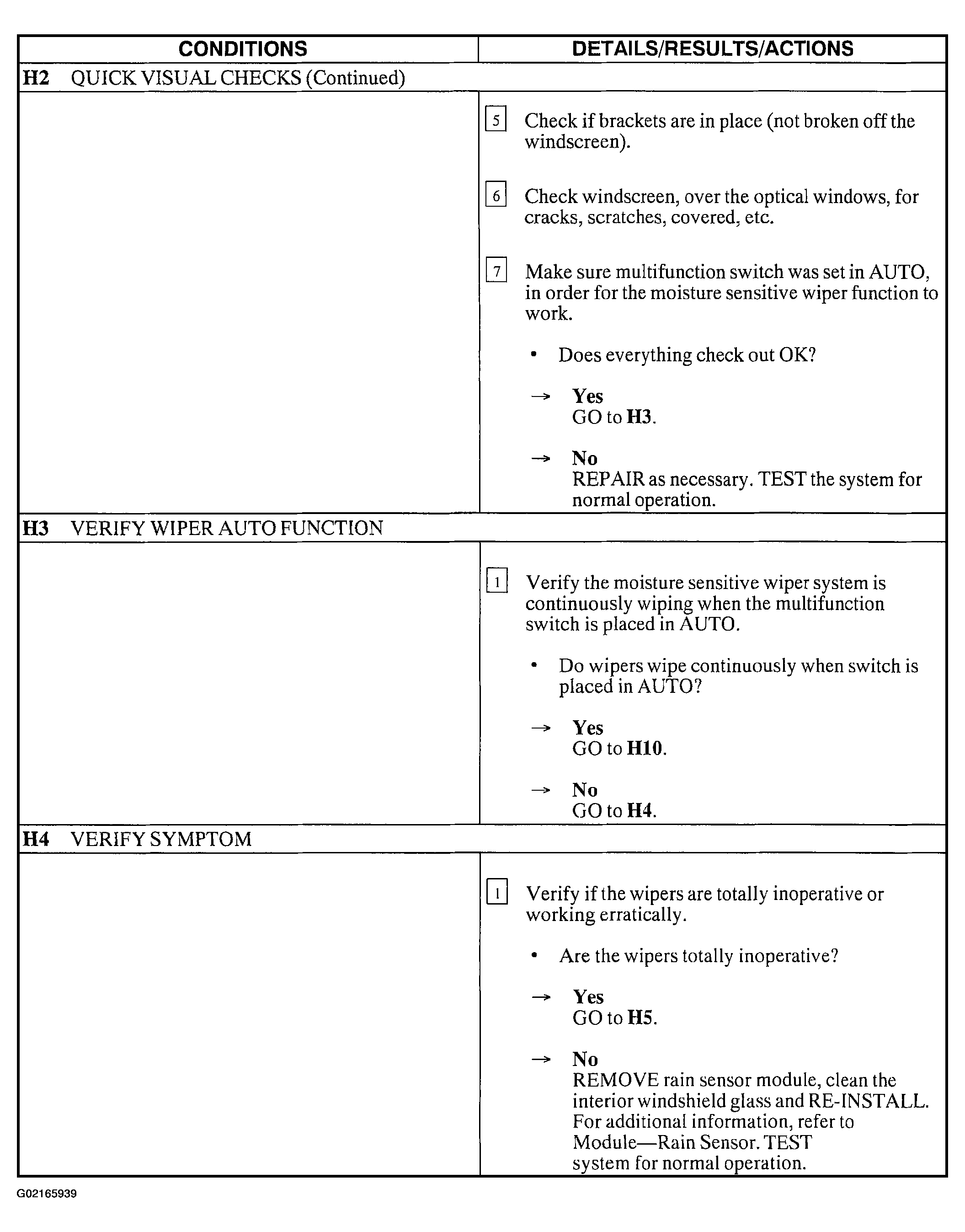

Fig 2: Pinpoint Test H: The Rain Moisture Sensitive Function Does Not Operate Correctly (H2 Cont. -H4)

Courtesy of FORD MOTOR CO.

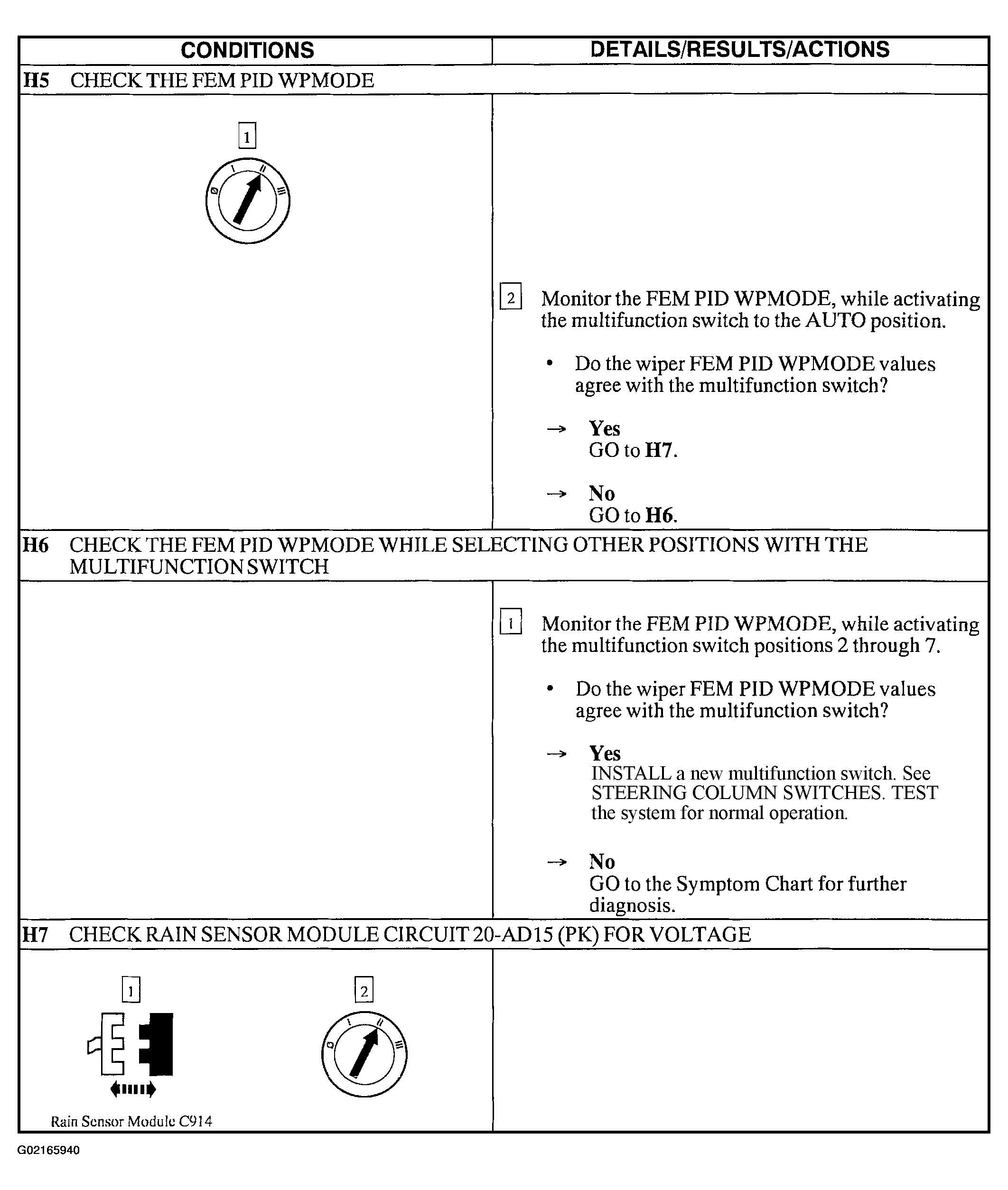

Fig 3: Pinpoint Test H: The Rain Moisture Sensitive Function Does Not Operate Correctly (H5-H7)

Courtesy of FORD MOTOR CO.

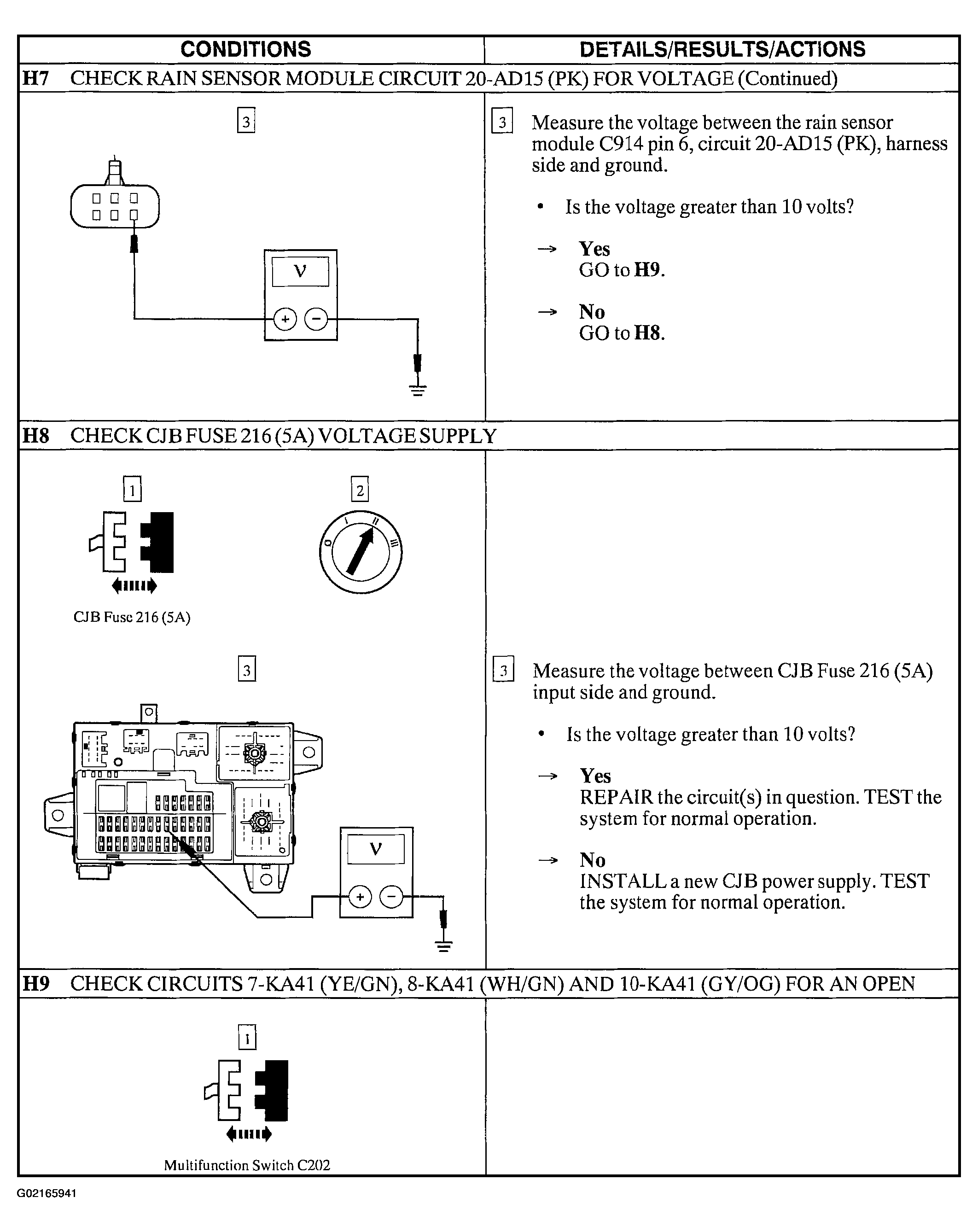

Fig 4: Pinpoint Test H: The Rain Moisture Sensitive Function Does Not Operate Correctly (H7 Cont. -H9)

Courtesy of FORD MOTOR CO.

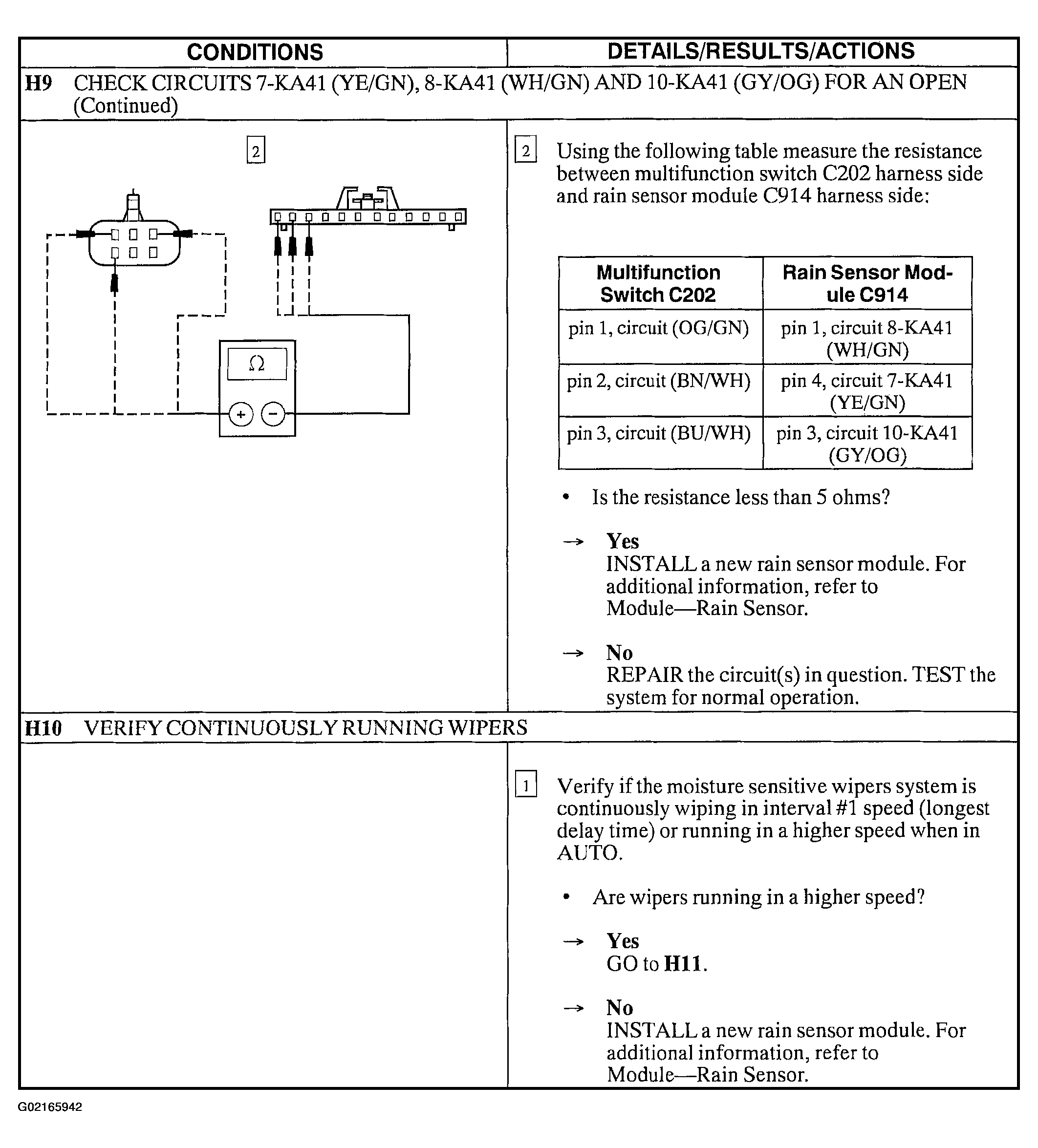

Fig 5: Pinpoint Test H: The Rain Moisture Sensitive Function Does Not Operate Correctly (H9 Cont. -H10)

Courtesy of FORD MOTOR CO.

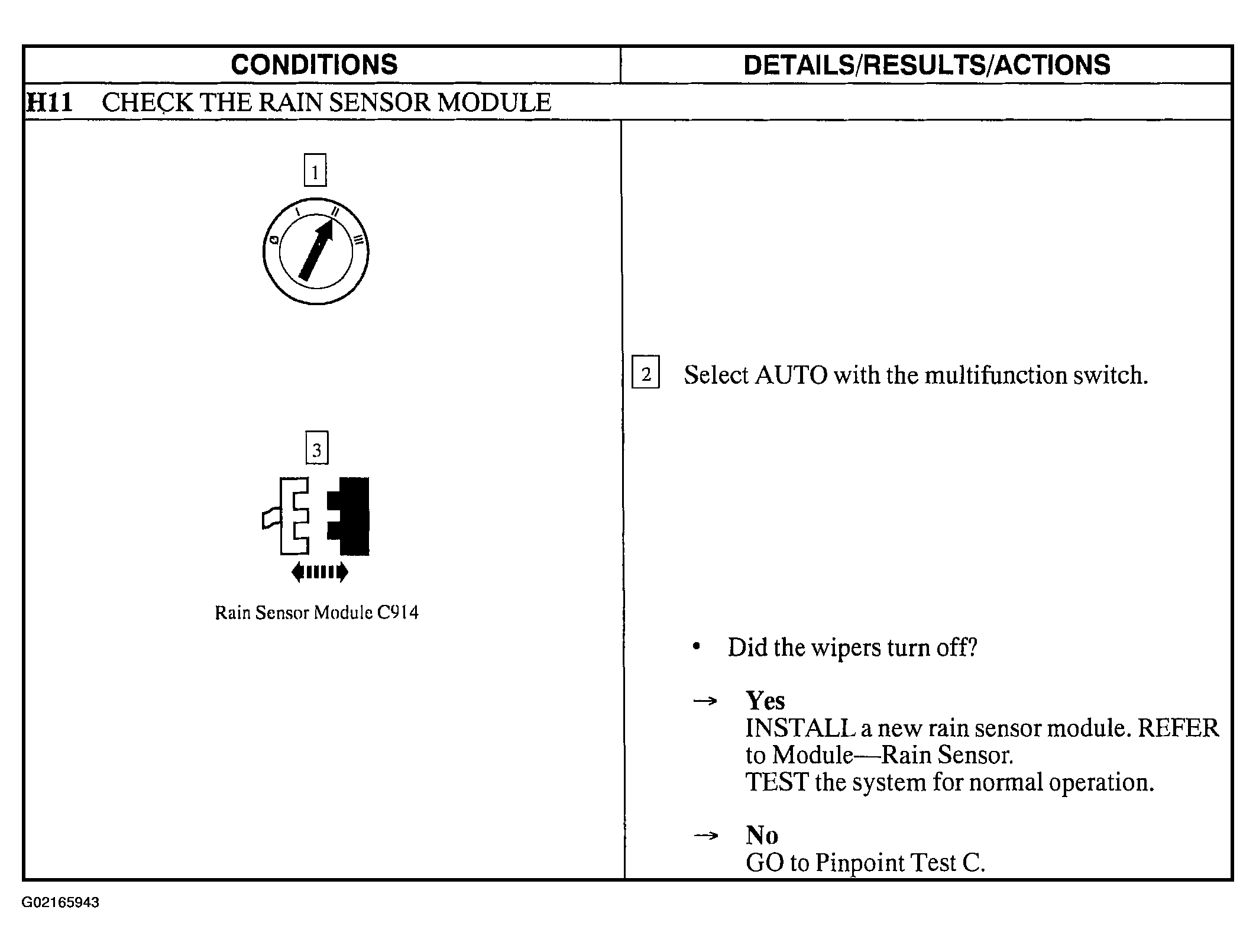

Fig 6: Pinpoint Test H: The Rain Moisture Sensitive Function Does Not Operate Correctly (Step H11)

Courtesy of FORD MOTOR CO.
