Pinpoint Test G: The Speed Dependent Interval Mode Does Not Operate Correctly

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Electronic modules are sensitive to electrical charges. If exposed to these charges, damage may result.

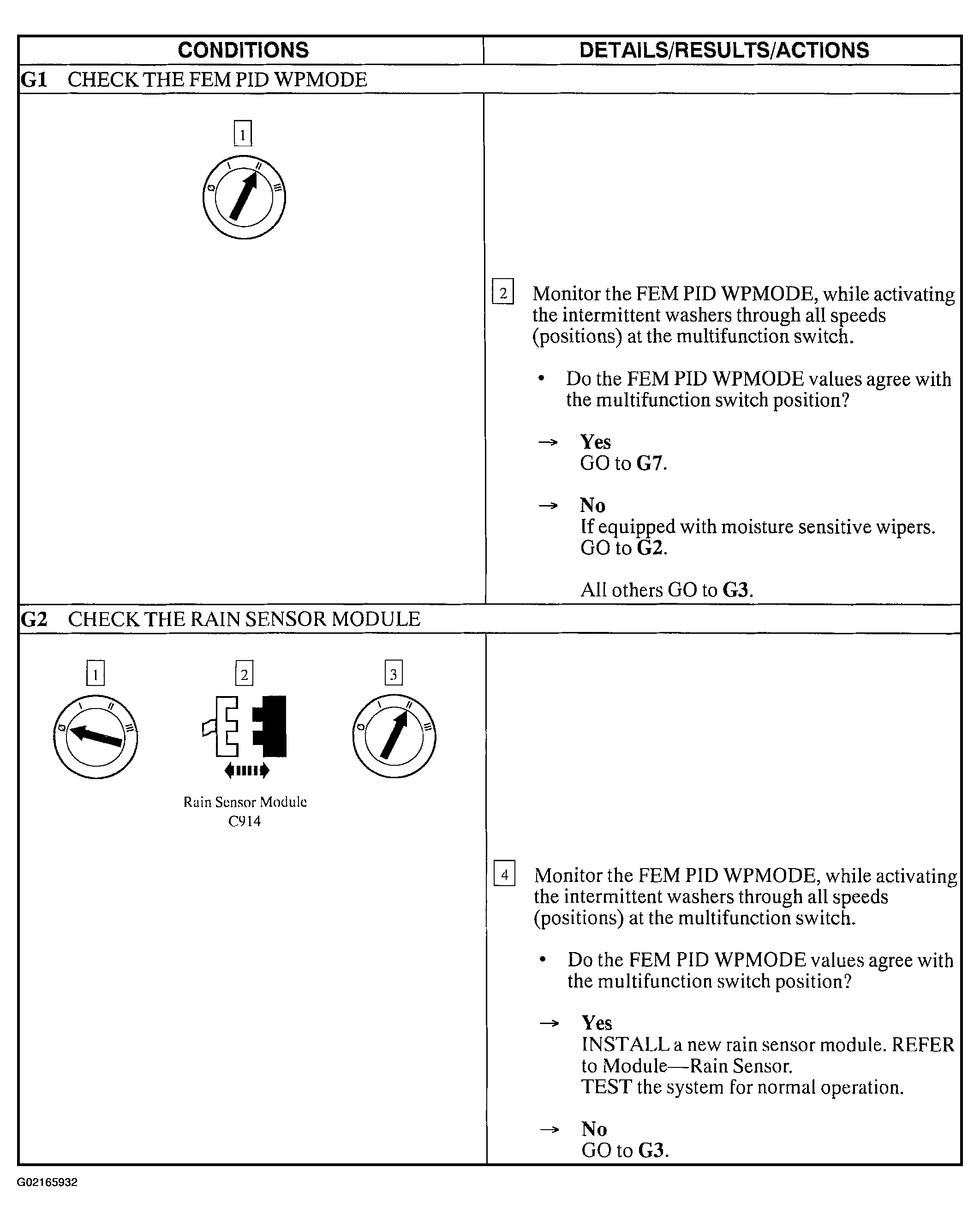

Fig 1: Pinpoint Test G: The Speed Dependent Interval Mode Does Not Operate Correctly (Steps G1-G2)

Courtesy of FORD MOTOR CO.

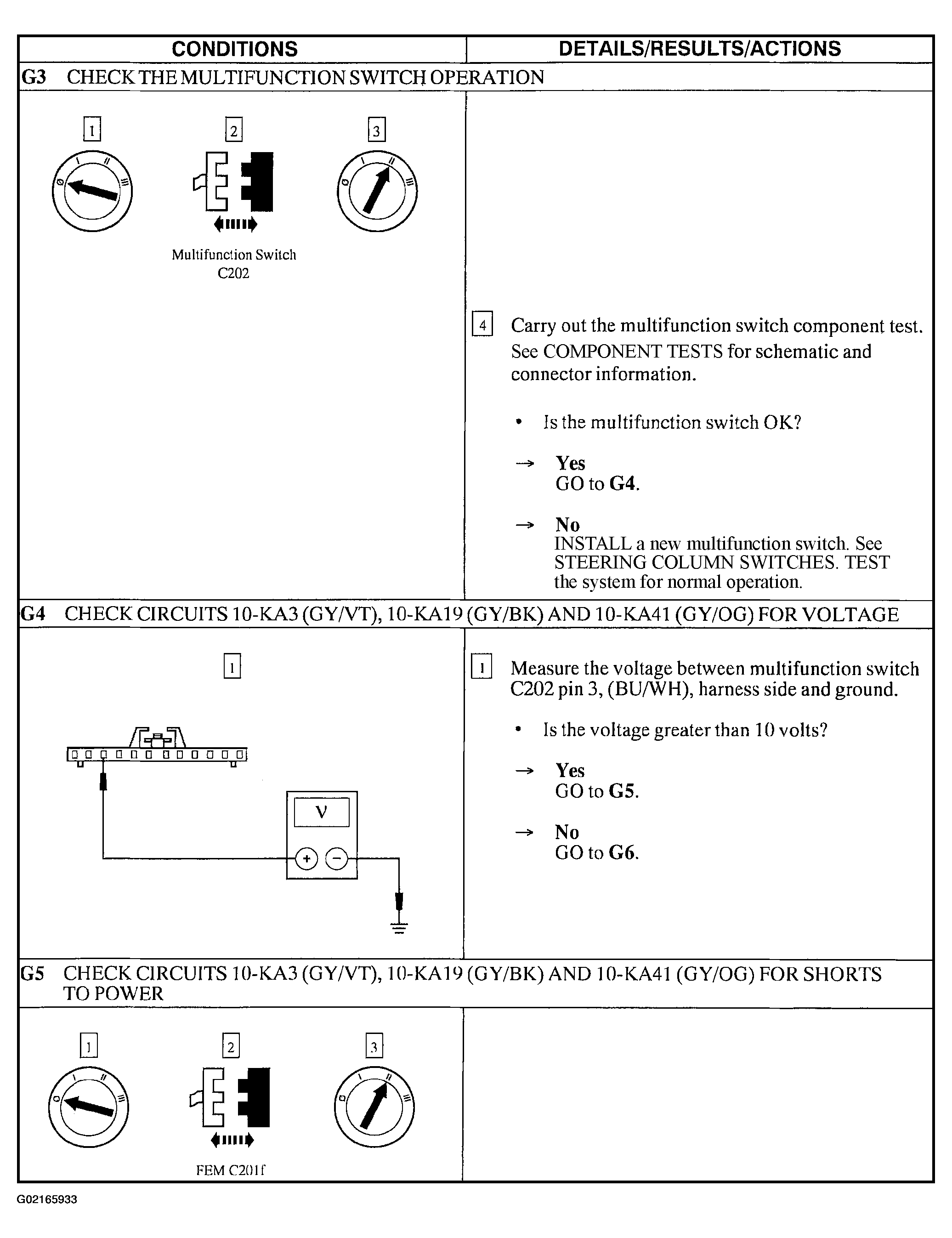

Fig 2: Pinpoint Test G: The Speed Dependent Interval Mode Does Not Operate Correctly (Steps G3-G5)

Courtesy of FORD MOTOR CO.

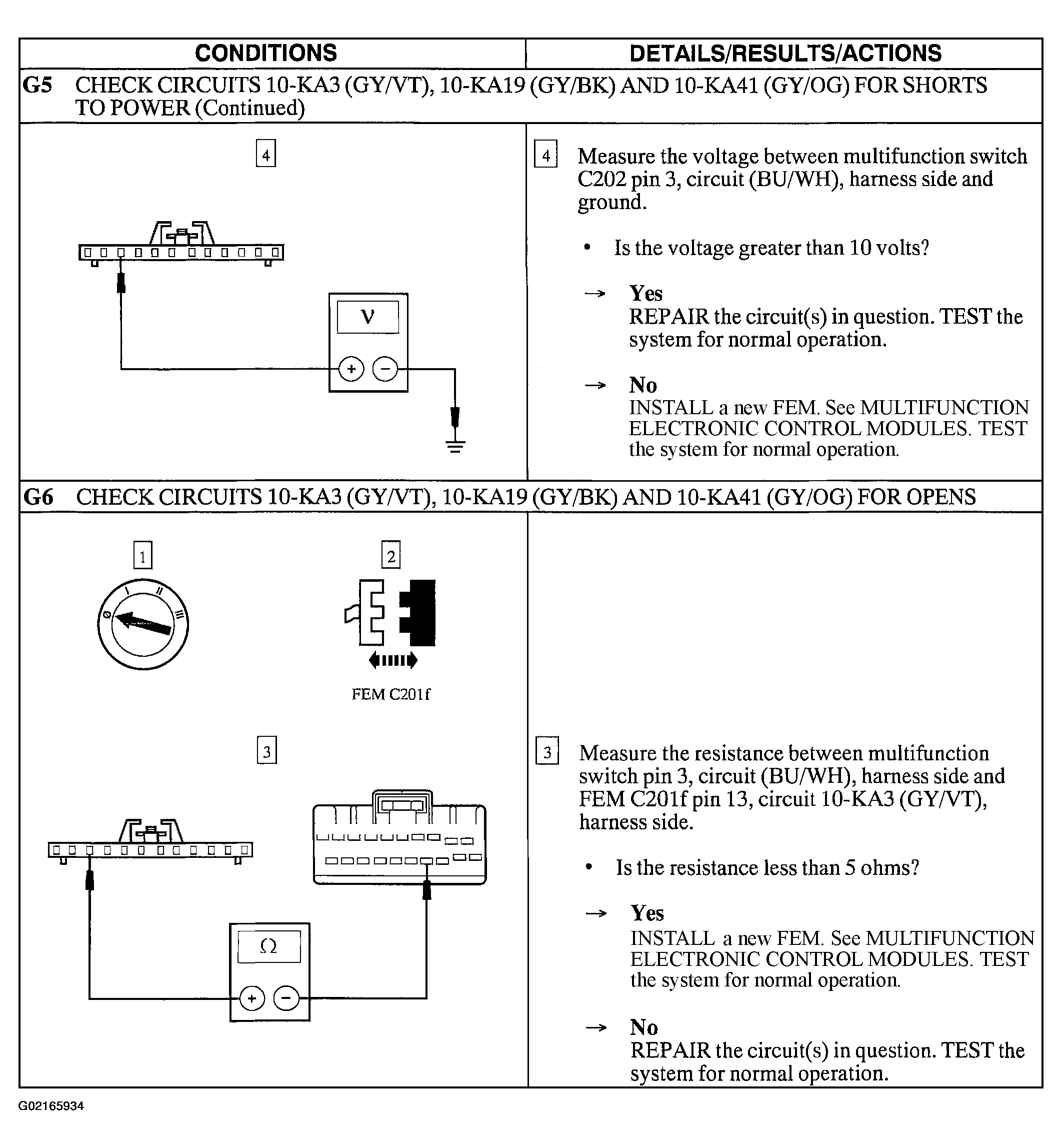

Fig 3: Pinpoint Test G: The Speed Dependent Interval Mode Does Not Operate Correctly (Steps G5 Cont. -G6)

Courtesy of FORD MOTOR CO.

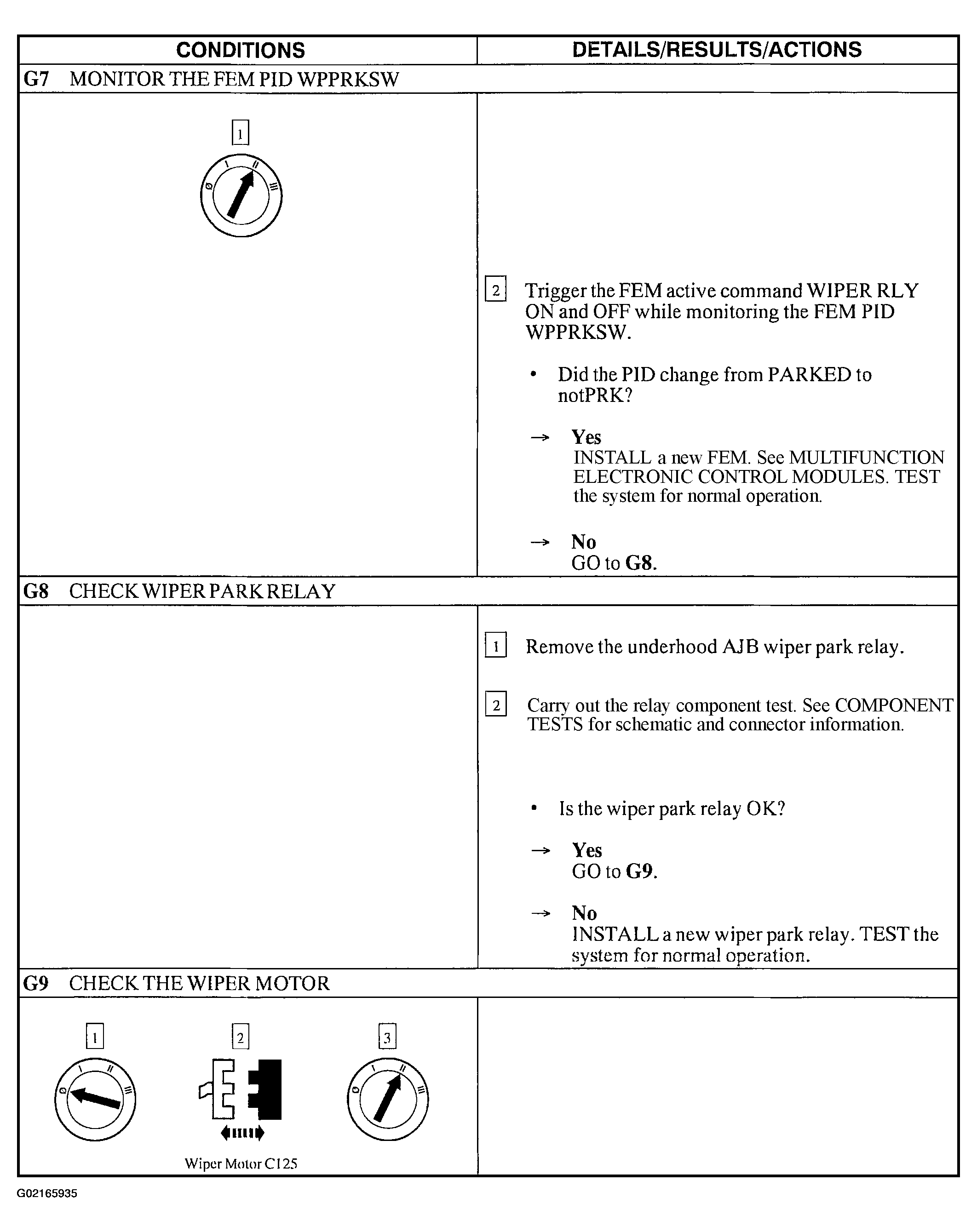

Fig 4: Pinpoint Test G: The Speed Dependent Interval Mode Does Not Operate Correctly (Steps G7-G9)

Courtesy of FORD MOTOR CO.

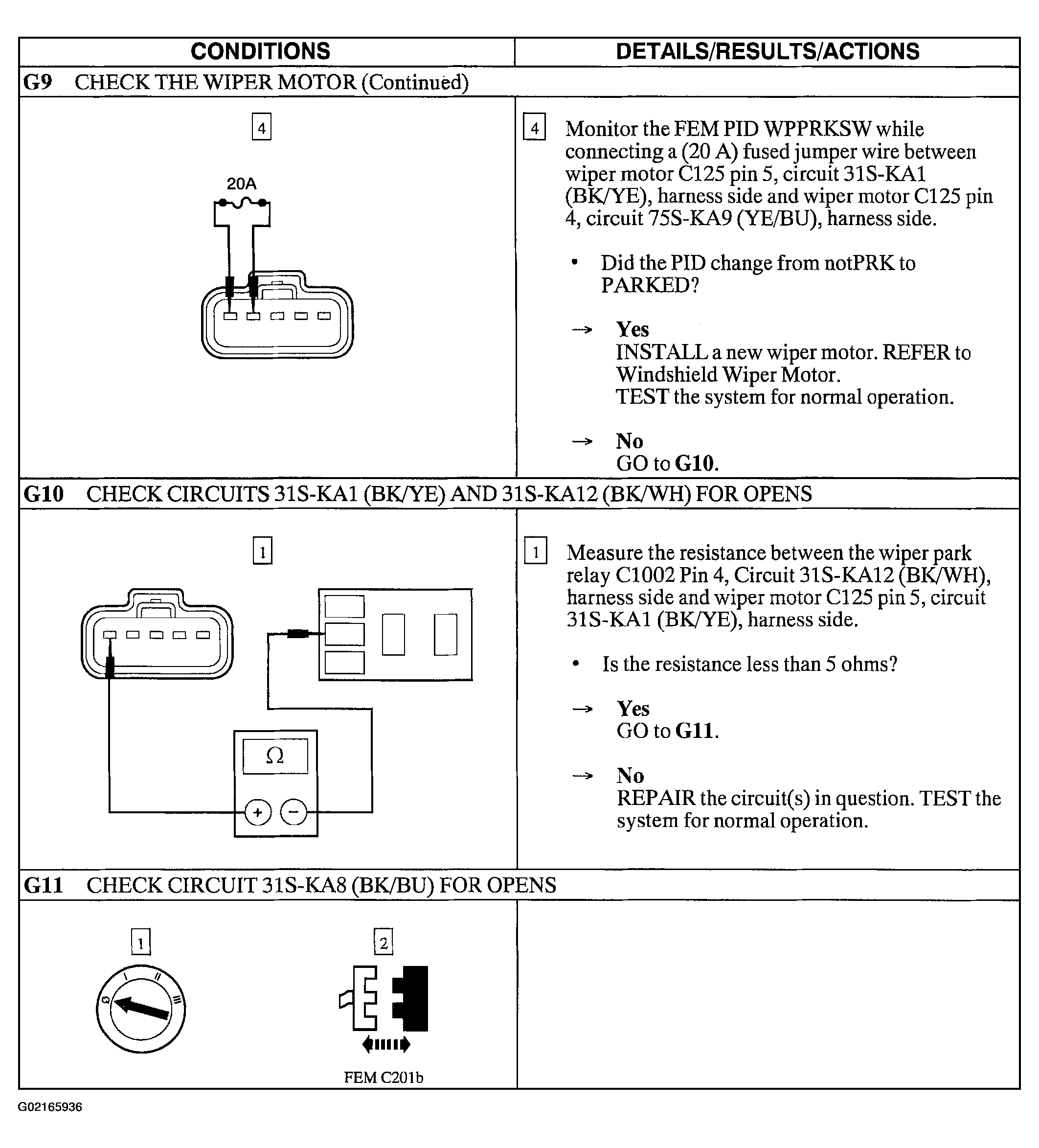

Fig 5: Pinpoint Test G: The Speed Dependent Interval Mode Does Not Operate Correctly (Steps G9 Cont. -G11)

Courtesy of FORD MOTOR CO.

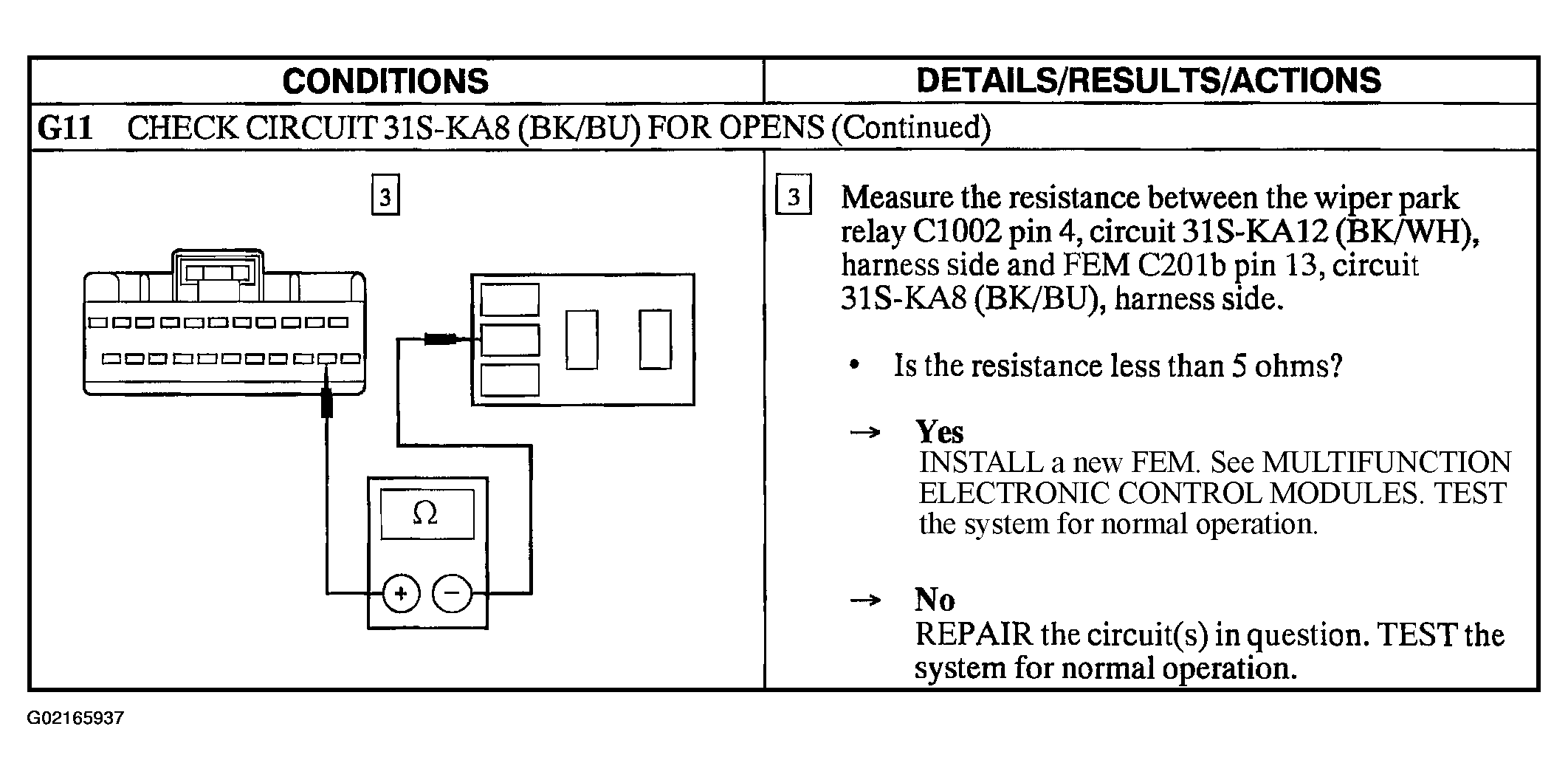

Fig 6: Pinpoint Test G: The Speed Dependent Interval Mode Does Not Operate Correctly (Step G11 Cont.)

Courtesy of FORD MOTOR CO.
