Pinpoint Test F: The Washer Pump Is Inoperative/On Continuously

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Electronic modules are sensitive to electrical charges. If exposed to these charges, damage may result.

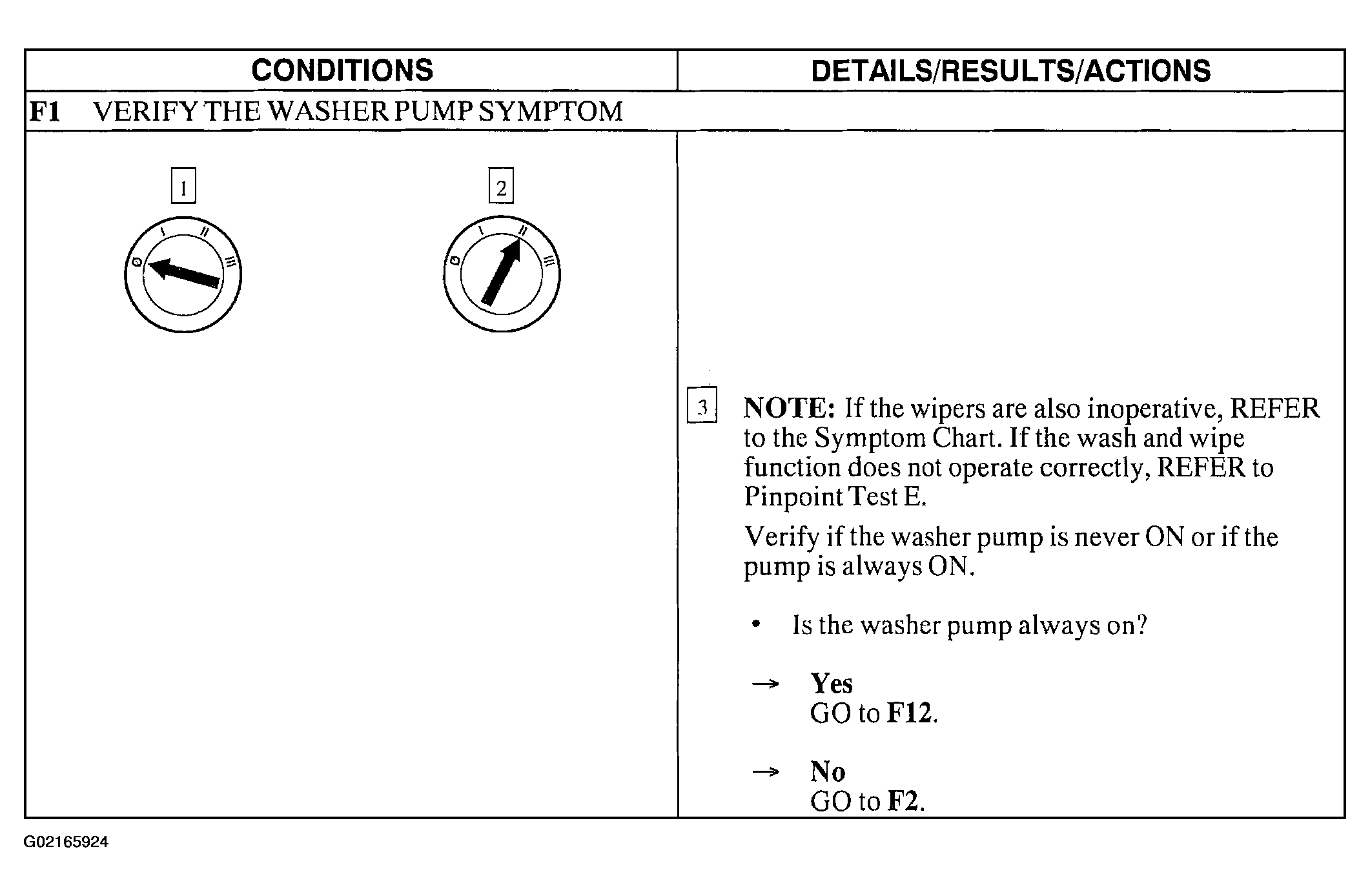

Fig 1: Pinpoint Test F: The Washer Pump Is Inoperative/On Continuously (Step F1)

Courtesy of FORD MOTOR CO.

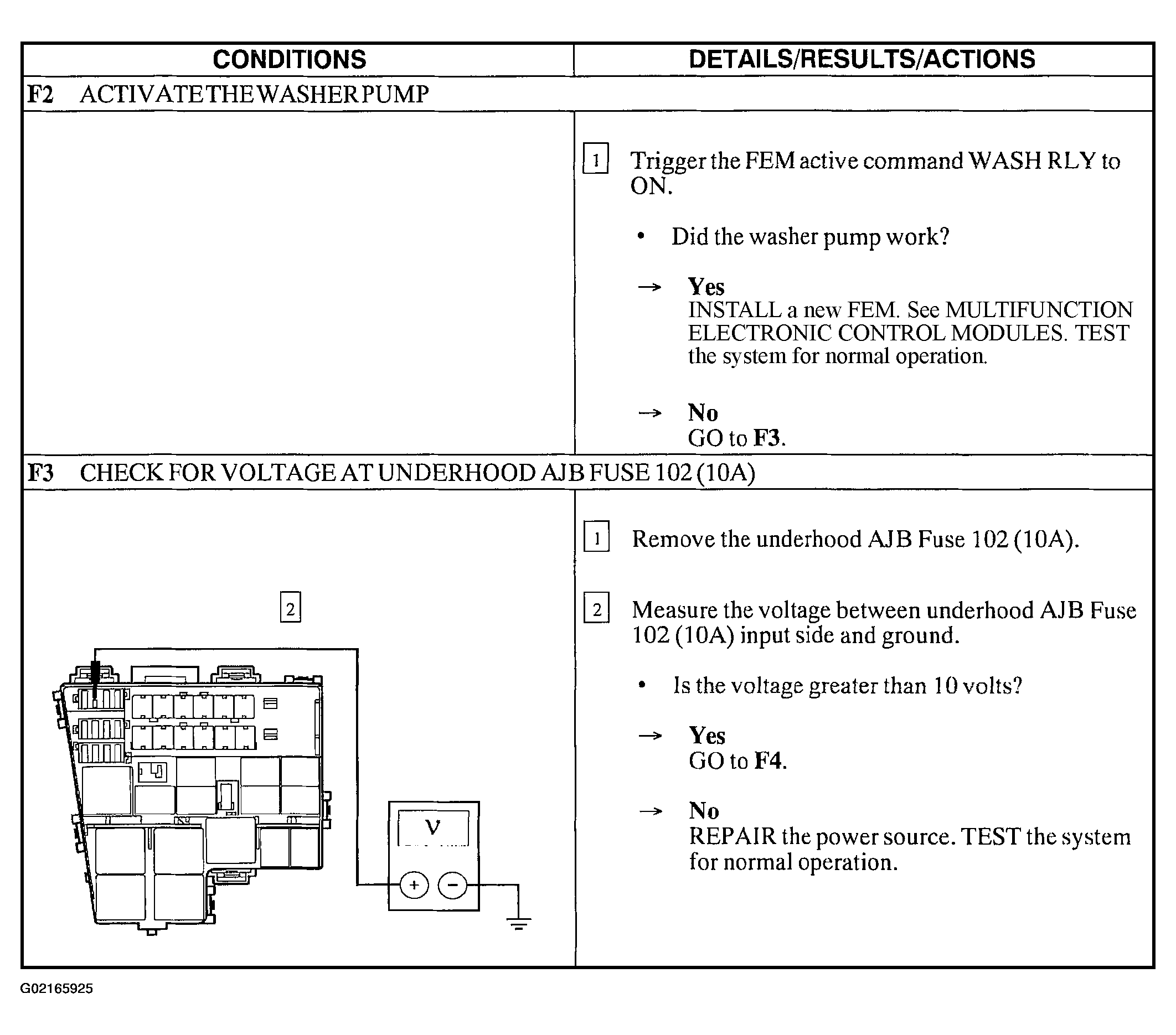

Fig 2: Pinpoint Test F: The Washer Pump Is Inoperative/On Continuously (Steps F2-F3)

Courtesy of FORD MOTOR CO.

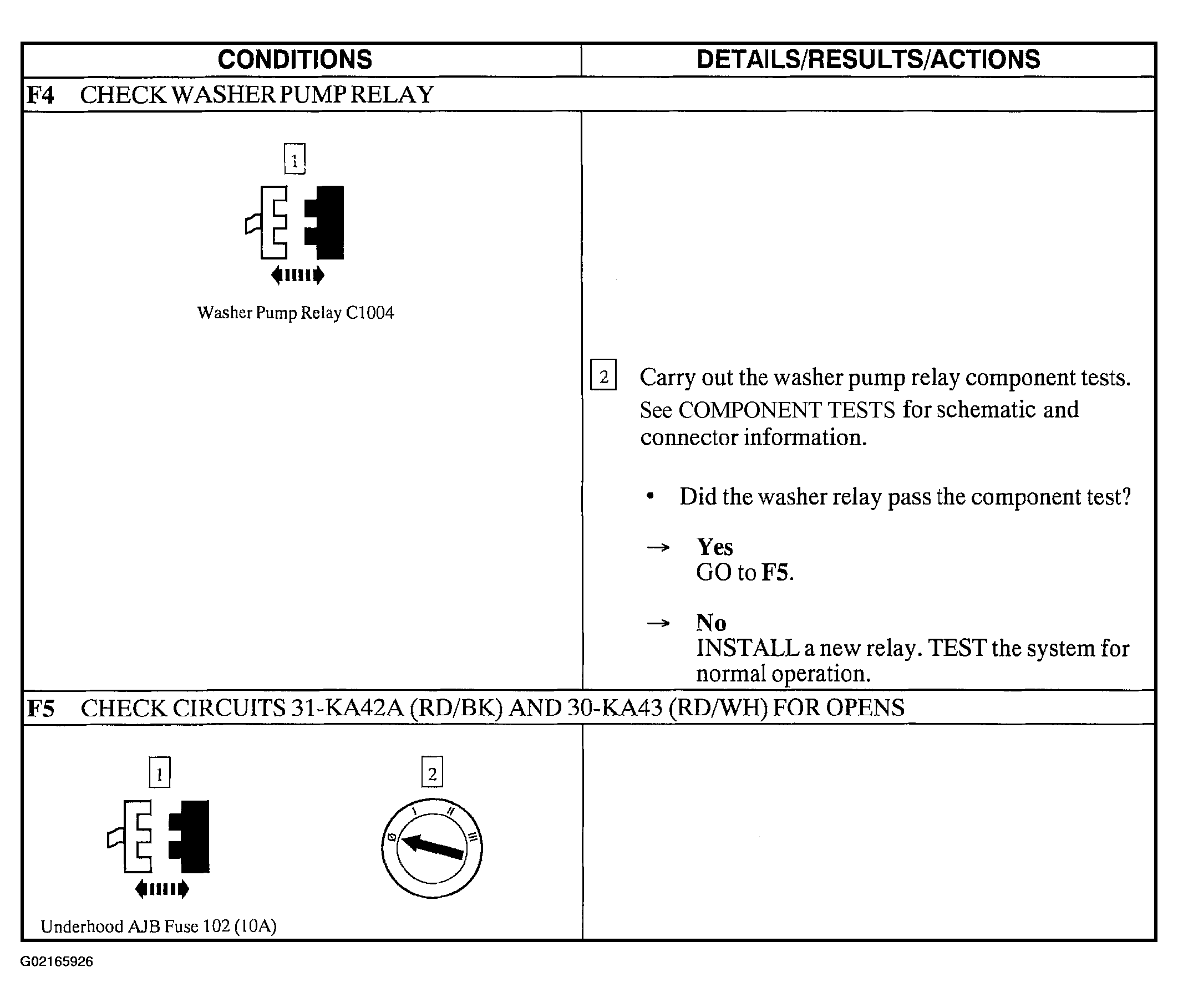

Fig 3: Pinpoint Test F: The Washer Pump Is Inoperative/On Continuously (Steps F4-F5)

Courtesy of FORD MOTOR CO.

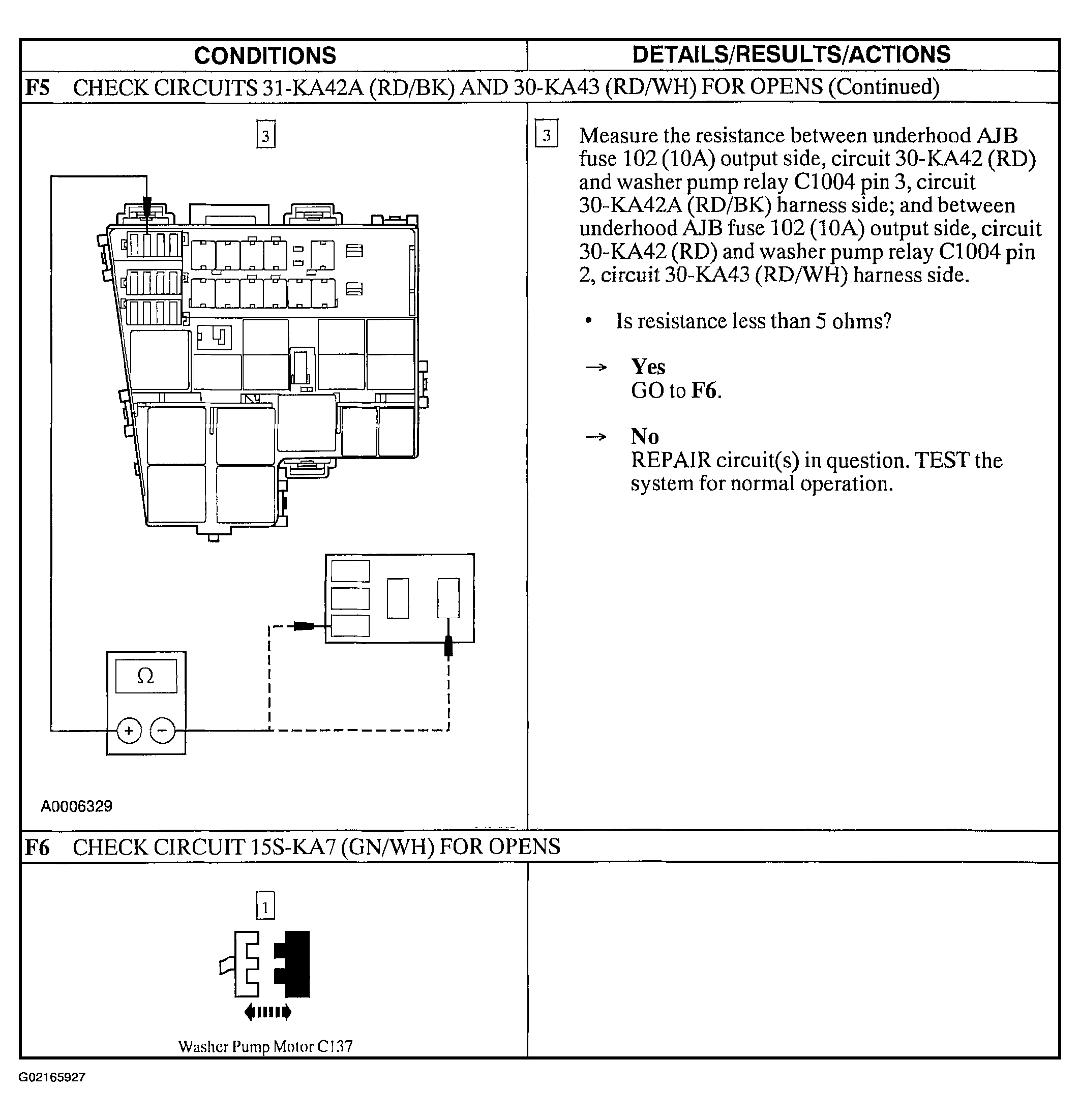

Fig 4: Pinpoint Test F: The Washer Pump Is Inoperative/On Continuously (Steps F5 Cont. -F6)

Courtesy of FORD MOTOR CO.

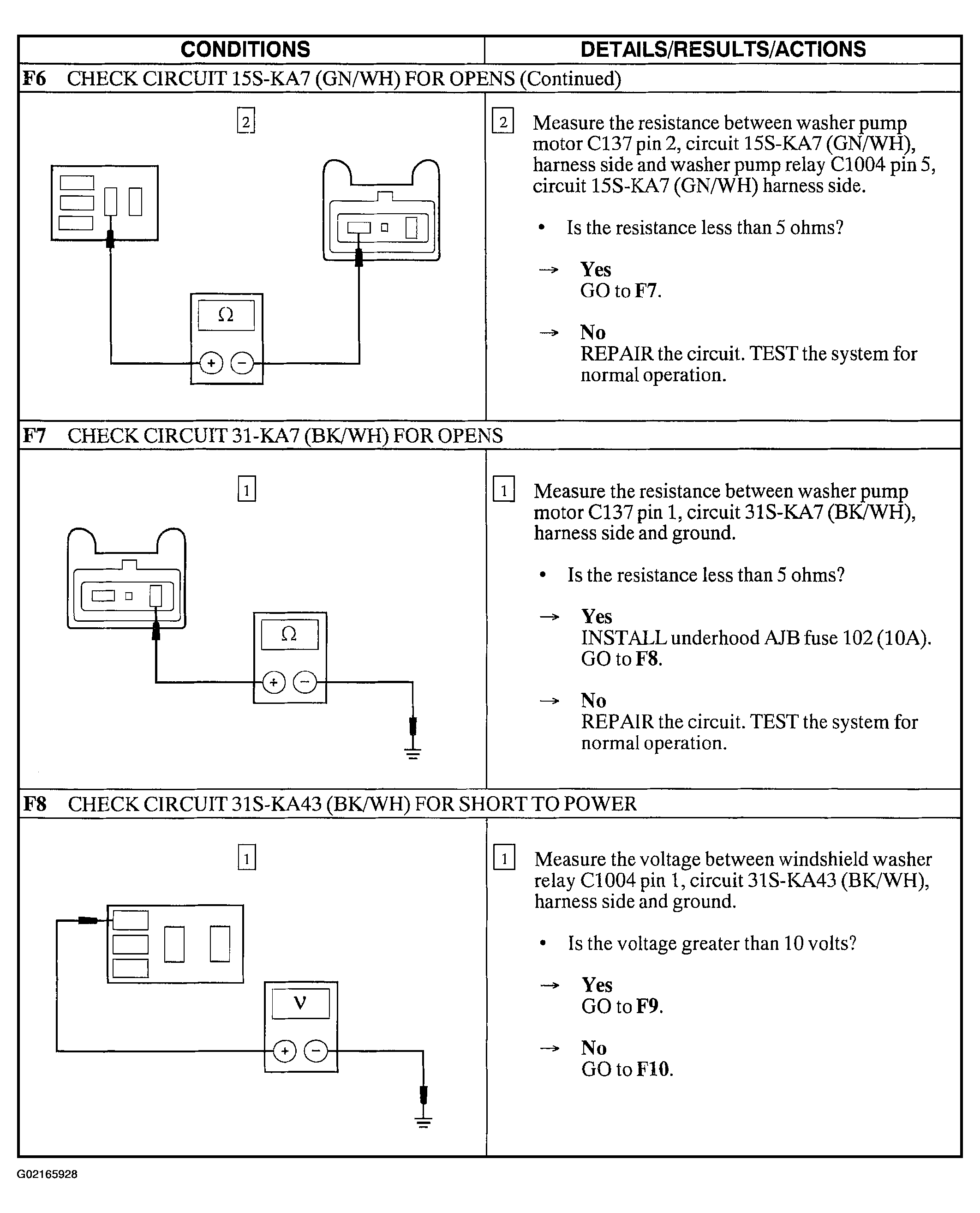

Fig 5: Pinpoint Test F: The Washer Pump Is Inoperative/On Continuously (Steps F6 Cont. -F8)

Courtesy of FORD MOTOR CO.

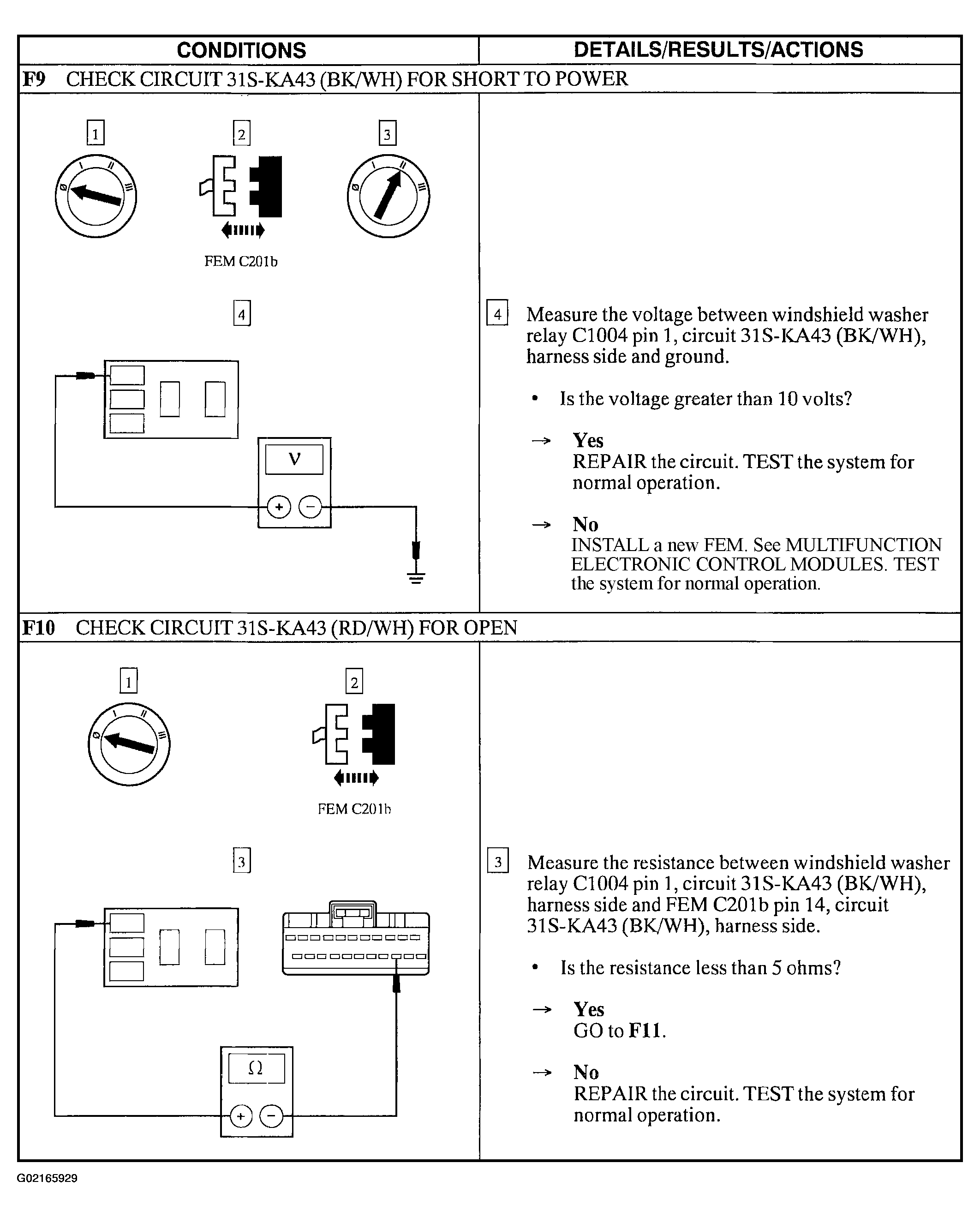

Fig 6: Pinpoint Test F: The Washer Pump Is Inoperative/On Continuously (Steps F9-F10)

Courtesy of FORD MOTOR CO.

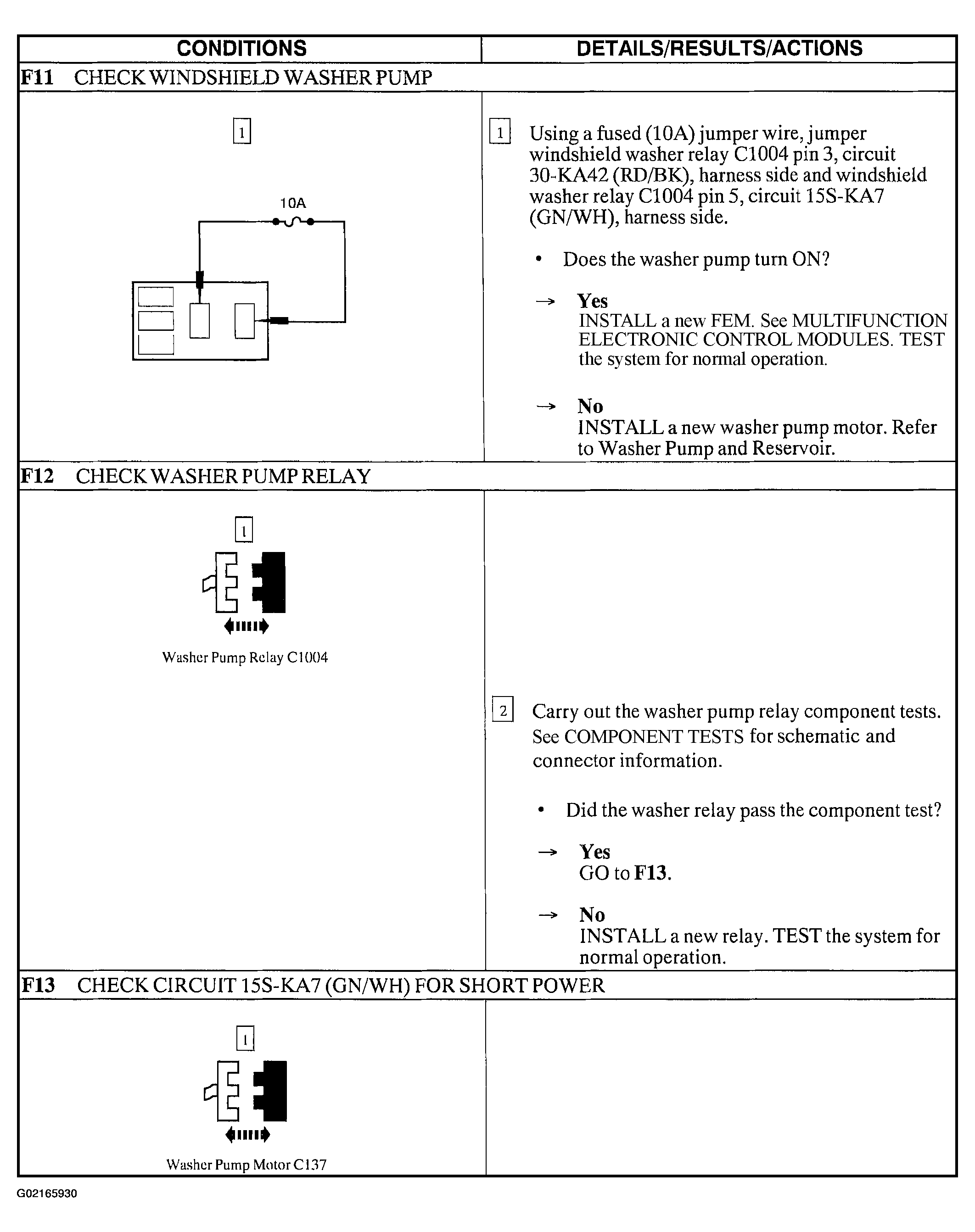

Fig 7: Pinpoint Test F: The Washer Pump Is Inoperative/On Continuously (Steps F11-F13)

Courtesy of FORD MOTOR CO.

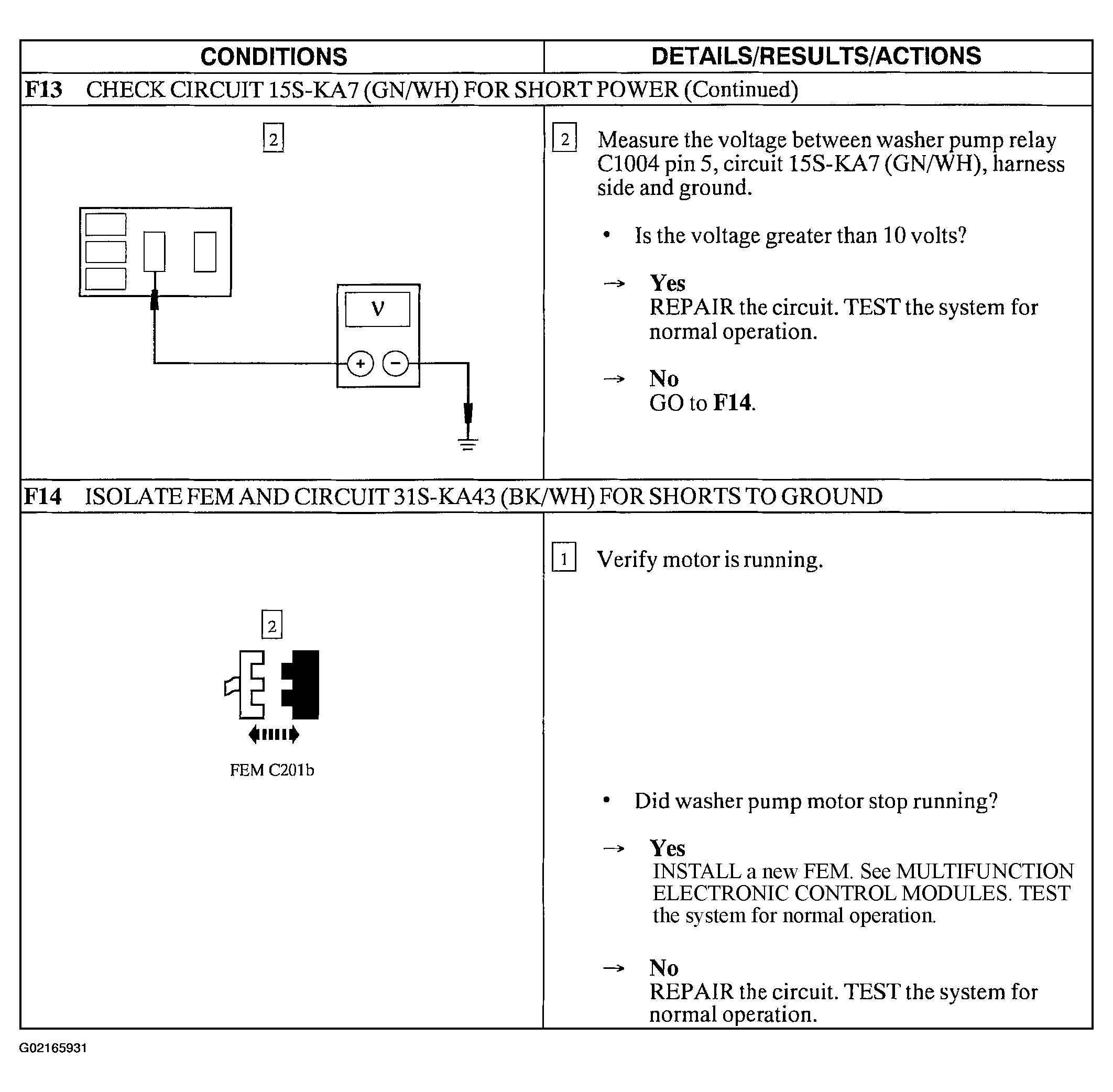

Fig 8: Pinpoint Test F: The Washer Pump Is Inoperative/On Continuously (Steps F13 Cont. -F14)

Courtesy of FORD MOTOR CO.
