Pinpoint Test E: The Wash And Wipe Function Does Not Operate Correctly

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Electronic modules are sensitive to electrical charges. If exposed to these charges, damage may result.

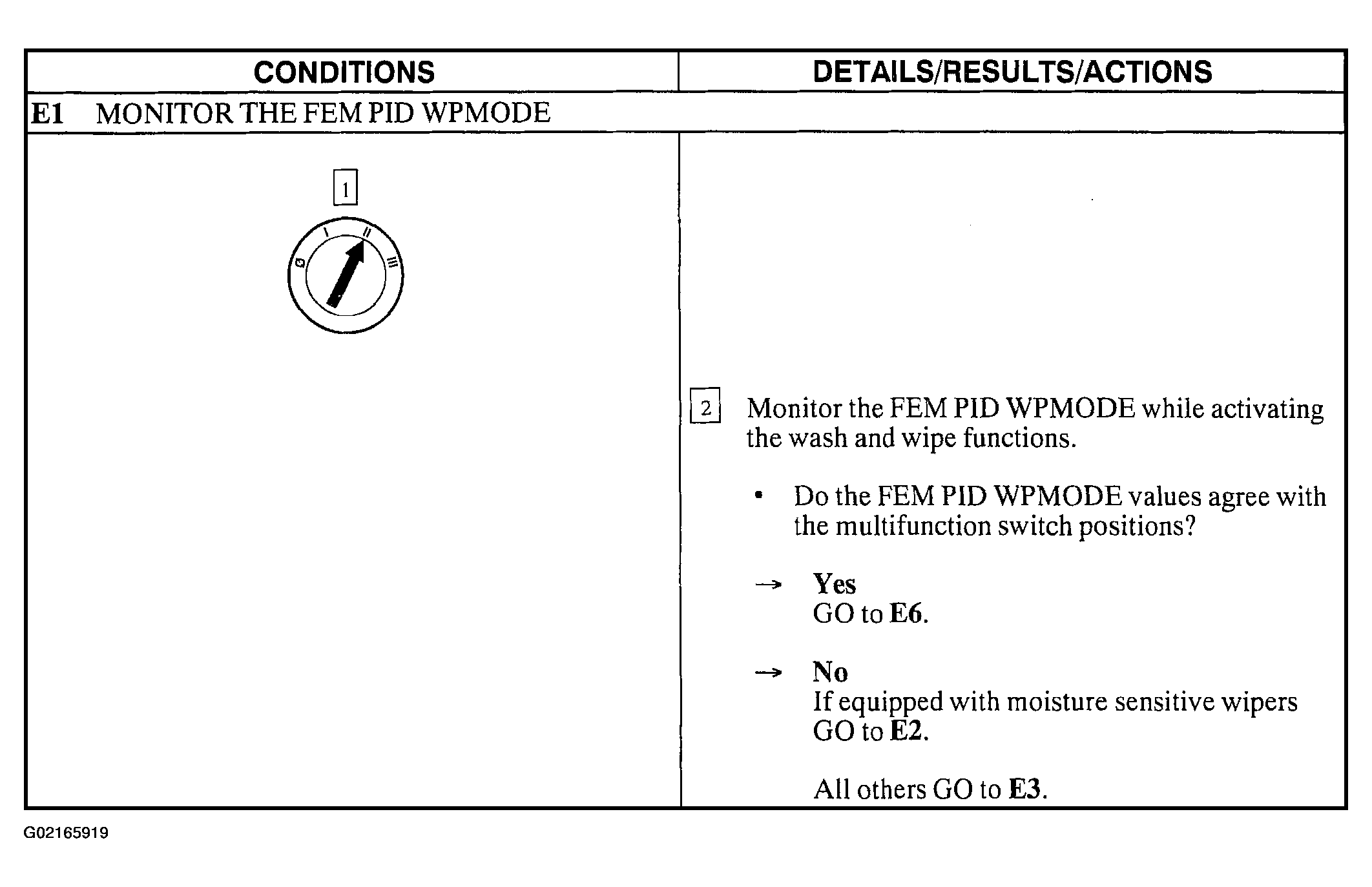

Fig 1: Pinpoint Test E: The Wash And Wipe Function Does Not Operate Correctly (Step E1)

Courtesy of FORD MOTOR CO.

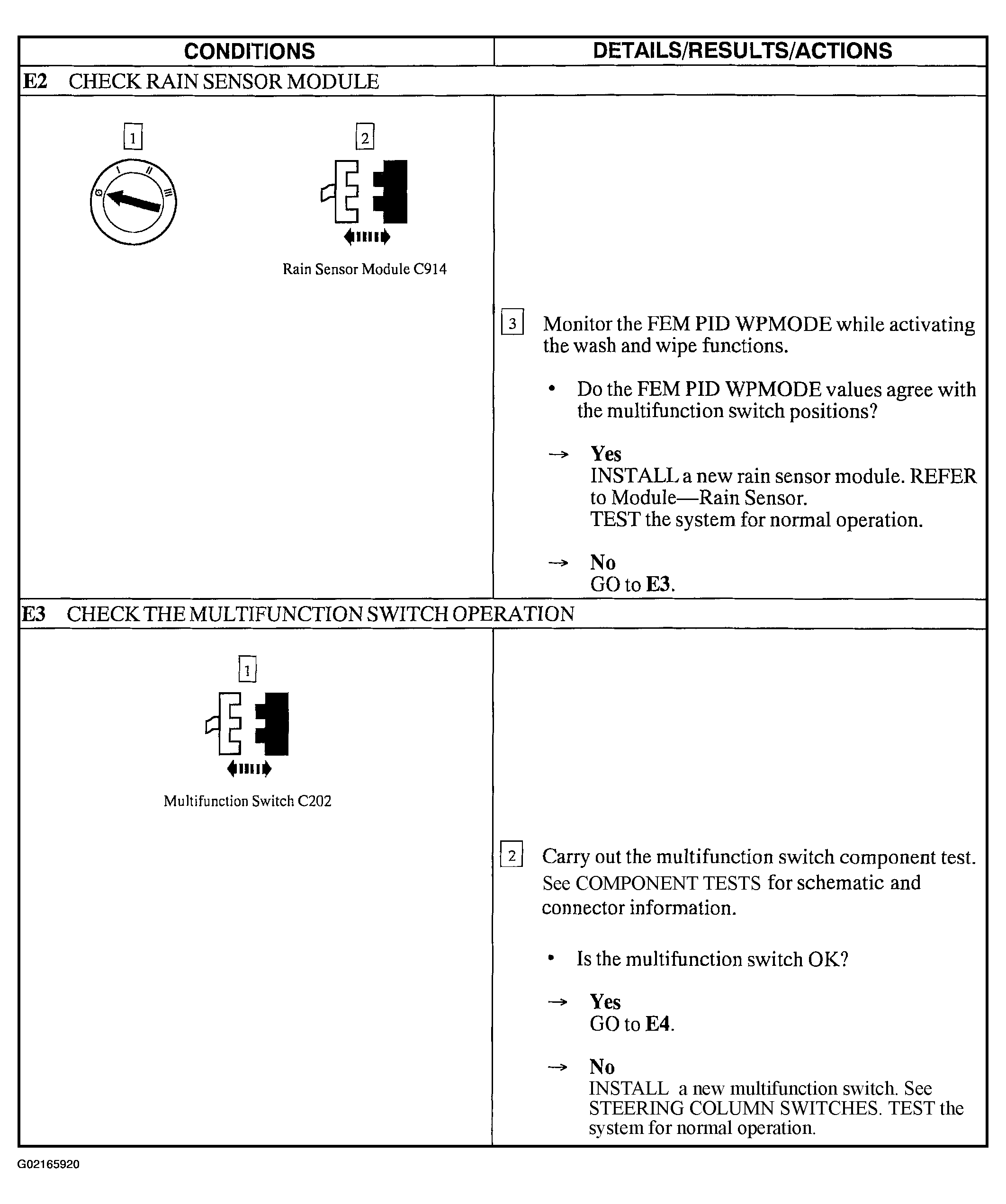

Fig 2: Pinpoint Test E: The Wash And Wipe Function Does Not Operate Correctly (Steps E2-E3)

Courtesy of FORD MOTOR CO.

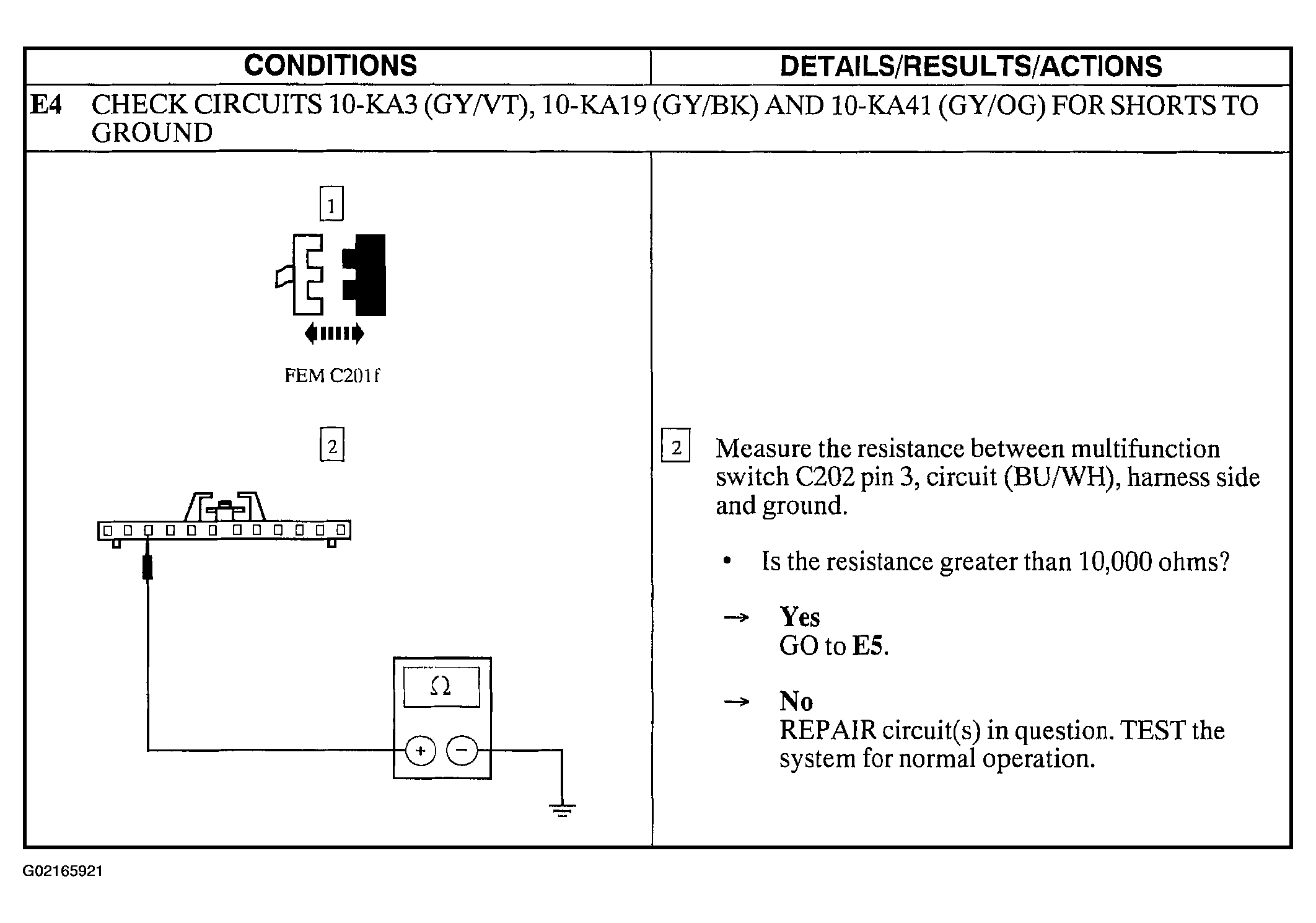

Fig 3: Pinpoint Test E: The Wash And Wipe Function Does Not Operate Correctly (Step E4)

Courtesy of FORD MOTOR CO.

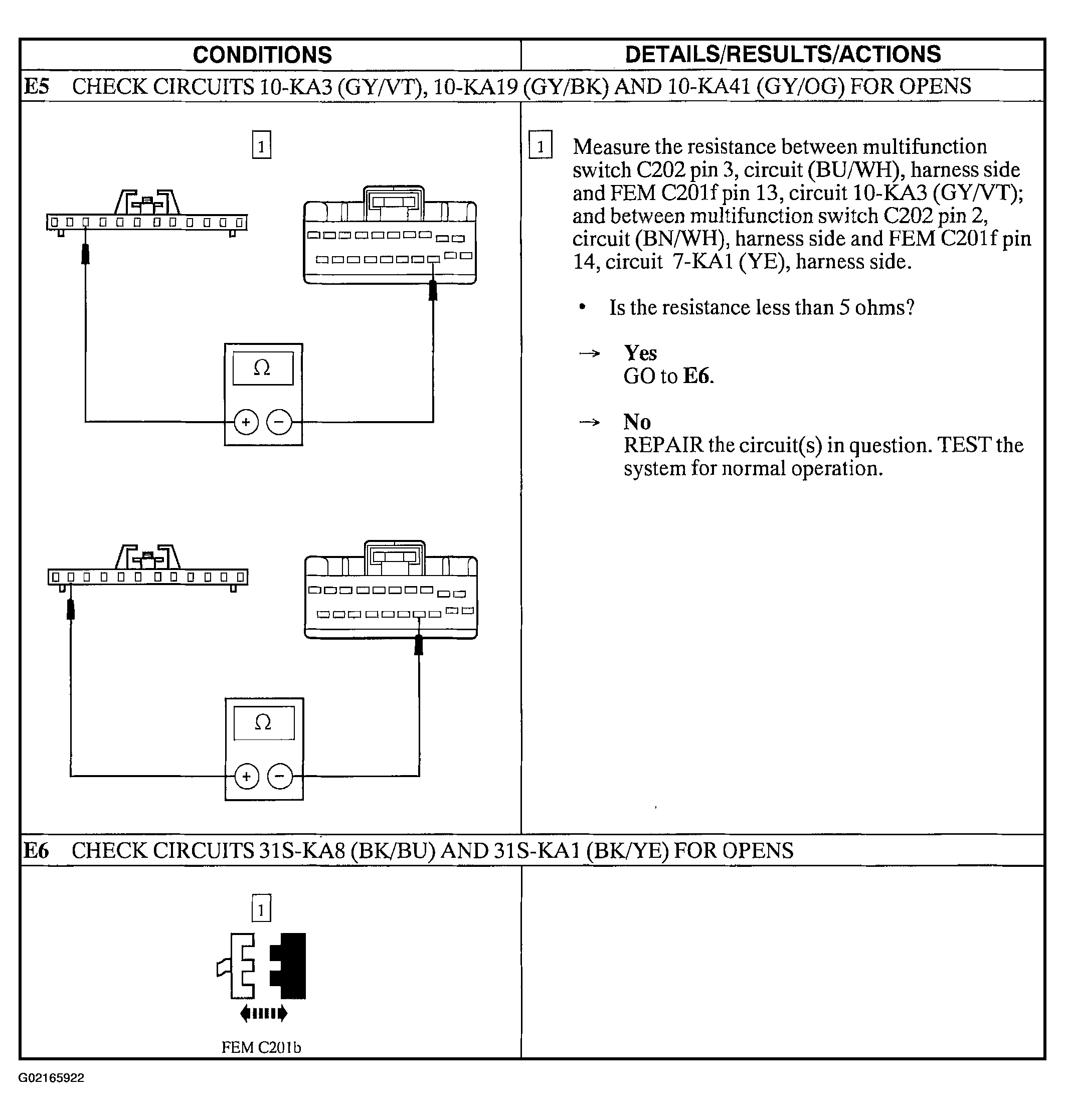

Fig 4: Pinpoint Test E: The Wash And Wipe Function Does Not Operate Correctly (Steps E5-E6)

Courtesy of FORD MOTOR CO.

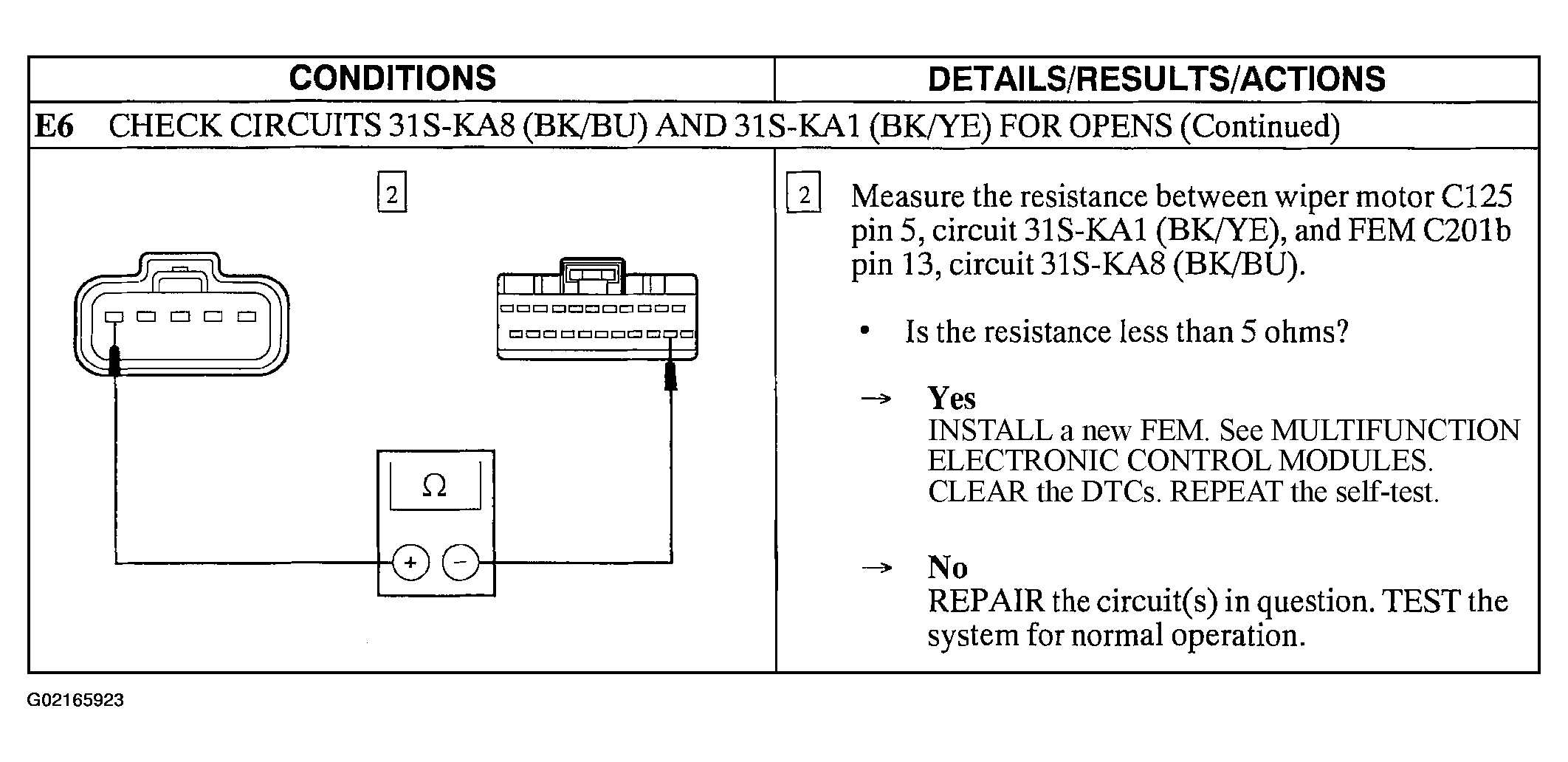

Fig 5: Pinpoint Test E: The Wash And Wipe Function Does Not Operate Correctly (Step E6 Cont.)

Courtesy of FORD MOTOR CO.
