Pinpoint Test D: The High/Low Wiper Speeds Do Not Operate Correctly

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Electronic modules are sensitive to electrical charges. If exposed to these charges, damage may result.

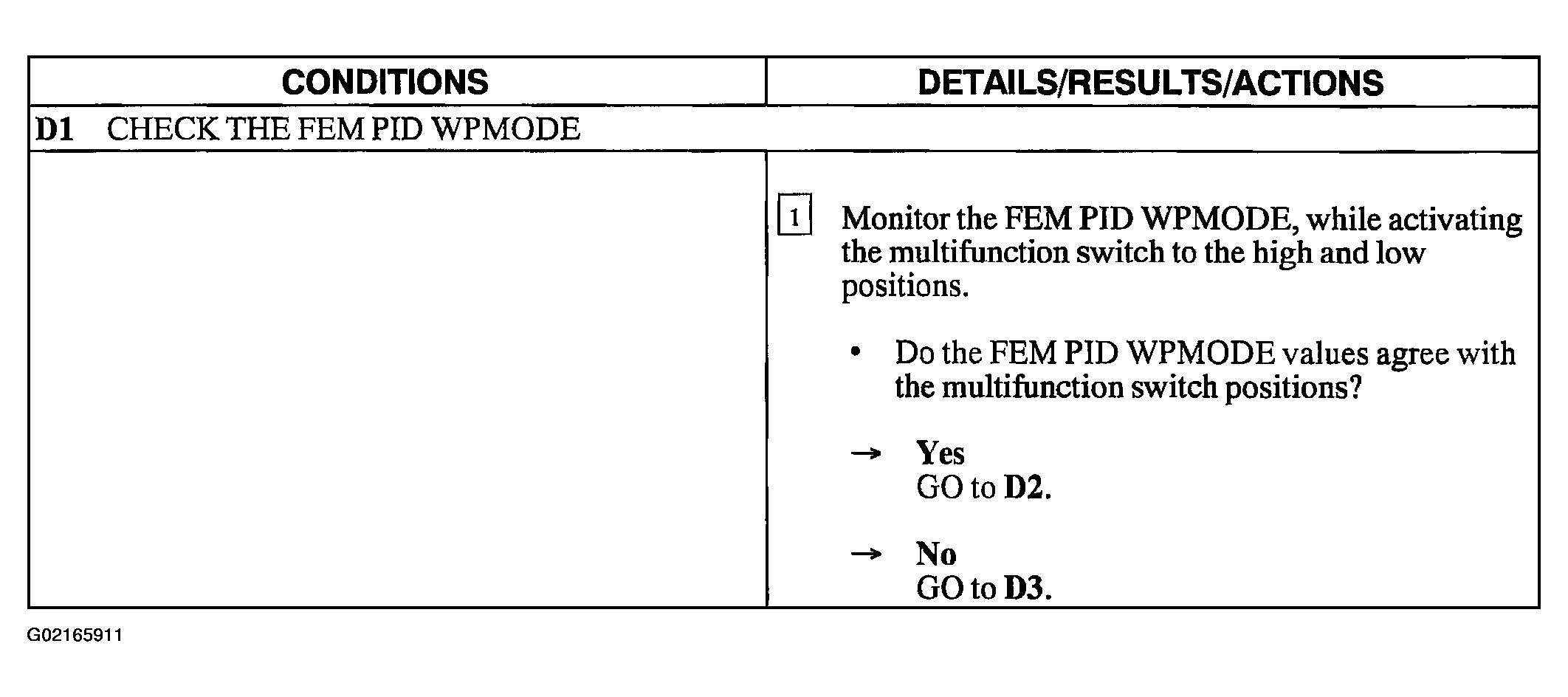

Fig 1: Pinpoint Test D: The High/Low Wiper Speeds Do Not Operate Correctly (Step D1)

Courtesy of FORD MOTOR CO.

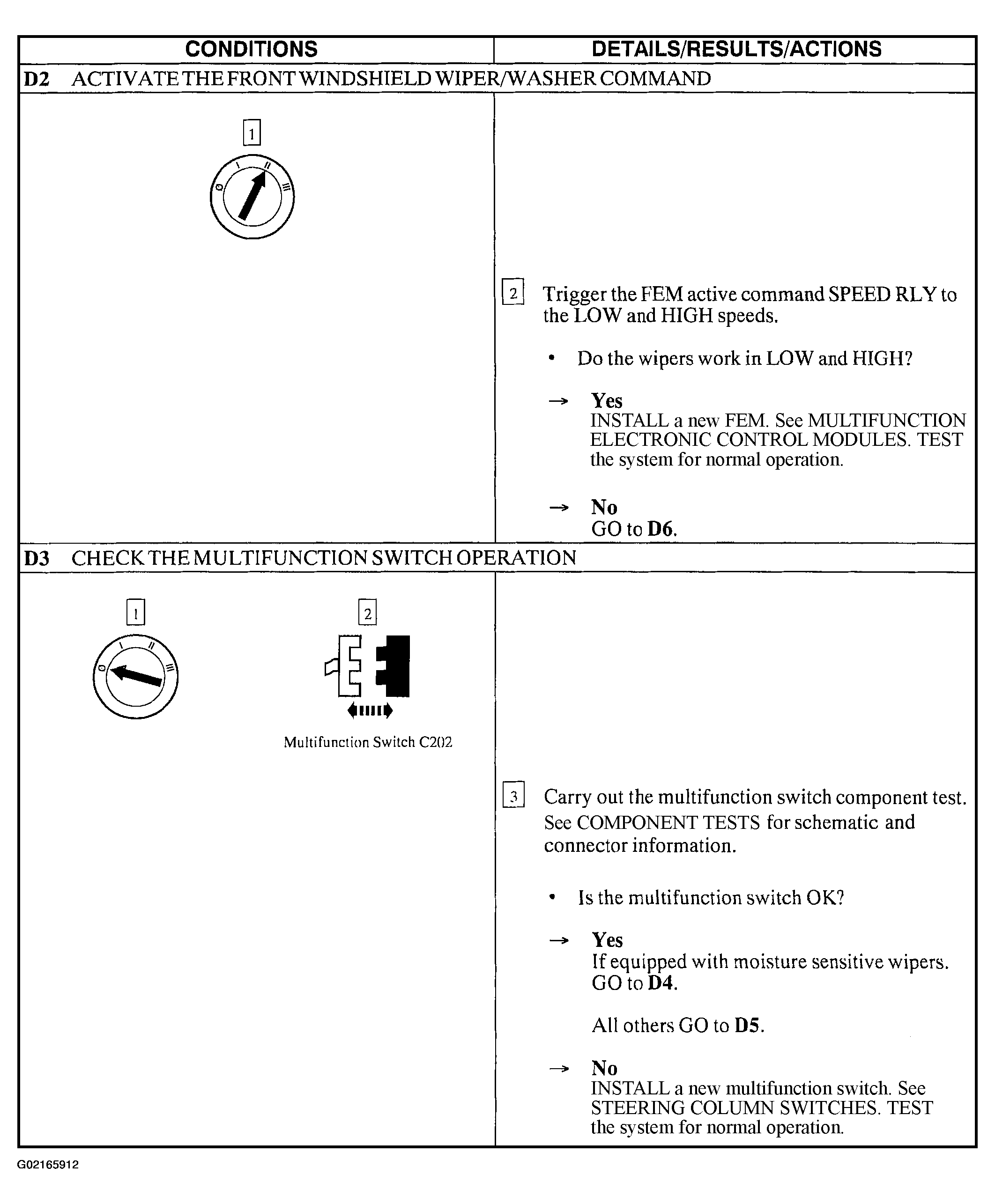

Fig 2: Pinpoint Test D: The High/Low Wiper Speeds Do Not Operate Correctly (Steps D2-D3)

Courtesy of FORD MOTOR CO.

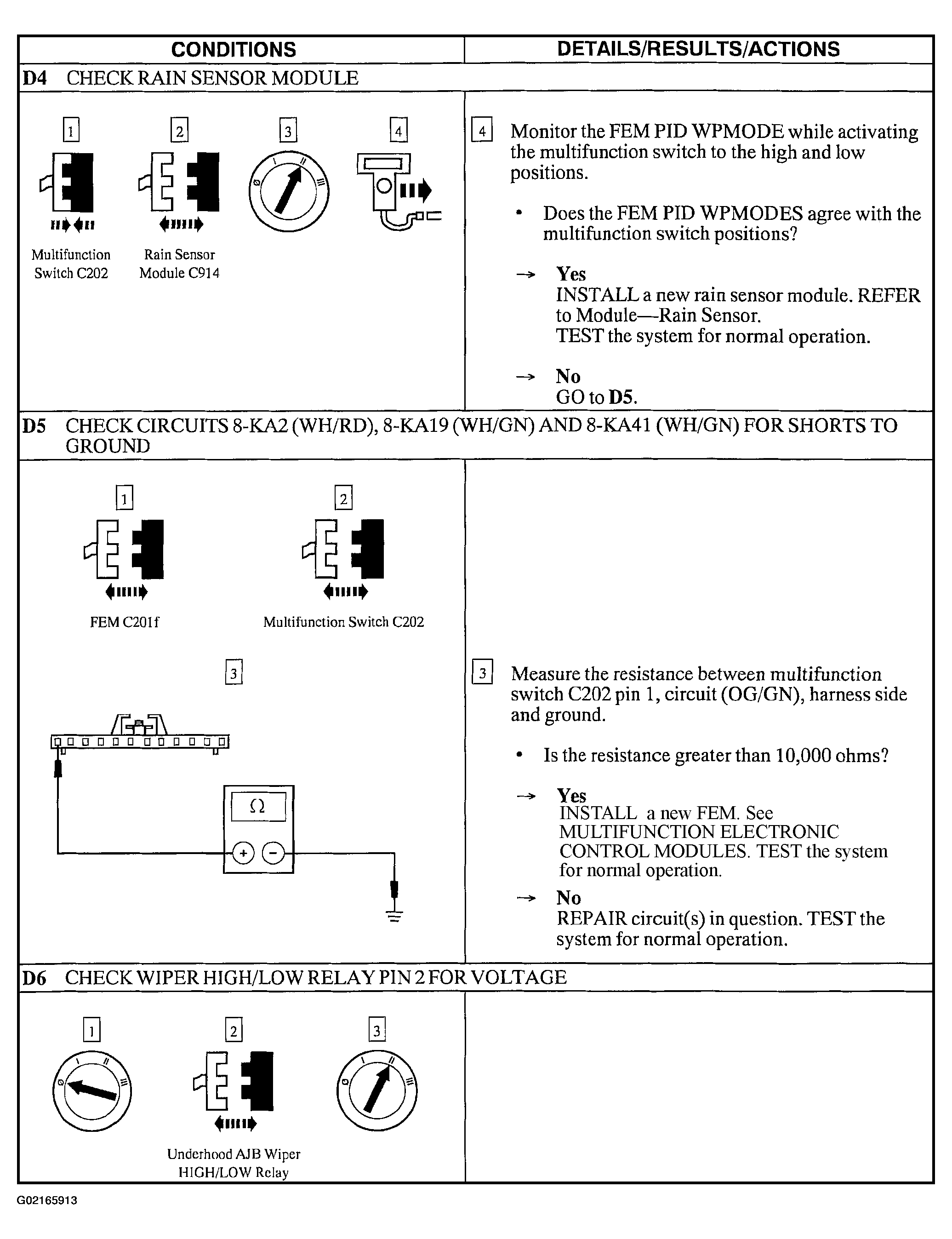

Fig 3: Pinpoint Test D: The High/Low Wiper Speeds Do Not Operate Correctly (Steps D4-D6)

Courtesy of FORD MOTOR CO.

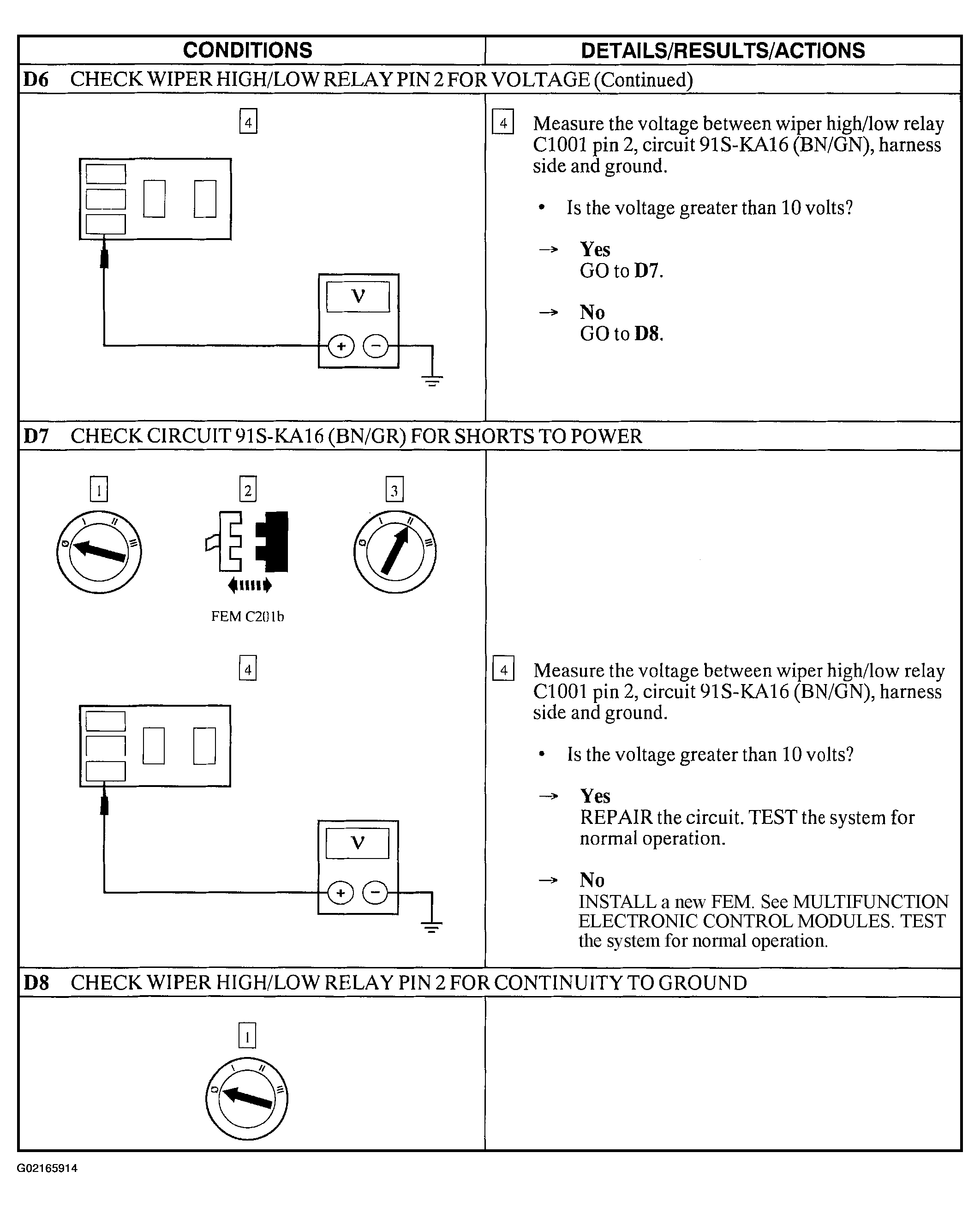

Fig 4: Pinpoint Test D: The High/Low Wiper Speeds Do Not Operate Correctly (Steps D6 Cont. -D8)

Courtesy of FORD MOTOR CO.

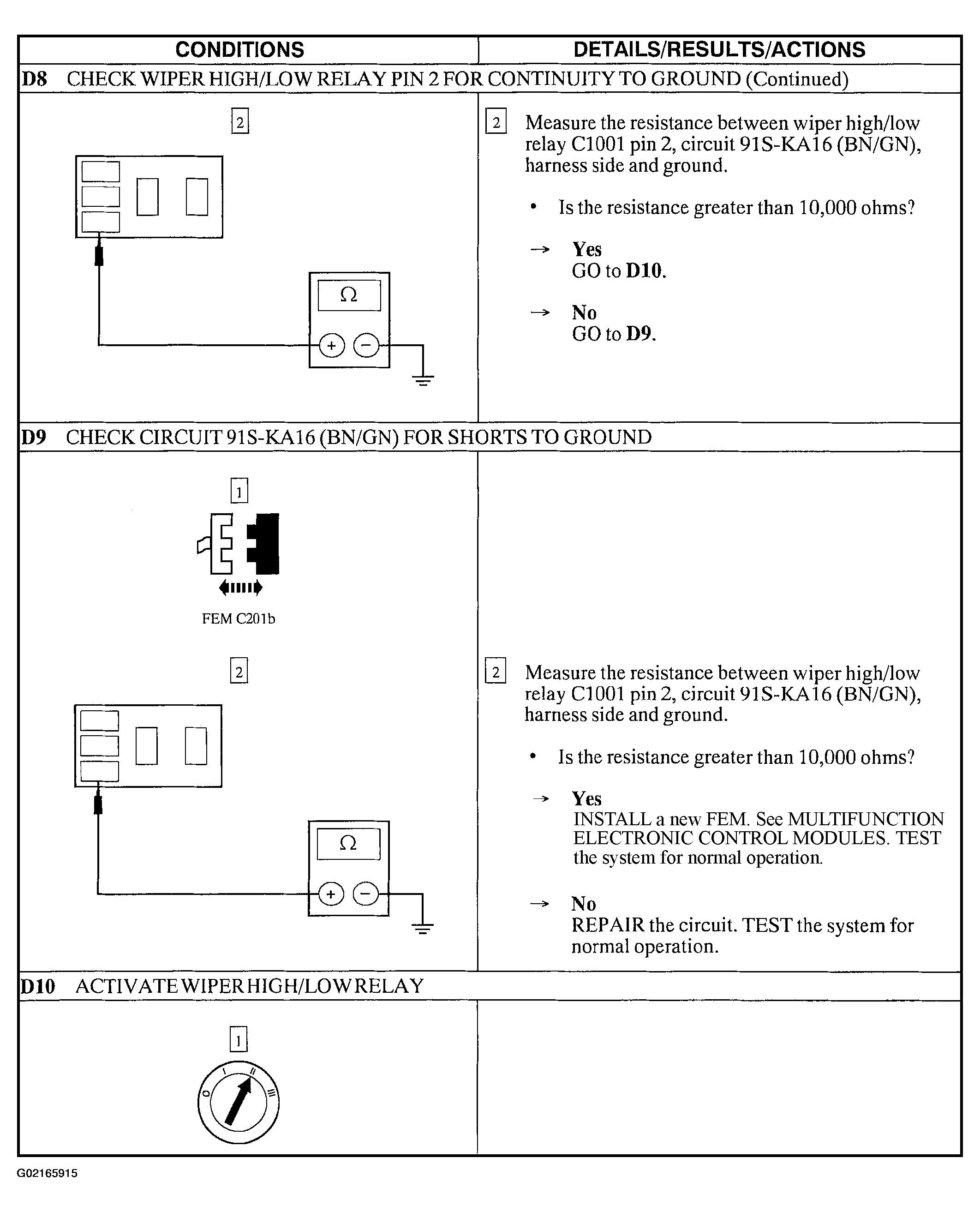

Fig 5: Pinpoint Test D: The High/Low Wiper Speeds Do Not Operate Correctly (Steps D8 Cont. -D10)

Courtesy of FORD MOTOR CO.

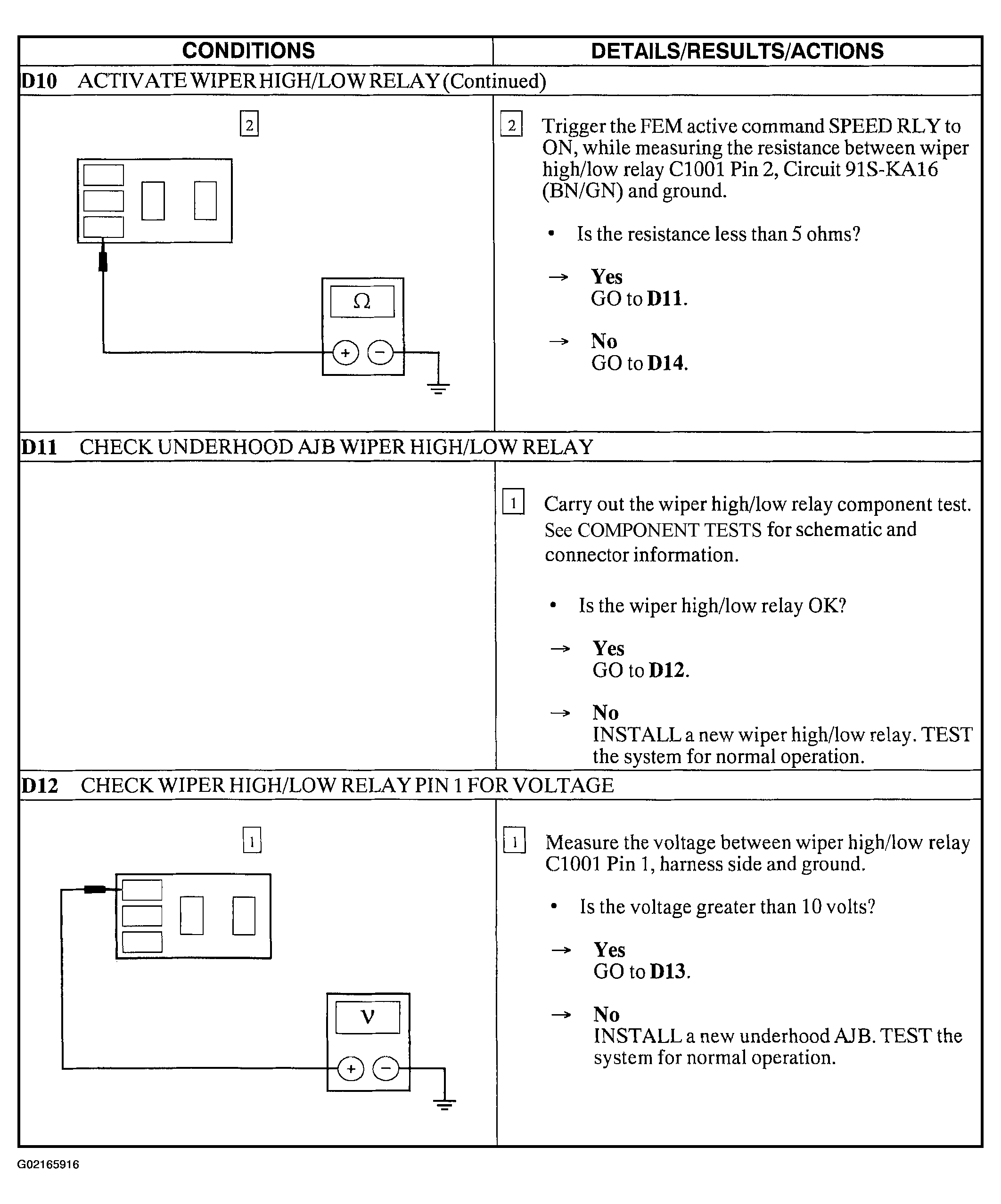

Fig 6: Pinpoint Test D: The High/Low Wiper Speeds Do Not Operate Correctly (Steps D10 Cont. -D12)

Courtesy of FORD MOTOR CO.

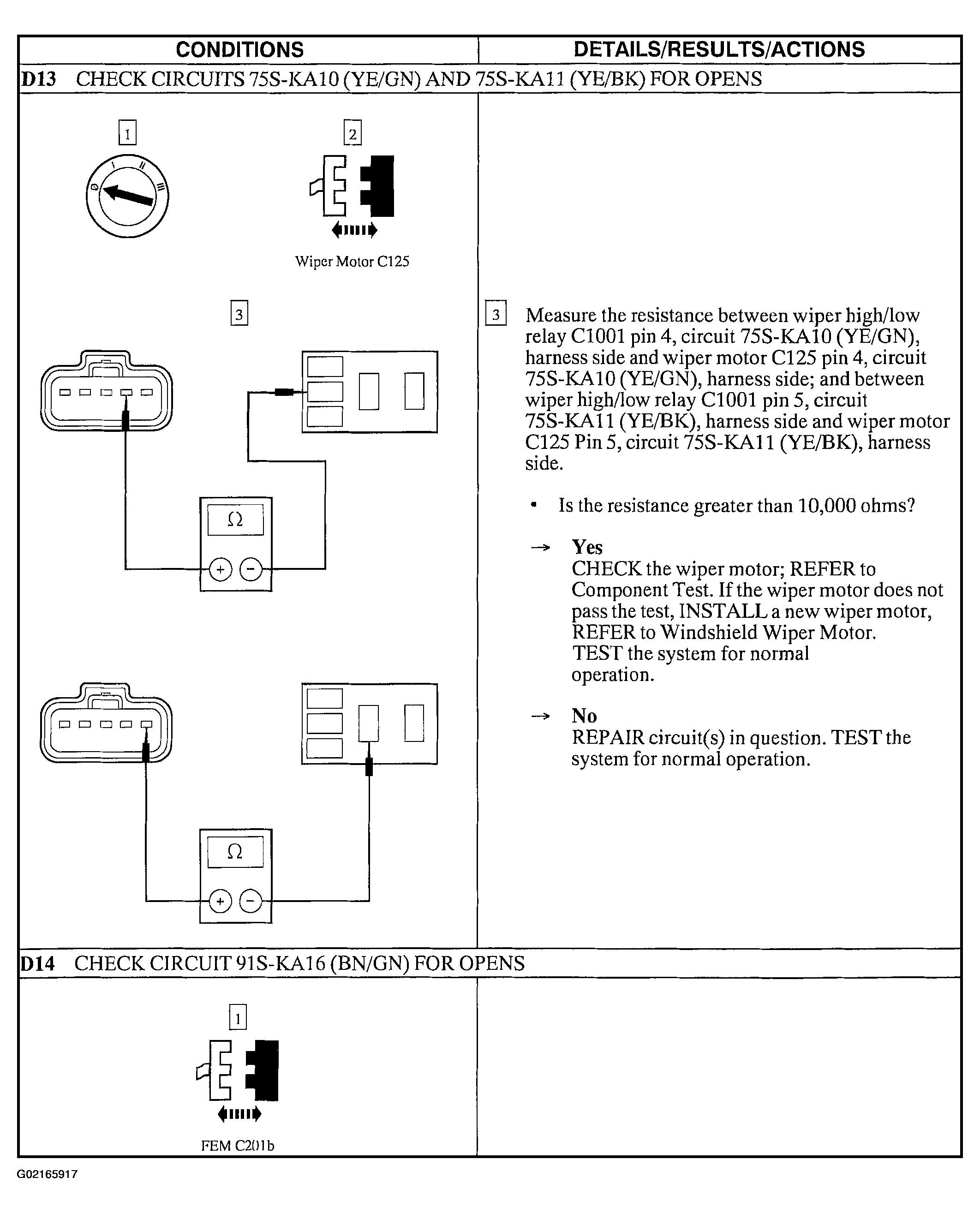

Fig 7: Pinpoint Test D: The High/Low Wiper Speeds Do Not Operate Correctly (Steps D13-D14)

Courtesy of FORD MOTOR CO.

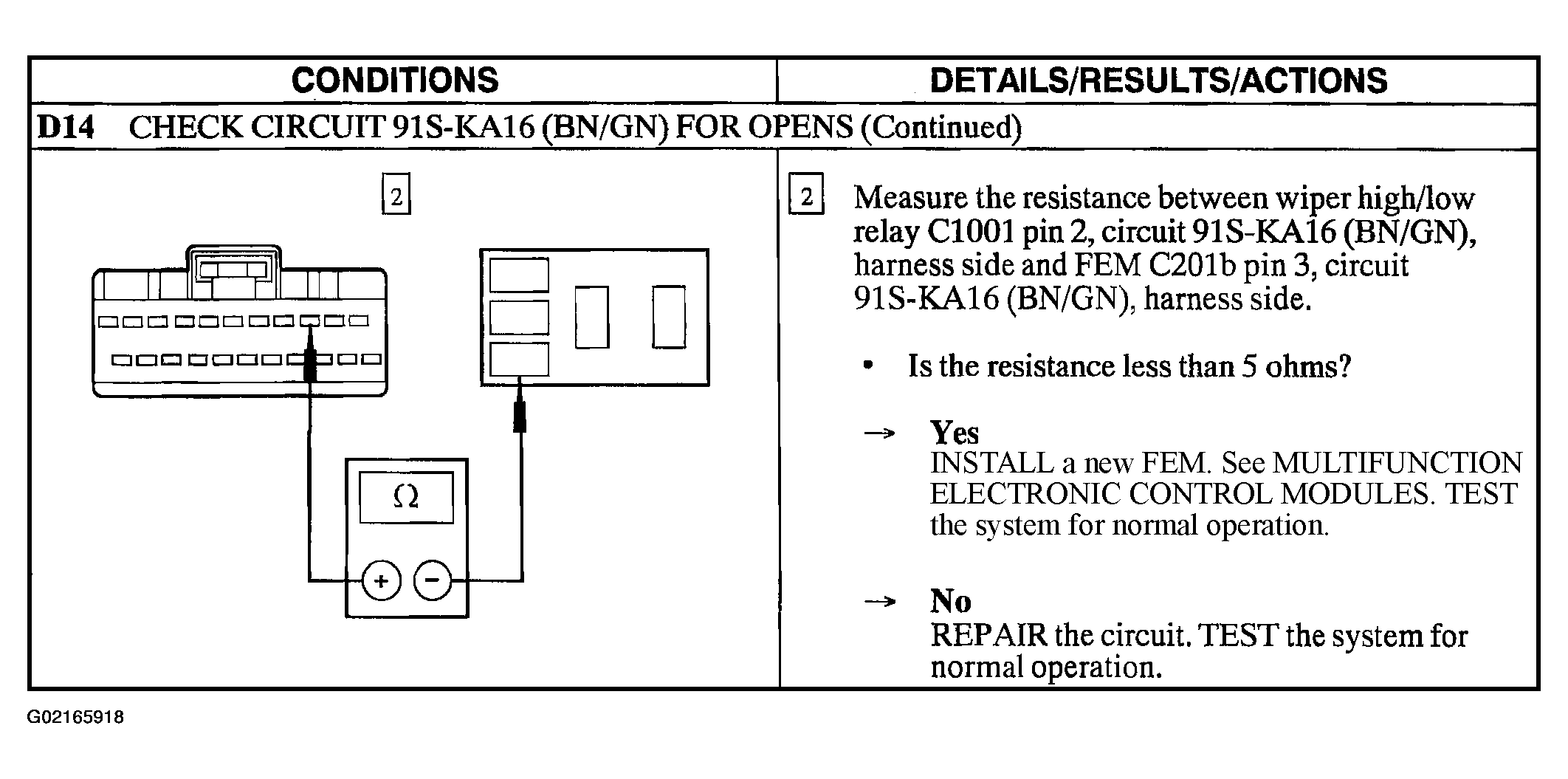

Fig 8: Pinpoint Test D: The High/Low Wiper Speeds Do Not Operate Correctly (Step D14 Cont.)

Courtesy of FORD MOTOR CO.
