Pinpoint Test C: The Wipers Stay On Continuously

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Electronic modules are sensitive to electrical charges. If exposed to these charges, damage may result.

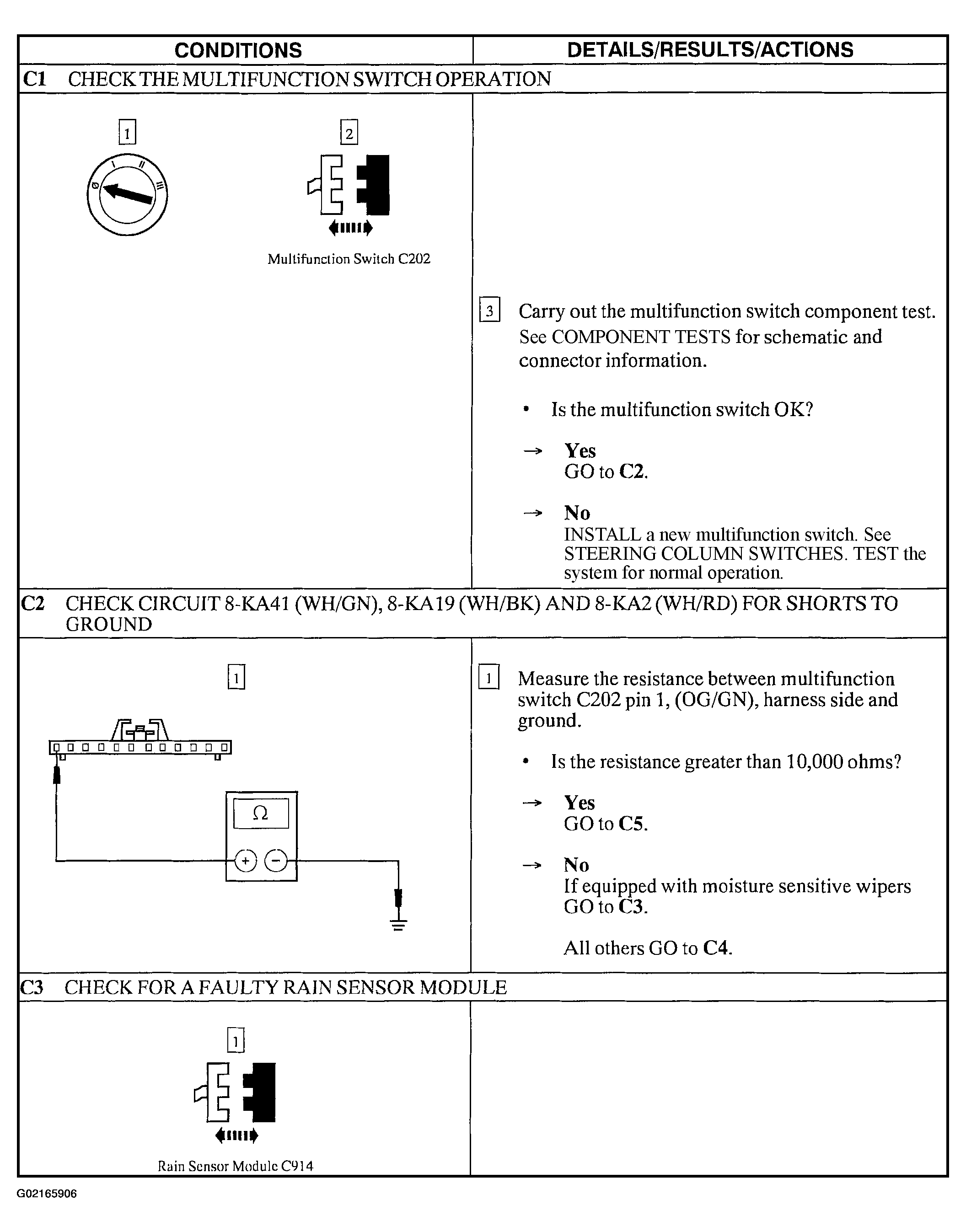

Fig 1: Pinpoint Test C: The Wipers Stay On Continuously (Steps C1-C3)

Courtesy of FORD MOTOR CO.

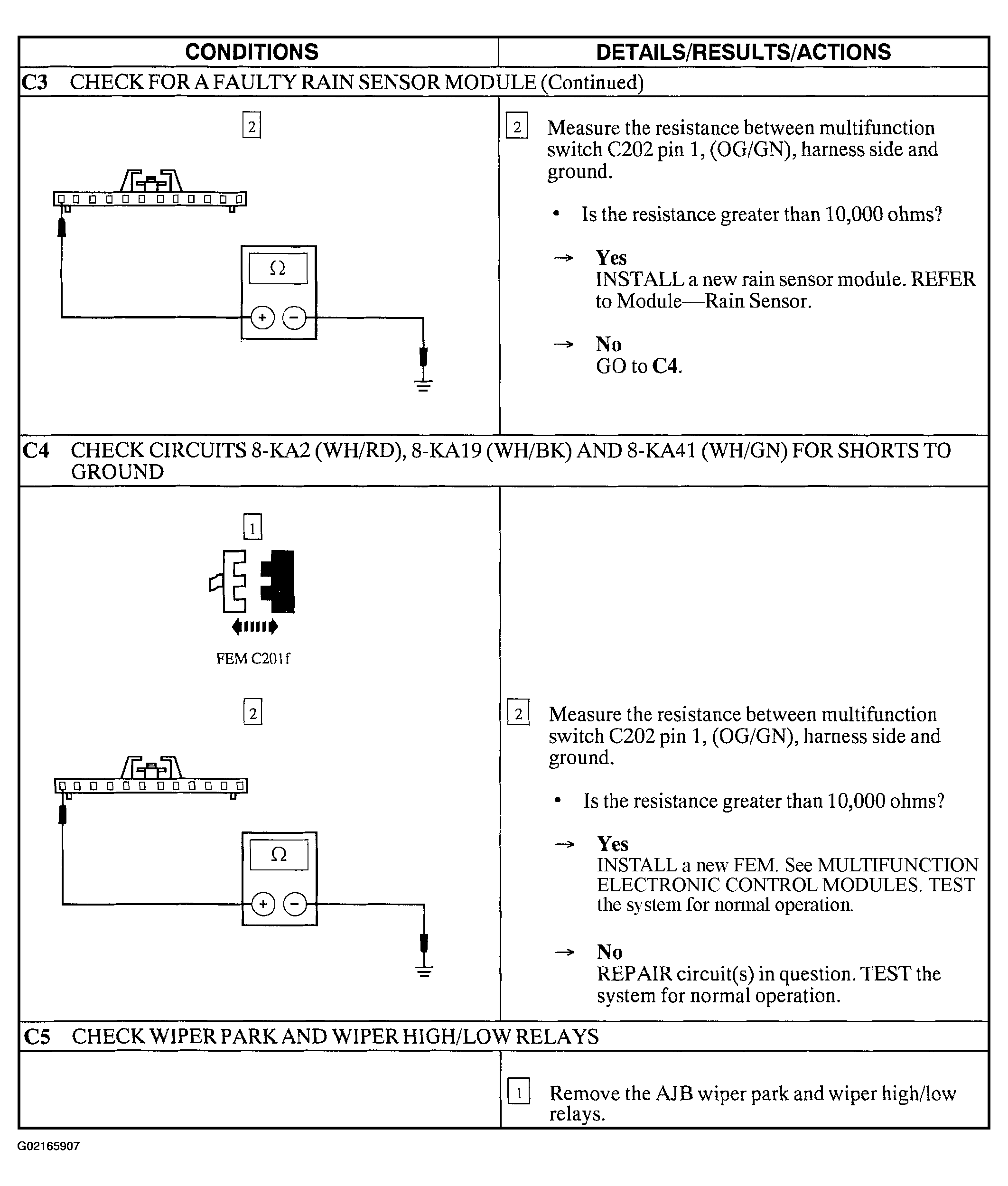

Fig 2: Pinpoint Test C: The Wipers Stay On Continuously (Steps C3 Cont. -C5)

Courtesy of FORD MOTOR CO.

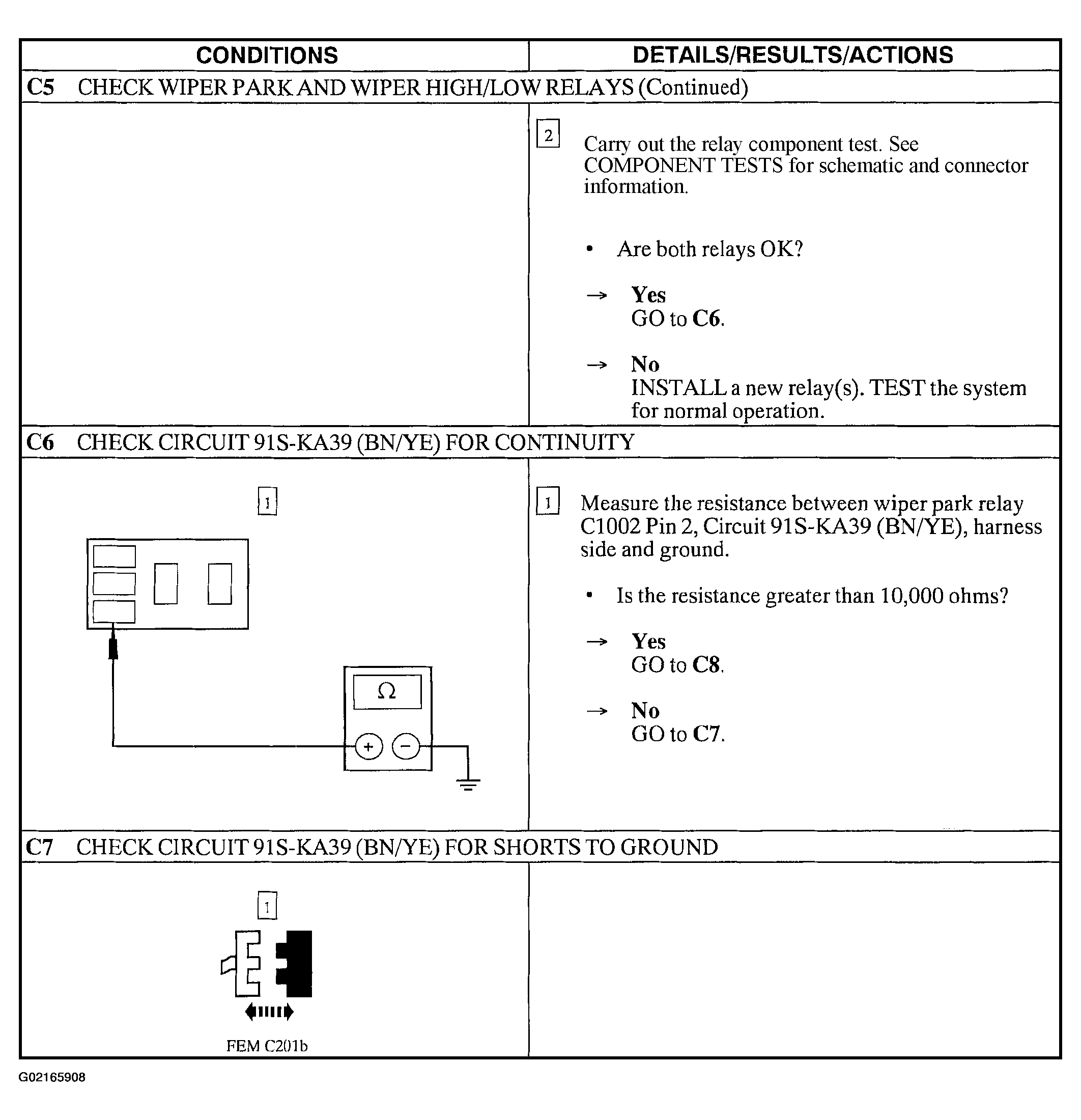

Fig 3: Pinpoint Test C: The Wipers Stay On Continuously (Steps C5 Cont. -C7)

Courtesy of FORD MOTOR CO.

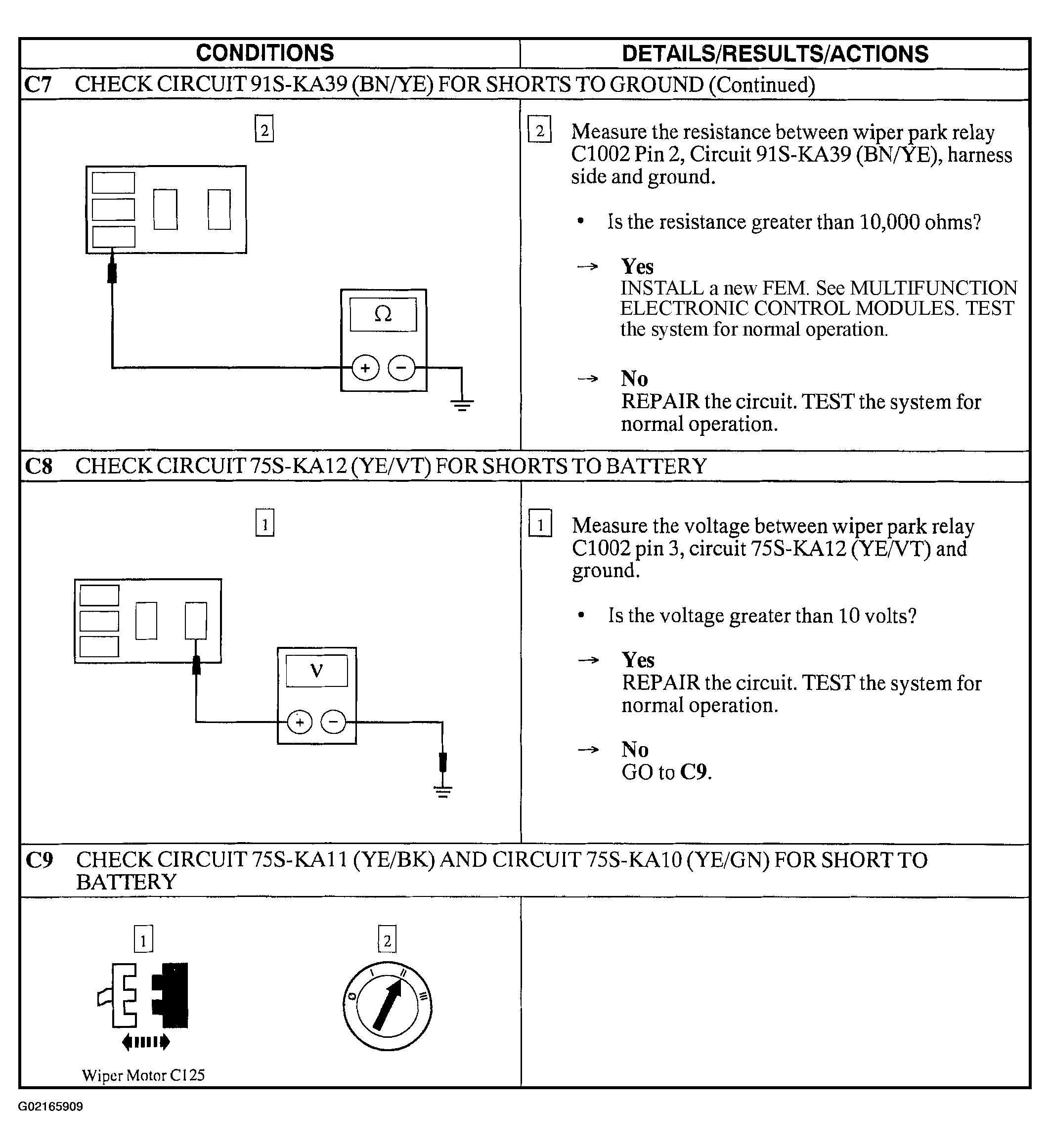

Fig 4: Pinpoint Test C: The Wipers Stay On Continuously (Steps C7 Cont. -C9)

Courtesy of FORD MOTOR CO.

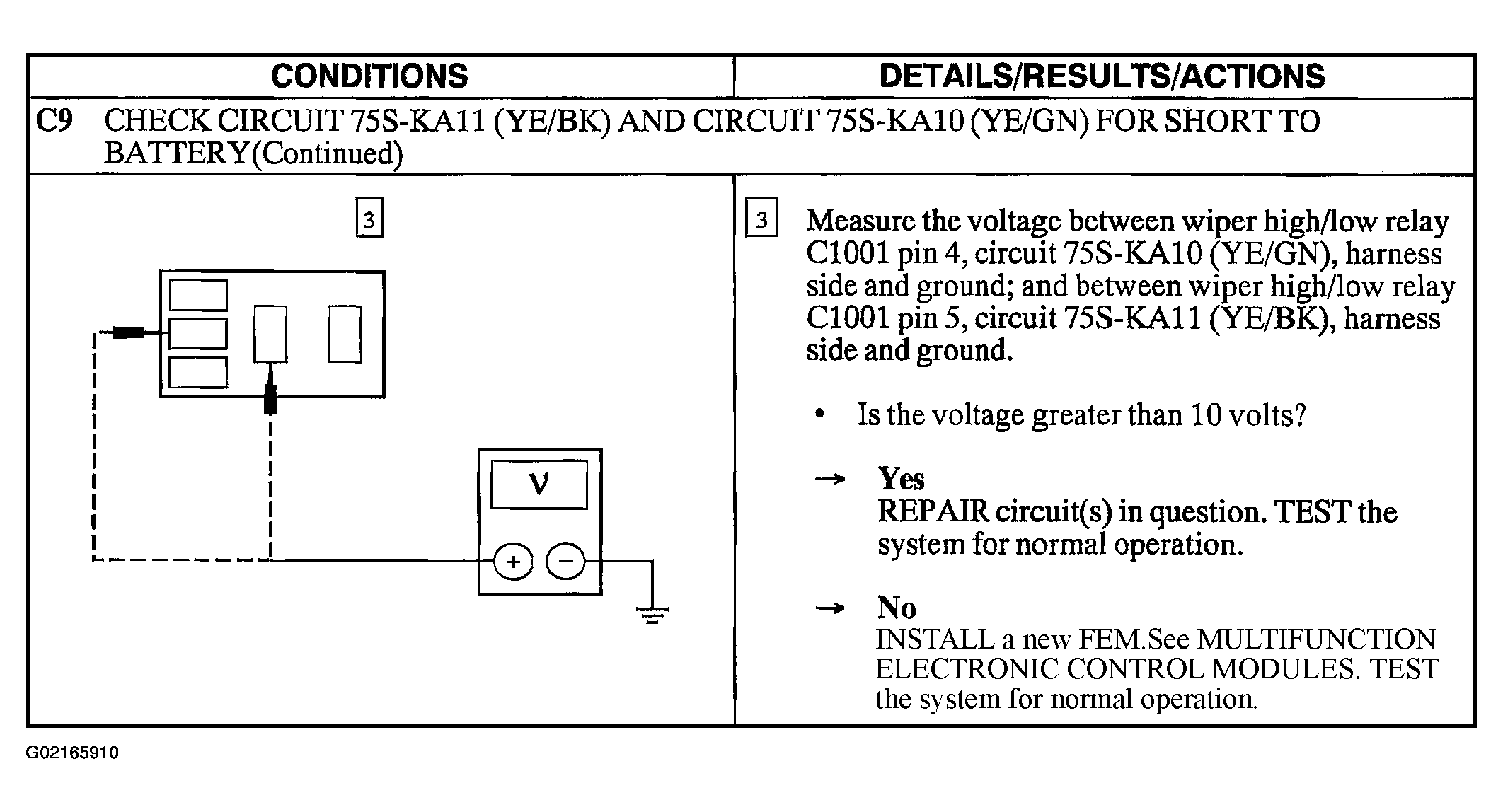

Fig 5: Pinpoint Test C: The Wipers Stay On Continuously (Step C9 Cont.)

Courtesy of FORD MOTOR CO.
