Pinpoint Test B: The Wipers Are Inoperative

WARNING: This page is about a different car, the 2002 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Electronic modules are sensitive to electrical charges. If exposed to these charges, damage may result.

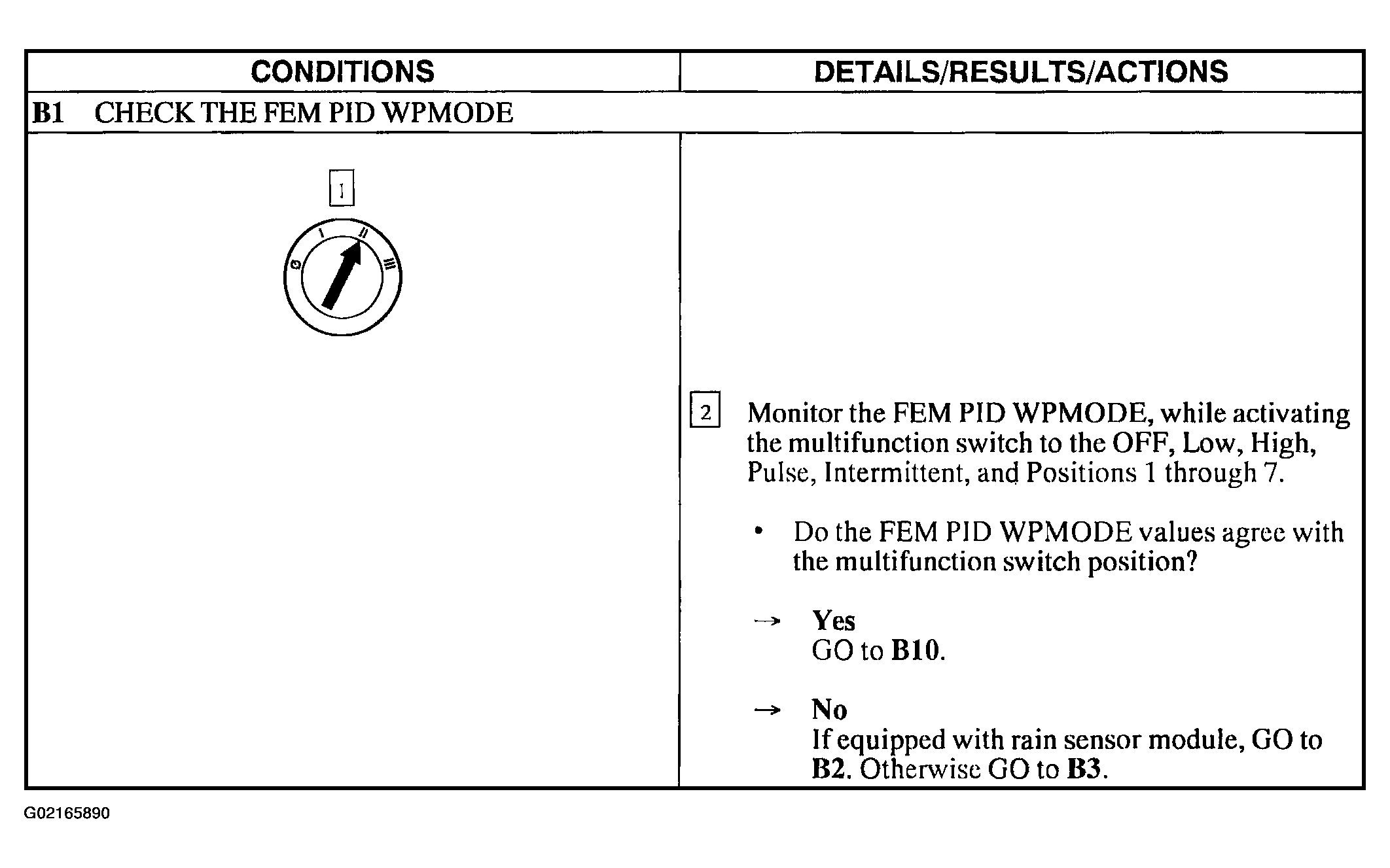

Fig 1: Pinpoint Test B: The Wipers Are Inoperative (Step B1)

Courtesy of FORD MOTOR CO.

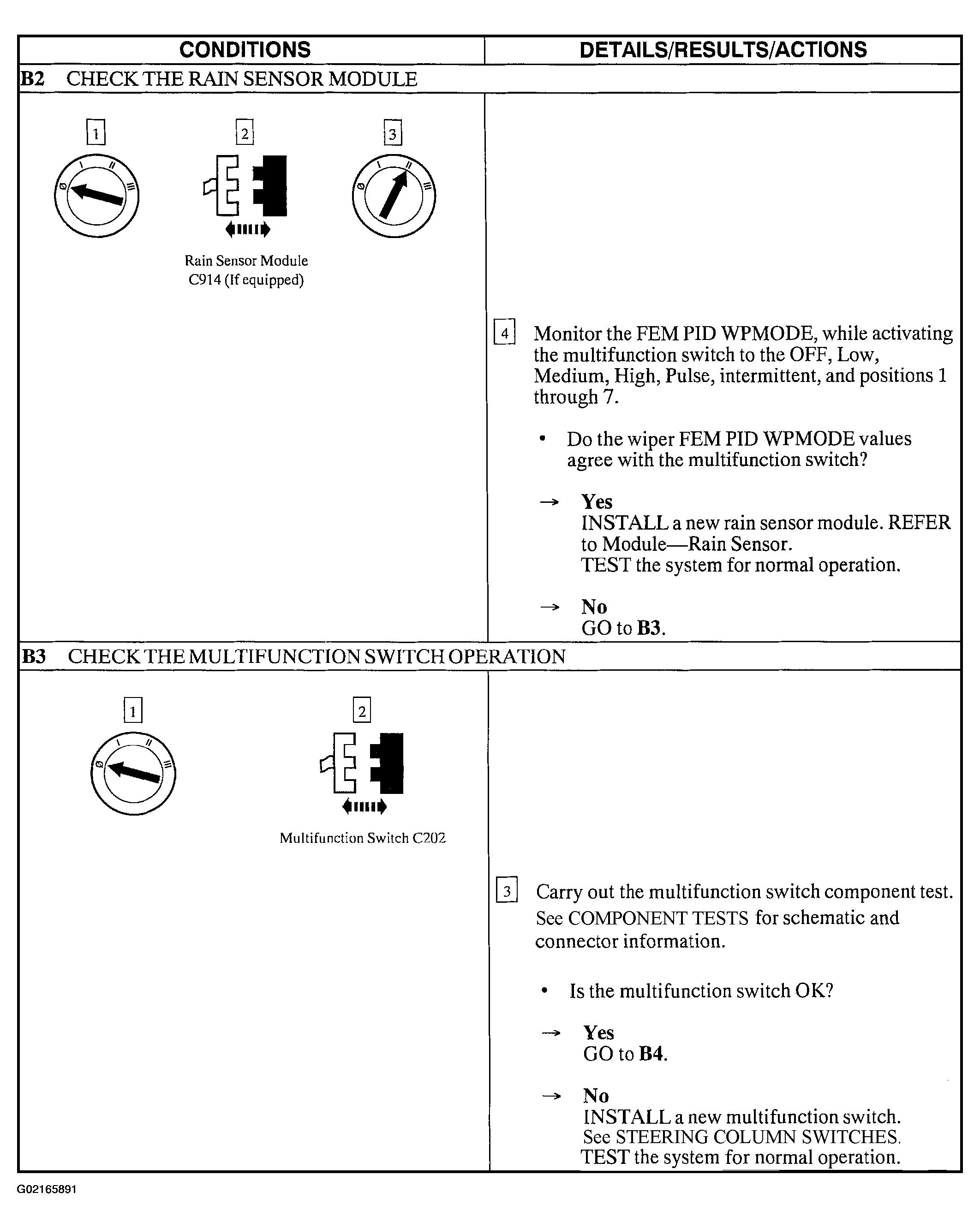

Fig 2: Pinpoint Test B: The Wipers Are Inoperative (Steps B2-B3)

Courtesy of FORD MOTOR CO.

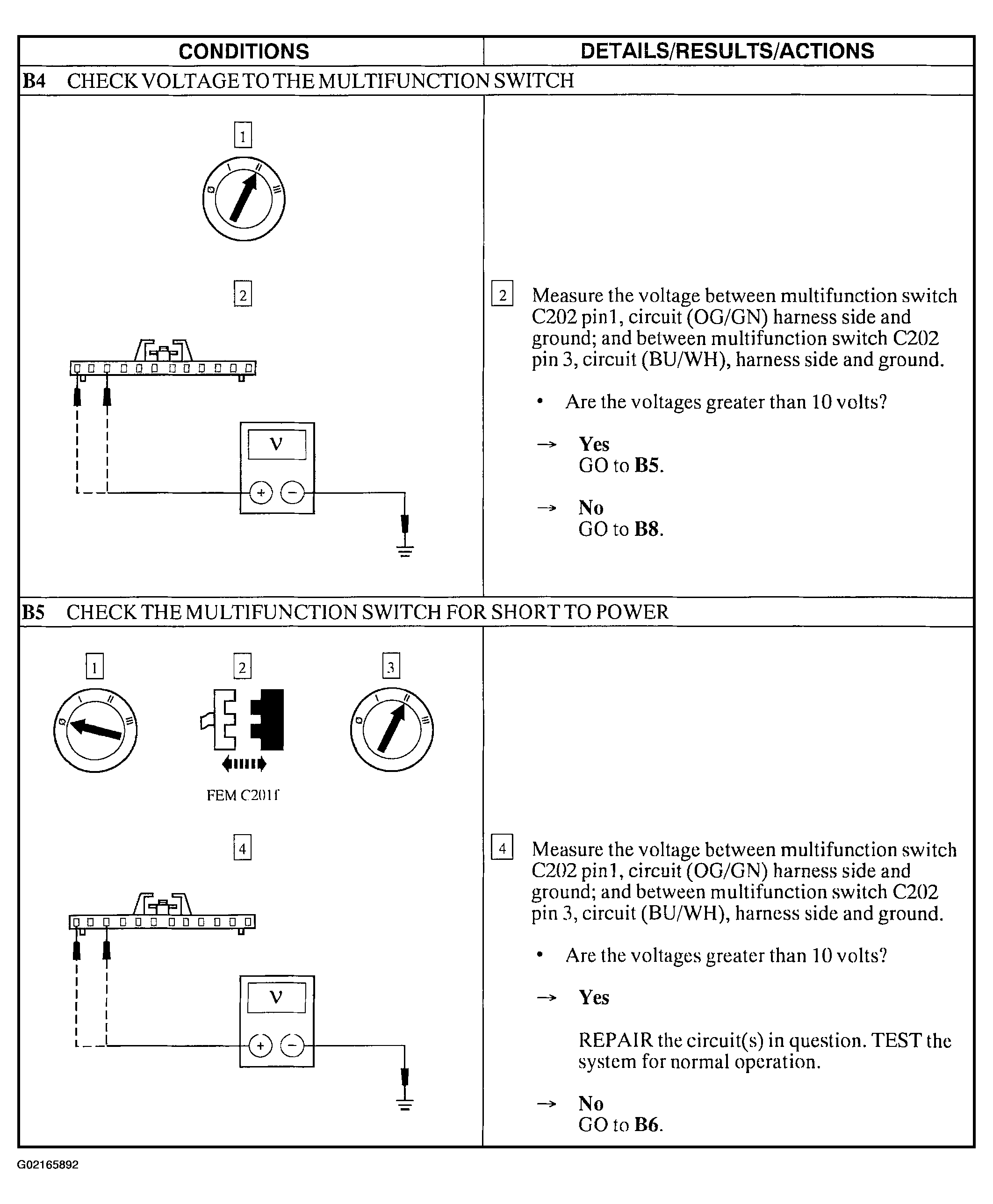

Fig 3: Pinpoint Test B: The Wipers Are Inoperative (Steps B4-B5)

Courtesy of FORD MOTOR CO.

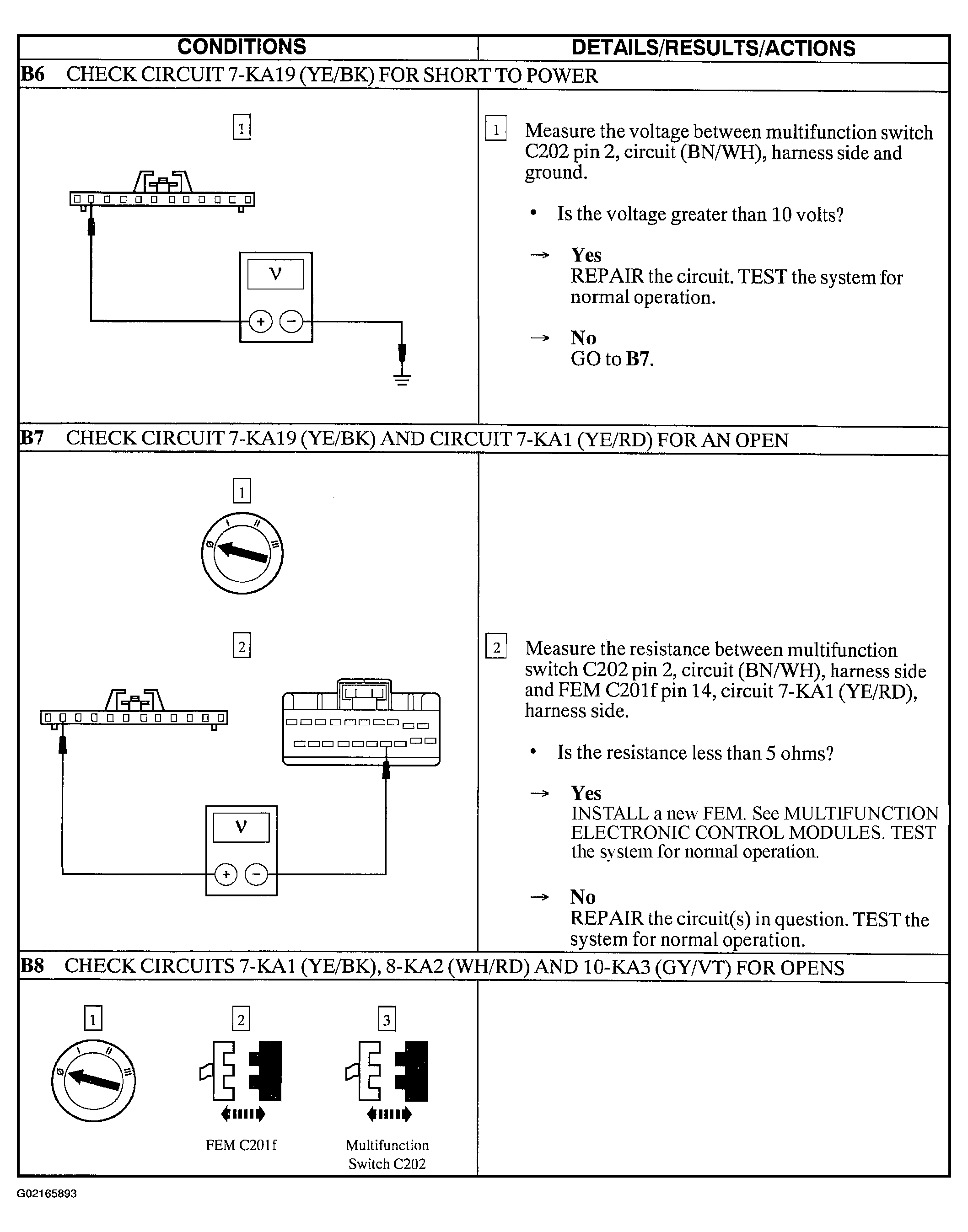

Fig 4: Pinpoint Test B: The Wipers Are Inoperative (Steps B6-B8)

Courtesy of FORD MOTOR CO.

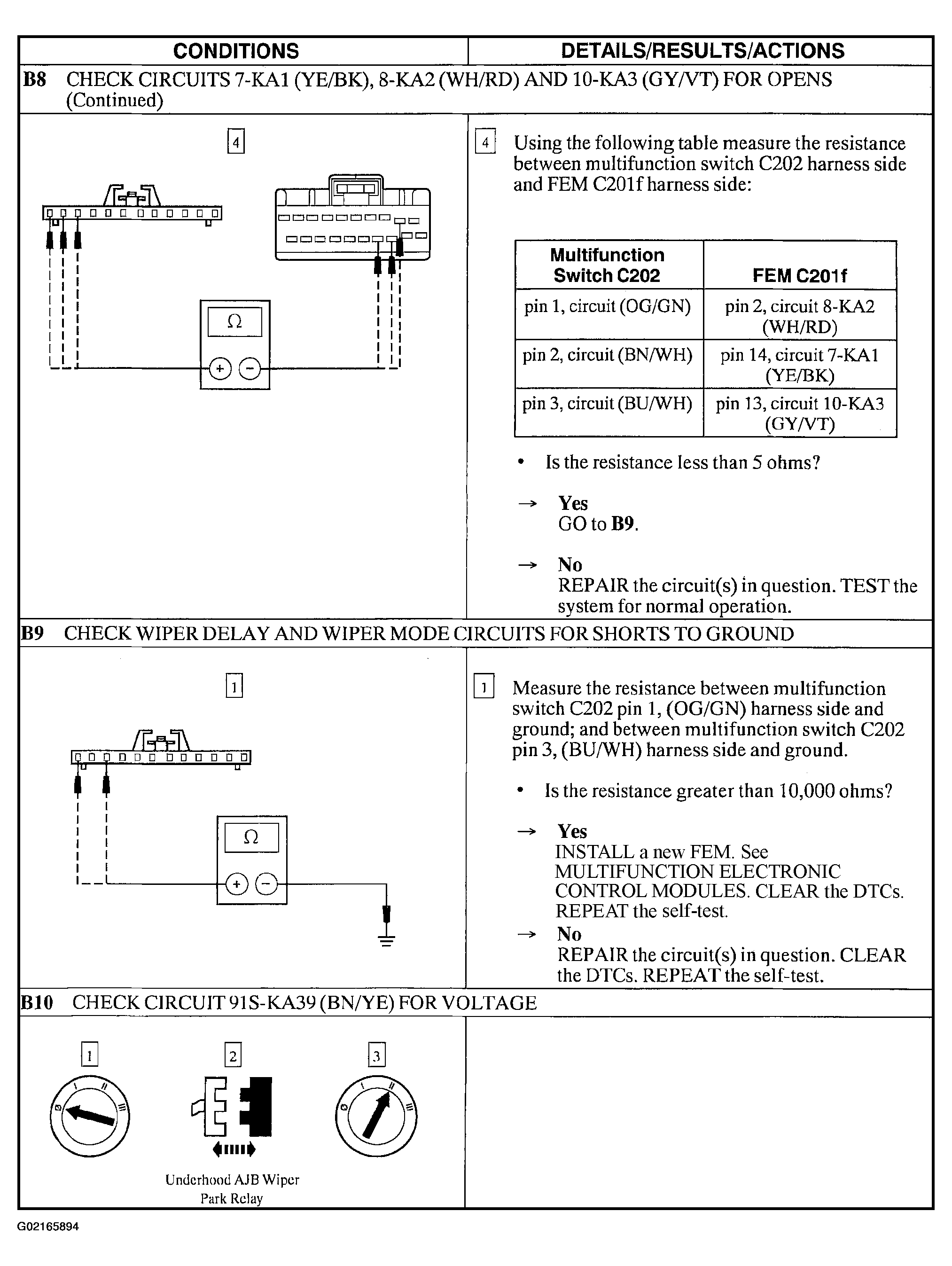

Fig 5: Pinpoint Test B: The Wipers Are Inoperative (Steps B8 Cont. -B10)

Courtesy of FORD MOTOR CO.

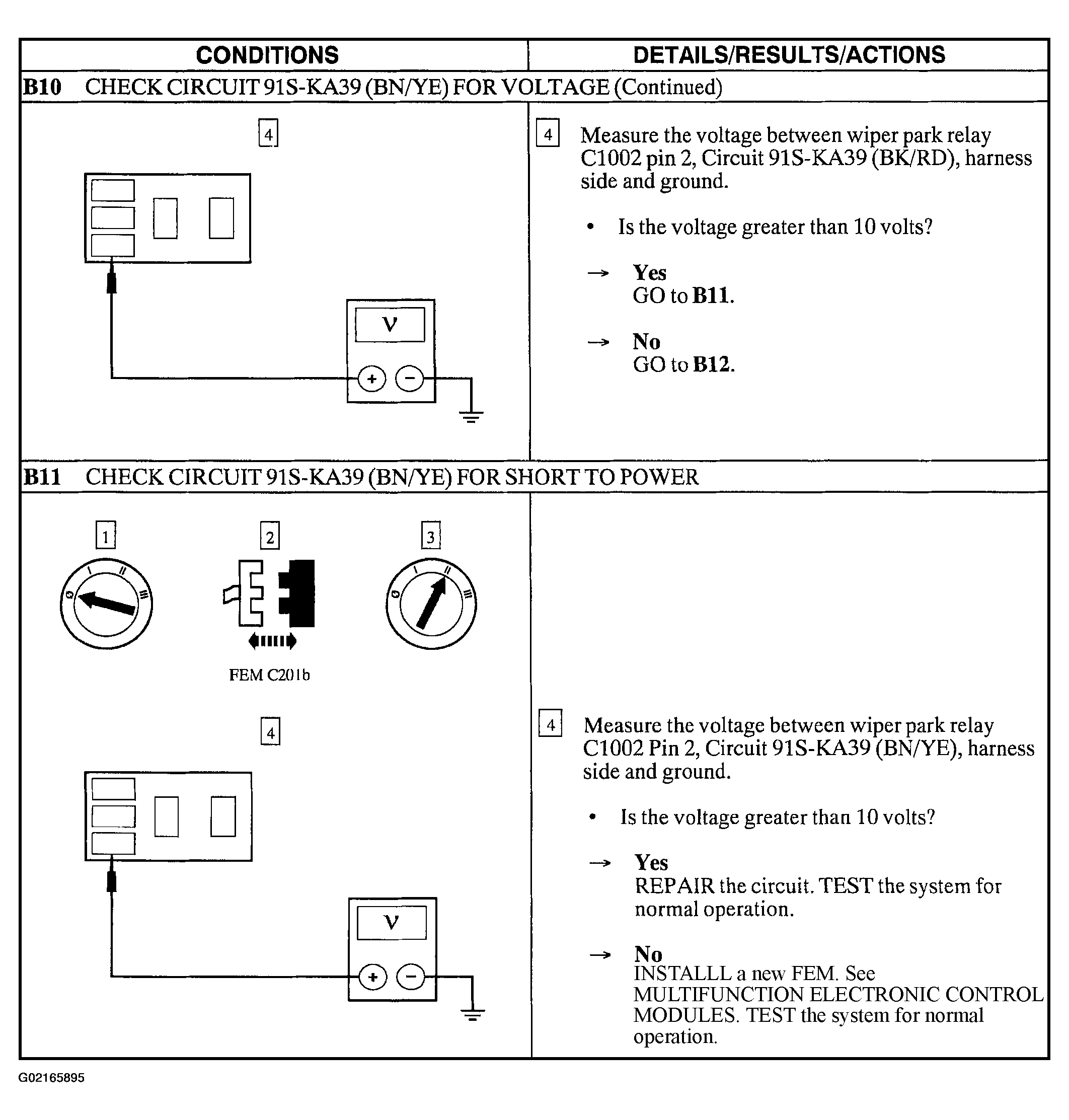

Fig 6: Pinpoint Test B: The Wipers Are Inoperative (Steps B10 Cont. -B11)

Courtesy of FORD MOTOR CO.

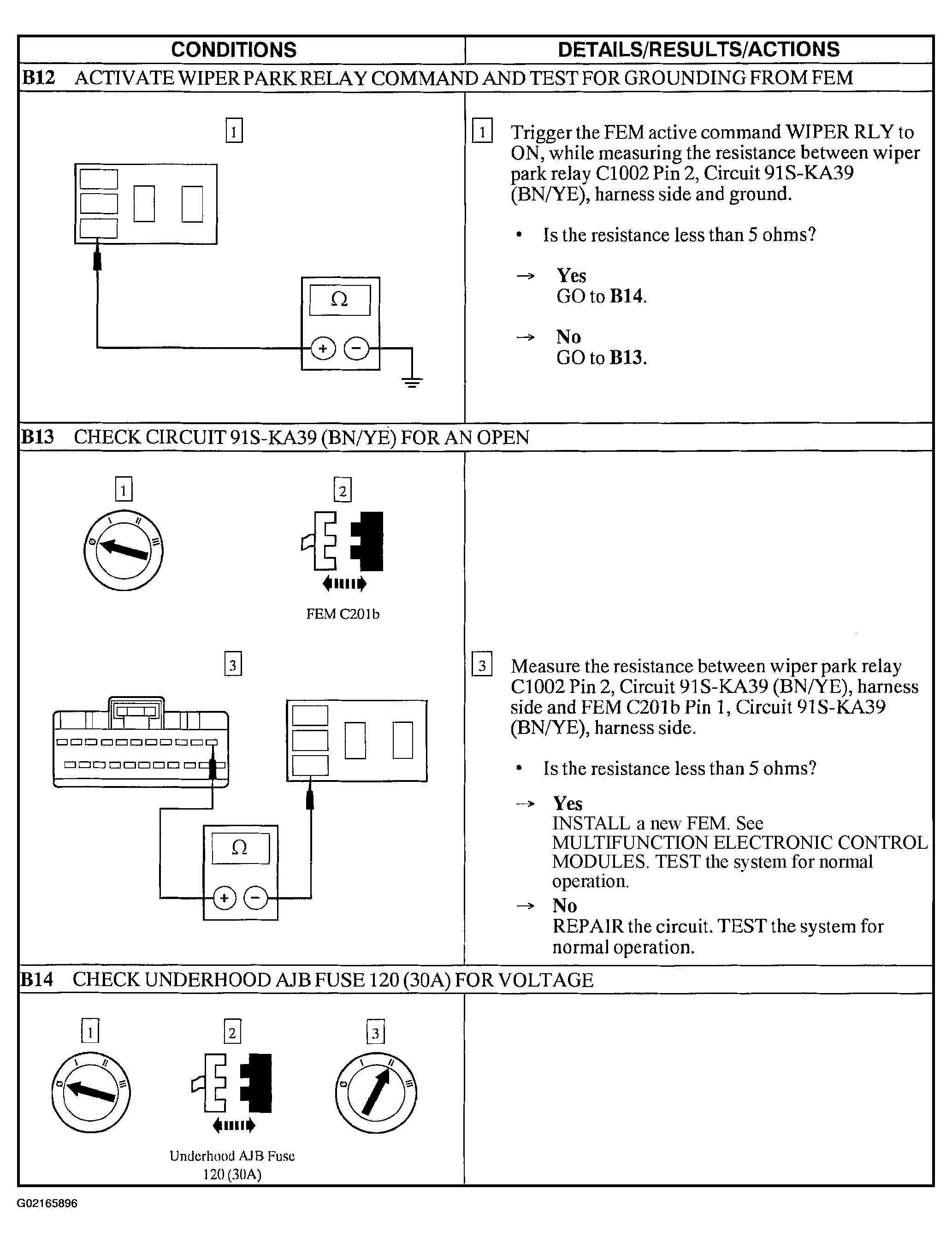

Fig 7: Pinpoint Test B: The Wipers Are Inoperative (Steps B12-B14)

Courtesy of FORD MOTOR CO.

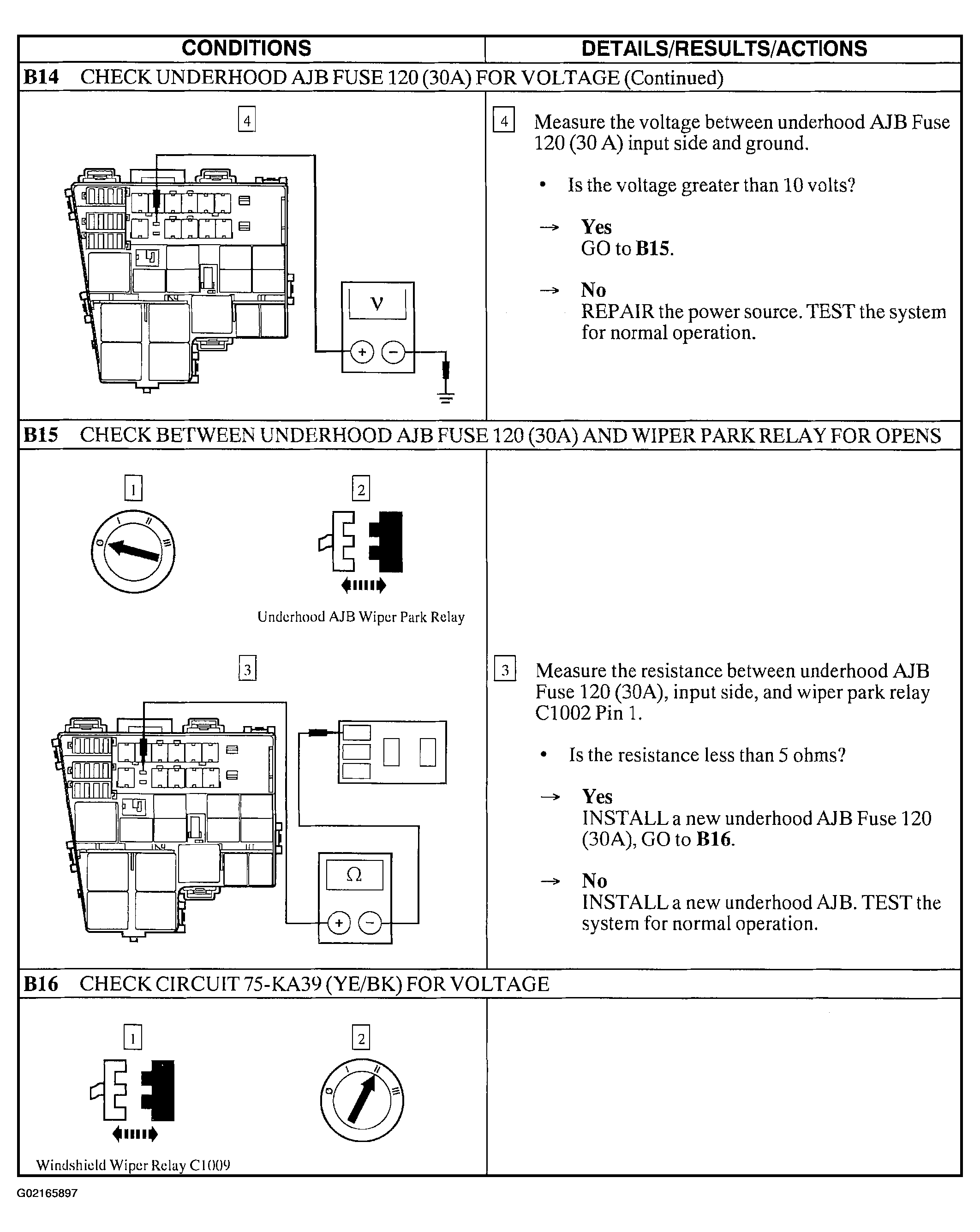

Fig 8: Pinpoint Test B: The Wipers Are Inoperative (Steps B14 Cont. -B16)

Courtesy of FORD MOTOR CO.

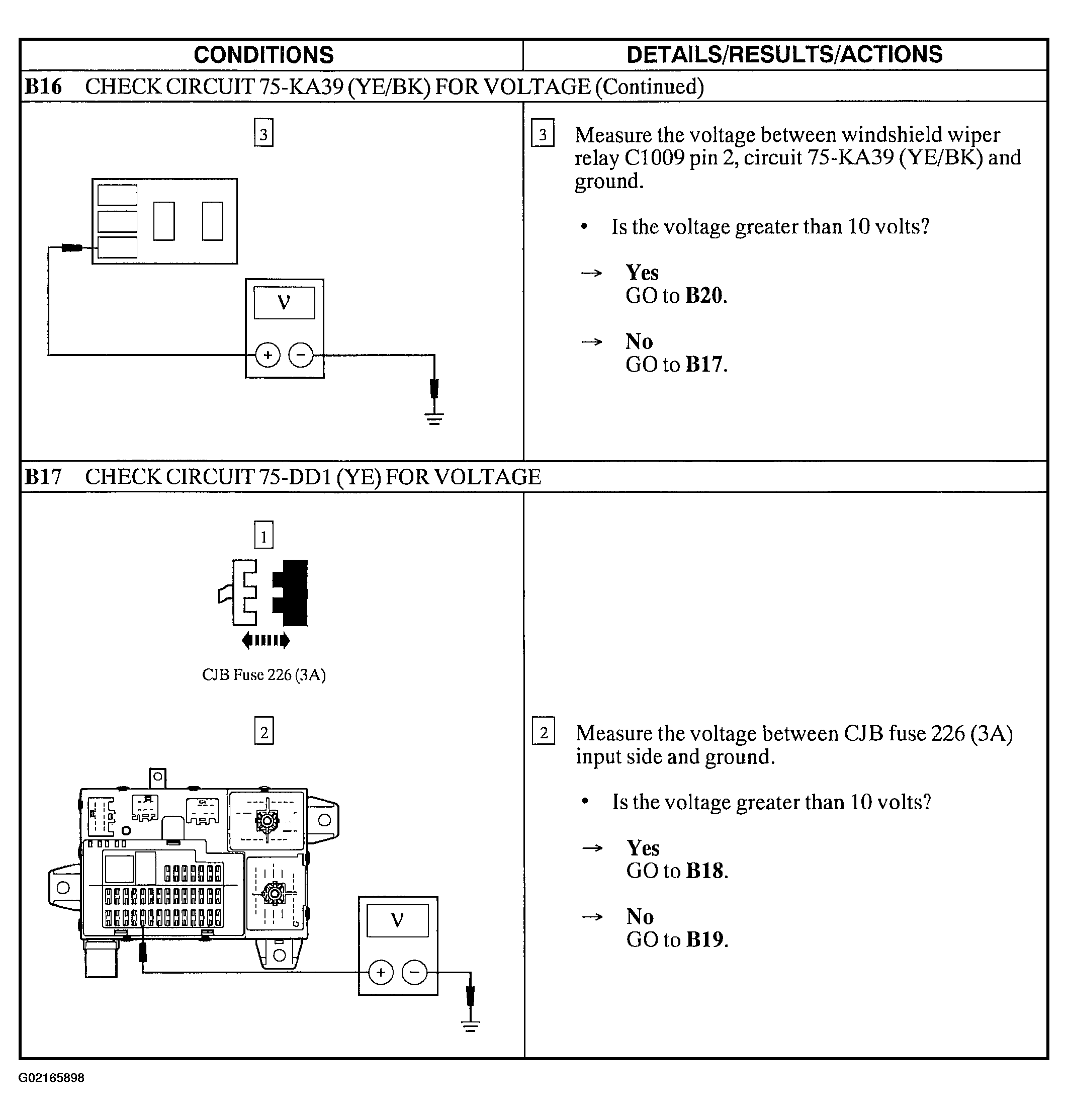

Fig 9: Pinpoint Test B: The Wipers Are Inoperative (Steps 16 Cont. -B17)

Courtesy of FORD MOTOR CO.

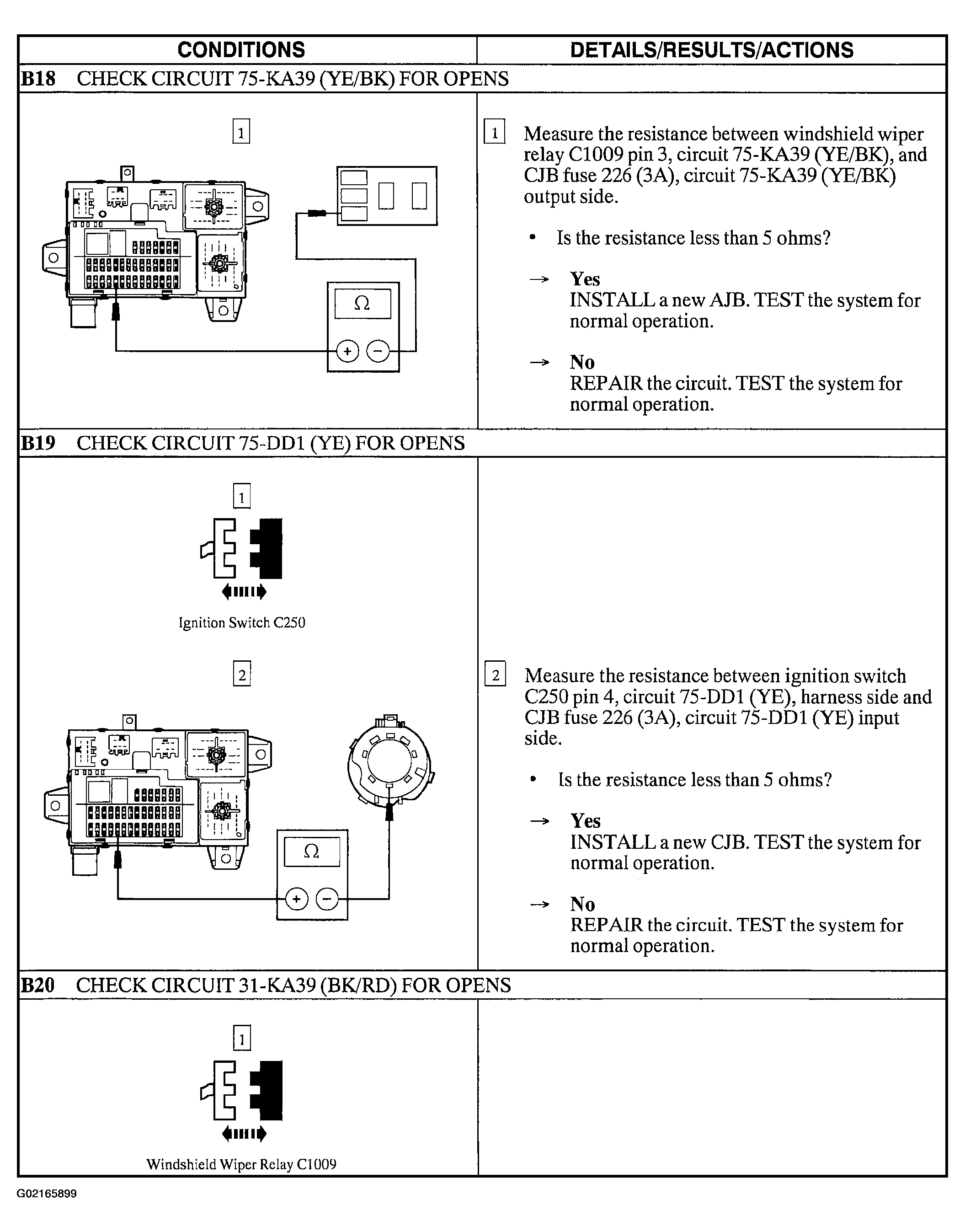

Fig 10: Pinpoint Test B: The Wipers Are Inoperative (Steps B18-B20)

Courtesy of FORD MOTOR CO.

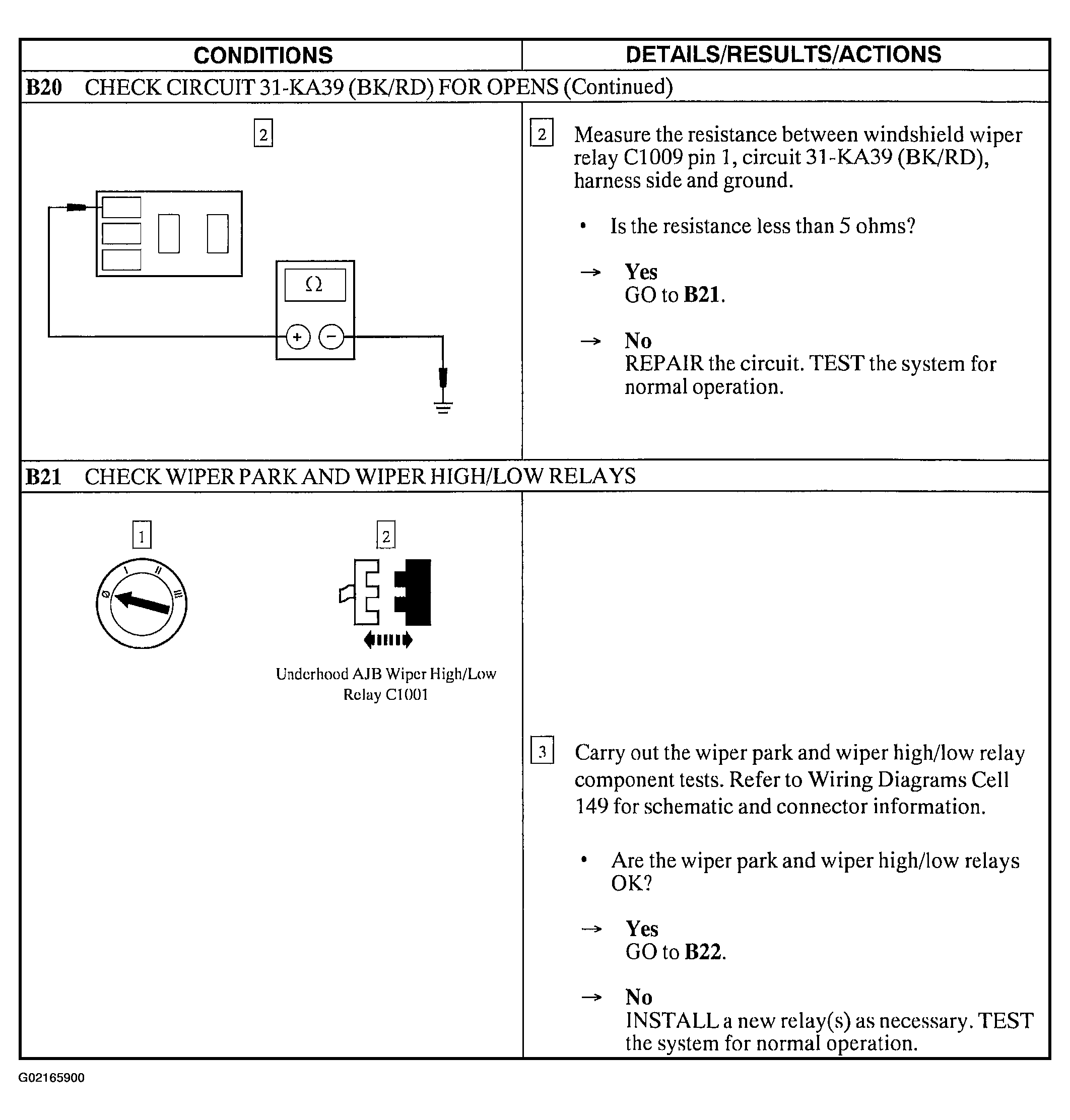

Fig 11: Pinpoint Test B: The Wipers Are Inoperative (Steps B20 Cont. -B21)

Courtesy of FORD MOTOR CO.

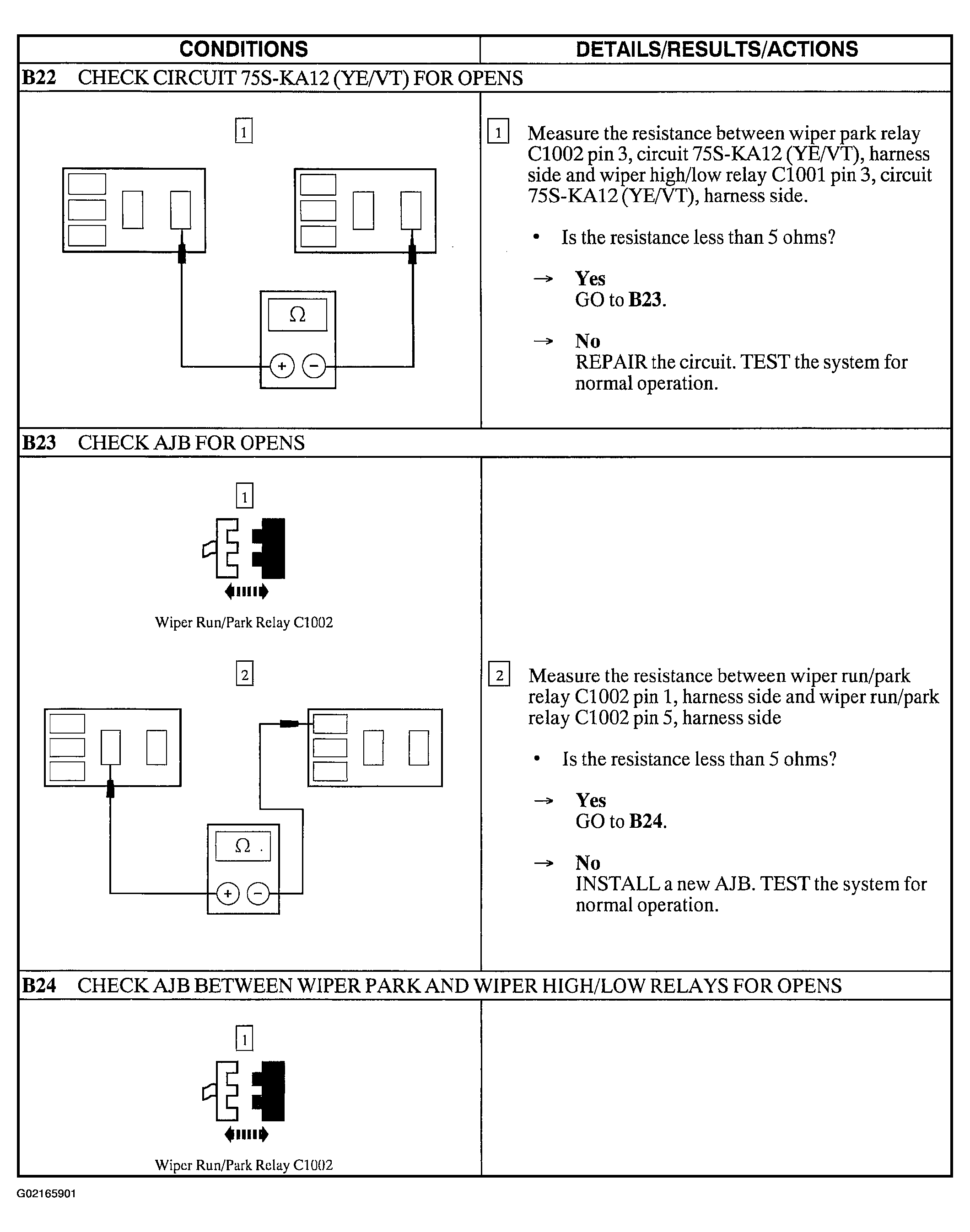

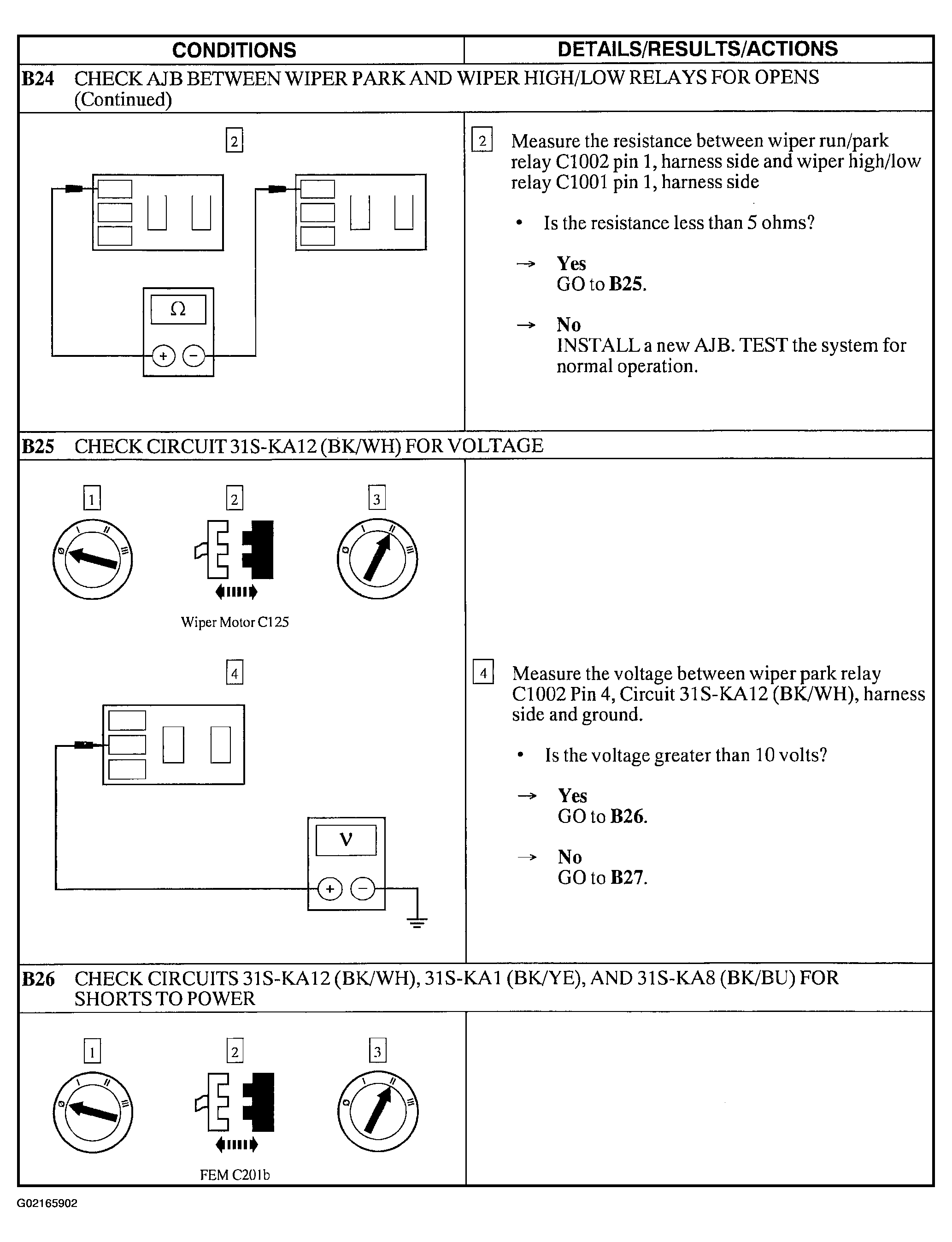

Fig 12: Pinpoint Test B: The Wipers Are Inoperative (Steps B22-B24)

Courtesy of FORD MOTOR CO.

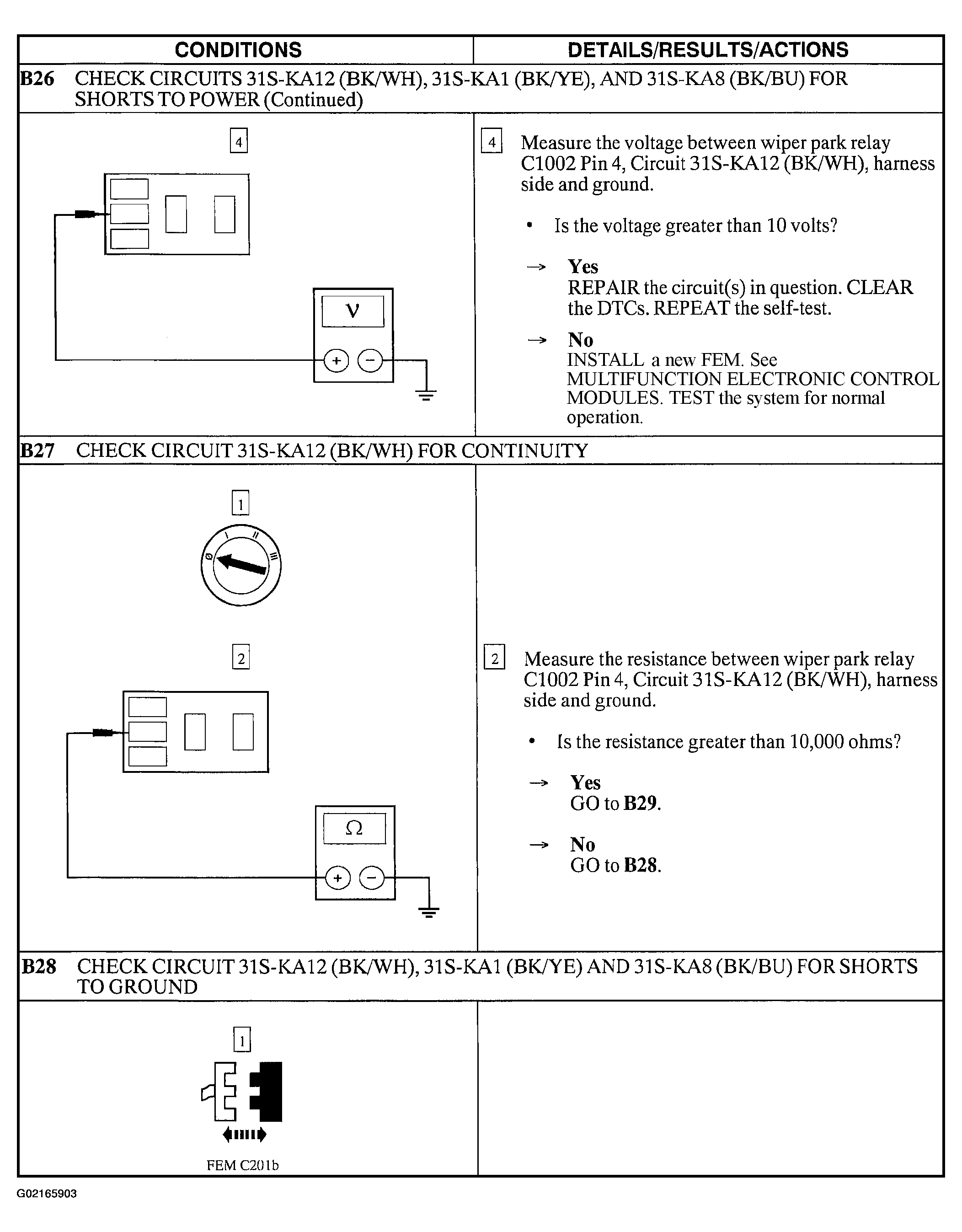

Fig 13: Pinpoint Test B: The Wipers Are Inoperative (Steps B24 Cont. -B26)

Courtesy of FORD MOTOR CO.

Fig 14: Pinpoint Test B: The Wipers Are Inoperative (Steps B26 Cont. -B28)

Courtesy of FORD MOTOR CO.

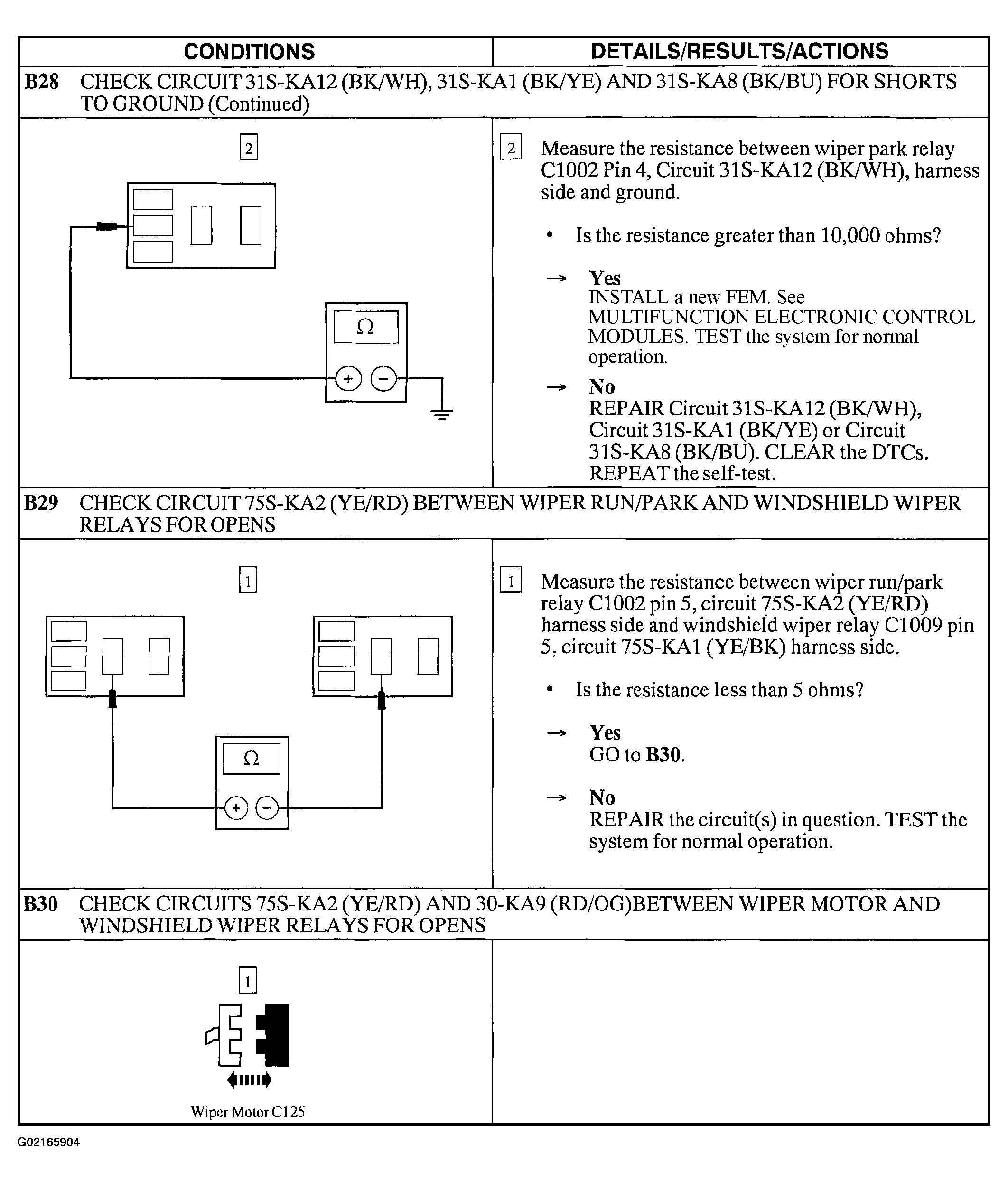

Fig 15: Pinpoint Test B: The Wipers Are Inoperative (Steps B28 Cont. -B30)

Courtesy of FORD MOTOR CO.

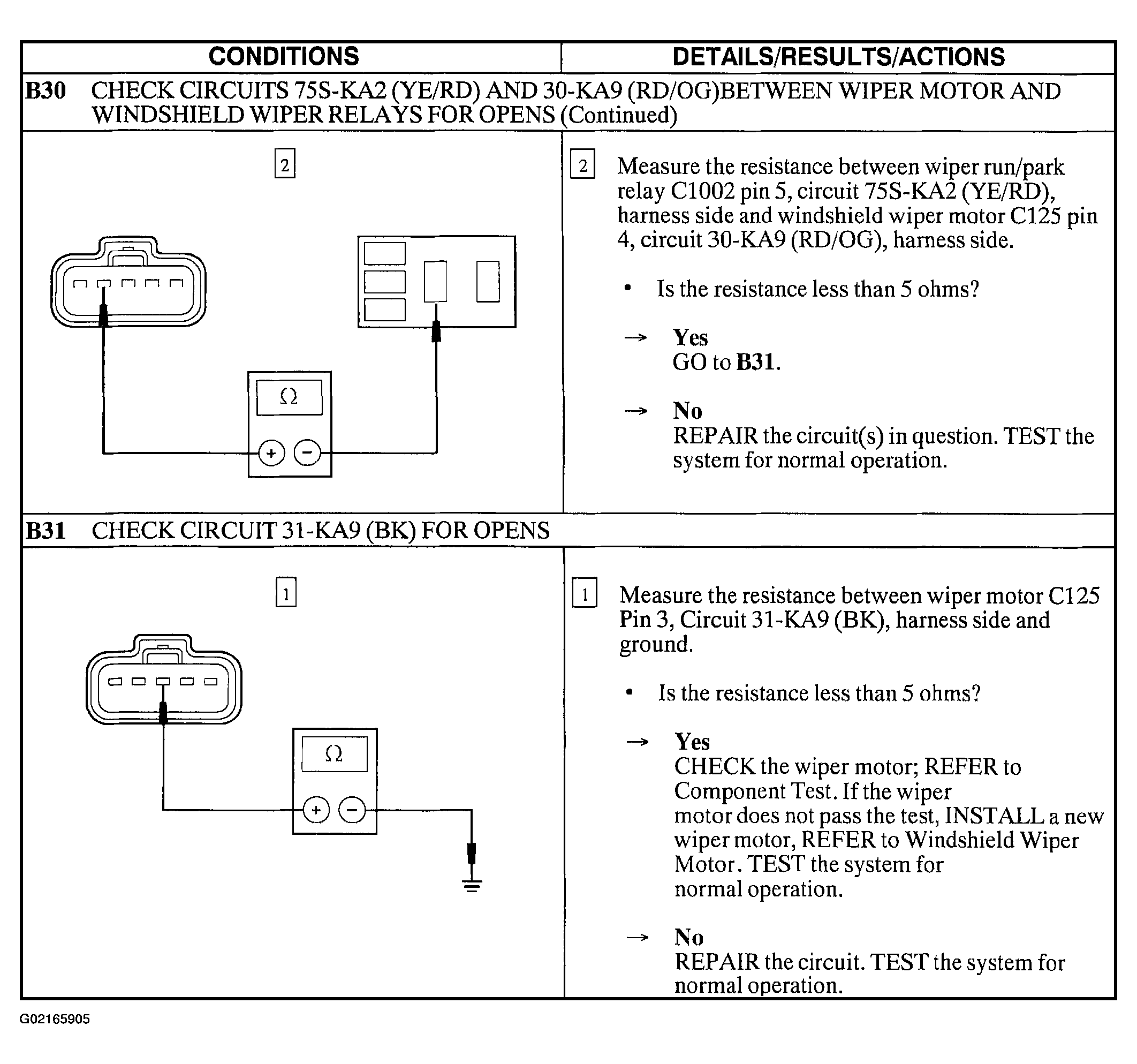

Fig 16: Pinpoint Test B: The Wipers Are Inoperative (Steps B30 Cont. -B31)

Courtesy of FORD MOTOR CO.
